Ross Rgcs38cc Manual de usuario

Protect yourself and others by observing all safety information, warnings, and cautions. Failure to

comply with instructions could result in personal injury and/or damage to product or property.

Please retain instructions for future reference!

RGCS38CC

ROSSGARDEN

38CC 16INCH

CHAINSAW

SPECIFICATIONS

Engine displacement

Maximum engine capacity

Maximum speed with cutting

equipment

Idling speed

Fuel Tank capacity

Fuel/Oil Mix Ratio

Chain Oil tank capacity 210 ml

Bar Type

Bar length

Chain type

Weight with bar and chain

Vibration @ Front handle

Vibration @ Read handle

Spark Plug gap

Spark plugs;

HUADE

Champion

BOSCH

NGK

37.2 cm3

1.2 kW

10000 rpm

3000 rpm

310 ml

25:1

210 ml

OREGAN

16”

OREGAN 91P

5.1Kg

8.01m/s2

6.35m/s2

0.6 - 0.7mm

L8RTF

CJ-6Y

WS7F

BPM7A

INDEX PAGE

SPECIFICATIONS 2

GENERAL SAFETY 3

PARTS IDENTIFICATION 6

PROPER USE 7

ASSEMBLY 7

FUEL AND LUBRICATION 8

GETTING STARTED 10

OPERATION 12

MAINTENANCE 16

TROUBLE SHOOTING 19

WARRANTY 20

WHEN using the equipment, a few safety precautions must be observed to avoid

injuries and damage to the saw.

READ the operating instructions carefully and comply with them at all times.

KEEP this manual in a safe place, so that the information is readily available at all times.

IF you give the equipment to another person, It is important for them to read the operating

instructions prior to use.

GENERAL SAFETY

Explanation of the symbols and warning signs on the machine

READ the user manual before using the machine.

ALWAYS wear safety goggles to guard your eyes from ﬂying

materials/objects and a sound-proof helmet, ear plugs or the like to protect

your hearing.

Wear a safety helmet if there is a risk of objects falling on you from above.

WEAR gloves to protect your hands.

WEAR safety shoes to protect your feet.

WARNING! Danger!

DO not operate a chain saw with one hand!

BE aware of the of kickback!

MAKE sure that the chain brake is released. Pull

back the handle/chain brake before operating

WHEN using the equipment, a few safety precautions must be observed to avoid

injuries and damage to the saw.

READ the operating instructions carefully and comply with them at all times.

KEEP this manual in a safe place, so that the information is readily available at all times.

IF you give the equipment to another person, It is important for them to read the operating

instructions prior to use.

• DO NOT operate a chain saw with one hand! Serious injury to the operator, helpers, by-

standers, etc may result from one handed operation. A chain saw is intended for two

handed use.

• DO NOT operate a chain saw when you are fatigued.

• Use safety footwear, snug-ﬁtting clothing, protective gloves, and eye, hearing and head

protection equipment.

• Use caution when handling fuel. Move the chain saw at least 10 feet (3m)

from the fuelling point before starting the engine.

• DO NOT allow other persons to be near when starting or cutting with the chain saw. Keep

bystanders and animals out of the work area.

• DO NOT start cutting until you have a clear work area, secure footing, and a planned retreat

path from the falling tree.

• Keep all parts of your body away from the saw chain when the engine is running.

• Before you start the engine, make sure that the saw chain is not contacting anything.

• Carry the chain saw with the engine stopped, the guide bar and saw chain to the rear, and

the mufﬂer away from your body.

• DO NOT operate a chain saw that is damaged, improperly adjusted, or not completely and

securely assembled. Be sure that the saw chain stops moving when the throttle control

trigger is released.

• Shut off the engine before setting the chain saw down.

• Use extreme caution when cutting small size brush and saplings because slender material

may catch in the saw chain and be whipped toward you or pull you off balance.

• When cutting a limb that is under tension, be alert for spring back so that you will not be

struck when the tension in the wood ﬁbres is released.

• Keep the handles dry, clean, and free of oil or fuel mixture.

• Operate the chain saw only in well-ventilated areas.

• DO NOT operate a chain saw in a tree unless you have been speciﬁcally trained to do so.

• All chain saw service, other than the items listed in the user manual safety and mainte-

nance instructions, should be performed by competent chain saw service personnel.

• When transporting your chain saw, use the appropriate guide bar scabbard.

• DO NOT operate your chain saw near or around ﬂammable liquids or gases whether in or

out of doors. An explosion and/or ﬁre may result.

• DO NOT lubricate, ﬁll with fuel or oil when the chain saw engine is running.

• USE THE RIGHT TOOL: Cut wood only. Do not use the chain saw for purposes for which it

was not intended. For example, do not use the chain saw for cutting plastic, masonry, or

building materials.

General Safety Cont ...

DANGER! BEWARE OF KICKBACK!

WARNING: Kickback can lead to dangerous loss of control of the chain saw and

result in serious or fatal injury to the saw operator or to anyone standing close by.

Always be alert. Rotational kickback and pinch-kickback are major chain saw opera-

tional dangers and the leading cause of most accidents.

KICKBACK may occur when the NOSE or TIP (Fig 1 B) of the guide bar touches an object, or

when wood closes in and pinches the saw chain in the cut.

TIP contact in some cases may cause a lightning-fast reverse reaction, kicking the guide bar

up and back toward the operator. (Fig 1 A)

PINCHING the saw chain along the BOTTOM of the guide bar may PULL the saw forward away

from the operator. (Fig 2 A-B)

PINCHING the saw chain along the TOP of the guide bar may PUSH the guide bar rapidly back

toward the operator. (Fig 2 B-C)

ANY of these reactions may cause you to lose control of the saw, which could result in seri-

ous personal injury or death.

Fig 1 Fig 2

With a basic understanding of kickback, you can reduce or eliminate the element

of surprise. Sudden surprise contributes to accidents.

• Keep a good ﬁrm grip on the saw with both hands, the right hand on the rear handle, and

the left hand on the front handle, when the engine is running. Use a ﬁrm grip with thumbs

and ﬁngers encircling the chain saw handles. A ﬁrm grip will help you reduce kickback and

maintain control of the saw. Don’t let go.

BEWARE OF KICKBACK! Cont …..

• Make sure that the area in which you are cutting is free from obstructions. Do not let the

nose of the guide bar contact a log, branch, or any other obstruction which could be hit

while you are operating the saw.

• Cut at high engine speeds.

• Do not overreach or cut above shoulder height.

• Follow manufacturer’s sharpening and maintenance instructions for the saw chain.

• Only use replacement bars and chains speciﬁed by the manufacturer or the equivalent.

PARTS IDENTIFICATION

1. Chain bar

2. Saw chain

3. Chain tensioning screw

4. Bucking spikes

5. Chain brake lever / front hand guard

6. Front handle

7. Starter handle

8. Spark plug (under the air ﬁlter cover)

9. Air ﬁlter cover

10. Ignition switch

11. Safety lock

12. Oil tank cap

13. Fan housing

14. Fuel tank cap

15. Rear handle / bootstrap

16. Chain guard

17. Choke / (carburettor setting)

18. Bar fastening nuts

19. Throttle lever

20. Chain catcher

21. Chain brake / clutch cover

Fig 3

PROPER USE

The chain saw is designed exclusively for sawing wood.

You may only fell trees if you have received the appropriate training.

The manufacturer cannot be held liable for injury or damage caused by improper or incorrect

usage.

Please note that our equipment has not been designed for use in commercial, trade or indus-

trial applications. Your warranty will be voided if the machine is used in commercial, trade or

industrial businesses or for equivalent purposes.

ASSEMBLY

WARNING: Do not start the engine until the saw is fully assembled.

WARNING: Wear protective gloves at all times when handling the chain.

Check that the Chain brake is released before proceeding.

Attach the bucking spikes to the front of the

saw body so the spikes point upward.

Fig 4

Remove the Bar fastening nuts (Fig 3 –18) and

then remove the Chain brake / clutch cover (Fig

3 –21)

Note the position of the Chain tension adjust-

ment screw (Fig 4 –A) and the bar locating pin

(Fig 4-B)

Slip the bar under the edge of the clutch and

then over the mounting studs (Fig 5-A) Check

that the bar locating pin (Fig 4-B) is engaged in

to the hole at the bottom of the bar (Fig 5-B)

Fig 5 A

Assembly Cont …..

Lay the chain around the sprocket (ﬁg 6 –A)

Check that the tangs of the chain links are sit-

ting correctly in the slots in the sprocket and

then lay the chain around the Bar.

NOTE: The cutting edge of the chain must

face in the direction indicated (Fig 6-C)

C Cutting Edge

Fig 6

B A

Before using a new chain / bar for the ﬁrst time liberally lubricate the

chain and bar by hand using chain oil

WARNING!: Saw chain stretches during use, particularly

when it is new, and it will occasionally be necessary to

adjust and tighten it. New chain will require adjustment in

less than 5 cuts. Re adjust it as often as necessary.

FUEL AND LUBRICATION

Fuel

Use standard grade unleaded fuel mixed in a ratio of 25:1 with 2-stroke engine oil

Mixing fuel

Mix fuel with 2-stroke oil in an approved container. Shake gently and ensure thorough mix.

Replace the Chain brake / clutch cover and Bar fastening

nuts (Fig 3– 21 & 18) and tighten the nuts

Adjust the chain tension screw (Fig 7 –A)

so that if the chain is pulled down with

the ﬁngers at the centre of the bar the

gap between the chain and the bar is 6

to 8mm.

Fig 7 6 to 8mm

Fuel and Lubrication Cont …...

WARNING!: Never use raw fuel with out oil in your unit. This will cause permanent

engine damage and void the your warranty for that product. Never use a fuel mix-

ture that has been stored for over 90 days.

WARNING!: The 2 stroke oil must be a premium grade oil for 2-cycle air cooled

engines and must be mixed at a 25:1 ratio with the fuel. Mixing the fuel at a greater

ration than 25:1 provides insufﬁcient lubrication and will cause engine damage and

voids your engines warranty.

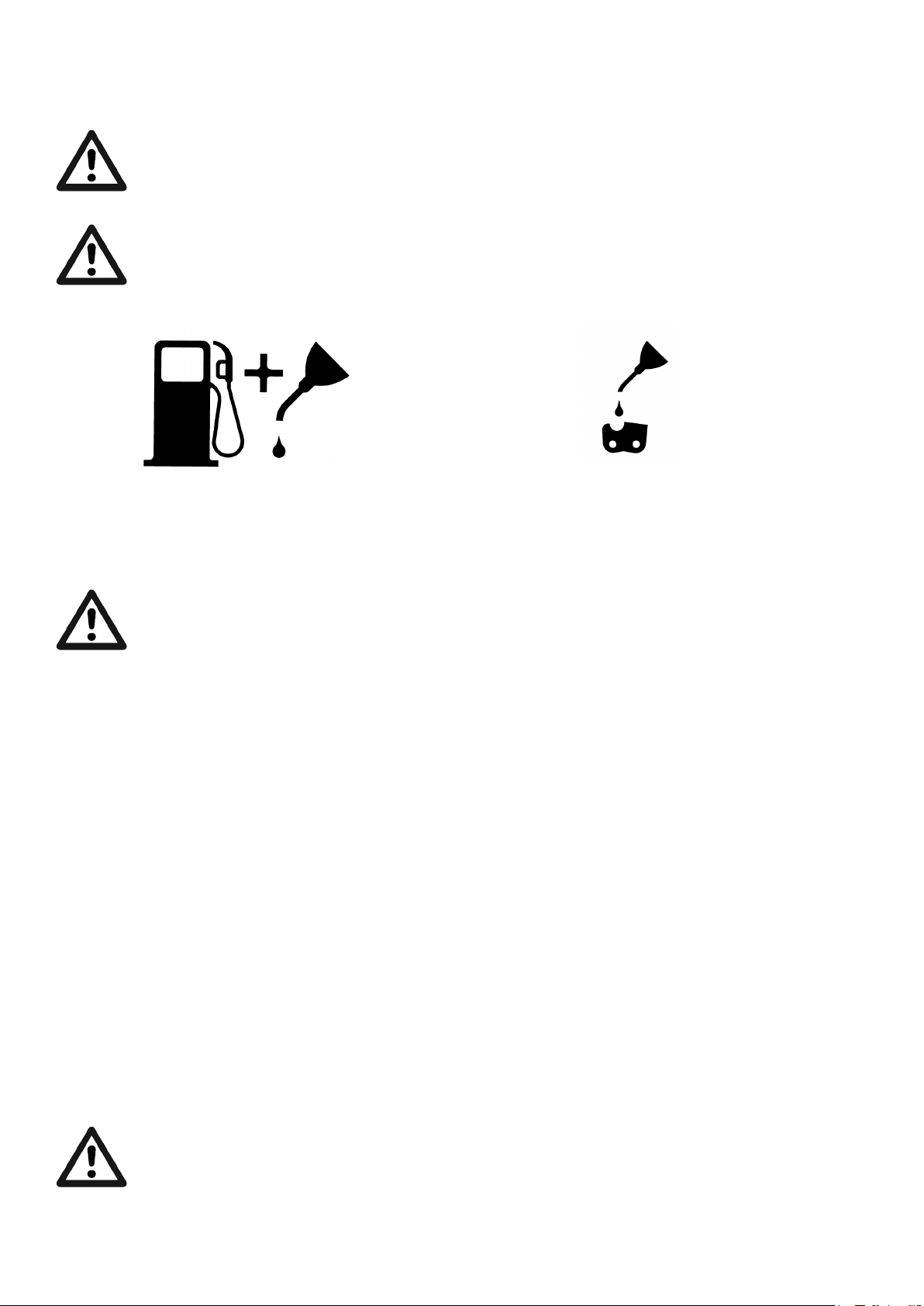

Motor

Regular Unleaded Plus 2

stroke oil. Mixed 25:1

Chain

Use Chain

saw chain oil

Lubrication of chain and chain bar

Whenever you reﬁll the fuel tank with petrol you must also top up the level of chain

oil in the chain oil tank. It is recommended to use standard chain oil.

SAW CHAIN / BAR LUBRICATION

Adequate lubrication of the saw chain is essential at all times to minimize friction with the

guide bar.

Never starve the bar and chain of oil. Running the saw with too little oil will decrease cutting

efﬁciency, shorten saw chain life, cause rapid dulling of chain, and cause excessive wear of bar

from overheating. Too little oil is evidenced

by smoke, bar discolouration or pitch build-up. New chains/bars should be lubricated by hand

before starting.

AUTOMATIC OILER

Your chain saw is equipped with an automatic oiler system. The oiler automatically delivers

the proper amount of oil to the bar and chain. As the engine speed increases, so does the oil

ﬂow to the bar pad. The oil tank should be checked and topped up each time the fuel tank is

reﬁlled.

Check the operation of the oil pump by running the saw at a medium speed. There

should be visible spatters of oil coming from tip of the saw about 30 second after

starting the saw.

WARNING: During normal operation the chain brake, clutch cover, bar and chain

are lubricated with chain oil. After use oil will drain for many weeks and pool on the

surface underneath the chainsaw.

Place the chainsaw on a protected surface to contain the draining lubricating oil

when not being used.

GETTING STARTED

Fig 8

Before starting check the operation to the

chain brake

The chain brake lever (Fig 8-A) should click between

positions (B) and (C). Leave it in position (C) for

starting.

NOTE: The brake lever should snap into both posi-

tions. If strong resistance is felt, or lever does not

move into either position, do not use your saw. Take

it immediately to a professional Service Centre for

repair.

Fill The fuel tank (Fig 9 –A) with 25:1 fuel oil mix

Fill The oil tank (Fig 9—B) with chain oil.

NOTE: Whenever you reﬁll the fuel tank with fuel

you must also top up the level of chain oil in the

chain oil tank.

STARTING

Fig 10

Push the chain brake lever forward to engage

the chain brake Fig 10

Fig 9

Pull out

AFig 11

Pull the choke knob (Fig 11-A) out

Tabla de contenidos

Otros manuales de Motosierra de Ross

Ross

Ross ROSSGARDEN RGCS45CC Manual de usuario

Manuales populares de Motosierra de otras marcas

Bushranger

Bushranger CS4210 Manual de usuario

Husqvarna

Husqvarna 136, 141 Manual de usuario

Echo

Echo CS-330EVL Manual de usuario

HART

HART HLCS01 Manual de usuario

Homelite

Homelite UH10817 Manual de usuario

Westfalia

Westfalia SCS 725 Manual de usuario

Nakayama

Nakayama EC2050 Manual de usuario

The Handy

The Handy THPCS16 Manual de usuario

McCulloch

McCulloch PRO MAC 54 Manual

Husqvarna

Husqvarna 359 E-tech Manual de usuario

Craftsman

Craftsman 358.352162 Manual de usuario

Craftsman

Craftsman 358.350270 Manual de usuario

Craftsman

Craftsman 358.351610 Manual de usuario

Echo

Echo CS-8001(6digits)(36) Manual de instrucciones

Poulan Pro

Poulan Pro 545047544 Manual de usuario

Ryobi

Ryobi RY3714VNM Manual de usuario

Homelite

Homelite Ranger UT10926 Manual de usuario

McCulloch

McCulloch TimberBear TM502 Manual de usuario

Ross rgcs38cc Manual de usuario

Manuales populares de Motosierra de otras marcas
