Rosewill PRISM M Manual de usuario

PRODUCT OVERVIEW

Disassembly Chart (components vary by country)

Thank you for purchasing a Rosewill Case.

Please read the instruction manual before use and retain for future reference.

PRISM M

Dimensions: 208 x 455 x 390 mm (W x H x D)

455 mm

208 mm390 mm

Panel L

Panel R

Front Panel

SSD

Cage

HDD

Cage

120 mm RGB

Double Ring Fan

120 mm Black Fan

Top Dust Filter

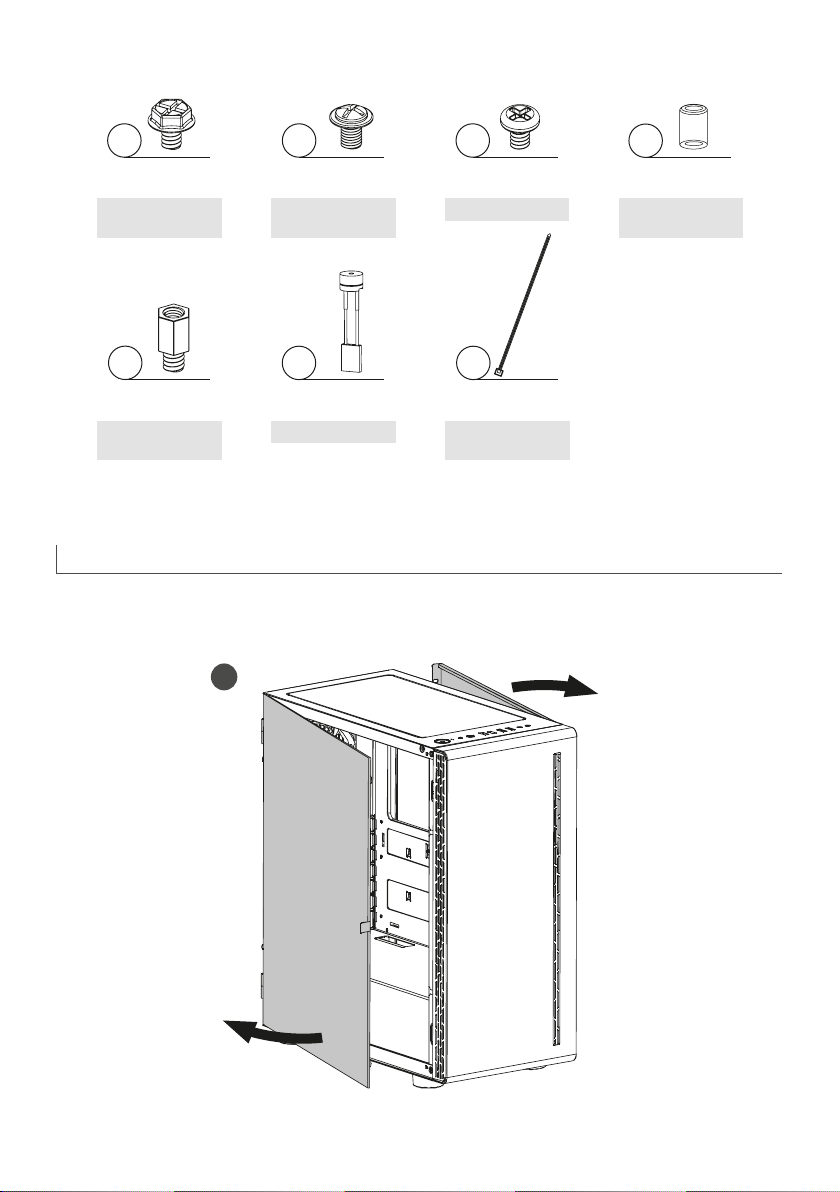

Accessory Kit

x1 x5

Speaker Cable Tie

Motherboard Cable

Management

Nut Setter

Standoff

Installation

Screw-C

(6-32 x 8 mm)

3.5" HDD

Screw-A

(6-32 x 6 mm)

x17

Screw-B

(M3 x 5 mm)

6+3

Standoff

Motherboard

(6 pre-Installed)

INSTALLATION GUIDE

1. Open the Unit

1-1. Pull to open Panel R. Remove the thumb screws and take off Panel L (Figure 1).

Motherboard

2.5" HDD/SSD

PSU

Add-on Card

2. Install Power Supply

2-1. Set the power supply unit (PSU) at the bottom-rear of the case and secure with Screw-A

(Figure 2).

3. Install Motherboard

3-1. Secure the motherboard onto the pre-installed standoffs with Screw-B (Figure 3).

4. Install Add-on Card

4-1. Bend to remove the slot covers, then install the add-on card and secure with Screw-A

(Figure 4).

5. Install 3.5”/2.5” HDD/SSD

5-1. Remove the thumb screws on the bottom of chassis to take out the HDD cage (Figure 5a).

5-2. Install HDD/SSD onto the trays and secure with Screw-B or C (Figure 5b). Insert the trays

back into drive cage and secure with thumb screws (Figure 5c).

5-3. Alternatively, you can also install 2.5” SSD on the right side of chassis (Figure 5d).

6. Care

To prevent damage, keep all panels closed and secured.

6-1. Put the side panels back in place and secure with thumb screws.

6-2. Clean the dust lters on top/bottom regularly to ensure adequate airow.

7. Options

7-1. Additional Fan Installation

The PRISM M features ample space for additional cooling fans. Please refer to the

Specications Table for options.

7-2. LED Light Mode

Press the LED light button briey to select desired mode:

Rainbow Red Green Blue Purple Cyan Lime White RGB-1 (seven-

color-breathing) RGB-2 (seven-color-blinking) Off

7-1. Liquid Cooling Radiator Installation

The PRISM M supports the option of installing a 240 mm radiator in the front (Figure 7a)

and a 240 mm radiator on the top (Figure 7b) to more effectively cool high-performance

systems.

USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR

TOP I/O CABLE PINOUT

TOP I/O

Power Reset Audio Out

LED Mode Audio In

USB 3.0 USB 2.0

Technical Support Information [email protected] 1-800-575-9885

Please register your product at www.rosewill.com for complete warranty information and support for your product. PRISM M_B

Model

Model Name PRISM M

Specifications

Type Mid Tower

Color Black

Case Material Steel/Plastic/Tempered Glass

With Power Supply No

Power Supply Mounted Bottom

Motherboard Compatibility E-ATX, ATX, Micro ATX

With Side Panel Window Yes/Tempered Glass Side Window

Expansion

Internal 3.5" Drive Bays 2/1

Internal 2.5" Drive Bays 2/3

Expansion Slots 7

I/O

Top Ports

2 x USB 3.0

2 x USB 2.0

Audio In/Out

LED Modes

Cooling System

120 mm Fans

3 x Front (1 x Black Fan pre-installed)

2 x Top (optional)

1 x Rear (1 x RGB Double Ring Fan pre-installed)

140 mm Fans

2 x Front (optional)

2 x Top (optional)

1 x Rear (optional)

Physical Specifications

Dimensions 8.19 x 17.91 x 15.35 in (W x H x D)

Weight 12.13 lbs

SPECIFICATIONS TABLE
