TILE SAW
5620
USER MANUAL 1
SPECIFICATION
Model 5620
Power 800W
Voltage 230V
Frequency 50Hz
Product Dimention Length: 1230mm×Width:
690mm×Height: 820mm
Table Dimention 890×394mm
Disk Diameter φ200×φ25.4×2.4mm
Table Material Aluminum Prole
Disk Material 65Mn, Corundum, Metal Powder
No Load Speed 2990RPM
Angle Cutting
0-45°
0°: 32mm
45°: 28mm
Max Cutting Length 620mm
Supplied in color box
Weight
23.45Kgs (Excluding Color box
and Accessories)
27.20Kgs(Excluding Color box)
Include
Rubber Feet 4pcs, Support Legs
4pcs, Legs Locking Knob 4pcs,
Angle Ruler 1set, Wrench 2pcs,
Water Plug 1pc
TILE SAW
2
PART LIST
Support
Legs
Leg locking
knob
Work Table
Angle rotation
Plate
Guide ruler
Locking
knob
Angle
Ruler
Cutting blade
Water tank
Blade
Cover
Engine
Handle
Guide
Beam
SAFETY SYMBOL
WARNING!
Attention! Read and remember the following graphic safety symbols. They
inform you of the actions you must take to ensure the safety of those around
you and yourself, as well as the measures needed to ensure the safe and
lasting operation of the tile machine.
Read the operation manual carefully before using the tile machine.
Use personal protective equipment. Always wear products
to protect your eyesight and hearing.
Use safety shoes, gloves and helmets.
USER MANUAL 3
The danger of electric shock.
If this instruction is not observed, the tile cutting machine is in danger
of injury or damage.
SAFETY RULES
.PLACE OF WORK
- Familiar with the environment around the workplace.
- Possible danger due to noise from tile cutting machinery.
- Do not use tile cutting machines in wet places, water vapor environments
and close places.
- Avoid using tile cutting machines in areas with high humidity, wet
environments, and conned spaces where ammable liquids and gases
are stored.
- Make sure there are no people (especially children) and animals
nearby. They can Injury by scattered particles of materials processed by
ceramic tile cutting machine.
- Only work in a good visibility environment, or provide a workplace
Enough light.
.RUNTIME
- To prevent damage, the air humidity should not exceed 70-80% (when
the temperature is 25°C).
- The indoor temperature shall not be lower than +5°Cand higher than
+ 35°C. On the contrary in this case, the engine may be overcooled or
overheated.
- Do not wear loose clothes, jewelry, etc. at work to cover long ones
Hair, because all of these can be captured by the moving part of the tile
cutting. Wear strong non-slip shoes, strong trousers, protective gloves,
goggles (normal goggles are not protective) or protective masks,
respirators (if dust is generated during work), headphones (if noise
TILE SAW
4
increases), and safety helmets (if related hazards).
- Make sure that when you open it, you don’t keep custom and xing
tools, wrenches, etc.
- Avoid unintentional launches. Before connecting the tile cutter to the
plug the socket puts the start key in the closed position.
ATTENTION!
Cheer up and work responsibly! Do not use a tile cutter if you are tired,
or if you are affected by alcohol or reaction reducing drugs and other
drugs!
- When working, choose a comfortable, stable and continuous one
under your control location.
- Protect all parts of your body, mainly ngers, from possible contact
with the moving part of tile cutting.
ATTENTION! Wait for the inertial parts of the tile machine to stop
completely after closing, and don’t try to stop them by hand!
- The tile cutting machine should not be overloaded and should only be
used according to the technical specications to ensure reliable and
safe operation.
- To prevent overheating, the machine should be used intermittently and
not continuously.
- Compliance with the parameters specied in the technical specications
is necessary for safe and effective use of the machine.
- Observe the vents (grooves) of the motor housing It has always been
open and pure.
ATTENTION!
When the power grid is suddenly cut off, the start key should be adjusted to
the disconnected position immediately to avoid accidental operation of the
ceramic tile machine when re-supplying power.
USER MANUAL 5
- Turn off the tile machine and take out the plug every time you work and rest.
.ELECTRICAL SAFETY
- The equipment plug should match the socket.
- The plug should not be modied in any way to reduce the risk of
electric shock.
- Proper sockets that are unmodified can help reduce the risk of
electric shock.
- It is important to use unmodied plugs and proper sockets to prevent
electric shock.
- Do not use transition plugs for power tools with protective devices.
- Take necessary precautions against electric shock.
- Avoid contact between tool housing and ground surface, such as
heating pipes, refrigerators.
- Protect equipment from rain and humidity. Equipment inlet water
increases the risk of electric shock.
- Do not allow ropes to be used for other purposes, such as transportation
or hang the power tool, or pull the plug from the socket. Protect the power
cord from high temperature, oil stains, sharp edges or movable parts of
power tools.
- Damaged or entangled wires can increase the risk of electric shock.
When working outdoors, use extension cords with appropriate connectors.
- If you cannot apply the instrument only in dry weather, please pass
Automatic protection device (protection cut-off device). RCD fault
current protection switch is adopted to reduce the risk of electrical
failure.
- When the length of extension cable is large and the cross section is
small, there is an extra voltage drop in the lead, which may lead to
unstable operation of the tile motor. Cable length and cross sectional
dimensions in the table: according to the required current, the wire
refers to the distance between the switchboard connecting the tile
machine and its power cable plug. In this case, it doesn’t matter whether
the power is supplied to the tile cutting machine through the xed lead,
TILE SAW
6
the extension cable or the combination of the xed cable and the extension
cable. The extension cord should have a plug at one end and a socket
compatible with the ceramic tile electromechanical plug at the other end.
Relationship between cable length and conductor section size and
consumed current.
Section (mm2) Rated current of cable (A)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
ATTENTION!
Ceramic tiles have double insulation. This means that all external metal
components are electrically insulated from conductive components.
This is achieved by placing additional insulation barriers between electrical
and mechanical components, which eliminates the need for tools to be
grounded. Please remember that double insulation cannot replace the
conventional precautions required when using this tool. This insulation
system provides additional protection against potential damage to the
electrical insulation inside the tool.
Power supply
voltage (V)
Comsumed
Current (A)
Cable length (m)
7.5 15 25 30 45 60
Rated current of cable (A)
220
2.0 – 0 6 6 6 6 6 6
3.4 – 2.1 6 6 6 6 6 6
5.0 – 3.5 6 6 6 6 10 15
7.0 – 5.1 10 10 10 10 15 15
12.0 – 7.1 15 15 15 15 20 20
20.0 – 12.1 20 20 20 20 25 -
USER MANUAL 7
.SPECIAL SECURITY RULES
- Avoid unintentional launches. Always disconnect the network cable
from the socket, before performing any tool maintenance or disk
replacement work.
- Use only the drive recommended by the manufacturer for a given drive
models.
- Only the attached pressure washer can be used. The maximum allowable
speed specied on the cutting disc shall be greater than the maximum
speed of the tool spindle.
- Never lean on a tool, this can lead to injuries.
- Always wear protective gloves when operating disks.
- Always check the tools for damage. When discovered Replace damaged
parts immediately. Ensure that the moving parts of the tool are not stuck,
Check their center.
- Always observe the service direction. Only in the direction opposite to
the direction in which the disk rotates.
- Don’t leave the tool open without control and ofine working mode.
- Always wait until the shaft rotation stops completely before leaving an
unattended instrument. Always disconnect the cable from the power
network at the end of the work.
- Never lock the protective sleeve of the saw blade to block the saw
blade debris and dust. If this happens, stop the tool and disconnect it
from the network until the jammed shield is released.
- Do not use bent, deformed or other damaged ones.
- The use of segmented cutting discs is not recommended.
- Do not use disks that do not meet technical requirements.
- try to slow down the rotation of the disk by exerting force on the side wall.
- At the beginning of repairing tools, replacing disks and T.P. always
removes the wire plug from the network socket.
- Verify that the tool spindle diameter matches the landing hole of the disk.
- Ensure that the tool spindle diameter is consistent with the landing hole
of the disk.
- According to the technical inspection: Fill the tank with water.
TILE SAW
8
.BEFORE WORKING, MAKE SURE
1- The power supply voltage of the instrument motor matches the power
supply network voltage.
2- The power grid socket is grounded. It is recommended to connect
through ROS tool (maximum value Leakage current 30mA).
3- Sockets, extension cords, power cords and their plugs are in good
condition, electrical insulation is not damaged, and contact is good.
4- The tile cutter stands rmly on a at, horizontal surface.
5- A protective cover is installed.
6- There is no damage to the cutting disk.
7- here is enough water in the water tray to make the cutting tray moist
during operation.
BEFORE OPERATION
.INSTALL SUPPORTING LEGS
1- Invert the water tank (13) and put it on a at and stable surface.
2- Insert four supporting legs in the seat at the corner of the water tank.
3- Tighten four legs locking knobs.
4- Turn the ready made supported base over to a at and stable surface.
13
NOTE:
The tile cutter shall be mounted on a at horizontal surface, taking into
account the
weight of the tile cutter and the workpiece.
Tabla de contenidos
Otros manuales de Sierra de Ronix
Ronix
Ronix 5935 Manual de usuario
Ronix
Ronix 5100 Manual de usuario
Ronix
Ronix 5601 Manual de usuario
Ronix
Ronix 5901 Manual de usuario
Ronix
Ronix 8902 Manual de usuario
Ronix
Ronix 5002 Manual de usuario
Ronix
Ronix 5303 Manual de usuario
Ronix

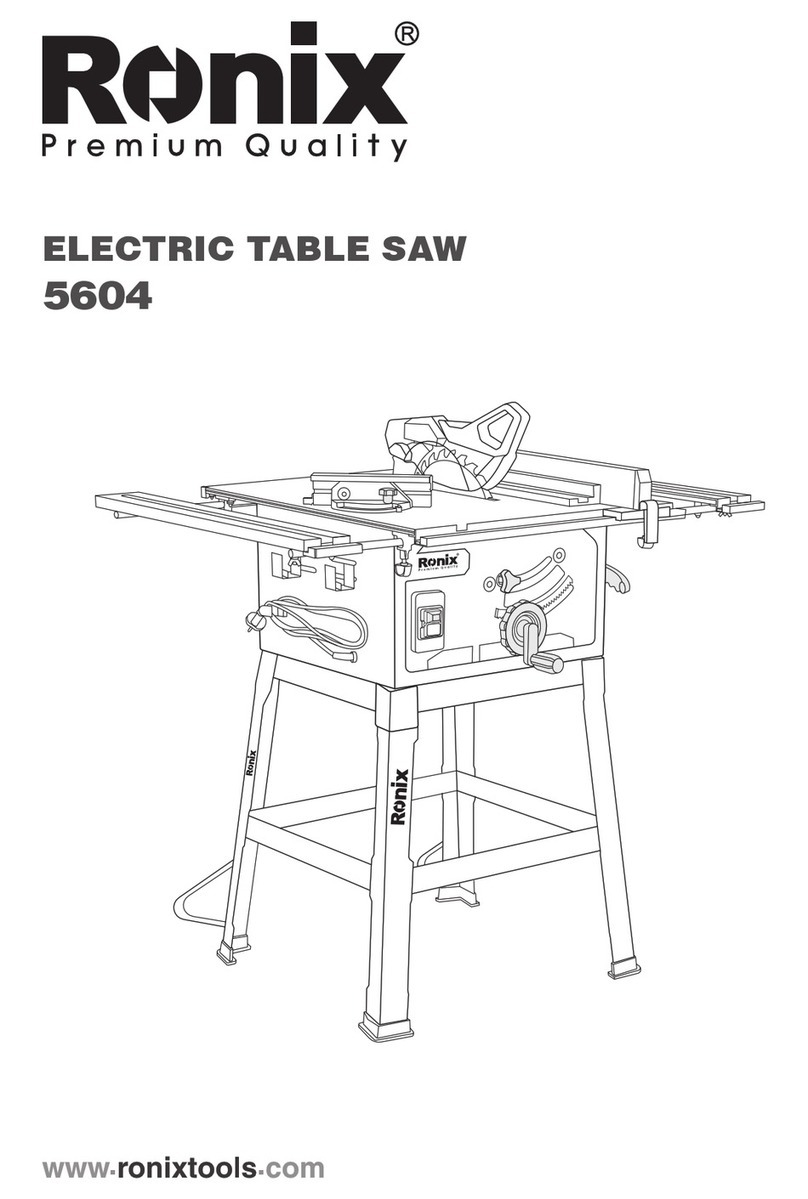

Ronix 5604 Manual de usuario
