Rolls REQ315 Manual de usuario

REQ315

GRAPHIC EQUALIZER

Constant Q

OWNERS MANUAL

LIMITED WARRANTY

This product is warranted to the original consumer purchaser to be free from

defects in materials and workmanship under normal installation, use and service for a

period of one (1) year from the date of purchase as shown on the purchaser’s receipt.

The obligation of Rolls Corporation under this warranty shall be limited to repair

or replacement (at our option), during the warranty period of any part which proves

defective in material or workmanship under normal installation, use and service, provided

the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PRE-

PAID. Products returned to us or to an authorized Service Center must be accompanied by

a copy of the purchase receipt. In the absence of such purchase receipt, the warranty

period shall be one (1) year from the date of manufacture.

This warranty shall be invalid if the product is damaged as a result of deface-

ment, misuse, abuse, neglect, accident, destruction or alteration of the serial number,

improper electrical voltages or currents, repair, alteration or maintenance by any person or

party other than our own service facility or an authorized Service Center, or any use

violative of instructions furnished by us.

This one-year warranty is in lieu of all expressed warranties, obligations or

liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE

LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN

LIMITED WARRANTY. Some states do not allow limitations on how long an implied

warranty lasts, so the above limitation may not apply to you.

IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL

OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER

WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow

the exclusion or limitation of special, incidental or consequential damages so the above

limitation or exclusion may not apply to you. This warranty gives you specific legal

rights, and you may also have other rights which vary from state to state.

ROLLS CORPORATION

SALT LAKE CITY, UTAH

3/02

INTRODUCTION

The ROLLS REQ315 graphic equalizer is intended for room equalizing or sound

shaping and the approximate frequency response curve can be seen graphically

by the settings of the frequency controls.Recording and broadcasting studios,

sound contractors and musicians will appreciate the low noise, straightforward

design, and versatile signal control of the REQ series.The REQ315 frequency

filters are “constant Q”meaning the width or shape of the filter curve does not

change as the frequency level is increased or decreased.This provides much

more accurate frequency adjustment.

INSPECTION

1.Unpack and inspect the REQ315 box and package.

If obvious physical damage is noticed, contact the carrier immediately to make a

damage claim.We suggest saving the shipping carton and packing materials for

safely transporting the unit in the future.

2.Please register online at www.rolls.com, or complete the Warranty Registration

Card and return it to the factory.

TABLE OF CONTENTS

1. Introduction

Inspection

Table of Contents

2. Description

Front Panel

Rear Panel

3. Operation, Installation

4. Example diagram

5. Schematic

6. Specifications

Back Cover: Warranty

SPECIFICATIONS

Equalizer:

Bands 2x15 From 20Hz to 20kHz

Accuracy 3%Center Frequency

Range +/-6dB or +/-12dB (Switch Selectable)

Inputs:

Type Active Balanced/Unbalanced

Connectors 3-Pin XLR, 1/4 “ TRS

Impedance 12k Ohms

Maximum Level +22dB (Balanced) +15dB (Unbalanced)

Outputs: Type Relay Balanced

Connectors 3-Pin XLR, 1/4”TRS

Impedance 600 Ohms

Maximum Level +22dB (Balanced) +15dB (Unbalanced)

RFI Filters Yes

Passive Bypass Switches Yes

Overload LED Threshold 3dB (Below Clipping)

Low Cut Filter 10-250Hz, 12dB/Oct

Frequency response 20-20kHz +0.5dB

THD +Noise .01%(20hZ-40kHz)

Signal-to-Noise Ratio 110dB below Max. level (A weighting)

Equivalent Input Noise -95dB (20kHz Noise Bandwidth)

Dimensions: 3.5”H x 19”W x 8.5”D

1 6

SCHEMATIC

5 2

Front Panel Controls

1.Power Switch:

To turn the equalizer ON or OFF , press the upper or lower portion of this

button.

CAUTION: Always turn on your equalizer BEFORE your power amplifiers are

turned on , and always turn off your equalizer AFTER your power amplifiers

have been turned off.

2.Filter‘Level Controls:

Each of these sliders controls the output level of each of the 15 bandpass filters.

Center detent position is grounded for guaranteed flat response.

3.Filter Range Switch & Indicators:

The gain range of the filter sliders is switchable (as a group) from +/-6dB to +/-

12dB

For maximum boost/cut capability.At 6dB the green LED will illuminate and at

12dB the yellow LED will illuminate.

4.Bypass Switch & Indicator:

When the red LED is illuminated, this indicates that the unit or channel is in the

bypass mode.Signal is routed directly from the input to the output without

passing through any circuit (often referred to as “hard-wire bypass”).Use this

switch to compare equalized and unequalized material, or to bypass the EQ

section in the event of power loss or unit failure.

5.OverloadIndicator:

This red LED illuminates if any section of the equalizer is within 5dB of clipping.

Occasional blinking of this LED is acceptable, but if it remains on more than

intermittently you should turn down either the equalizer’s level controls or

reduce the output level of the preceding compon ent to avoid andible distortion.

6.Low-Cut Frequency Control:

To cut down unwanted signal, this control determines the roll-off frequencyof the

High-Pass Filter (HPF) in the instrument.The roll-off frequency cans de ad-

justed from 10Hz to 250Hz by turning this knob.Because of its high roll-off

slope, the HPF can be efficiently used to cut down the “HUM”noise from

preceding instruments, or to prevent the low-frequency resonance while the

speakers are installed in an enclosed acoustic environment.

7.Level Control:

This controls the level of signal coming into the instrument.Turn this control

down if the OVERLOAD LED illuminates steadily (meaning too strong on input

signal). Unity gain can be set by turning this knob to its center detent position.

EXAMPLE

8. Power Cord:

This cord is used to connect the AC power source to your equalizer.

CAUTION: DO NOT REMOVE THE CENTER GROUNDING PIN.

9. Fuse Holder:

This fuse holder contains an AC primary fuse.This fuse should be replaced

by the same type fuse when this is blown out.If they continuously blow, stop

replacing fuse and refer servicing to qualified personnel.

10. Input/OutputConnectors:

1/4 ”TRS

TheTRS (Tip Rinb Sleeve) connector is balanced and wired as tip=Lo (-) ,

Ring=Hi (+) , and the Sleeve = Ground.

CAUTION:Only one of these sockets can be chosen for audio connection at the

same time.

XLR

The XLR input connector is balanced and wired as Pin2=Lo (-) , Pin3=Hi (+) ,

Pin1=Ground

CAUTION: Only one of these sockets can be chosen for audio connection at

the same time.

Rear Panel Connectors & Controls

AUX 2

RETURN

0 10

AUX 1

RETURN/

TAPE IN LEVEL

0 10

HEADPHONE LEVEL

0 10

LEFT RIGHT

+20

+14

-10

-15

-20

-30

+17

-4

-13

HEADPHONE

OUTPUT

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

BAL

11/12

+20

+14

-10

-15

-20

-30

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

BAL

9/10

+20

+14

-10

-15

-20

-30

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

BAL

7/8

+20

+14

-10

-15

-20

-30

AUX 1

0 10 AUX1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

BAL

5/6

+20

+14

-10

-15

-20

-30

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

PAN

+20

+14

-10

-15

-20

-30

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

PAN

+20

+14

-10

-15

-20

-30

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

PAN

+20

+14

-10

-15

-20

-30

AUX 1

0 10

AUX 2

0 10

LOW

-15 +15

2.5 K

MID

-15 +15

12.5 k

HIGH

-15 +15

L R

PAN

+20

+14

-10

-15

-20

-30

TAPE

OUT TAPE

TRIM

LINE

INSERT

MIC 1

INSERTINSERT

INSERT

LINELINELINE

TRIM

TRIMTRIMTRIMTRIM

TRIMTRIM

PHANTOM POWER LEFT

RIGHT

LEFT

RIGHT

LEFT

RIGHT

LEFT

RIGHT

RIGHT OUT AUX 2

RET.LEFT

LEFTOUT AUX 2

RET. RIGHT

AUX 1

RET. RIGHT

AUX1

RET.LEFT

AUX 1

OUT

AUX 2

OUT

MIC 2

MIC 3MIC 4MIC 5/6MIC 7/8MIC9/10MIC 11/12

+48V

OFF

+10

+60

+10

+60

+10

+60

+10

+60

+10

+60

+10

+60

+10

+60

+10

+60

P A

RA200

VOLUME2 VOLUME2

OWER MPLIFIER

Shown below is an example connection diagram for the REQ315.The main right

and left outputs of the mixer are connected to Channel 1 and 2 Inputs via high

impedance 1/4” unbalanced plugs.The equalizer is then connected to an ampli-

fier.

Note:This is only an example.For improved performance, use balanced XLR

connectors.

Este manual sirve para los siguientes modelos

Otros manuales de Equipo de grabación de Rolls

Rolls

Rolls MP1288 Manual de usuario

Rolls

Rolls HM57 Manual de usuario

Rolls

Rolls MP80EX Manual de usuario

Rolls

Rolls DB25 Manual de usuario

Rolls

Rolls WPM61 Manual de usuario

Rolls

Rolls DB225 - 7-09 Manual de usuario

Rolls

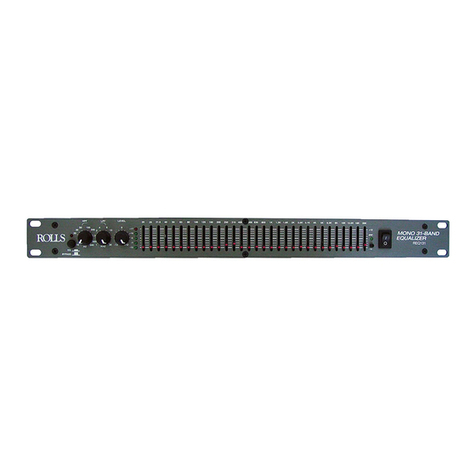

Rolls REQ131 Manual de usuario

Rolls

Rolls HE18 Buzz Off Manual de usuario

Rolls

Rolls HR73 - MANUAL 2 Manual de usuario

Rolls

Rolls ADB2 Manual de usuario

Rolls

Rolls HE18 BUZZ OFF Manual de usuario

Rolls

Rolls HRD342 Manual de usuario

Rolls

Rolls req313 Manual de usuario

Rolls

Rolls ADi6 Manual de usuario

Rolls

Rolls MP80 Manual de usuario

Rolls

Rolls DB24 Manual de usuario

Rolls

Rolls SX95 Manual de instrucciones

Rolls

Rolls DB25 Manual de usuario

Rolls

Rolls DB24 Manual de usuario

Rolls

Rolls ADB2 - 3/01 Manual de usuario

Rolls

Rolls REQ315 Manual de usuario

Rolls

Rolls Direct Box DB 25b Manual de referencia

Rolls

Rolls DB225 Manual de usuario

Rolls

Rolls SS412 Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
