Rollplay W348 Instrucciones de montaje
Owner’s Manual and Assembly Instructions
Model #: W348
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary. Call 1-800-224-094 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V BMW Motorcycle
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3 Years and Up
MAX WEIGHT 35 KG (77 lbs)
PRODUCT SIZE 101.5 x 57.5 x 68.5 cm ()
SPEED 4.0 km/h (2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V
Introduction
Thank you for purchasing this RollPlay vehicle. We hope
the rider enjoys it for miles to come. Please read this instruction guide
carefully before assembling and operating the vehicle. Please contact
Hunter Products Pty Ltd at www.electricrideon.com.au or Call
at 1800 224 094 with any enquiries or questions.
3
Table of Contents
Safety..........................................................4
Parts ..........................................................6
Charging Instructions ...............................7
Assemble the Front Wheel...................... 8
Assemble the Rear Fork ......................... 9
Assemble the Rear Wheel.......................10
Assemble the Support Wheels ...............11
Attach the Mud Guard.............................12
Attach the License Plate.........................13
Assemble the Handle Bars .....................14
Assemble the Windshield .......................15
Assemble the Baggage Rack .................16
Attach the Exhaust Pipe .........................17
User Information......................................18
Maintenance ............................................19
General Care ............................................20
Troubleshooting Guide............................21
Service and Repairs ...............................24
Warranty ...................................................25
complies with Australian Standard AS/NZS 2063:2008.
4Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 35kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
•
•
•
•
•
•
Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS
keep child in view when child
is in vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
5
6Parts
1. Manual
2. License Plate
3. Baggage Rack
4. Rear Mud Guard
5. Rear Wing Bracket
6. Seat
7. Left Support Wheel
8. Rear Shield
9. Handlebar
10. Windshield Assembly
11. Front Bracket
12. Motorcycle Body
13. Left Brake
• Phillips screwdriver
Not Included:
14. Front Wheel
15. Right Brake
16. Front Axle
17. Washers (5)
18. Wrench
19. Hexagon Nut (4)
20. Battery
21. Exhaust Pipe
22. Self Tapping Screw (6)
23. Rear Wheel
24. Square Nut
25. Charger
26. Steering Wheel Screw
27. Right Support Wheel
28. Inner Wheel Spacer
29. Rear Axle Cover
30. Rear Axle
31. Gear Box
1
2
4
3
5
7
8
24
22
9
6
10
11
12
13
15
14
21
27
23
31
29
26
25 18
20
16
17
19
28
30
17
7
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the vehicle is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
from the red engine connector.
4. Connect the red battery connector
to the red battery charger
connector.
5. Plug into a 240 V outlet.
To Unplug the Battery:
6. Unplug the battery charger from
the outlet.
7. Unplug the red battery connector.
8. Reconnect the red battery
connector to the red engine
connector.
9. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However,
if the battery does not reach the
outlet, it can be removed for charging
by disconnecting the red engine
connector from the red battery
connector, loosening the screw on the
left side of the battery bar, removing
the battery bar, and then removing the
battery.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!

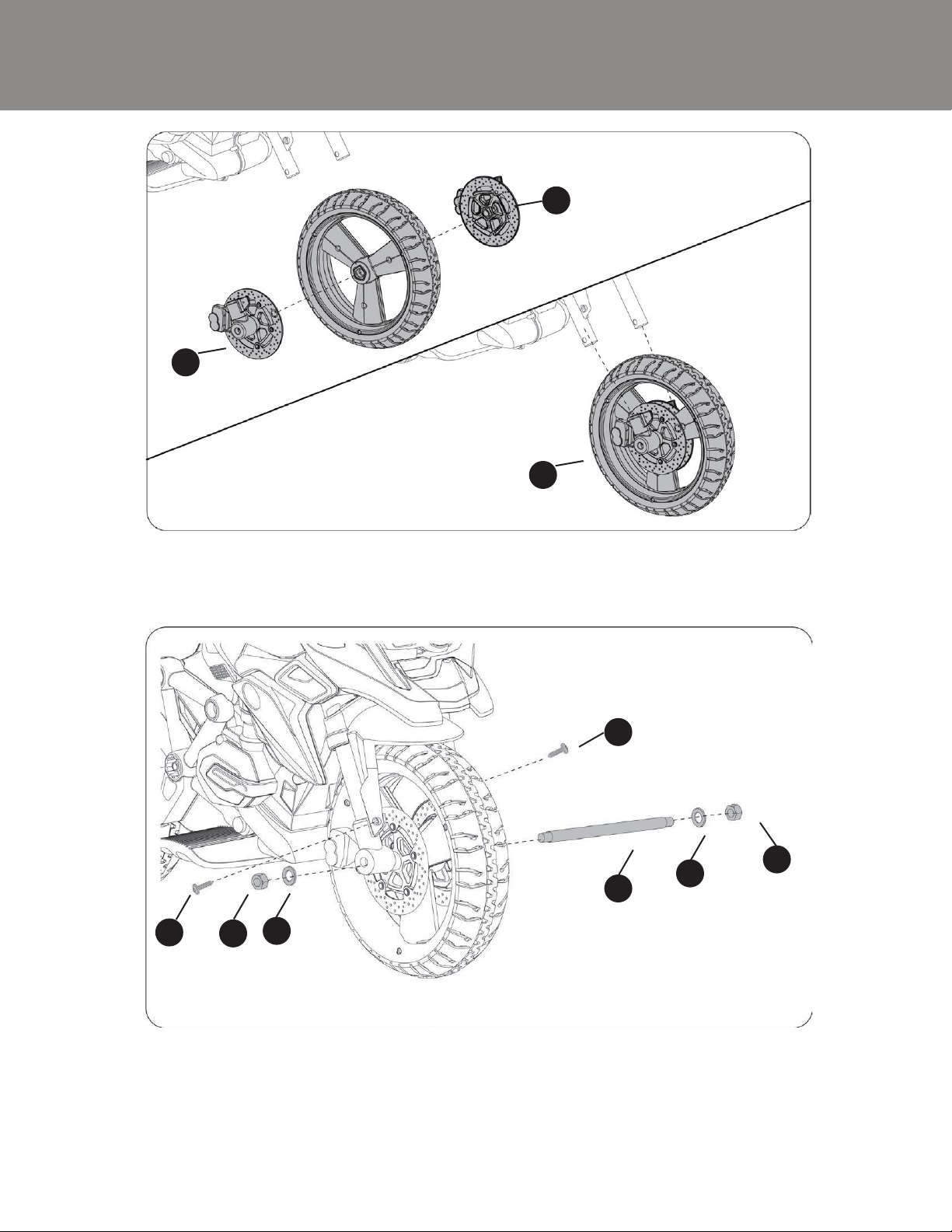

8Assemble the Front Wheel
1. Place the left (13) and right brake (15) onto either sides of the front wheel (14).
2. Slide the front wheel assembly into the front fork.
3. Align the holes on the brakes with the holes on the front fork. Insert a self tapping
screw (22) into both holes on the fork to secure the wheel.
4. Insert the front axle (16) through the front fork and front wheel assembly.
5. Slide one washer (17) on both sides of the front axle.
6. Secure the washers with a hexagon nut (19) on both sides of the axle. Use a
wrench (18) to tighten.
15
13
14
16
17
17
19
19
22
22
9
Assemble the Rear Fork
1. Align the slot on the rear wing bracket (5) with the inner side of the rear fork
2. Insert a self tapping screw (22) through the wing bracket and rear fork to
secure
22
5
10 Assemble the Rear Wheel
1. Insert the rear axle (30) into the left hole of the rear fork. Do not slide all the way
through.
2. Slide the gear box (31) onto the rear axle. Connect the white connector on the
gear box with the white engine connector.
3. Slide the protruding side of the rear wheel (23) onto the axle. Ensure it is fully
engaged with the gear box.
4. Slide the washer (17) and inner wheel spacer (28) onto the axle, and then slide the
axle through the rest of the rear fork.
