Roland EGX-400 Manual de usuario

EGX-400/600 ADA Hardware and

Software Setup Guide v1.0

NOTES:

EGX-400/600 ADA Hardware and

Software Setup Guide

This guide covers configuration of the

RasterTM Braille Dot cutter and Character

cutter.

RasterTM Pen Attachment.

FlexiEngrave and EngraveLab software

configuration and workflow.

Configuration of the RasterTM

Braille Dot Cutter and

Character Cutter

NOTES:

Configuring Engraving Cutters

Switch the primary power on which is located on

the left rear of the unit.

Turn the Emergency (secondary power) switch

clockwise to power the unit on.

The control panel will power on and display the

model and boot version. Once completed the

display will read “HIT ENTER KEY”.

Press the ENTER key to initialize the unit.

Once the initialization is completed, the carriage

will be located to the View position (Left rear).

Place the adhesive sheet (AS-10) in the lower left

corner of the table and place the material.

NOTES:

Configuring Engraving Cutters

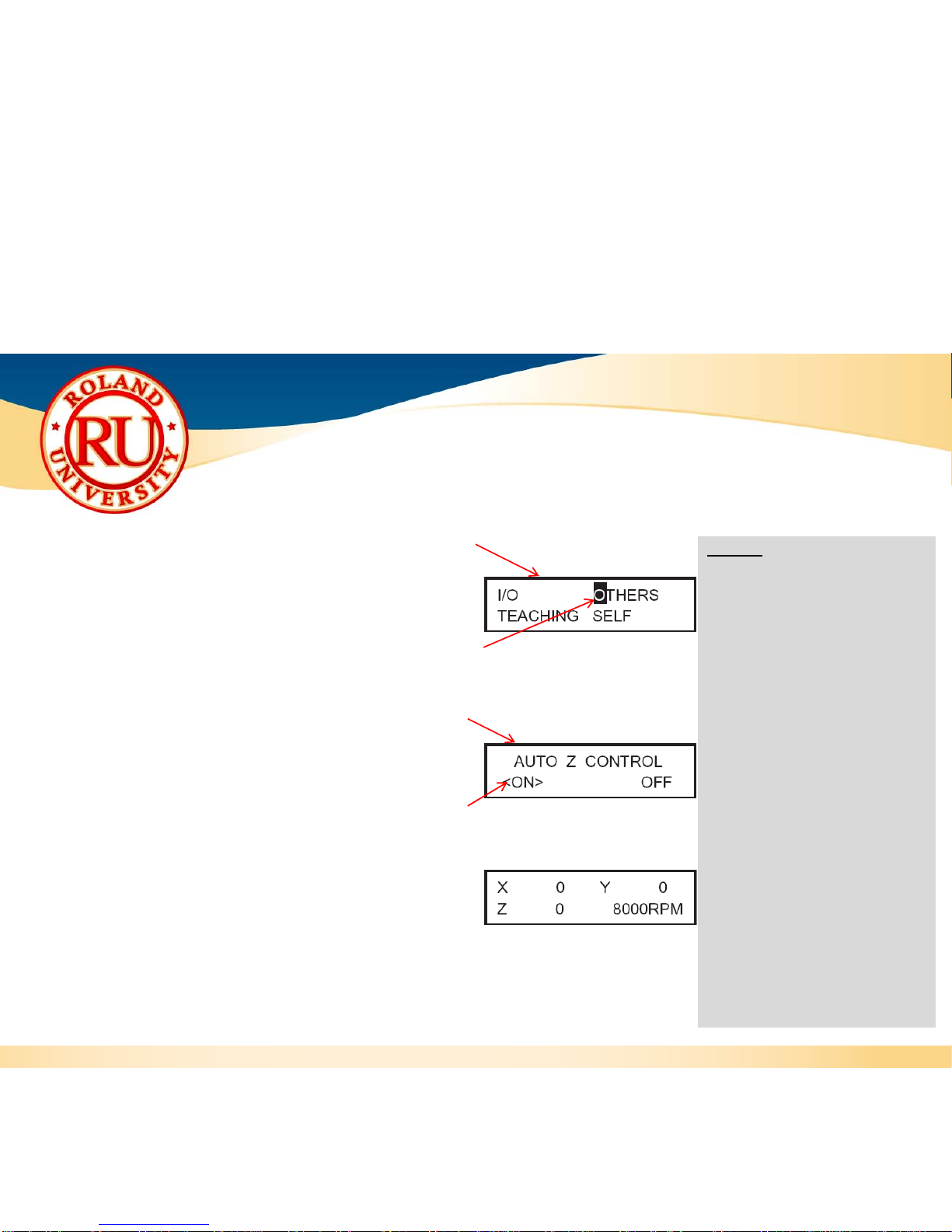

On the control panel press the MENU key multiple

times until the I/O, OTHERS, TEACHING, SELF

menu is displayed.

Using the arrow keys on the control panel move

the cursor to OTHERS and press the ENTER key to

enter the sub-menu.

Press the MENU key multiple times until AUTO Z

CONTROL is displayed.

Using the arrow keys on the control panel move

the cursor to ON and press the ENTER key to set

the value (shown with brackets).

Press the MENU key until you return to the main

screen.

NOTES:

Configuring Engraving Cutters

Using the arrow keys on the control panel move

the carriage so that the spindle unit is over the

lower left corner of the material.

Once the spindle is over the lower left corner of

the material, press the XY ORIGIN SET button and

press the ENTER key to set that as your origin

point.

Remove the cutter tool from the cutter knob

(brass knob) and install the cutter knob on the

top of the spindle assembly.

Install the solid collet to the bottom of the spindle

assembly and tighten it with the supplied spanner

wrenches 17mm on the bottom of spindle and

10mm on the collet.

•NOTE: Do not use the spanner wrench on the

Top Spindle Nut as you will damage the bearings

if you loosen or tighten it.

NOTES:

Configuring Engraving Cutters

Install the Nosecone assembly on the spindle

assembly counterclockwise until it stops and then

clockwise 2 full turns and set to 0 (may need to

mark the nosecone to indicate the 0 position).

•NOTE: Be careful not to cross thread the

nosecone to the spindle threads. Doing so will

damage the spindle unit.

Turn the nosecone clockwise an additional 42

clicks (each tick mark is equal to 0.001”) . This

will adjust the tool for 0.042” which is the depth

for the RasterTM Braille.

Loosen the Z screw lock nut. This will allow the Z

Axis to “float”.

Using the arrow keys move the nosecone over a

flat area of the material.

NOTES:

Configuring Engraving Cutters

Place a flat plate under the nosecone and insert

the cutter until it touches the plate.

Tighten the cutter to the brass knob. This will zero

the cutter for the proper cut depth for the

RasterTM Braille.

Remove the brass cutter knob and cutter from the

spindle as one piece. Do not loosen the cutter

from the brass knob.

Rotate the nosecone counter clockwise 9 clicks

which will adjust the depth to 0.033” for the

pictogram / raised text cutter.

Insert the character cutter and brass knob onto

the spindle and again place a flat plate under the

nosecone and insert the cutter until it touches the

plate.

Tighten the cutter to the brass knob. This will zero

the cutter for the proper cut depth for cutting the

pictograms and raised text.

NOTES:

Configuring Engraving Cutters

Turn the nose cone counterclockwise back to the

originating zero position (35 clicks).

Both cutters are configured for the proper depth

and only needto be removed with the brass knob

to switch between the two.
