Roland Fantom G6 Manual de usuario

04905089 08-02-1N

*04905089- 01*

Contents

Using the Fantom-G Live ....................... 5

The Basics of Using the Fantom-G Live.........................................................................6

Performing on the Keyboard.....................................................9

Selecting and Playing a Single Sound (Patch).............................................................10

Playing Two or More Sounds Simultaneously (Layer/Split) ...........................................11

Creating a Set of Sounds for a Live Performance ........................................................14

Performing on the Pads ..........................................................15

Pad Basics .............................................................................................................16

Using the Pads to Play Rhythm Sounds.......................................................................17

Using the Pads to Play Sampled Sounds ....................................................................19

Using the Pads to Play Sequenced Phrases (RPS).........................................................21

Creating a Song................................ 23

What is the Sequencer?...........................................................................................24

Getting Your Equipment Together .............................................................................26

Work Flow for Creating a Song ...............................................................................27

Preparations for Song Production..............................................................................28

Realtime-recording the Rhythm Using MIDI .................................................................31

Realtime-recording the Bass and Piano as MIDI ..........................................................35

Importing Audio Files from Your Computer.................................................................36

Recording Sound from a Mic or Guitar......................................................................38

Using Song Edit to Arrange Samples or Phrases .........................................................41

Adjusting the Overall Balance ..................................................................................42

Mastering ..............................................................................................................43

Saving Your Song...................................................................................................44

Making a CD from Your Completed Song..................................................................45

Fantom-G_q_e.book 3 ページ２００８年２月４日　月曜日　午後２時２６分

This Quick Guide applies to the Fantom-G6, the Fantom-G7 and the Fantom-G8. The manual uses the term

“Fantom-G” to indicate all these three models.

The explanations in this manual include illustrations that depict what should typically be shown by the display.

Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer

sounds), so what you actually see in the display may not always match what appears in the manual.

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change

without prior notice.

written permission of ROLAND CORPORATION.

Fantom-G_q_e.book 4 ページ２００８年２月４日　月曜日　午後２時２６分

Using the Fantom-G Live

Fantom-G_q_e.book 5 ページ２００８年２月４日　月曜日　午後２時２６分

The Basics of Using the Fantom-G Live

patch

is a basic sound on the Fantom-G; it corresponds to an individual instrument such as a piano,

organ, or guitar.

When you play the Fantom-G for the first time, we recommend that you use it in

Single mode

. This is the

simplest and most basic mode in which the Fantom-G can be used, such as playing it as a piano or organ.

fig.0-00a

Live mode lets you play up to eight patches simultaneously. Broadly speaking, there are two ways to use

Live mode

One way is for multiple sounds to be heard simultaneously when you press a key. This type of setup is

called a

Layer

➝

“Playing Two or More Sounds Simultaneously (Layer/Split)”

(p. 11 of this manual).

The other way is to place different sounds in the left and right areas of the keyboard, allowing you to play

separate instruments with your left and right hand. This type of setup is called a

Split

fig.0-00b

What is a Patch?

What is Single Mode?

What is Live Mode?

Fantom-G_q_e.book 6 ページ２００８年２月４日　月曜日　午後２時２６分

The Basics of Using the Fantom-G Live

Studio mode

is what you’ll use to create songs. It provides sixteen parts, and you can assign a patch to

each part to handle sixteen different sounds simultaneously.

You can use the mixer screen to mix your song by adjusting the level and pan settings etc. for each of the

sixteen parts.

The advantage of Studio mode is that it provides sixteen parts, but you should be aware that the sound of

the effects may be interrupted when you switch sounds. The sound will not be interrupted in this way if

you’re using Single mode or Live mode,

so Single mode or Live mode are the best choices for

live performance

fig.0-00b

What is Studio Mode?

Fantom-G_q_e.book 7 ページ２００８年２月４日　月曜日　午後２時２６分

The Basics of Using the Fantom-G Live

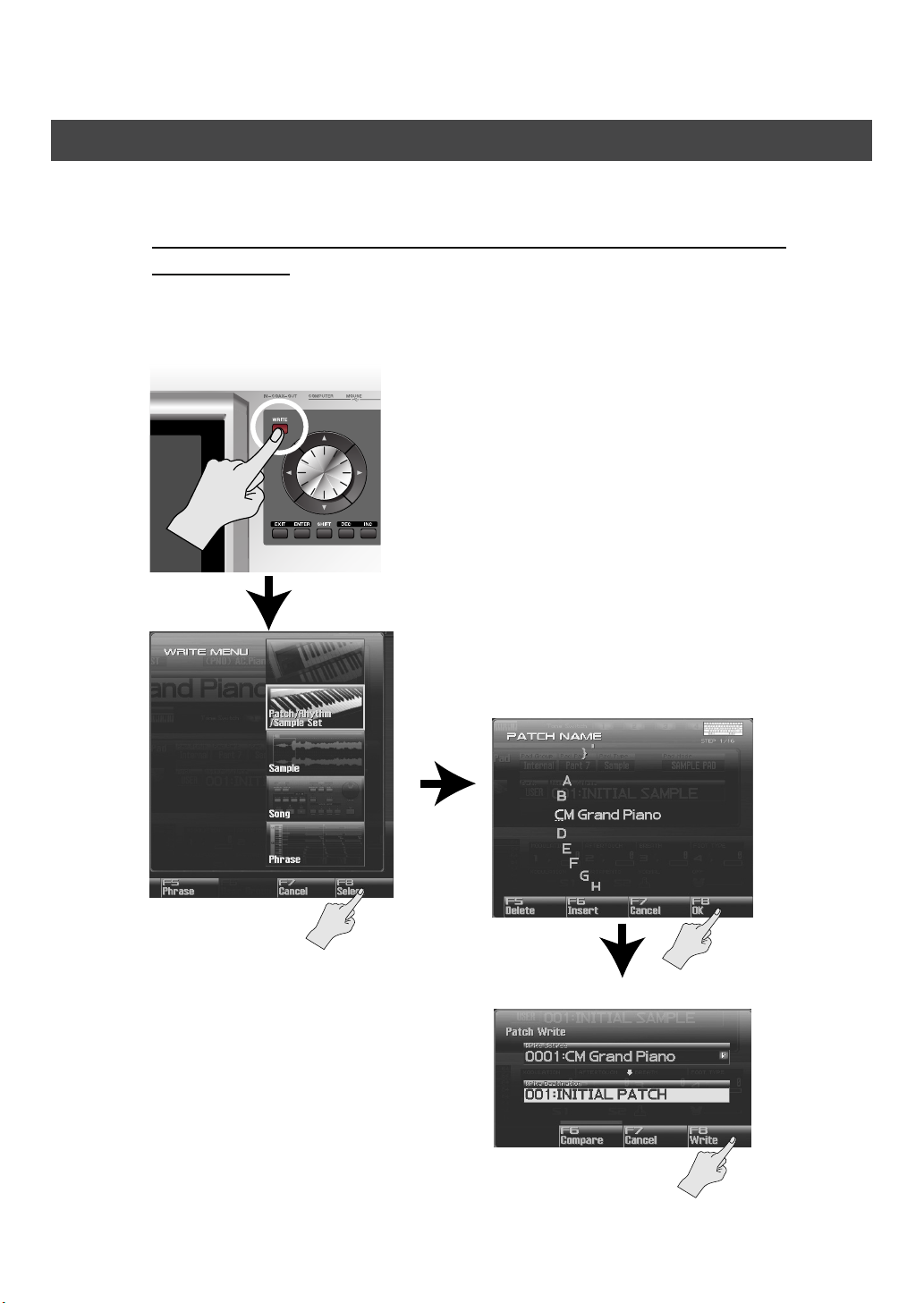

When you’ve created an original patch, you need to save it as a user patch if you want to use it again later.

This action is called “Writing.” The procedure for writing your original patch into memory is shown below.

If you select a different patch before writing your original patch, the changes you

made will be lost.

* User patches have the indication “USER” before their name; e.g., “USER 001: INITIAL PATCH.” User

patches are for storing your own original sounds.

* The writing procedure for a Live Set or Studio Set is the same.

fig.0-000c_e.eps

Saving the settings you’ve made

Specify the writing-destination.

Assign a name for your patch

(or live set or studio set).

The WRITE MENU screen appears.

Fantom-G_q_e.book 8 ページ２００８年２月４日　月曜日　午後２時２６分

Performing on the Keyboard

Fantom-G_q_e.book 9 ページ２００８年２月４日　月曜日　午後２時２６分

Selecting and Playing a Single Sound (Patch)

Here’s how to view a single category of sounds (such as only the piano patches or only the organ patches),

and select one of them.

1. Press the [SINGLE] button.

fig.0-01

2. Press [F1 (Patch List)] to access the Patch List screen.

fig.0-03

3. Use [F1] [F2] to select a category (of sounds such as piano, organ, or bass), and then use

the VALUE dial or [DEC] [INC] to select a patch. When you’ve selected a patch, press [F8

(Select)] to confirm your choice.

fig.0-04

If you press [F7 (Preview)], you’ll hear the selected sound played using a phrase suitable for

the type (category) of patch (Phrase Preview).

You can also use the front panel [Knob 4] to select a category, and use [Slider 8] to scroll the

list.

You can also play rhythm sounds from the keyboard. In the Patch List screen shown above,

press [F4 (Rhythm Set)] to see a list of the rhythm sets.

Adjusting the keyboard touch

You can adjust the way in which the volume responds to your playing dynamics.

➝

“How to Make System Function Settings”

(p. 286) in the Owner’s Manual

➝

“Keyboard Velocity Sens (Keyboard Velocity Sensitivity)”

(p. 288) in the Owner’s Manual

Selecting a sound (Single mode)

Fantom-G_q_e.book 10 ページ２００８年２月４日　月曜日　午後２時２６分
