Rockler HPL Guía de instalación

1

HPL Router Tabletop

Assembly Instructions

1HPL Tabletop 1

2 #6 x 3/4" Wood Screw 12

3 7 x 40mm Plate Leveling Screw 8

PARTS list - HPL Router Tabletop Quantity

Thank you for purchasing Rockler's HPL Router Tabletop. It combines a bright, durable surface with plate-leveling

features and a dual-track miter slot to provide great visibility and years of precise, low-friction routing. Please

read these instructions thoroughly before assembly.

2

3

1

2

46924

Rev 09/14

Distributed by Rockler Companies, Inc.

©2014 Rockler Woodworking and Hardware

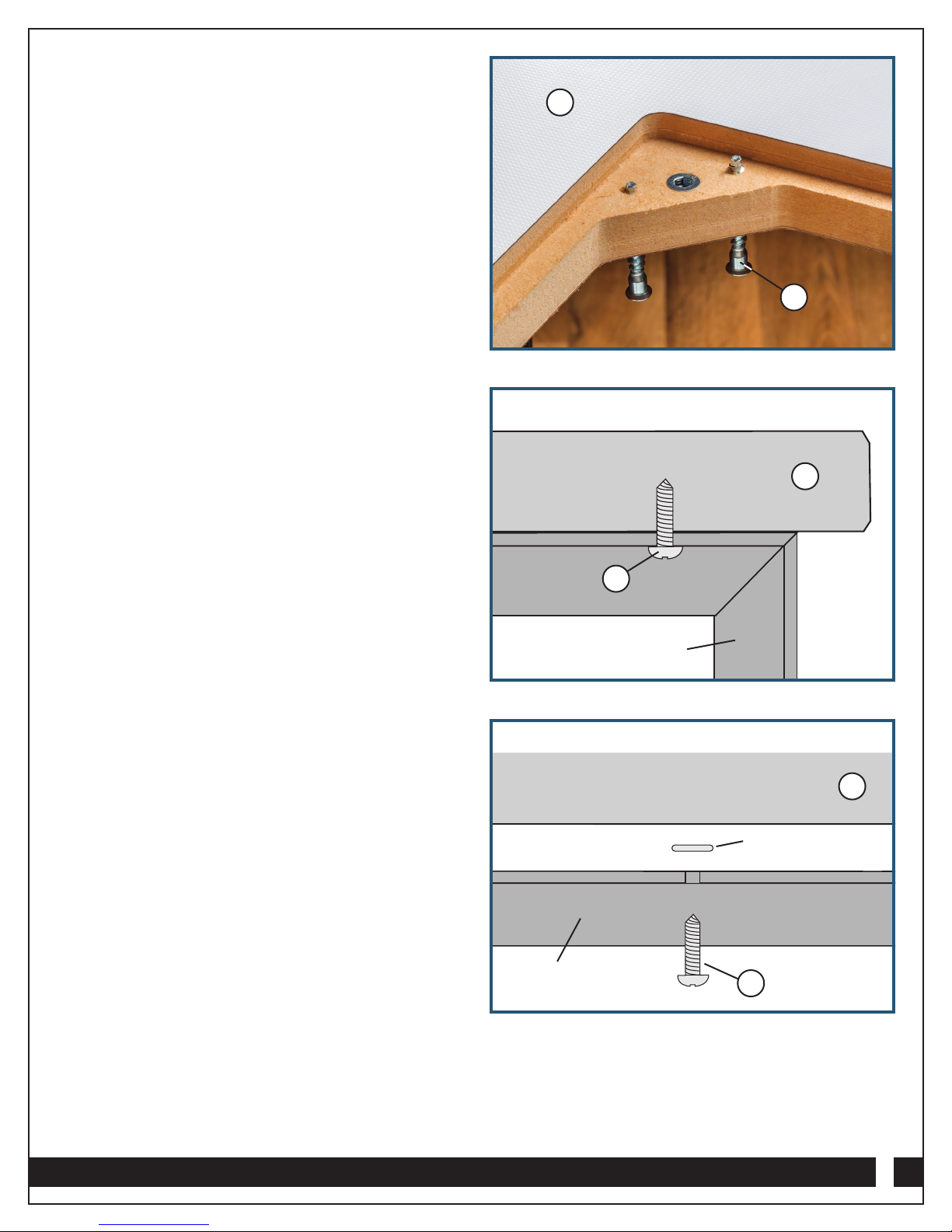

Install the Leveling Screws

1. Install the 7 x 40mm Plate Leveling Screws (3) up

through the predrilled holes in the lip of the opening

for the router plate. Fig. 1.

2. Install the router plate and adjust the screws' height

 untiltherouterplateisushwiththeHPLTabletop(1).

Attaching to Steel Router Table Legs

1. Set the HPL Tabletop (1) on the assembled Steel

Router Table Leg Set (48426, sold separately),

aligning the predrilled holes in the underside of the

top with the mounting holes in the steel stretchers.

2. Use #6 x 3/4" Wood Screws (2) in all 12 holes to

attach top and stand. Fig. 2.

Fine-Tuning for Flatness

As with other tool tables, you might need to shim your

routertabletoachieveormaintainaperfectlyatsurface.

If it's on a Rockler Steel Router Table Stand, simply follow

these steps:

1. Remove the middle mounting screws on the front

and rear stretchers.

2. Insert a small metal washer between each stretcher

and the tabletop. Fig. 3.

3. Reinstall the mounting screws through the washer

and into the top.

Steel Stand Sides

2

1

Fig. 1

Fig. 2

Fig. 3

1

2

Steel Stand

Stretcher

Washer

3

1
