UNIVERSAL WIRELESS
SUBWOOFER KIT
USER GUIDE
Before using your new product, please read these instructions to prevent any damage.
RF-WSW312
RF-WSW312_16-0071_MAN_V3_EN.fm Page 1 Monday, January 25, 2016 11:45 AM
2
RF-WSW312
Universal Wireless Subwoofer Kit
Contents
Introduction ............................................................. 2
Features...................................................................... 5
Setting up your subwoofer kit........................... 8
Using your subwoofer kit ..................................13
Troubleshooting ...................................................14
Specifications.........................................................15
Legal notices ..........................................................15
One-Year Limited Warranty-Rocketfish ........17
Introduction
This manual explains how to correctly install, operate, and get the
best performance from your Rocketfish RF-WSW312 Universal
Wireless Subwoofer Kit. Read this user guide carefully before
installing your system, then keep it near your system for quick
reference.
Your RF-WSW312 Universal Wireless Subwoofer Kit uses a
wireless communication system to transmit high fidelity audio to
a subwoofer, providing superior level audio quality and
resistance to interference.
The system is compatible with typical audio/video Receivers and
subwoofers.
RF-WSW312_16-0071_MAN_V3_EN.fm Page 2 Monday, January 25, 2016 11:45 AM
RF-WSW312
3
Safety information
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC
SHOCK, DO NOT REMOVE
COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
RF-WSW312_16-0071_MAN_V3_EN.fm Page 3 Monday, January 25, 2016 11:45 AM
4
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Unplug this apparatus during lightning storms or when unused
for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
Additional safety information
• The apparatus should not be exposed to dripping or splashing
and no objects filled with liquids should be placed on the
apparatus.
• The AC power plug or an appliance coupler is used as the
disconnect device. This disconnect device should remain readily
operable.
• Read the Rating Labels on the bottom of the Wireless Sender
and Wireless Receiver for power input and other safety
information.
RF-WSW312_16-0071_MAN_V3_EN.fm Page 4 Monday, January 25, 2016 11:45 AM
RF-WSW312
5
Features
• Wireless Sender and Wireless Receiver
• Transmits high quality audio over a radio frequency
communication link
•Compactsize
• Hidden antennas
Package contents
Examine the contents of the box for your RF-WSW312 Universal
Wireless Subwoofer Kit. The box should contain:
• Wireless Sender
• Wireless Receiver
• AC power adapters (2)
•SubwooferRCAcables(2)
•UserGuide
RF-WSW312_16-0071_MAN_V3_EN.fm Page 5 Monday, January 25, 2016 11:45 AM
6
Wireless Sender
The Wireless Sender transmits audio signals to the Wireless
Receiver.
#Feature
1 Subwoofer In RCA jack
2Line In RCA jack
3 Connect (pairing) button
4DC IN jack
5PowerindicatorLED
6Hanging holes for wall mounting the Sender
CONNECT DC IN 5V
SUB L R
Top view
Back view
Bottom view
RF-WSW312_16-0071_MAN_V3_EN.fm Page 6 Monday, January 25, 2016 11:45 AM
RF-WSW312
7
Wireless Receiver
The Wireless Receiver unit receives audio signals from the Wireless
Sender.
#Feature
1 Subwoofer Out RCA jack
2Connect (pairing) button
3DCINjack
4Power indicator LED
5 Hanging holes for wall mounting the Receiver
CONNECT DC IN 5V
SUB
Top vi ew
Back view
Bottom view
RF-WSW312_16-0071_MAN_V3_EN.fm Page 7 Monday, January 25, 2016 11:45 AM
8

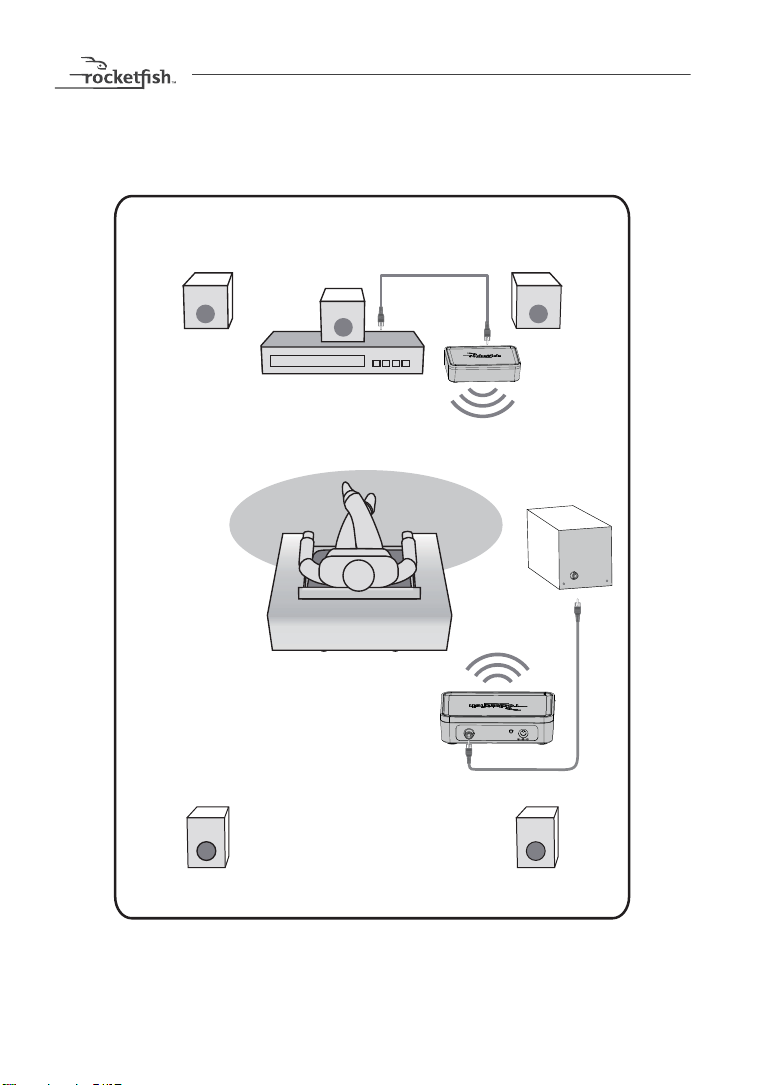

Setting up your subwoofer kit
CONNECT DC IN 5V
SUB
Left speaker Right speaker
Center speaker
Subwoofer
Amplifier
Wireless
Sender
Wireless
Receiver
Rear Left speaker Rear Right speaker
RF-WSW312_16-0071_MAN_V3_EN.fm Page 8 Monday, January 25, 2016 11:45 AM
RF-WSW312
9
Connecting the Wireless Sender

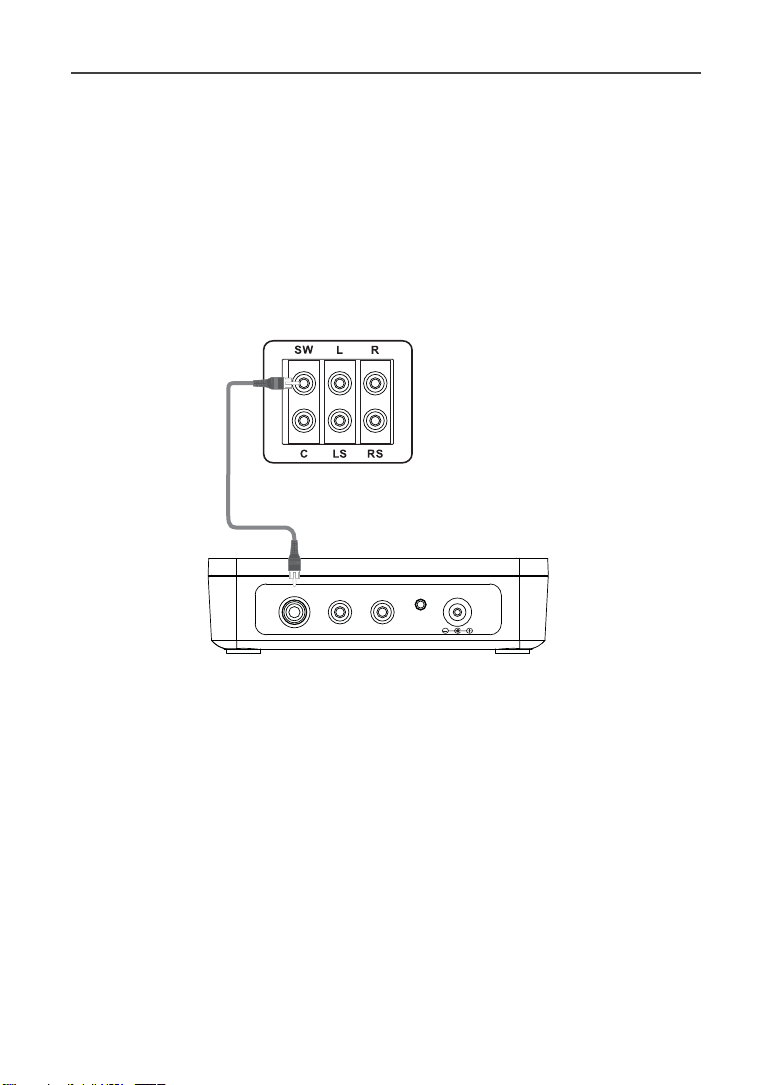

Option 1: Home theater receiver with a Sub Out jack
Most home theater receivers have a subwoofer output jack. For that
type of receiver, use this option.
• Connect the Subwoofer RCA cable (provided) to the Subwoofer
Out RCA jack on your home theater receiver and to the Wireless
Sender’s SUB IN RCA jack.
-OR-
Option 2: Audio source with L/R Line Out jacks
If your audio receiver does not have a subwoofer output jack, use
this option.
CONNECT DC IN 5V
SUB L R
Wireless Sender back panel
RF-WSW312_16-0071_MAN_V3_EN.fm Page 9 Monday, January 25, 2016 11:45 AM
10
• Connect an RCA stereo audio cable (not included) to the stereo
output jack of your audio receiver and to the Wireless Sender’s
Line In RCA jacks.
CONNECT DC IN 5V
SUB L R
Wireless Sender back panel
