Robustel GoRugged R3000 Lite Guía del usuario

-1-

Installation and Configuration Quick Guide

R3000 Lite

Industrial Dual SIM Cellular VPN Router

(1 Eth + 1 RS-232 + 1 RS-485 + 1 USB Host)

Environmental Requirements

Power input: 9 to 36V DC

Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state

Operating temperature: -40 °C to 75 °C

Relative humidity: 5% to 95% RH

Package Contents

Optional Accessories (sold separately)

3G/4G SMA cellular antenna (stubby/magnet optional)

Wall mounting kit

35 mm DIN rail mounting kit

Ethernet cable

AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)



Terminal block with a DB9 male connector for serial port connection

Before installing your R3000 Lite Router, please verify the kit contents as

following.

1 x Robustel R3000 Lite Industrial Dual SIM Cellular VPN Router

1 x 3-pin pluggable terminal block for power supply



1 x Quick Start Guide with download link of other documents or tools

*If any of the above items is missing or damaged, please contact your Robustel sales representative.

-2-

Hardware Introduction

Overview

Dimensions

Polarity

Positive

Negative

GND

Debug

RS-232

RS-485

(2-wire)

Termina

l Block

Direction

Data+ (A)

485+

RXD

Router Device

TXD

Router Device

DRXD

Router Device

GND

GND x 2

Data- (B)

485-

RTS

Router Device

CTS

Router Device

DTXD

Router Device

Function

TX+

TX-

RX+

RX-

3. Pinouts

-3-

4. LED Indicators

Name

Color

Status

Description

RUN

Green

On, fast blinking

(250 mSec blink time)

Router is powered on

(System is initializing)

On, blinking

(500 mSec blink time)

Router starts operating

Off

Router is powered off

USR-SIM

Green

On, blinking

Backup card is being used

Off

Main card is being used

USR-NET

Green

On, solid

Network is joined successfully

and worked in an optimum

one

On, blinking

Network is joined successfully

but worked in a lower-level

than standard

Off

Network is not joined or

joining

USR-Open

VPN

Green

On, solid

OpenVPN connection is

established

Off

OpenVPN connection is not

established

USR-IPsec

Green

On, solid

IPsec connection is established

Off

IPsec connection is not

established

PPP

Green

On, solid

Link connection is established

Off

Link connection is not

established

Green

Three lights are solid

green

High signal strength (21-31) is

available

Two lights are solid

green

Medium signal strength

(11-20) is available

One light is solid

green

Low signal strength (1-10) is

available

Off

No signal

Function

Operation

When the network is disconnected, those three signal LEDs are

designed as a binary combination code to indicate a series of

error report.

Blinking: 1 Off: 0

001 AT command failed

010 no SIM card detected

011 need to enter the PIN code

100 need to enter the PUK code

101 registration failed

110 module error

111 not support the module

5. USB Interface

Function

Operation

Firmware upgrade

USB interface is used for batch firmware upgrading,

but cannot be used for sending or receiving data

from slave devices which connected to it. You can

insert a USB storage device into the router’s USB

interface, such as a U disk or a hard disk. If there

have a supported configuration file or a router

firmware in this USB storage device, the router will

automatically update the configuration file or the

firmware.

-4-

6. Reset Button

Function

Operation

Reboot

Press and hold the RST button for 5 seconds under

the operating status.

Restore to factory

default settings

Wait for 3 seconds after powering up the router,

press and hold the RST button until all six LEDs start

blinking one by one, and release the button to

return the router to factory defaults.

7. Ethernet Port

R3000 Lite Router has one Ethernet port with two LED indicators. The

yellow one is link indicator and the green one is speed indicator. For

details about status, see the table below.

Indicator

State

Description

Link indicator

On, solid

Connection is established

On, blinking

Data is being transferred

Off

Connection is not established

Speed indicator

On, solid

100 Mbps mode

Off

10 Mbps mode

-5-

3. Do not forget to twist the cover tightly to avoid being stolen.

4. Do not touch the metal of the SIM card surface in case information in

the card will lost or be destroyed.

5. Do not bend or scratch the SIM card.

6. Keep the SIM card away from electricity and magnetism.

7. Make sure router is powered off before inserting or removing the

SIM card.

2. Attach External Antenna (SMA Type)

Attach the SMA external antenna to the router’s connector and twist

tightly. Make sure the antenna is within the correct frequency range

provided by the operator and with 50 Ohm impedance.

Note: Recommended torque for mounting is 0.35 N.m.

3. Connect the Router to a Computer

Connect an Ethernet cable to the port marked ETH at the bottom of the

R3000 Lite, and connect the other end of the cable to your computer.

Hardware Installation

Insert or Remove SIM Card

Insert SIM card

1. Make sure router is powered off.

2. To remove cover, loosen the screws

associated with the cover by using a

screwdriver and then find the SIM card slot.

3. To insert SIM card, press the card with

finger until your hear a click and then

tighten the screws associated with the

cover by using a screwdriver.

4. To put back the cover and tighten the

screws associated with the cove by using a

screwdriver.



Remove SIM card

1. Make sure router is powered off.

2. To remove slot cover, loosen the screws associated with the cover by

using a screwdriver and then find the SIM card slot.

3. To remove SIM card, press the card with finger until it pops out and

then take out the SIM card.

4. To put back the cover and tighten the screws associated with the

cover by using a screwdriver.

Note:

1. Recommended torque for inserting is 0.5 N.m, and the maximum

allowed is 0.7 N.m.

2. Use the specific M2M SIM card when the device is working in

extreme temperature (temperature exceeding 40℃), because the

regular card for long-time working in harsh environment will be

disconnected frequently.

-6-

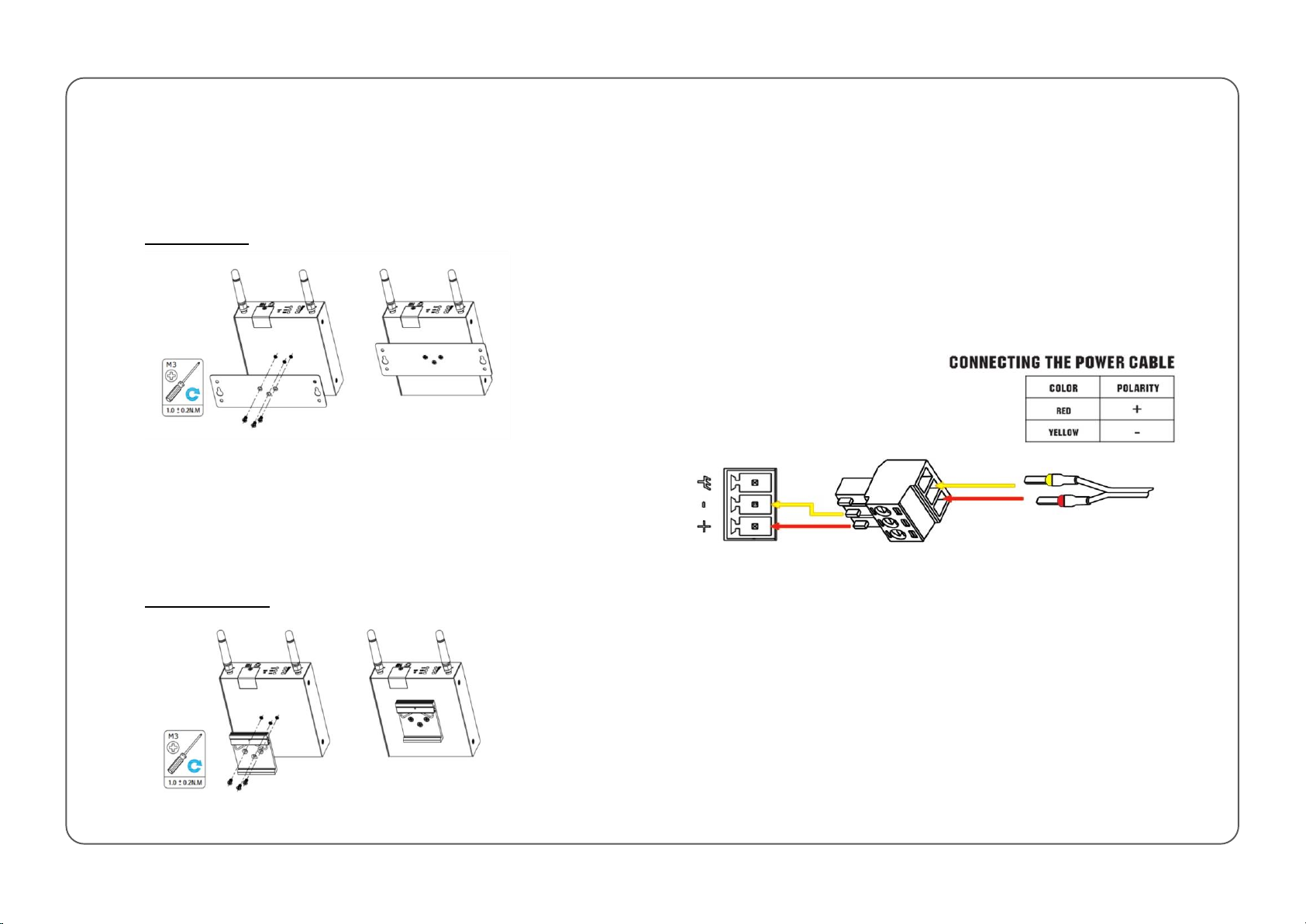

4. Mount the Router

The router can be placed on a desktop or mounted to a wall or a 35 mm

DIN rail.

Two methods for mounting the router

Wall mounting

Use 3 pcs of M3*4 flat head Phillips screws to fix the wall mounting

kit to the router , and then use 2 pcs of M3 drywall screws to mount

the router associated with the wall mounting kit on the wall.

Note: Recommended torque for mounting is 1.0 N.m, and the

maximum allowed is 1.2 N.m.

DIN rail mounting

Use 3 pcs of M3*6 flat head Phillips screws to fix theDIN rail to the

router, and then hang the DIN rail on the bracket. It is necessary to

choose the standard bracket.

Note: Recommended torque for mounting is 1.0 N.m, and the

maximum allowed is 1.2 N.m.

5. Power Supply

R3000 Lite router supports reverse polarity protection, but always refers

to the figure above to connect the power adapter correctly. There are two

cables associated with the power adapter. Following to the color of the

head, connect the cable marked red to the positive pole through a

terminal block, and connect the yellow one to the negative in the same

way.

Note: The range of power voltage is 9 to 36V DC.

-7-

PC Configuration

There are two methods to get IP address for the PC, one is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a

static IP address manually within the same subnet of the router. Please refer to the steps below.

Here take Windows 7 as example, and the configuration for windows system is similar.

2. Click Properties in the window of

Local Area Connection Status.

1. Click Start > Control panel, double-click Network

and Sharing Center, and then double-click Local

Area Connection.

3. Choose Internet Protocol Version

4 (TCP/IPv4)and click Properties.

4. Two ways for configuring the IP address of PC

Obtain an IP address automatically:

Use the following IP address

(Configured a static IP address manually within the

same subnet of the router)

5. Click OK to finish the configuration.

-8-

Router Configuration

To log in to the management page and view the configuration status of

your router, please follow the steps below.

On the PC, open a web browser such as Internet Explorer, Google and

Firefox etc.

2. From your web browser, type the IP address of the router into the

address bar and press enter. The default IP address of the router is

192.168.0.1, though the actual address may vary.

3. In the login page, enter the username and password, choose language

and then click LOGIN. The default username and password are

“admin”.

Note: If enter the wrong username or password over six times, the

4. After logging in, the home page of the R3000 Lite Router’s web

interface is displayed, for example.

Note: To configure parameters should follow this order “modify

parameter 1 > Submit > modify parameter 2 > Submit > Save & Apply”.

2. Configure the Cellular Connection

Click Interface > Link Manager > Link Manager > General Settings,

choose “WWAN1”as the primary link and “WWAN2”as the backup

link, and set “Cold Backup”as the backup mode, then click “Submit”.

Note: Link Settings allows you to configure the parameters of link

connection, including WWAN1 and WWAN2. It is recommended to

enable Ping detection to keep the router always online. The Ping

detection increases the reliability and also costs the data traffic.

-9-

When finished, click Submit > Save & Apply for the configuration to

take effect.

3. Check the Cellular Connection Status

Click Interface > Cellular > Status to view the status of the cellular

connection, and click the row of status, the details status information

will be displayed under the row.

Click on the right-most of WWAN1 to enter the configuration window.

The window is displayed as below when enabling the “Automatic APN

Selection”option.

The window is displayed as below when enabling the “Ping Detection”

option.

-10-

Guangzhou Robustel Technologies Co., Ltd

Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660

Tel: 086-20-29019902

Email:

info@robustel.com

Web:

www.robustel.com

4. Configure the IP of LAN

There is one LAN port on R3000 Lite Router, which is ETH. The default

settings of ETH is lan0 and its default IP is 192.168.0.1/255.255.255.0.

Configure lan0

Click Interface > LAN > LAN, click lan0’s edit button to configure its

configuration, and modify its IPv4 address and Netmask.

Click lan0’s edit button and configure its parameters in the pop up

window.

When finished, click Submit > Save & Apply for the configuration to

take effect.

Configure multiple IP

Click Interface > LAN > Multiple IP as below.

You may click to edit the configuration of the LAN port, or click to

delete the current LAN port. Now, click to add a new LAN port.

When finished, click Submit > Save & Apply for the configuration to

take effect.
