ROBINHOOD 6F6WH Manual de usuario

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802

POWERPACK RANGE HOOD

MODEL

6F6WH, 6F8WH

SERVICE MANUAL

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802

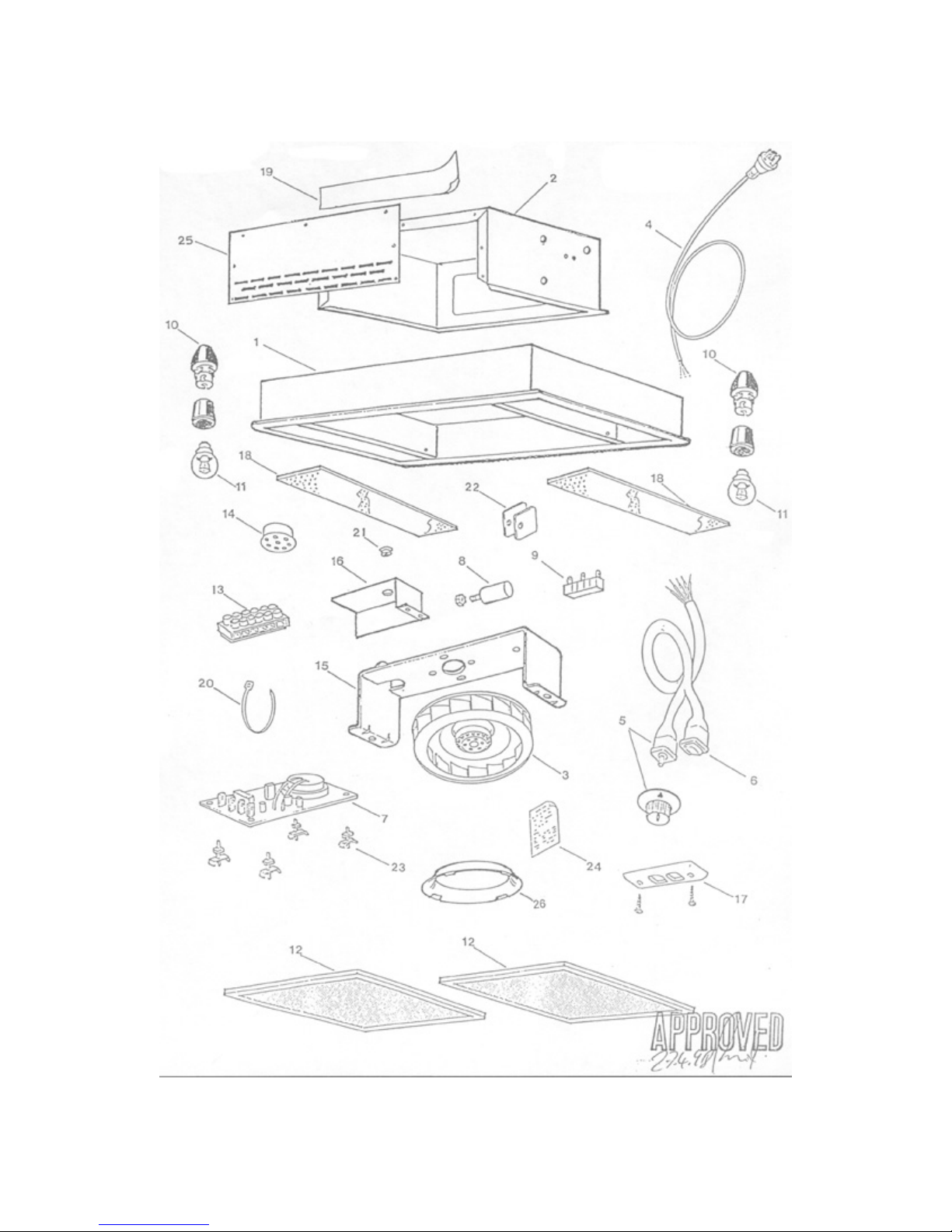

POWERPACK

ITEM

DESCRIPTION

6F6WH 6F8WH

PART No. PART No.

Filter Fan Unit

Fan Box

Motor E.B.M.R2E220

102767

Power Cord

103821

Rotary Switch

Assy.

102908

Switch 770 MEC

102909

PCB Heat Alarm

102746

Capacitor

102793

Resistor PW50

102690

Lamp Holder

Assy.

102795

11 Lamp 40W 101191

Filter

102910 102385

Terminal Block

101841

Vent Plug

101716

Motor Bracket

102438

PCB Cover

102664

2 Gang Arch PLT

102907

Glass

102917 102918

Exhaust Cover

102790

Wire Tie

106099

Grommet

102384

Glass Ret. Bracket

103042

PCB Spacer

102747

Installation Instructions

102911

Fan Box Front Cover

102637WH

Bell Mouth E220

103194

*NOT AVAILABLE OUTSIDE PRODUCTION

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802

POWERPACK

TO REPLACE MOTOR

DISCONNECT UNIT FROM POWER SUPPLY

REMOVE UNIT TO SUITABLE WORK AREA

REMOVE FILTERS

REMOVE GLASS DISFFUSERS BY UNDOING SCREWS AND

REMOVING RETAINERS, THEN SLIDE DIFFUSERS IN

TOWARD CENTRE OF UNIT TO CLEAR

REMOVE LAMPS

UNSCREW AND REMOVE LAMP HOLDER ASSEMBLYS

REMOVE 7 SMALL SCREWS TO RELEASE FAN BOX AND

LIFT IT SUFFICIENT TO CLEAR MOTOR MOUNTING

BRACKET

UNDO TWO NYLOC NUTS TO LIFT MOTOR BRACKET CLEAR

OF BODY

TAKE NOTE OF MOTOR WIRE COLOURS IN TERMINAL

BLOCK BEFORE REMOVING MOTOR WIRES

UNDO FOUR SCREWS TO REMOVE MOTOR FROM MOTOR

BRACKET

MOUNT NEW MOTOR AND REASSEMBLE UNIT IN REVERSE

OF ABOVE PROCEDURE

TEST TO APPROPRIATE ELECTRICAL STANDARDS BEFORE

USE

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802

TO REPLACE POWER CORD

DISCONNECT FROM POWER SUPPLY

REMOVE UNIT TO SUITABLE WORK AREA

REMOVE FILTERS

REMOVE GLASS DISFFUSERS BY UNDOING SCREWS AND

REMOVING RETAINERS, THEN SLIDE DIFFUSERS IN

TOWARD CENTRE OF UNIT TO CLEAR

REMOVE LAMPS

UNSCREW AND REMOVE LAMP HOLDERS

REMOVE 7 SMALL SCREWS TO RELEASE FAN BOX AND

LIFT IT CLEAR OF BODY

DISCONNECT POWER CORD WIRES (TAKE NOTE OF

COLOUR POSITIONS) FROM TERMINAL BLOCK, DISPOSE OF

OLD POWER CORD

ASSEMBLE NEW POWER CORD AND REASSEMBLE UNIT IN

REVERSE OF ABOVE PROCEDURE

TEST TO APPROPRIATE ELECTRICAL STANDARD BEFORE

USE

TO CHANGE LAMP

DISCONNECT FROM POWER SUPPLY

REMOVE FILTER

REMOVE GLASS DISFUSSER BY UNDOING AND REMOVING

RETAINER. SLIDE DIFFUSER IN TOWARD CENTRE OF UNIT

TO CLEAR

CHANGE LAMP (NOTE 40W MAX)

REPLACE DIFFUSER AND FILTER IN REVERSE OF ABOVE

PROCEDURE

6F -SERIES

APPROVED

Page

of 7

ISSUE: C

ECN2802
