PARTS
MANUAL
EX130D52090
ENGINE
for
Coleman
Models
PUB-EP
Rev. 11/06
EX130D52090 - 2 - 11-06
© Copyright 2006 Robin America, Inc.
940 Lively Blvd. • Wood Dale, IL 60191 • Phone: 630-350-8200 • Fax: 630-350-8212
EX130D52090 - 3 - 11-06
HOW TO USE THIS MANUAL
Robin engines are identified by MODEL, SPECIFICATION, and CODE NUMBER. For each
model there may be many different versions called specifications. Each specification will be
unique in some way. The difference may only be the paint color or it may have a different type
of PTO or some other significant difference.
In order the identify the correct service part number, it is important to confirm the specifica-
tion and code numbers for your engine. The specification and code number together are
know as the PRODUCT NUMBER.
All Robin 4 cycle engines have a Product Number label similar to the label illustrated below.
The Product Number Label has a 15 digit alphanumeric string that consists of the
SPECIFICATION (SPEC) number (11 digits) and the CODE number (4 digits). Please
note the illustration below:
X X X X
SPEC NO. (11 digits) CODE NO. (4 digits)
PRODUCT NO. (15 digits)
E X 1 3 0
EX130D52090 - 4 - 11-06

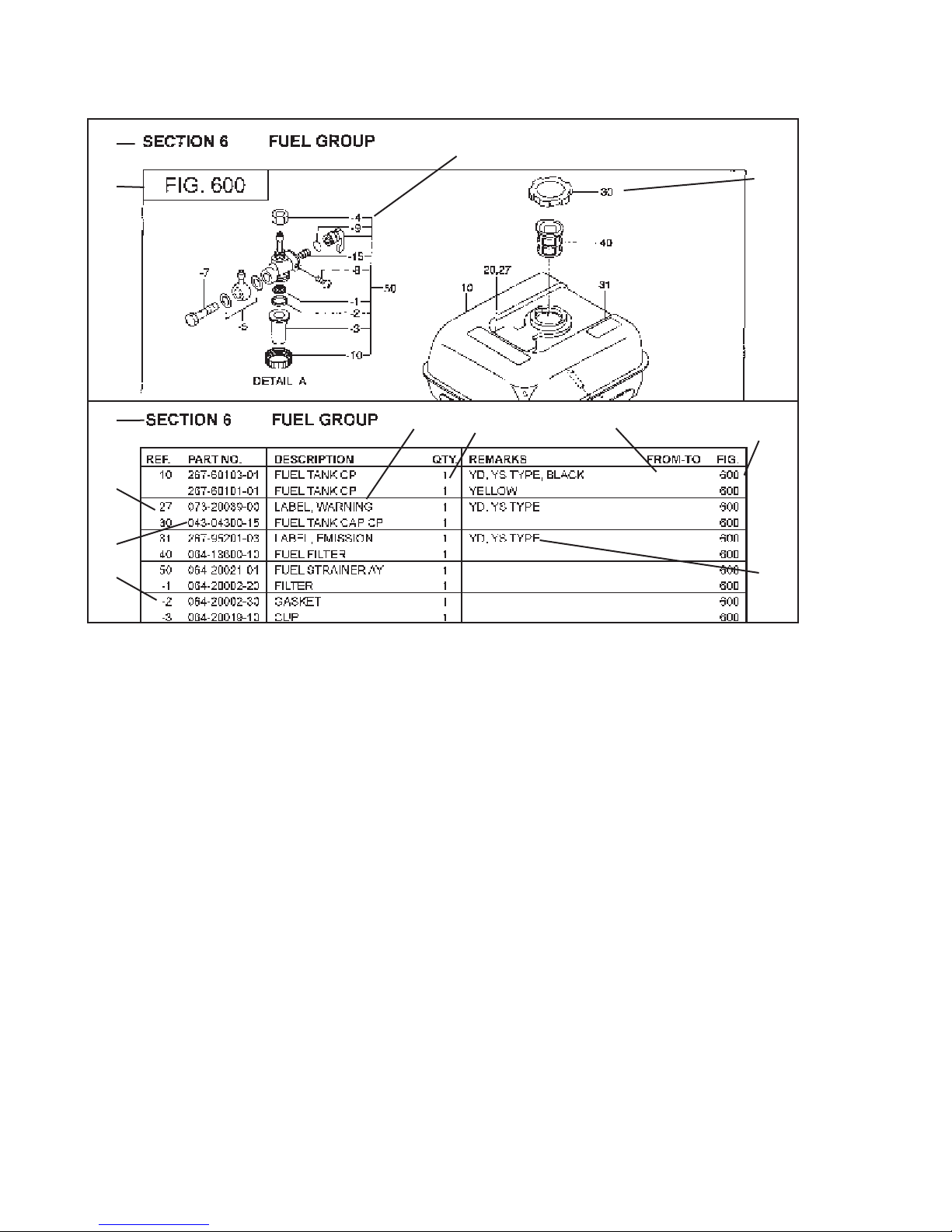

MANUAL LAYOUT
1. SECTION NAME Parts are broadly classified according to their functions.
Refer to the Group Index (table of contents) for respective section name.
2. FIG. No. The FIG. number indexes the reference and part numbers to the illustration. Figure numbers
that vary only in the tens place (i.e..: 700 and 710) are in a group of the same section
(i.e..:Electrical Device Group).
3. REF. No . The Reference number identifies the part illustration with the corresponding part number in the
part list.
4. SUBASSEMBLY SUBASSEMBLY parts of part assembly are listed below the assembly part. The subassembly
part reference number is indicated by the number led by "-" such as "-1", "-2".
5. PART NUMBER It is the number assigned for sales unit. Use the PART No. when making an order.
6. DESCRIPTION It is designation of the part.
7. QTY. Quantity of each part used for each product.
8. REMARKS This gives a distinctive feature and/or a supplementary comment for the type, the specification,
and the part concerned. It also shows part number(s) interchangeable for the part.
9. FROM-TO This section shows the CODE No. to indicate the history of progress in which improved parts
have been introduced in the product. The FROM-TO CODE No. helps to identify PART No.
being employed in the product concerned. See the examples below:
- The part is used in the product irrespective of CODE No.
2101- The part is used in the products with CODE No. of 2101 and after this number.
- 2100 The part is used in the products with CODE No. of 2100 and before this number.
1
23
4
16792
8
3
5
4
EX130D52090 - 5 - 11-06
GROUP INDEX
Group Name Page
CRANKCASE GROUP............................................................................... 6
CRANKSHAFT GROUP............................................................................. 8
INTAKE and EXHAUST GROUP.............................................................. 10
GOVERNOR GROUP .............................................................................. 18
COOLING and STARTING GROUP.........................................................22
FUEL, LUBRICANT GROUP.................................................................... 26
CARBURETOR GROUP.......................................................................... 28
ELECTRIC DEVICE GROUP .................................................................. 32
ACCESSORY GROUP............................................................................. 38
SYMBOL DESCRIPTION
AY...........................ASSEMBLY
CP...........................COMPLETE
EX...........................EXPORT (from Japan)
FIG..........................FIGURE
FR...........................FRONT
"..............................INCH
INCL. ......................INCLUDE
~L............................LITER
L= ...........................LENGTH (in. mm)
L.H. (LH).................LEFT-HAND SIDE
MECH.....................MECHANICAL
NO (NON)...............NONE
OPT.........................OPTIONAL
O.S. ........................OVER SIZE
SYMBOL DESCRIPTION
P=...........................PITCH (in mm)
P.T.O. (PTO)...........POWER TAKE OFF
REF.........................REFERENCE
R.H. (RH)................RIGHT HAND SIDE
RR. .........................REAR
STD. .......................STANDARD
SW..........................SWITCH
T=...........................THICKNESS (in mm)
UN ..........................UNIT
U.S..........................UNDER SIZE
~V...........................VOLTAGE
~W..........................WATT
W/...........................WITH
W/O ........................WITHOUT
INDEX OF DESCRIPTION SYMBOLS
EX130D52090 - 6 - 10-06
SECTION 1 CRANKCASE GROUP
FIG. 100
EX130D52090 - 7 - 10-06
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
SECTION 1 CRANKCASE GROUP
10 276-10101-41 CRANK CASE CP 1 100
20 237-14202-03 VALVE GUIDE 2 5.5DX9.5DX27L 100
26 277-16010-01 STEM SEAL 1 5.5DX9.5DX15DX7.8B 100
30 044-02502-10 OIL SEAL 1 25DX38DX7B 100
40 060-02800-21 BALL BEARING 1 28DX58DX16B 100
50 277-15011-03 PIPE KNOCK 2 10.3DX8.5DX14L 100
60 010-50802-90 STUD 2 M8X1.25X30L 100
70 010-50603-51 STUD 2 M6X1.0X98L 100
75 044-00600-20 OIL SEAL 1 6DX10DX2.5B 100
80 040-11400-30 PLUG 1 M14X1.5X20DX12L 100
90 021-11400-20 GASKET 1 14.1DX19DX2.3T 100
210 277-11002-21 MAIN BEARING COVER C 1 FLANGE 4-5/16-24UNF 100
220 044-02502-10 OIL SEAL 1 25DX41.25DX6B 100
230 060-02501-40 BALL BEARING 1 25DX52DX15B 100
250 277-45004-J1 GOVERNOR GEAR CP 1 53DX29.1T N=33 100
260 277-41901-03 GOVERNOR SLEEVE 1 6DX7.6DX16DX26L 100
270 277-63601-23 OIL GAUGE 2 M18X1.5 L=70+18 100
280 021-31600-20 GASKET 1 16DX23DX1.2T RUBBER 100
300 001-04083-50 FLANGE BOLT 6 100
610 276-13002-11 CYLINDER HEAD CP 1 100
620 276-15001-33 GASKET (HEAD) 1 T=0.2 100
630 011-00802-40 FLANGE BOLT 4 M8X1.25X16DX68L 100
631 011-00803-10 FLANGE BOLT 1 M8X1.25X16DX33L 100
680 277-15503-01 ROCKER COVER CP 1 100
690 277-16001-13 GASKET(ROCKER COVER) 1 T=0.5 100
700 277-15011-03 PIPE KNOCK 2 10.3DX8.5DX14L 100
710 011-00600-20 FLANGE BOLT 4 M6X1.0X14DX12L 100
960 276-99001-27 GASKET SET 1 100
EX130D52090 - 8 - 10-06
SECTION 2 CRANKSHAFT GROUP
FIG. 200
EX130D52090 - 9 - 10-06
REF. PART NO. DESCRIPTION QTY. REMARKS FROM-TO FIG.
SECTION 2 CRANKSHAFT GROUP
10 276-21201-21 CRANKSHAFT 1 SAE Taper 200
50 018-01400-20 FLANGE NUT 1 M14X1.5X28DX12H 200
70 032-30300-10 WOODRUFF KEY 1 3BX6HX16D 200
310 276-22501-10 CONNECTING ROD AY 1 80.2CDX25B 30D-13D 200
276-22502-00 CONNECTING ROD AY 1 0.25 U.S. 200
320 277-23001-03 CONNECTING ROD BOLT 2 M6X1.0X13DX33L 200
350 276-23301-13 PISTON PIN 1 13DX9DX44L 200
360 276-23401-H3 PISTON 1 STD (58DX35H) 200
276-23403-H3 PISTON 1 0.25 O.S.(58DX35H) 200
276-23404-H3 PISTON 1 0.50 O.S.(58DX35H) 200
370 276-23501-17 PISTON RING SET 1 STD(58D) OIL 3 PIECE 200
276-23502-17 PISTON RING SET 1 0.25 O.S. OIL 3 PIECE 200
276-23503-17 PISTON RING SET 1 0.50 O.S. OIL 3 PIECE 200
380 215-25004-03 CLIP 2 14.1DX1.2D 200
EX130D52090 - 10 - 10-06
SECTION 3 INTAKE and EXHAUST GROUP
FIG. 301
241 231
