Roberts R9954 Manual de usuario

R9954

3 Band Mains Battery

Portable Radio

Please read this manual before use

ROBERTS

Contents ..............................................................................2

Controls ........................................................................... 3-4

Battery Operation ................................................................5

Mains Operation ..................................................................5

Operating your radio - FM ...................................................6

Operating your radio - Medium and Long wave ..................7

Favourite station markers....................................................8

Headphones ........................................................................8

Speciﬁcations ......................................................................9

General................................................................................9

Mains supply......................................................................10

Guarantee..........................................................................11

Contents

Controls

1. On/Off button

2. Waveband buttons

3. Telescopic aerial

4. Tuning control

5.Dial pointer

6. Favourite station markers

7. Tone control

8. Volume control

(Top)

On Off

MWFM

LW kHz

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 Local ILRILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

Low High

VOL UME TONE TUNING

LW R 9954

9. Battery compartment

10. Mains socket

11.Headphone socket

9 10

Controls

(Rear) (End)

Battery operation

1. Remove the Battery cover on the rear of the unit by pushing the

battery door in and downwards.

2. Insert four LR14 (C size) batteries into the spaces in the compartment.

Take care to ensure all batteries are inserted with the correct polarity

as shown inside the battery compartment. Replace the battery

cover.

3. Reduced power, distortion and a ‘stuttering’ sound are all signs that

the batteries may need replacing.

4. If the radio is not to be used for any extended period of time it is

recommended that the batteries are removed from the radio.

We would recommend for economy that the R9954 is used on the

mains whenever possible with battery operation for occasional or

stand-by use only.

IMPORTANT: The batteries should not be exposed to excessive heat

such as sunshine, ﬁre or the like. After use, disposable batteries should

if possible be taken to a suitable recycling centre. On no account should

batteries be disposed of by incineration.

Mains operation

1. Place your radio on a ﬂat surface.

2. Plug the mains lead into the Mains socket located on the rear of

your radio ensuring that the plug is pushed fully into the socket.

3. Plug the other end of the mains lead into a wall socket and switch

on the wall socket.

IMPORTANT: The mains plug is used as the means of connecting

the radio to the mains supply. The mains socket used for the radio

must remain accessible during normal use. In order to disconnect the

radio from the mains completely, the mains plug should be removed

from the mains socket outlet completely.

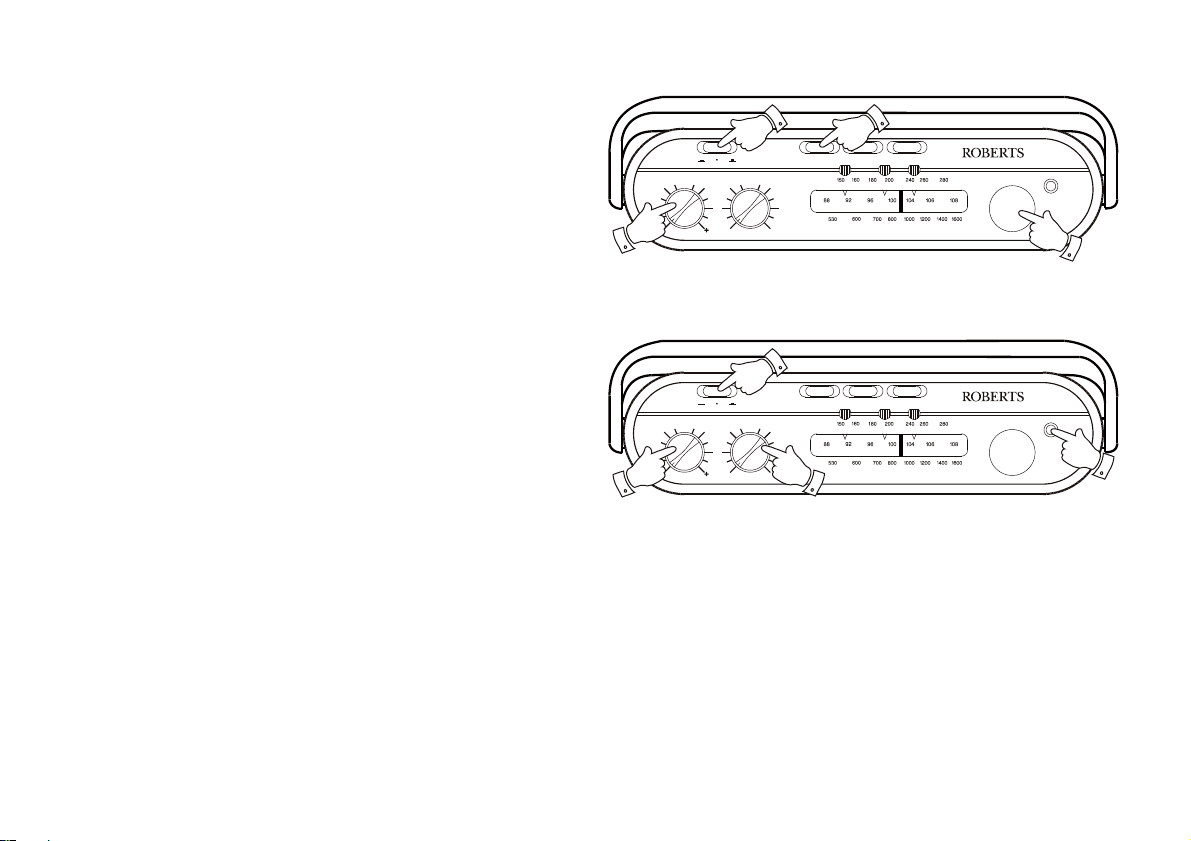

Operating your radio - FM

1. Switch on your radio by pressing the On/Off button.

2. Press the FM button to select the FM waveband.

3. Adjust the Volume control until a hissing sound is heard.

4. Rotate the Tuning control to select the desired station. On FM the

Tuning scale is marked in Megahertz (MHz).

5. For FM reception fully extend the Telescopic aerial and then angle

and rotate for best reception

6. Adjust the Volume to the required setting.

7. Adjust the Tone control to the required setting.

8. To switch off your radio press the On/Off button.

On Off

MWFM

LW kHz

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 Local ILRILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

Low High

VOL UME TONE TUNING

R 9954

On Off

MWFM

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 Local ILRILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

Low High

VOL UME TONE TUNING

R 9954

67 5

On Off

MWFM

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 Local ILRILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

Low High

VOL UME TONE TUNING

R 9954

Operating your radio - Medium and Long wave

1. Switch on your radio by pressing the On/Off button.

2. Press either the MW or LW button.

3. Adjust the Volume control until a hissing sound is heard.

4. Rotate the Tuning control to select the desired station. On MW

and LW the Tuning scale is marked in kilohertz (kHz).

5. For MW or LW reception rotate your radio to the position giving best

reception.

6. Adjust the Volume to the required setting.

7. Adjust the Tone control to the required setting.

8. To switch off your radio press the On/Off button.

Note : The telescopic aerial does not operate on MW and LW.

On Off

MWFM

LW kHz

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 Local ILRILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

Low High

VOL UME TONE TUNING

R 9954

Headphones

1. A Headphone Socket (3.5mm) located on the left hand end of

your radio is provided for use with either headphones or an

earpiece. Inserting the headphone plug automatically mutes the

internal loudspeaker.

Please be aware that the sensitivity of headphones can vary widely. We

therefore recommend setting the volume to a low level before connecting

headphones to the radio.

IMPORTANT: Excessive sound pressure from earphones and headphones

can cause hearing loss.

Favourite station markers

1. Tune into the required station.

2. Your radio is ﬁtted with 3 favourite station markers which allow up to

3 stations to be quickly located.

3. Position one of the markers so that it appears on top of the dial pointer.

Whenever you wish to return to that station simply line up the dial

pointer with the corresponding marker.

4. Repeat the above procedure for the 2 remaining favourite station

markers.

LocalILR

MWFM

kHz

MHz

BBC World Service

Eire

Radio 2 R3 R4 ILRRadio 1

Radio 5

Allouis Radio 4

Virgin

Radio Scot R.Ulster

TUNING

R 9954

To prevent possible hearing damage, do not listen at high

volume levels for long periods.

The Company reserves the right to amend the speciﬁcation without notice.

Speciﬁcations

Power Requirements

Mains AC 230 volts, 50Hz only

Batteries 4 x LR14 (C size)

Battery Life

Approx. 80hrs of listening time for 4 hours a day at

normal volume using alkaline cells.

Frequency Coverage

FM 87.5 - 108MHz

MW 522 - 1620kHz

LW 144 - 281kHz

Circuit Features

Loudspeaker 92mm x 1

Output power 1W into 4 ohms

Headphone socket 3.5mm dia.

Aerial System FM Telescopic Aerial

MW Built-in Ferrite aerial

LW Built-in Ferrite aerial

General

• Do not allow this unit to be exposed to dripping or splashing. Do not

leave your radio where excessive heat could cause damage such

as in a parked car where the heat from the sun can build up even

though the outside temperature may not seem too high. It is

recommended that the FM band be used where ever possible as

better results in terms of quality and freedom from interference will

usually be obtained than on the MW or LW bands.

• No objects ﬁlled with liquids, such as vases, shall be placed on the

radio.

• It is recommended to operate the product such that there is a minimum

distance (10cm recommended) to adjacent objects in order to ensure

good ventilation.

• The ventilation of the product should not be restricted by covering it or

its ventilation openings with items such as newspapers, table-cloths,

curtains etc.

• No naked ﬂame sources such as lighted candles should be placed on

the product.

• It is recommended to avoid using or storing the product at extremes

of temperature. Avoid leaving the unit in cars, on window sills in direct

sunlight etc.

• The product must be used in a moderate climate.

The Nameplate is located on the underside of your radio.

The wire coloured BLUE must be connected to the terminal marked N or

coloured BLACK.

The wire coloured BROWN must be connected to the terminal marked L

or coloured RED.

Mains supply

The R9954 will operate from a supply of AC 230 volts, 50Hz only.

DO NOT cut off the mains plug from this equipment. If the plug ﬁtted is

not suitable for the power points in your home or the cable is too short to

reach a power point, then obtain an appropriate safety approved extension

lead or adaptor. If in doubt consult your dealer.

If nonetheless the mains plug is cut off, remove the fuse and dispose of

the plug immediately to avoid a possible shock hazard by inadvertent

connection to the mains supply.

If this product is not supplied with a mains plug, or one has to be ﬁtted,

then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the larger terminal which

is marked with the letter E or by the safety earth symbol or coloured

Green or Green-and-yellow.

The wires in the mains lead are coloured in accordance with the following

codes :-

BLUE - NEUTRAL BROWN - LIVE

Fuse

When replacing the fuse only a 3AASTA approved to BS1362 type should

be used and be sure to re-ﬁt the fuse cover.

IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN.

3 amp

Brown

Blue

(Live)

(Neutral)

(Earth)

Cord

Troubleshooting

In case of malfunction due to electrostatic discharge, it may be necessary

to reset the product to resume normal operation. This may generally be

performed by turning the unit off and on. In some cases a more complete

reset may be needed, by removing all sources of power (battery and

mains) when turned off.

Otros manuales para R9954

Tabla de contenidos

Otros manuales de Radio portátil de Roberts

Roberts

Roberts Classic 996 Manual de usuario

Roberts

Roberts RP3 Manual de usuario

Roberts

Roberts RP16 Manual de usuario

Roberts

Roberts R876 Manual de usuario

Roberts

Roberts Rambler BT Manual de usuario

Roberts

Roberts Revwal Manual de usuario

Roberts

Roberts ClassicLite Manual de usuario

Roberts

Roberts R761 Manual de usuario

Roberts

Roberts rp28 Manual de usuario

Roberts

Roberts FM RDS/DAB Digital Personal Radio RD14 Manual de usuario

Roberts

Roberts FM RDS/DAB Digital Radio RD-50 Manual de usuario

Roberts

Roberts R861 Manual de usuario

Roberts

Roberts R9993 Manual de usuario

Roberts

Roberts Clasic 997 Manual de usuario

Roberts

Roberts R9947 Manual de usuario

Roberts

Roberts WM-202 Manual de usuario

Roberts

Roberts R9903 Manual de usuario

Roberts

Roberts 3-band Battery Portable Radio R9924 Manual de usuario

Roberts

Roberts The Digital Radio Collection Manual de usuario

Roberts

Roberts R9927 Manual de usuario

Roberts

Roberts ecologic 2 Manual de usuario

Roberts

Roberts R9928 Manual de usuario

Roberts

Roberts Sports 925 Manual de usuario

Roberts

Roberts iStream 3 Manual de usuario

Manuales populares de Radio portátil de otras marcas

Telefunken

Telefunken P5 Manual de usuario

Tait

Tait TP9300 Manual de usuario

Lafayette

Lafayette Guardian 5500 Manual de usuario

Sailor

Sailor SP3300 Manual de usuario

Matra Nortel

Matra Nortel MC 6500 Manual de usuario

Hytera

Hytera PD362i Manual de usuario

Vertex Standard

Vertex Standard VX-P920 Series Manual de usuario

LENCO

LENCO IPD-5100 Manual de usuario

Baofeng

Baofeng BF-82 Manual de usuario

Philips

Philips AE2110/04 Manual de usuario

Trevi

Trevi RA 764 Manual de usuario

TerraTec

TerraTec NOXONiRadio Manual de operación y mantenimiento

M/A-Com

M/A-Com P5100 Series Manual de usuario

Elta

Elta 6699 Manual de usuario

PURE

PURE ONE classic Series II Manual de usuario

Teac

Teac PR130 Manual de usuario

Philips

Philips AE6370 Manual de usuario

Simoco

Simoco SRP9170 Manual de usuario
