Rinnai RH-9020A Manual de usuario

Model:RH-9020A

COOKER HOOD

INSTRUCTION MANUAL

Products and accessory ...............1

Dimensions .................................2

Installation...................................3

Caution........................................4

Operating Instruction ..................5

Maintenance & Cleaning ............6

Trouble Shooting.........................7

Wiring Diagram ..........................8

Specication................................9

NAME PAGE

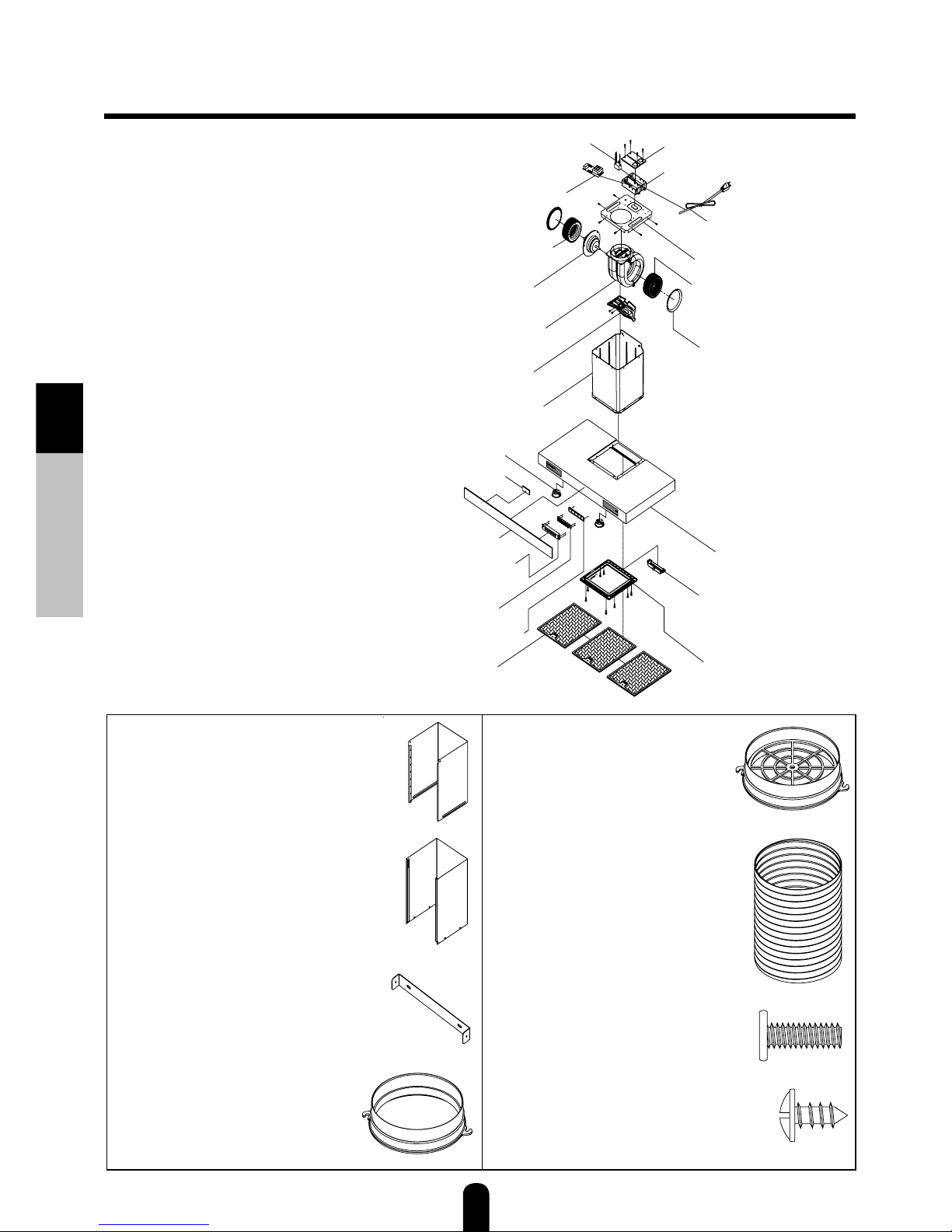

PART NAME

RH-9020A Capacitor

Aluminum Tube (up) (1 PCS)

Aluminum Tube (down) (1 PCS)

Aluminum Cover Fixing Assy (1 PCS)

Connector (1 PCS)

Control Board

Fan Blade (Right)

Motor

Ventilator Body

Oil Plate

Main Tube Unit

LED Light

Control Panel

Mesh Filter

Electric Box Cover

Electric Box

Power cable

Tube top cover

Fan Blade (Left)

Ventilator seal

Oil Cup

Accessories

Charcoal Filter Assy (1 PCS)

Aluminum pipe (1 PCS)

For Fixing Assy screw (2 PCS)

For Aluminum Tube screw (3 PCS)

LED Back Light

Glass

Control Panel box Body

Oil Cup base

Control Panel cover

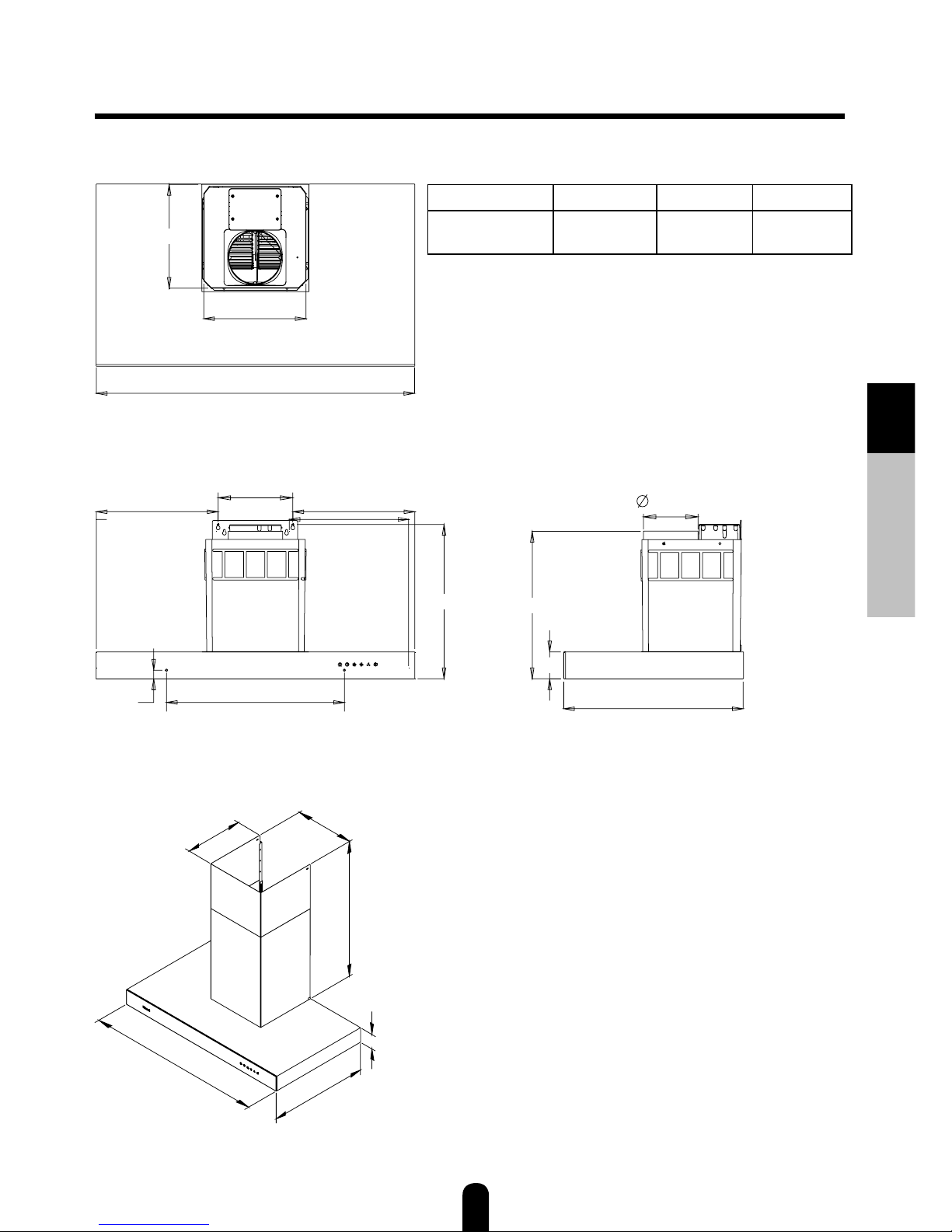

Dimensions

MODEL A B C

RH-9020A 210mm 896mm 507mm

896

Hook Location A

153(6")

408

507

210

343

500

285

290

343

428

298

300

75mm

507mm

896mm

min 470 max 910 mm

(*Excluding with height of main unit)

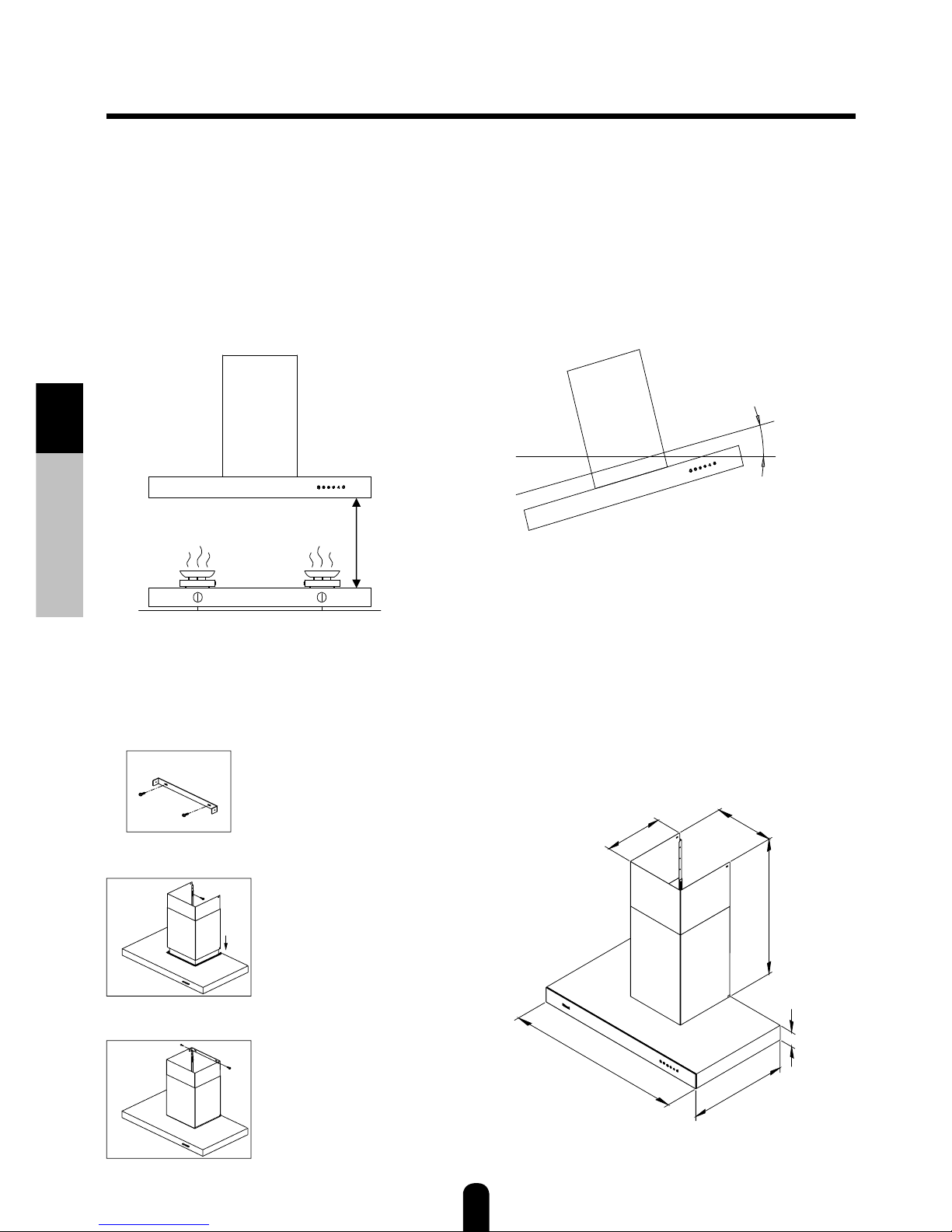

Installation

1. Main Set Installation:

The minimum distance between the cooker and the appliance is

75-90CM, anddrill holes on the wall. Screw the main set by using

screw nut together. Adjust the main set till horizontal line.

Installation

Keep it horizontal (level)

2. Aluminum Tube Installation:

Aluminum Tube Set Installation Diagram

Aluminum tube install(1)

Install aluminum tube bracket

according to the kitchen cabinet

design. Find the suitable location

and install it on the wall.(g 1)

Fig 2

Adjust aluminum tube height

according to the kitchen cabinet

design.Insert the aluminum tube

into the indentation.(g 2 )

Screw the upper aluminum tube and

the bracket(g 3)

Aluminum tube install(2)

Fig 3

Fig 1

Aluminum tube bracket install

298

300

75mm

507mm

896mm

min 470 max 910 mm

(*Excluding with height of main unit)

75-90cm

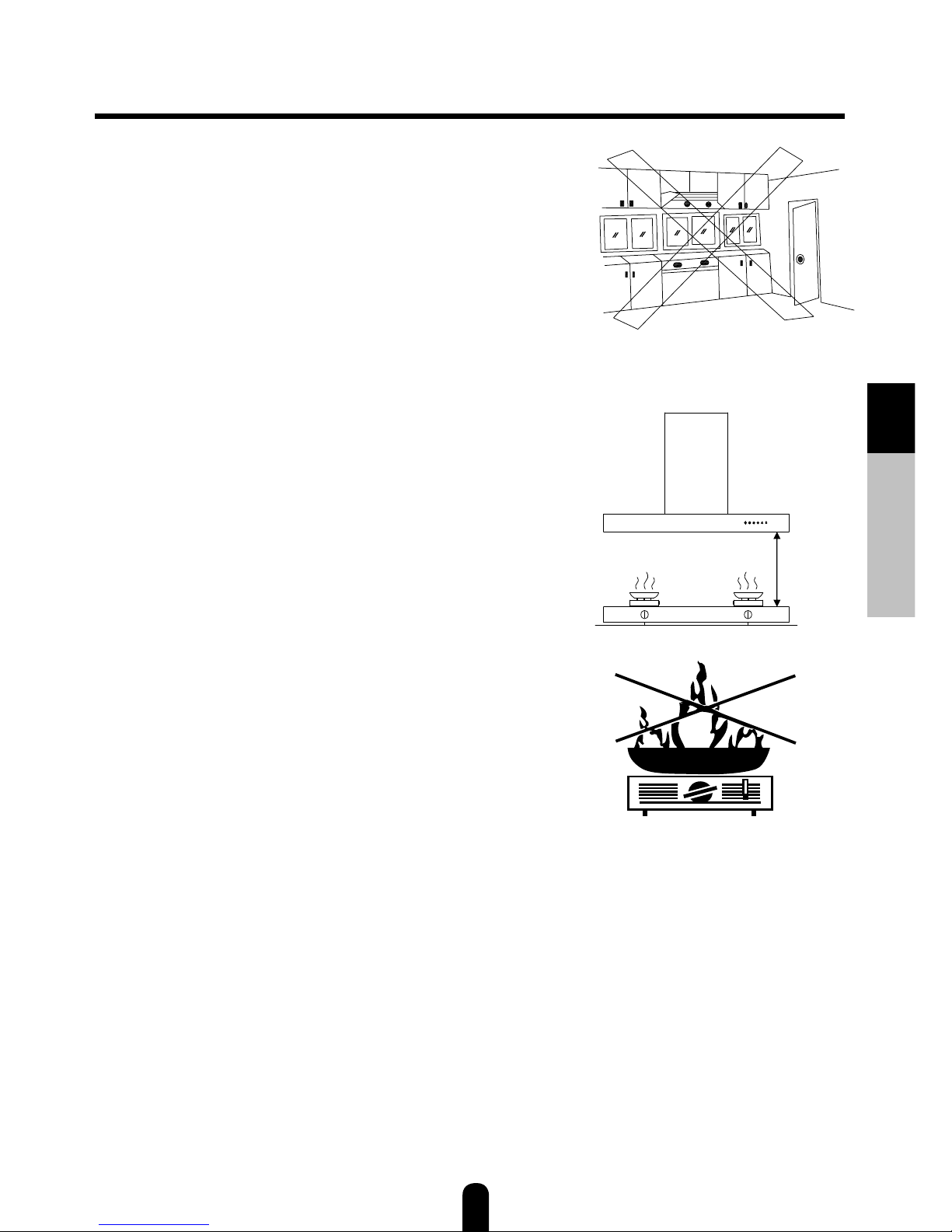

Caution

Surrounding Environment:

(g1)

(g2)

(g3)

The cooker hood should install near outdoor

window. Let the exhaust air from the tube blow

out easily thru the window. Alternatively, make

a hole on the wall, and let the exhaust air from

the aluminum tube blow out. Do not squash the

aluminum tube into the hole. However, do not

select a place, where has too many windows.

That is because excess ventilation might affect

the result of the cooker hood.(g1)

Warning: Unplug the power socket before uninstall.

1. Please keep a minimum 75 –90 cm distance

between cooker hood and cooker. Different

types of cooker might require a bigger

space.(g2)

2. Do not ame under the cooker hood. (g3)

3. Adjust the aluminum tube to make sure all the exhaust air has blown out

successful.

4. There shall be adequate ventilation of the room when the cooker hood is

used at the same time as appliances burning gas or other fuels.

5. Accessible parts may become hot when used with cooking appliances.

6. The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels.

7. The screw must tighten up after xing the cooker hood.

75-90cm

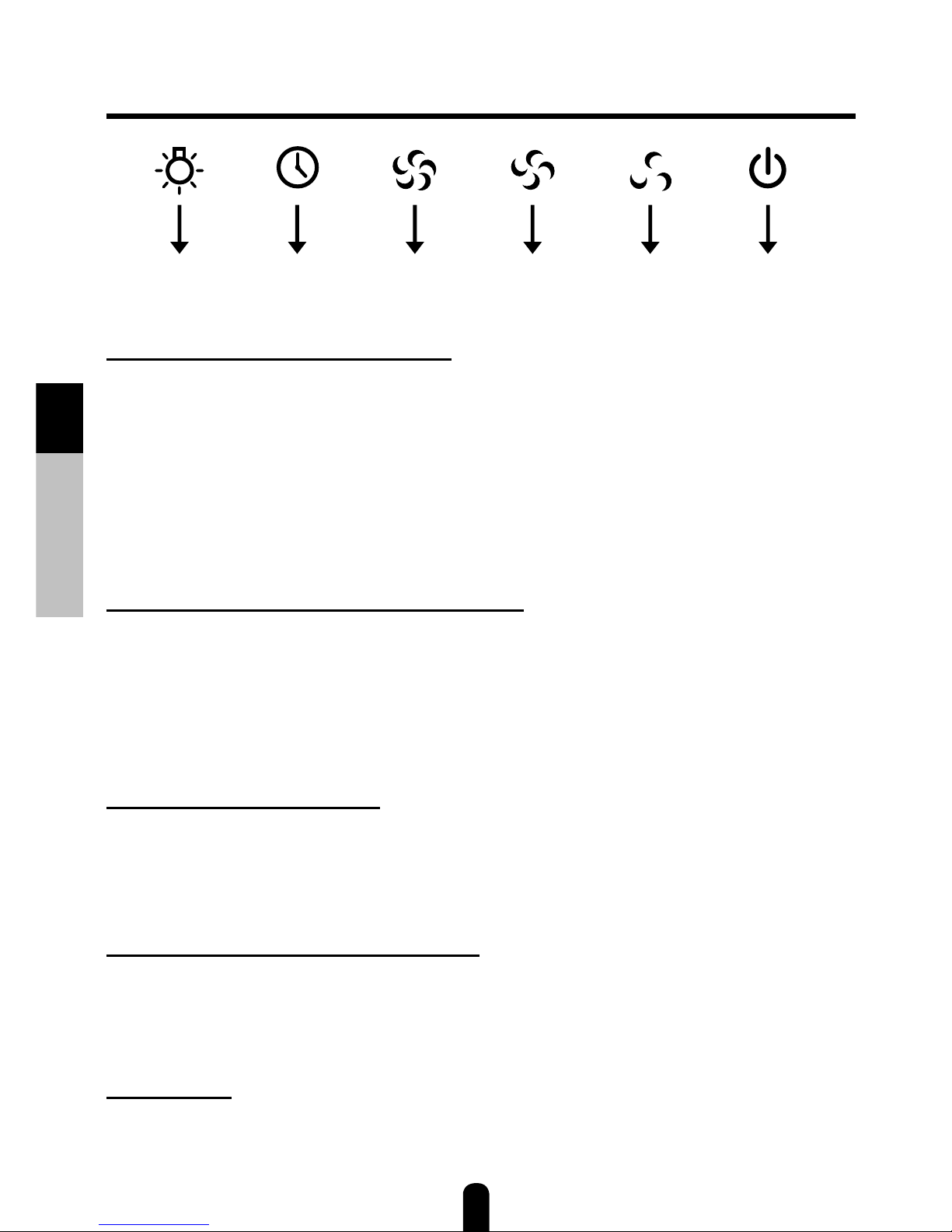

Operating Instruction

Power Control

Button

Low Speed

Control Button

High Speed

Control Button

Turbo Speed

Button

Delay ButtonLight Control

Button

Power control button (Red light)

1. Push this button to turn on the power and power indicator light will be on.

2. Push again to turn off power、power indicator light and all functions.

Note:If power has been turned on over 9 minutes without any setting ,

system will be shut down automatically for energy-saving.

3. For easy to clean the unit, press the power button 5 sec will automatic

locked the button function, at this moment the function board no function

when the power light twinkle. Press the power button 5 sec will unlock

the it. And will power off.

Speed setting control button(Blue light)

1. Push high speed button to turn on high speed ventilation and high speed

indicator light will be on. Push again to turn off speed function only.

2. Push low speed button to turn on low speed ventilation and low speed

indicator light will be on. Push again to turn off speed function only.

3. Push turbo button to start extremely high speed revolution and turbo

indicator light will be on . Push again to turn off speed function only.

Delay button(Green light)

Push delay button to turn on low speed ventilation and delay indicator light

will be on , system will shut down automatically after 90 seconds. Push

again to turn off delay function only.

*Only for low speed

Light control button (Orange light)

1. Push this button to turn on the illumination and light indicator light will

be on .

2. Push again to turn off the LED illumination only.

Note:If only push Speed/Delay/Light button, power also will be on.

CAUTION:

Each button function must press 0.5sec to activate, this is avoid the program

hand up when pressing the button too fast.

Maintenance & Cleaning

1.Thereisareriskifcleaningisnotcarriedoutinaccordancewith

the instructions.

2.Becarefuloftheamewhencookingalcoholicfood.Itmightcause

to burn the cooker hood.

3. Make sure the ventilation is good when using glass hob and cooker

hood together.

4. Wipe the cooker hood with a soft damp cloth.

5. Do not spray water directly on the cooker hood to avoid electric

shock or damage to it.

6. Use mild detergent to clean the impeller. Pull out the oil cup, and

wash it.

7. Always wash or change the filter, and clean up the cooker hood

regularly.

8. Minimum clean up the cooker hood once a week.

9. Kindly follow this cleaning instruction to avoid dangerous.

10.If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in

order to avoid a hazard.

11.Whilehavinggreasetolter,pleasepulldownandwash.

Trouble Shooting

1. Motor Malfunction:

● Check the electrical wiring.

● Check the power plug, On / Off switch, or fuse.

● Check the impeller. If can move by hand when power is on, means the

condenser capacitor needed to be changed.

● When turn on the motor, it stops immediately, or only 1 motor works,

means you need to change a new motor.

2. Main Set Shaking:

● Check on the welding spots for losing points.

● Have the motor and impeller screwed properly.

● Has the impeller deformed?

3. Weak Suction:

● Far distance between cooker hood and glass hob?

● Check if aluminum pipe is too long or curve. Change to 7-inch diameter

if necessary.

● Check if there is excess ventilation.

● Check the aluminum pipe, make sure exhaust air and flame blow out

smoothly.

● Window should be closed while operating cooker hood.

4. Oil Plate Broke:

● Please get the original parts from any authorize dealers.

5. Oil Cup Broke:

● Please get the original parts from any authorize dealers.

6. Light Failure:

● Check if wiring is ok.

● Remove the light lampshade, and change a new LED light.

7. While filter have damaging, please pull down and change the new

lter.

Wiring Diagram

RH-9020A

GRAY

BLUE

WHITE

ELECTRIC BOARD

Control Board

LAMP

BLACK

LED Back Light

POWER

CONDENSER

MOTOR

YELLOW

WHITE

BLUE

GRAY

WHITE

YELLOW

BROWN

WHITE

( BROWN)

WHITE

BLACK

( BLUE)

FUSE

RH-9020A

MATERIAL SUS304

SIZE W896xD507xH545~985mm

(＊Height: From button of main unit)

OUTLET DIA 153mm

FAN SIZE 14CMx2

MOTOR, S 1

INSULATION E

VOLTAGE/FREQUENCY 240V/50Hz

AMP 1.5A

LIGHT 2W

SPEED Ⅰ Ⅱ Ⅲ

MOTOR SPEED 1200rpm 1800rpm 2400rpm

CONSUMPTION POWER 180W 220W 270W

AIR FLOW MAX 600m³/hr 900m³/hr 1200m³/hr

C.O.O TAIWAN

Specication

MODEL

DATA
