Rinnai HSNRP26 Manual de usuario

REFRIGERANT

R32

P Series Split Type Wall Mounted Air Conditioner

Wi-Fi Smart Kit Operation Manual

MODELS

System Indoor Outdoor

HSNRP26 HINRP26M HONRP26

HSNRP35 HINRP35M HONRP35

HSNRP50 HINRP50M HONRP50

HSNRP60 HINRP60M HONRP60

HSNRP70 HINRP70M HONRP70

HSNRP80 HINRP80 HONRP80

Ref Only HINRP20M Matching Multi System Only

DECLARATION OF CONFORMITY

Hereby, we declare that this Smart kit is in

compliance with the essential requirements and

other relevant provisions of Directive 2014/53/EU.

A copy of the full DoC is attached.

(European Union products only)

IMPORTANT NOTE:

Read the manual carefully before installing or

connecting your Smart kit(Wireless module). Make

sure to save this manual for future reference.

CONTENTS

SPECIFICATION...............................................

PRECAUTIONS ...............................................

DOWNLOAD AND INSTALL APP....................

INSTALL THE SMART KIT...............................

USER REGISTRATION ...................................

NETWORK CONFIGURATION.........................

HOW TO USE APP............................................

SPECIAL FUNCTIONS......................................

SPECIFICATION

Model: OSK102,EU-OSK103,US-OSK103

Standard: IEEE 802. 11b/g/n

Antenna Type: Printed PCB Antenna

Frequency : WLAN 2400~2483.5 MHz

Operation Temperature:0 C~45 C/32 F~113 F

Operation Humidity: 10%~85%

Power Input: DC 5V/300mA

Maximum Transmitted Power: 19.8dBm Max

Please keep you APP up to date with the latest version.

Due to special situation may be occurred, we explicitly

claims below: Not all of the Android and iOS system

are compatible with APP. We will not be responsible

for any issue as a result of the incompatibility.

Cautions

ireless safety strategy

Smart kit only support WPA-PSK/WPA2-PSK

encryption and none encryption .

WPA-PSK/WPA2-PSK encryption is recommended.

Due to different network situation, control process

may return time-out sometimes. If this situation

occurs, the display between board and App may not

be the same, please do not feel confused.

Smart Phone camera needs to be 5 million pixels or

above to make sure scan QR code well.

2PRECAUTIONS

Applicable system: iOS, Android.

(Suggest: iOS 8.0 or later, Android 4.0 or later)

CAUTION: The following QR Code is only available

for downloading APP. It is totally different with

the QR code packed with SMART KIT.

Due to different network situation, sometimes,

request time-out could happen, thus, it is necessary

to do network configuration again.

Please Check The Service Website For More information.

3DOWNLOAD AND INSTALL APP

Android iOS

Android Phone users: scan Android QR code or go to

google play, search ‘NetHome Plus” app and download it.

iOS users: scan iOS QR code or go to APP Store,

search ‘NetHome Plus” app and download it.

The APP system is subject to update without prior notice for

product function improvement. The actual network configuration

process may be slightly different from the manual, the actual

process shall prevail.

WARNING

INSTALL THE SMART KIT(wireless module)

Remove the protective cap of the smart kit

(wireless module)

Open the front panel and insert the smart kit

(wireless module) into the reserved interface.

Insert

Attach the QR code packed with Smart kit

(wireless module) to the side panel of the

machine, ensure it is convenience to be scanned

by the mobile phone. Alternatively, user can take

picture of the QR Code and save it into their own

phones.

:This interface is only compatible with

SMART KIT(wireless module) provided by the

manufacturer.

NOTE:

The P Series wall mounted split system indoor unit has

been pre-fitted with the Wi-Fi Smart Kit. Please

proceed to Step 5 on page 4 of this manual.

Click "Sign up " Enter your email address

and password, and then

click " "Registration

VI5

Crea Acc

rgot password?

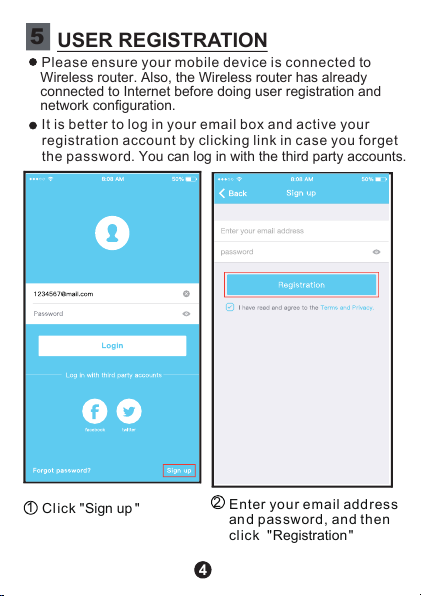

5USER REGISTRATION

Please ensure your mobile device is connected to

Wireless router. Also, the Wireless router has already

connected to Internet before doing user registration and

network configuration.

It is better to log in your email box and active your

registration account by clicking link in case you forget

the password. You can log in with the third party accounts.

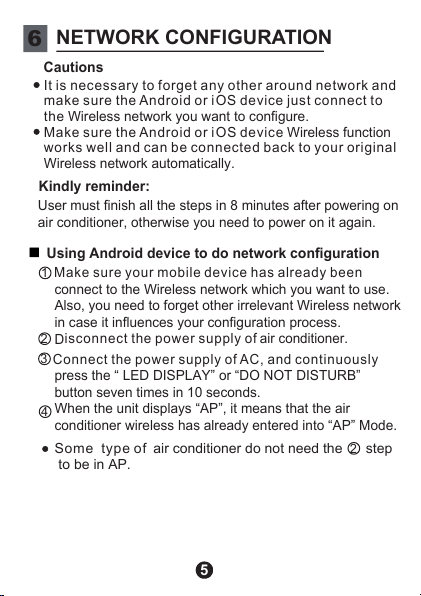

6NETWORK CONFIGURATION

Cautions

Kindly reminder:

Using Android device to do network configuration

It is necessary to forget any other around network and

make sure the Android or iOS device just connect to

the Wireless network you want to configure.

Make sure the Android or i OS device Wireless function

works well and can be connected back to your original

Wireless network automatically.

connect to the Wireless network which you want to use.

Also, you need to forget other irrelevant Wireless network

in case it influences your configuration process.

press the “ LED DISPLAY” or “DO NOT DISTURB”

button seven times in 10 seconds.

When the unit displays “AP”, it means that the air

conditioner wireless has already entered into “AP” Mode.

User must finish all the steps in 8 minutes after powering on

air conditioner, otherwise you need to power on it again.

Make sure your mobile device has already been

Disconnect the power supply of air conditioner.

Connect the power supply of AC, and continuously

Some type of air conditioner do not need the step

to be in AP.

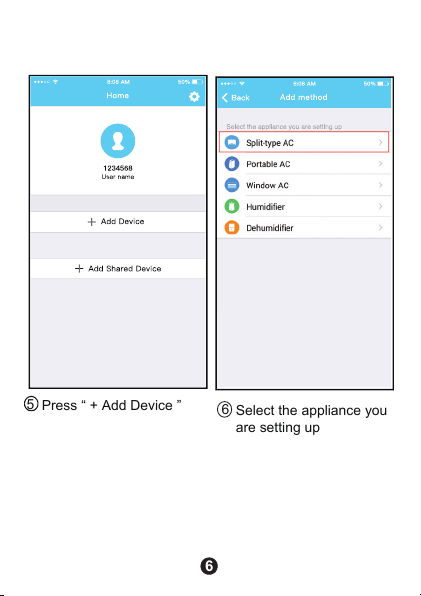

5Press “ + Add Device ” 6Select the appliance you

are setting up

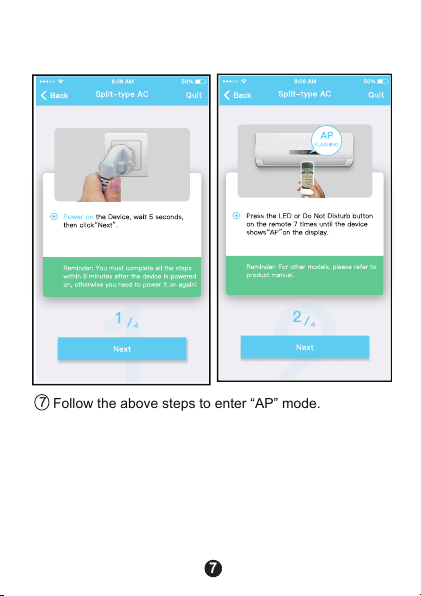

7Follow the above steps to enter “AP” mode.
