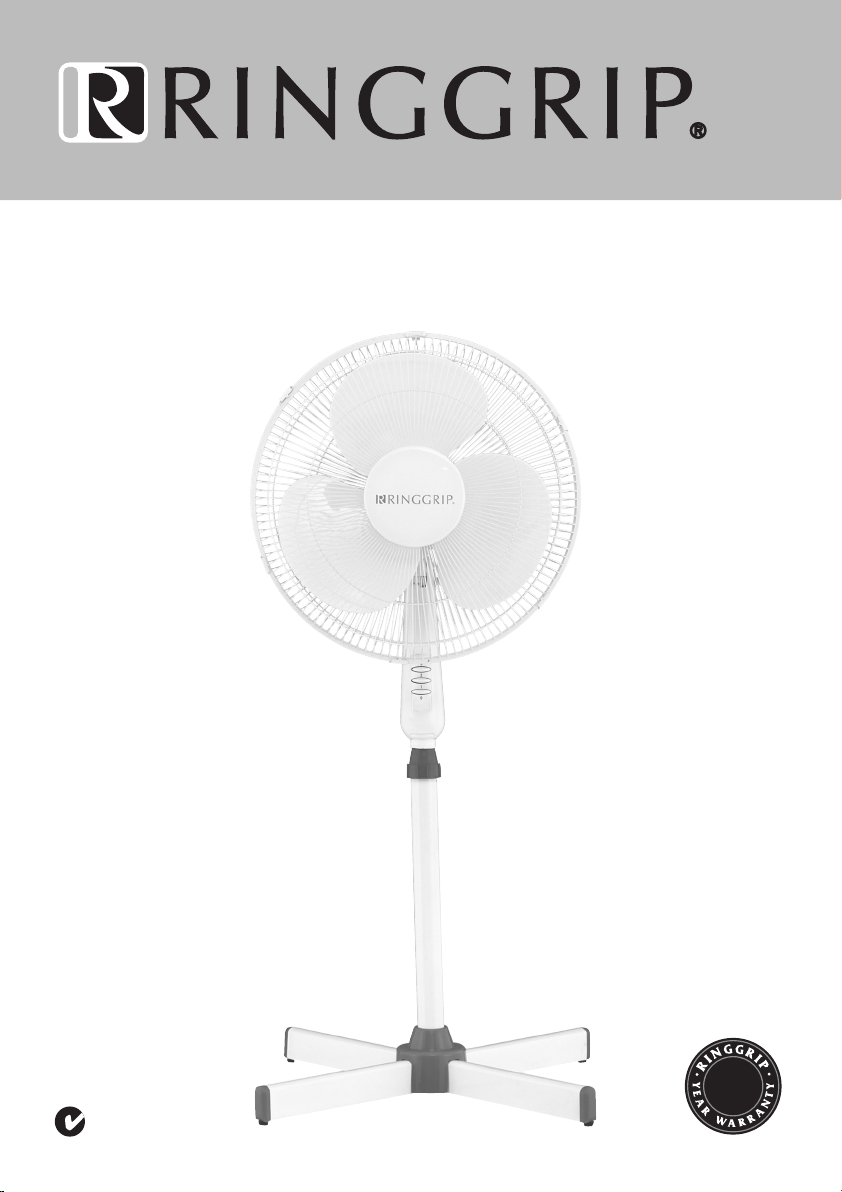

RingGrip R2000B Manual de usuario

months

R2000B

Pedestal Fan

3 Speed, 40cm

Important Safeguards

When using electrical appliances, in

order to reduce the risk of  re, electric

shock, and/or injury, these basic safety

precautions should always be followed:

FOR YOUR SAFETY

Read all instructions carefully, even if you are

familiar with the appliance.

•

The appliance is not intended for use by

children or in rm persons without supervision.

•

Children should be prevented from playing

with the appliance.

•

Switch off the power outlet and remove the

plug when the appliance is not in use.

•

Do not operate any appliance with a damaged

cord or plug; if the appliance malfunctions; or

if it is dropped or damaged in any manner.

•

Do not use outdoors.

•

Do not use any appliance for anything other

than its intended use. This product is intended

for household use only.

•

This appliance is intended to be plugged in a

240v power outlet only.

•

Do not misuse the cord. Never carry the

appliance by the cord or pull to disconnect it

from the outlet. Instead, grasp the plug and

pull to disconnect.

•

Do not attempt to repair, disassemble or

modify the appliance. There are no user-

serviceable parts.

•

Arrange the power cord away from traf c

areas where it will not be tripped over.

•

Do not insert or allow foreign objects to enter

the grille openings as this may cause damage

to the appliance and/or injury to the user.

COMPULSORY WARNING

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent, or a

similarly quali ed person, in order to avoid a

hazard.

This product has not been designed for any uses

other than those speci ed in this booklet.

SAVE THESE INSTRUCTIONS

Features of your

Pedestal Fan

Topple Resistant / Non-Scratch Base

Height Adjustable

3-Speed Push Button Control

Childproof Safety Grille

Blade Assembly (inside)

Air ow Angles

Tilt Adjustable

Congratulations on the purchase of your new

Pedestal Fan by Ringgrip.

Before  rst using your new Pedestal Fan, it is most

important that you read and follow the instructions

in this use and care booklet, even if you feel you

are familiar with this type of appliance.

Your attention is drawn particularly to the section

dealing with IMPORTANT SAFEGUARDS. Find a

safe and convenient place to keep this booklet

handy for future reference.

This appliance has been designed to operate

from a standard domestic power outlet. It is not

intended for industrial or commercial use.

Your Pedestal Fan is safe and easy to use. It has

been designed to function quietly and safely under

normal circumstances. Your Pedestal Fan is fully

portable with a sturdy stand and contemporary

design. Its energy ef cient blades circulate

cool air while using less power than a standard

light globe. The heavy-duty motor is rated for

continuous use to combat long hot summers.

Use the manual clutch to choose  xed direction

for personal comfort or oscillating to cover larger

areas.

Your Pedestal Fan has been boxed unassembled to

minimise packaging waste. Each part is designed

to  t together and be disassembled easily for

cleaning or storage.

To assemble the safety grille and blade assembly,

remove the spinner (by turning it clockwise), then

the locking nut (by turning it anticlockwise) from

the motor spindle.

Place the back safety grille into position.

Ensure the safety grille  ts onto the locating lugs

(Fig. 1). If this is done correctly, the safety grille’s

carry handle will be at the top.

(Fig. 1 - Locating lugs and locking nut)

Fix the safety grille into position by replacing the

locking nut tightly by hand (Fig. 1). Do not force

the locking nut.

The groove in the centre of the fan blade aligns

with a T-bar on the motor spindle to ensure

correct positioning.

Fix the blade into place by gently hand tightening

the spinner (Fig. 2) anticlockwise onto the end of

the motor spindle. The spinner is self-tightening;

do not force it.

(Fig. 2 Spinner tightens anti-clockwise)

Getting to know your

Pedestal Fan

Assembly of your

Pedestal Fan

Lift out all locking clips on the front safety grille

(Fig. 3)

Place the safety grille into position and secure it by

fastening the clips over the outer rim (Fig. 4).

(Fig. 4)

Assemble the base to the support pole using the

fasteners provided.

(Fig. 5)

Loosen the height adjustment ring and extend the

support pole. Initially the support pole will be held

tightly in place. If necessary, use a pair of pliers to

grasp the support pole and pull it into position.

Retighten the height adjustment ring to prevent

slipping, then place the fan assembly onto the

pole and tighten the pole screw manually (Fig. 6).

(Fig. 6)

Remove the cable tie and unravel the cordset

before operation.

The fan and motor assembly are attached to a 4-

position ratchet. Tilt up or down until the assembly

clicks into the desired position.

Press button 1 for a low speed, 2 for a medium

speed and 3 for a high speed. Press 0 to switch

the Pedestal Fan off.

To blow air in one direction and stop oscillation,

allow the Pedestal Fan to move into the desired

position and pull the clutch knob up. Press the

clutch knob down to return to a normal oscillating

function (Fig. 7).

(Fig. 7 Clutch)

Always disconnect electrical appliances before

cleaning them.

To clean the blade and grille assembly,  rst

remove the safety grille, unscrew the locknut and

remove the blade from the Pedestal Fan. Wipe

them clean with a slightly damp sponge.

Clean the motor housing and body assembly with

a clean, damp cloth and wipe dry.

Never spray the Pedestal Fan with liquids or

submerge it in water or any other liquid.

Note: If the cordset of this appliance becomes

damaged, discontinue use. Repairs should be

undertaken only by a quali ed technician.

Speci cations

R2000B

3 Speed, 40cm Pedestal Fan.

For indoor use only.

230-240V a.c., 50Hz, 50 Watt

Operation of your

Pedestal Fan

Care and Cleaning

Clutch

Notes

The bene ts conferred by this warranty are in

addition to all implied warranties, other rights

and remedies in respect of the product which the

consumer has under the Trade Practices Act and

similar State and Territory Laws.

The original purchaser of this Ringgrip product is

provided with the following warranty subject to

the following conditions.

Linda Australia Pty Ltd warrant this product for a

period of 12 months from the date of purchase for

all parts defective in workmanship or materials.

This product or defective parts will be replaced

free of charge.

WARRANTY CONDITIONS

This warranty is only valid for appliances used

according to the manufacturer’s instructions

This appliance must not be modi ed or

changed in any way.

Connection must be to the voltage

requirements as speci ed in the ratings label

located on the product.

The manufacturer does not accept liability for

any direct or consequential damage, loss or

other expense arising from misuse or incorrect

installation and operation of the appliance.

Warranty will only be given where proof of

purchase is provided, e.g. original invoice.

Not designed or warranted for industrial or

commercial use.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and  le with your

purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT.

Your Purchase Receipt/Invoice is proof of date

of purchase. You must be able to present it at

the place of purchase to obtain a replacement or

service under warranty.

Linda Australia Pty Ltd reserves the right to

discontinue items, modify designs and change

speci cations without incurring obligation. Whilst

every effort is made to ensure that descriptions,

speci cations and other information in this

publication is correct, no warranty is given in

respect thereof and the company shall not be

liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

NOTE: Consistent with our continuing product

development policy, improvements may have been

made which render the contents of this package

slightly different to that shown.

Cat. No. R2000B

June 2003

Warranty

Ringgrip Click Pty Ltd

ABN 67 085 677 023

324 Frankston-Dandenong Road

Dandenong South, Victoria, Australia 3175

Telephone

1300 654 488

Facsimile

+61 3 9212 1340

Internet Address:

www.mistral.com.au

RINGGRIP (NZ) Pty Ltd ACN 006 771 922

PO Box 51317, Pakuranga, Auckland NZ

Telephone

0800 328 280

Facsimile

0800 328 238

Mistral is a registered trademark of Mistral International Pty Ltd

2001 Linda Australia Pty Ltd
