Charge the battery.
First, fully charge the battery by plugging
it into a power source using the provided
orange cable.
The small light on top will glow green
once fully charged.
ChargedCharging
2 3

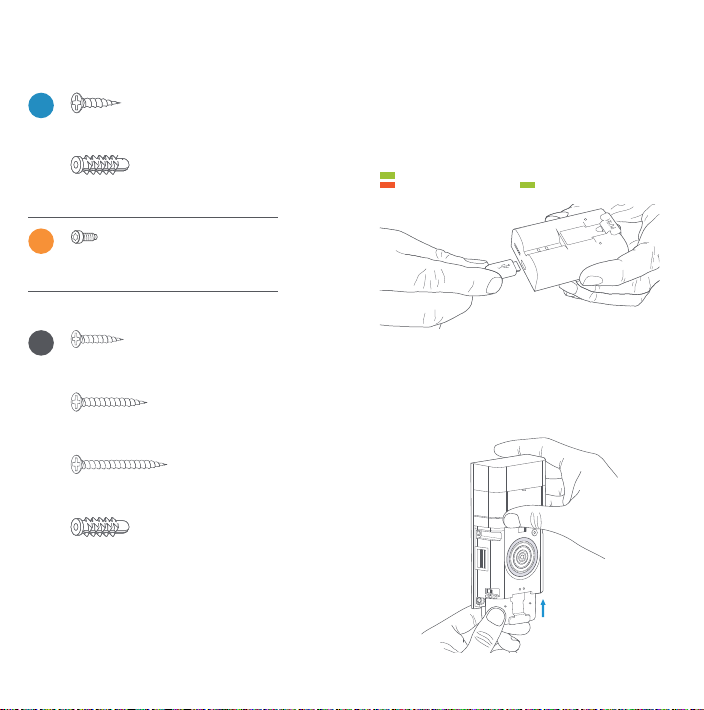

Included installation hardware.
Bag Hardware
A
(5) Short Mounting Screws
To mount Ring Doorbell directly to a wall
(5) Wall Anchors
To install on concrete, stucco, or brick
B
(2) Security Screws
To secure Ring Doorbell after installation
Corner Mount Hardware
C
(5) Short Bracket Screws
To mount Ring Doorbell to the corner mount
(3) Medium Bracket Screws
To mount one angle bracket to a wall
(3) Long Bracket Screws
To mount two angle brackets to a wall
(3) Wall Anchors
To install on concrete, stucco, or brick
Insert the battery.
After charging, insert the battery in the
bottom of your Ring Doorbell until it
clicks into place.
Download the Ring app.
The Ring app walks you through setting up
and managing your Ring Doorbell.
Search for “Ring” in one of the app stores
below, or visit ring.com/app
Set up your Ring Doorbell
near your wifi router.
In the Ring app, select Set Up a Device
and follow the in-app instructions.
When prompted, select Doorbells,
and follow the in-app instructions.

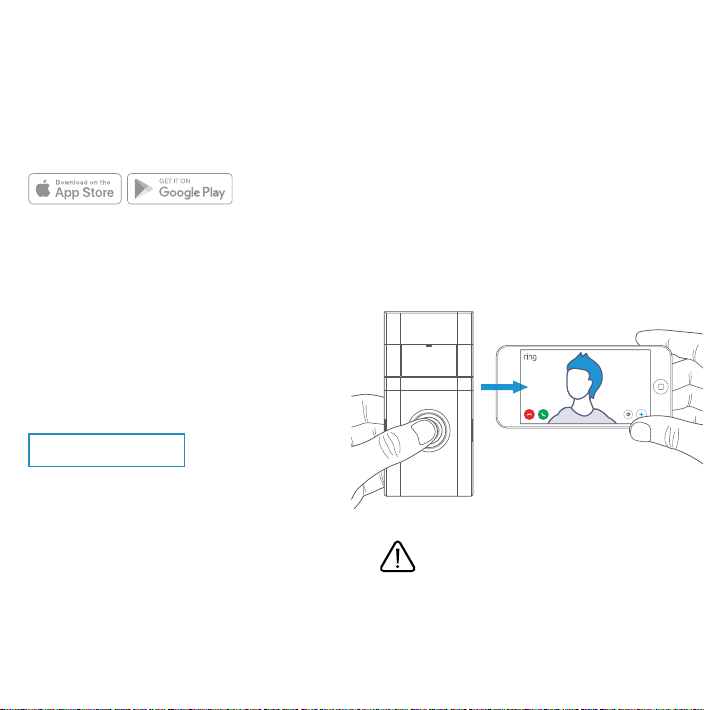

Try it out.
After setup, push the button on the front of
your Ring Doorbell to see video from the
camera in the Ring app.
If you have problems with video quality after
installation, you may need to move your router
closer to your door, or add a Ring Chime Pro.
Learn more at: ring.com/chime-pro
4 5
Do you have an in-home chime?
The chime can ring when the button on your
Ring Doorbell is pressed. Just follow the in-
app instructions during setup.
Don’t have an in-home chime?
If you see the “No In-Home Chime” button
during setup, be sure to press it.
NO IN-HOME CHIME
Consider purchasing a Ring Chime or Ring
Chime Pro, which allows you to hear alerts
from anywhere in your home. Learn more
at ring.com
To change your wiring settings after setup,
go to Device Settings > Chime Connection.

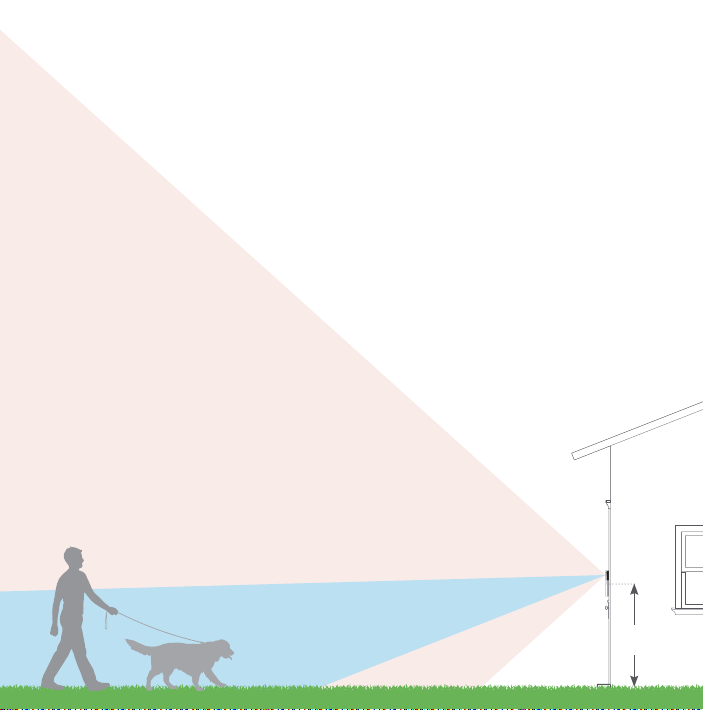

Motion detection range
Install your Ring Doorbell.
Install your Ring Doorbell approximately
four feet (1.20 metres) above the ground
for optimal performance.
If you’re connecting to existing doorbell
wiring that’s higher than four feet and want
to angle your Ring Doorbell down for a better
view, you can purchase a Wedge Kit online at
ring.com/accessories.
Camera field of view
4 feet
(1.20 metres)
8 9

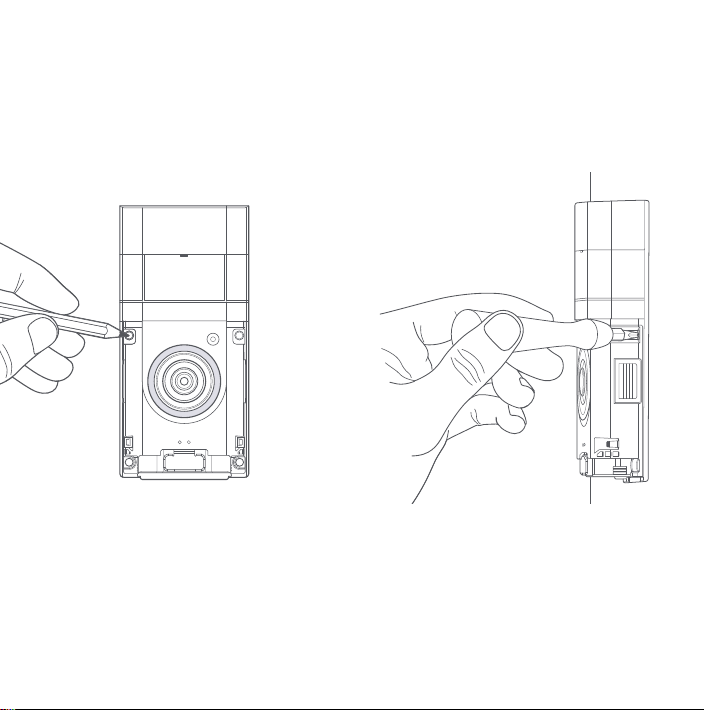

Secure your Ring Doorbell.
Use four of the provided Short Mounting
Screws to secure your Ring Doorbell
directly to the wall.
Install the anchors.
If installing on stucco, brick, or concrete,
mark 4 drill holes using the Ring Doorbell
as a template. Then, use a 1/4” masonry drill
bit to drill holes in your wall, and insert four
of the included wall anchors.
(If you’re installing on wood, skip this step.)
10 11
Security
Screw

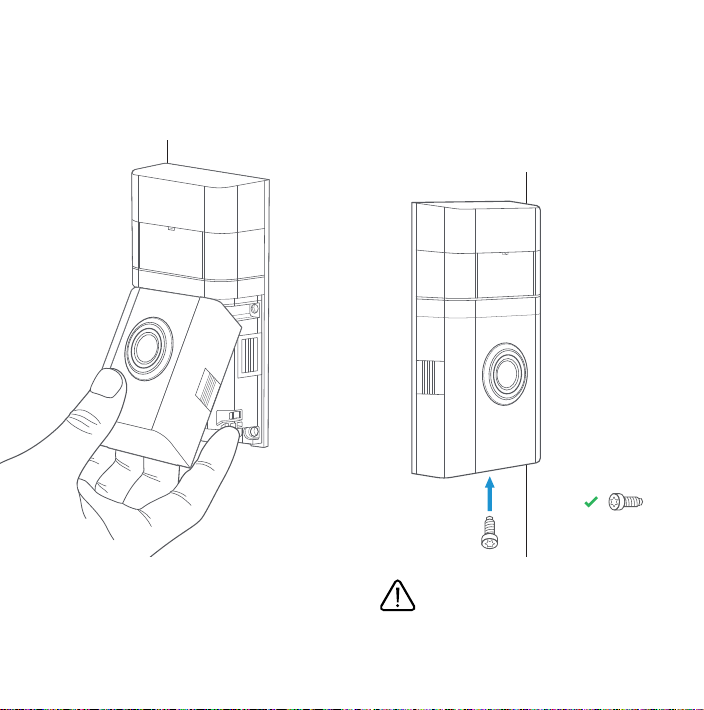

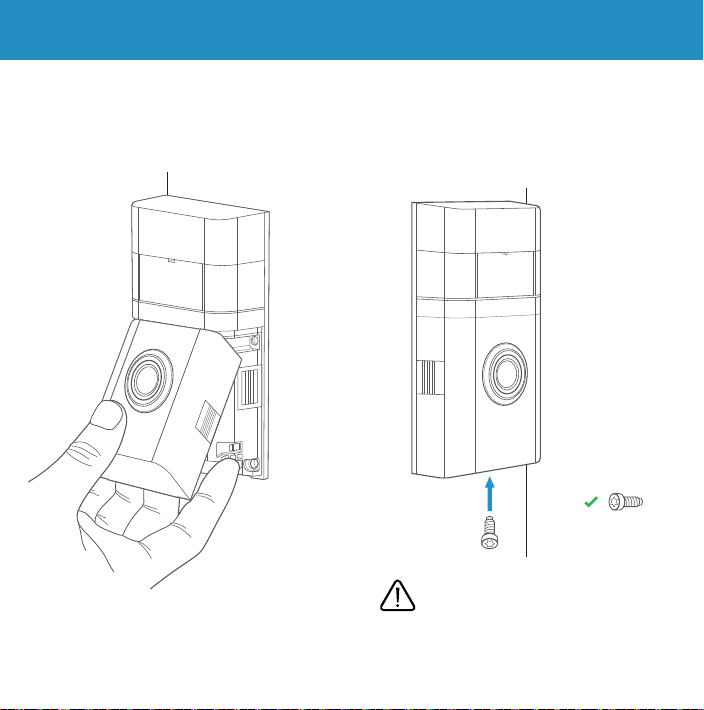

Install the faceplate.
Place the faceplate on your Ring Doorbell
by slotting it in at the top and clicking it
into place.
Secure the faceplate.
Lastly, use the included screwdriver to insert
and tighten one of the Security Screws. Your
Ring Doorbell is now ready to use.
If replacing an existing doorbell or using the
included Corner Mount, continue to page 12.
CAUTION!
If you use the wrong screws to secure the
Ring Doorbell, you could damage the battery
during installation, create a fire hazard, and
be seriously injured.
CAUTION!
You’ll be working with electrical wires during
the install process. If you are uncomfortable
or inexperienced with doing so, consult with
a licensed electrician. Do not wire your Ring
Doorbell to a DC-powered intercom system
or other DC power source.
12 13

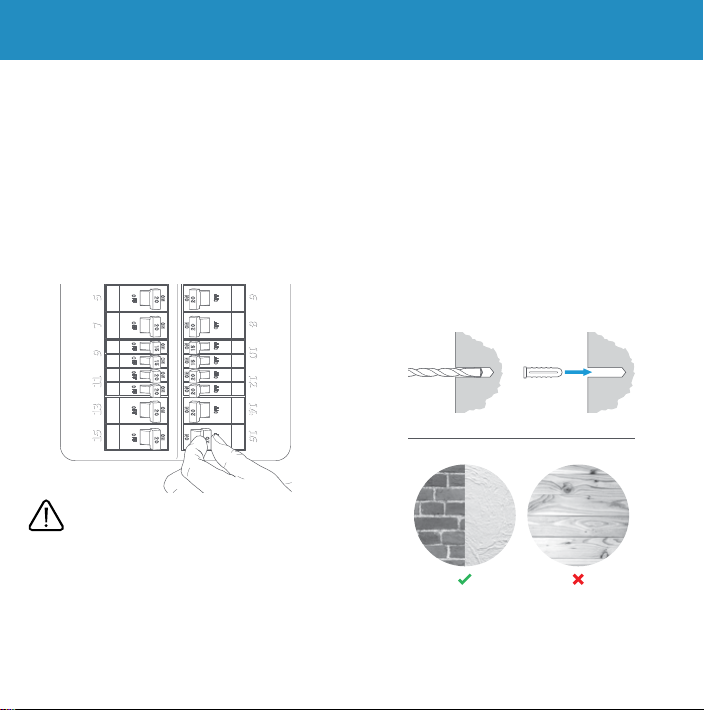

If replacing an existing doorbell, shut o
power at the breaker. Then remove the
doorbell button from the wall and
disconnect the wires. If you’re not sure
which breaker controls your doorbell,
turn o the master breaker for your home,
or contact an electrician.
Your Ring Doorbell is compatible with
doorbell systems supplying 8–24 volts AC
at 50 or 60Hz, 40VA max.
Optional: Remove your existing doorbell
The Corner Mount can angle your Ring
Doorbell to improve motion detection
and provide a better view
Install the anchors.
If installing on stucco, brick, or concrete,
mark 2 drill holes using the Corner Mount as a
template. Then, use a 1/4” masonry drill bit to
drill holes in your wall, and insert the included
anchors.
(If you’re installing on wood, skip this step.)
Optional: Install the Corner Mount
14 15
Optional: Install the Corner Mount

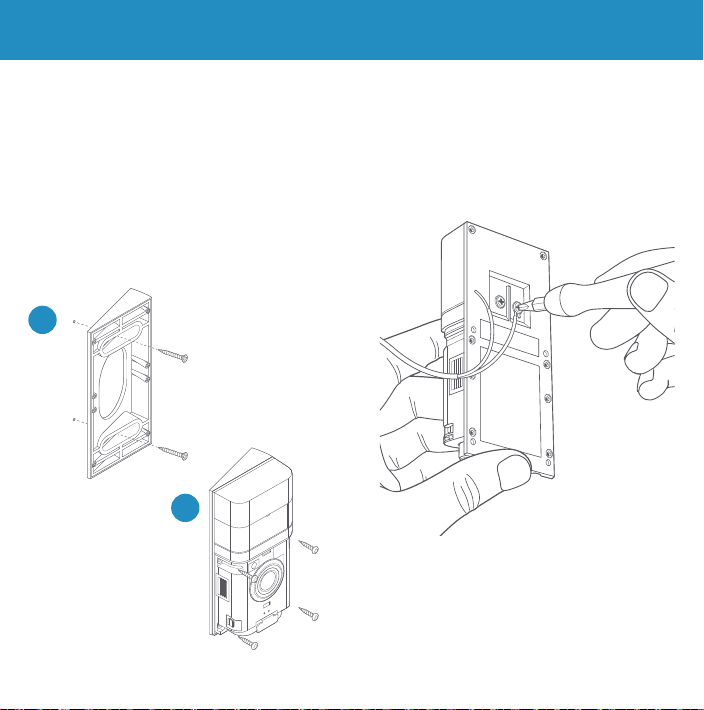

Install the Corner Mount
Use the Medium Bracket Screws to secure
the Corner Mount to your wall. Use the Short
Bracket Screws to secure your Ring Doorbell
to the mount. If connecting to existing
doorbell wiring, feed the wires through the
back of the Corner Mount before securing the
Corner Mount to the wall.
The Corner Mount can be painted
to match your home.
1
2
Connect the wires coming out of your
wall to the screws on the back of your
Ring Doorbell.
It doesn’t matter which wire goes to each
screw, as long as both are connected.
Optional: Connect to existing doorbell wires
16 17

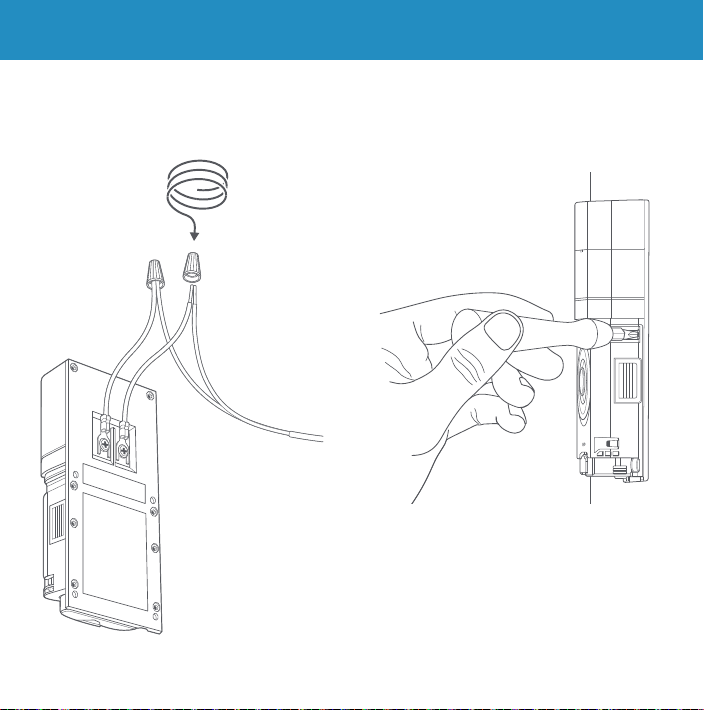

If you have trouble connecting the wires
coming out of your wall to the back of
your Ring Doorbell, use the provided wire
extensions and wire nuts.
Optional: Connect to existing doorbell wires
Feed all the wires (and the wire nuts, if you
used them) into your wall and secure your
Ring Doorbell to the wall using four of the
provided Short Mounting Screws.
Optional: Connect to existing doorbell wires
Security
Screw
18 19
Install the faceplate.
Place the faceplate on your Ring Doorbell
by slotting it in at the top and clicking it
into place.
Secure the faceplate.
Lastly, use the included screwdriver to insert
and tighten one of the Security Screws.
Your Ring Doorbell is now ready to use.
CAUTION!
If you use the wrong screws to secure the
Ring Doorbell, you could damage the battery
during installation, create a fire hazard, and
be seriously injured.
Optional: Connect to existing doorbell wiresOptional: Connect to existing doorbell wires
