Rigol MSO5152-E Manual de usuario

English

中文

Quick Guide

MSO5000-E Series

Digital Oscilloscope

Sept. 2019

RIGOL (SUZHOU) TECHNOLOGIES INC.

RIGOL

MSO5000-E Quick Guide 1

English

Guaranty and Declaration

Trademark Information

RIGOL is a registered trademark of RIGOL (SUZHOU) TECHNOLOGIES INC.

Publication Number

QGA28101-1110

Notices

RIGOL products are covered by P.R.C. and foreign patents, issued and

pending.

RIGOL reserves the right to modify or change parts of or all the

specifications and pricing policies at the company’s sole decision.

Information in this publication replaces all previously released materials.

Information in this publication is subject to change without notice.

RIGOL shall not be liable for either incidental or consequential losses in

connection with the furnishing, use, or performance of this manual, as

well as any information contained.

Any part of this document is forbidden to be copied, photocopied, or

rearranged without prior written approval of RIGOL.

Product Certification

RIGOL guarantees that this product conforms to the national and industrial

standards in China as well as the ISO9001:2015 standard and the

ISO14001:2015 standard. Other international standard conformance

certifications are in progress.

If you have any problem or requirement when using our products or this

manual, please contact RIGOL.

E-mail: service@rigol.com

Website: www.rigol.com

RIGOL

2MSO5000-E Quick Guide

English

General Safety Summary

1. Only the exclusive power cord

designed for the instrument

and authorized for use within

the local country could be

used.

2. Ensure that the instrument is

safely grounded.

3. Observe all terminal ratings.

4. Use proper overvoltage

protection.

5. Do not operate without covers.

6. Do not insert objects into the

air outlet.

7. Use the proper fuse.

8. Avoid circuit or wire exposure.

9. Do not operate the instrument

with suspected failures.

10. Provide adequate ventilation.

11. Do not operate in wet conditions.

12. Do not operate in an explosive

atmosphere.

13. Keep instrument surfaces clean

and dry.

14. Prevent electrostatic impact.

15. Handle with caution.

Safety Notices and Symbols

Safety Notices in this Manual:

WARNING

Indicates a potentially hazardous situation or practice which, if not

avoided, will result in serious injury or death.

CAUTION

Indicates a potentially hazardous situation or practice which, if not

avoided, could result in damage to the product or loss of

important data.

Safety Terms on the Product:

DANGER

It calls attention to an operation, if not correctly performed,

could result in injury or hazard immediately.

WARNING

It calls attention to an operation, if not correctly performed,

could result in potential injury or hazard.

CAUTION

It calls attention to an operation, if not correctly performed,

could result in damage to the product or other devices

connected to the product.

RIGOL

MSO5000-E Quick Guide 3

English

Safety Symbols on the Product:

Hazardous

Voltage

Safety

Warning

Protective Earth

Terminal

Chassis Ground

Test Ground

Care and Cleaning

Care

Do not store or leave the instrument where it may be exposed to direct sunlight

for long periods of time.

Cleaning

Clean the instrument regularly according to its operating conditions.

1. Disconnect the instrument from all power sources.

2. Clean the external surfaces of the instrument with a soft cloth dampened

with mild detergent or water. Avoid having any water or other objects into

the chassis via the heat dissipation hole. When cleaning the LCD, take

care to avoid scarifying it.

CAUTION

To avoid damage to the instrument, do not expose it to caustic

liquids.

WARNING

To avoid short-circuit resulting from moisture or personal injuries,

ensure that the instrument is completely dry before connecting it

to the power supply.

Document Overview

This manual gives you a quick review about the front and rear panel of

MSO5000-E series, the user interface, and the basic operation method.

Tip

For the latest version of this manual, download it from the official website

of RIGOL (www.rigol.com).

RIGOL

4MSO5000-E Quick Guide

English

Format Conventions in this Manual

1. Key

The key on the front panel is denoted by the format of "Key Name (Bold)

+ Text Box" in the manual. For example, Utility denotes the "Utility" key.

2. Menu

The menu items are denoted by the format of "Menu Word (Bold) +

Character Shading". For example, System denotes the "System" menu

item under Utility.

3. Operation Procedures

denotes the next step of operation. For example, Utility System

denotes that first press Utility, and then press the System softkey.

4. Knob

Label Knob Label Knob

Horizontal

SCALE

Horizontal Time

Base Knob Vertical

SCALE

Vertical Scale

Knob

Horizontal

POSITION

Horizontal

Position Knob Vertical

OFFSET

Vertical Offset

Knob

Trigger LEVEL

Trigger Level

Knob

Multifunction

Knob

Content Conventions in this Manual

MSO5000-E series includes the following models. Unless otherwise specified,

this manual takes MSO5152-E as an example to illustrate the functions and

operation methods of MSO5000-E series digital oscilloscope.

Model Max.

Analog

Bandwidth

No. of

Analog

Channels

No. of

Function/Arbitrary

Waveform Generator

Channels

No. of

Digital

Channels

MSO5152-E 150 MHz 2 1, Opt.

16 (Required

to purchase

the probe)

RIGOL

MSO5000-E Quick Guide 5

English

General Inspection

1．Inspect the packaging

If the packaging has been damaged, do not dispose the damaged

packaging or cushioning materials until the shipment has been checked

for completeness and has passed both electrical and mechanical tests.

The consigner or carrier shall be liable for the damage to the instrument

resulting from shipment. RIGOL would not be responsible for free

maintenance/rework or replacement of the instrument.

2．Inspect the instrument

In case of any mechanical damage, missing parts, or failure in passing the

electrical and mechanical tests, contact your RIGOL sales

representative.

3．Check the accessories

Please check the accessories according to the packing lists. If the

accessories are damaged or incomplete, please contact your RIGOL

sales representative.

Product Overview

The MSO5000-E series is a high-performance digital oscilloscope designed on

the basis of the RIGOL UltraVision II technology. It has a 9-inch capacitive

touch screen, and integrates 7 instruments into one. With a compact and

portable design, it delivers excellent specifications, such as super high sample

bandwidth ratio and high memory depth. All the MSO5000-E series support

multiple channels, bandwidths, and the upgrade of the analysis software. They

integrate the functions of multiple instruments. Different user groups can have

more choices in selecting their desired product based on their needs, helping

them save their budget to a large extent while enjoying the superior test

support and user experience.

For descriptions of the front panel, refer to Figure 1 and Table 1; for

descriptions of the rear panel, refer to Figure 2 and Table 2; and for

descriptions of the main interface (display screen), refer to Figure 3 and Table

RIGOL

6MSO5000-E Quick Guide

English

Figure 1 Front Panel

Table 1 Front Panel Description

No.

Description

No.

Description

1 Capacitive Touch Screen 13 Trigger Control System

2 Function Menu Operation Keys 14 Horizontal Control System

Function/Arbitrary Waveform

Generator Setting Key

[1]

15 Navigation Control key

4 Quick Key (Shortcut Key) 16 Vertical Control System

5 Multifunction Knob 17

Probe Compensation Signal Output

Terminal/Ground Terminal

6 Common Operation Keys 18 External Trigger Input

7 CLEAR Key 19 Analog Channel Input

8 Auto Waveform Display Key 20 Digital Channel Input

[2]

9 RUN/STOP Key 21

Function/Arbitrary Waveform Generator

Output Terminal

[1]

10 Single Trigger Control Key 22 USB HOST Interface

Touch Lock Key

Power Key

12 Default Setting Key

Note:[1] This function is only available for the model installed with the MSO5000-E-AWG option.

Note:[2] PLA2216 active logic probe option is required to be ordered.

23 22 21

20 19 18 17

12 3 4 5 6

7 8 9 10

RIGOL

MSO5000-E Quick Guide 7

English

Figure 2 Rear Panel

Table 2 Rear Panel Description

No.

Description

Handle

Trigger Output Interface

LAN Interface

USB DEVICE Interface

HDMI Video Output

AC Power Cord Connector

Kensington Security Lock Hole

12 3 4 5

RIGOL

8MSO5000-E Quick Guide

English

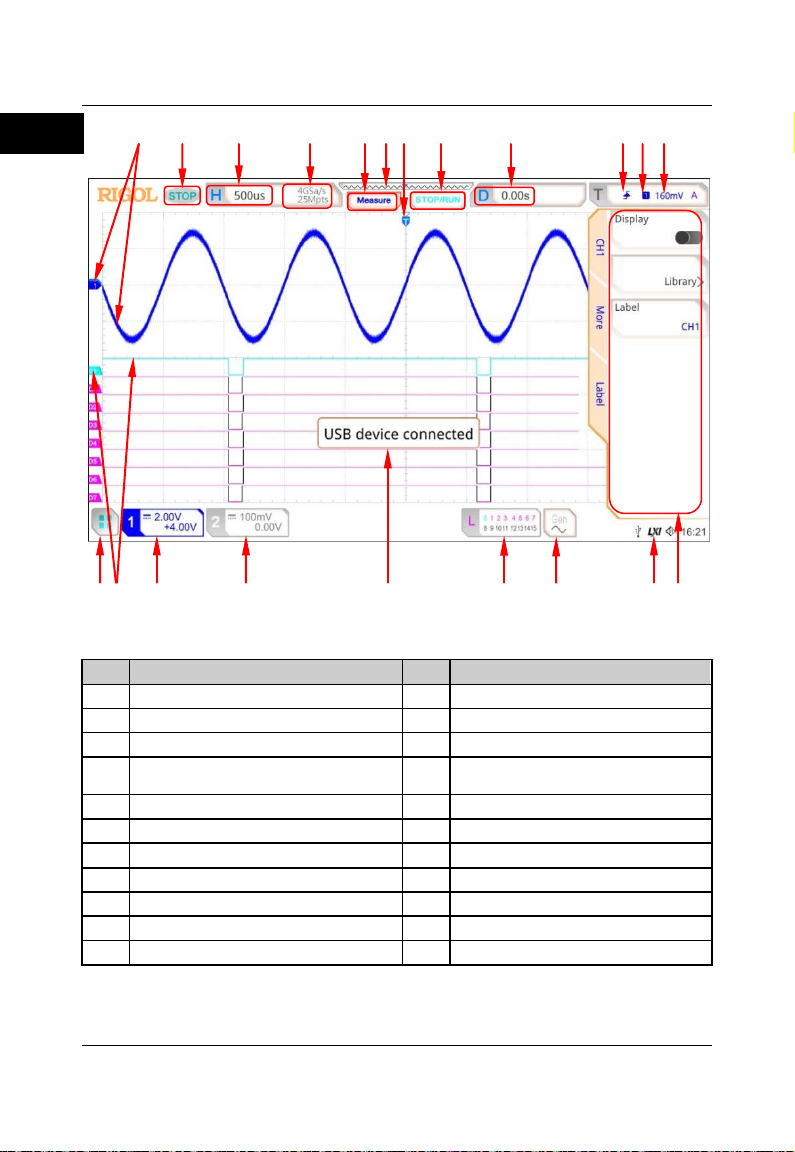

Figure 3 User Interface

Table 3 User Interface Icons

No. Description No. Description

Analog Channel Label and Waveform

Trigger Level/Threshold Level

Operating Status

Operation Menu

3 Horizontal Time Base 14 Notification Area

4 Sample Rate and Memory Depth 15

Arbitrary Waveform Generator

Waveform Label

Auto Measurement Label

Digital Channel Status Area

6 Waveform Memory 17 Message Box

7 Trigger Position 18 CH2 Status Label

8 RUN/STOP Label 19 CH1 Status Label

9 Horizontal Position 20 Digital Channel Label and Waveform

Trigger Type

Function Navigation

Trigger Source

21 20 19 18 17

16 15 14

11 12
