User’s manual

Thank you for purchasing a RigExpert

TI-3000 USB Transceiver Interface! We

did our best to make it powerful yet easy

to use.

RigExpert TI-3000 is a device for

operating phone, CW and digital modes

using personal computer with USB port.

It provides:

• Transceiver audio interface

Analog audio interface is a connection

to transceiver audio output (external

speaker connector or line output) and

transceiver audio input (microphone

connector or line input). Audio interface

enables operating digital modes, as

well as other useful functions (such as

measuring levels of a signal from the air)

by using a computer.

Input (main and sub channels) and

output volume levels are adjusted by

potentiometers on the front panel of the

device.

• CAT interface for various transceiver

models

CAT (Computer Aided Transceiver)

system provides control of transceiver

frequency, operating mode and other

functions by computer software. Nor-

mally, modern transceivers have serial

(with various signal levels) link providing

CAT interface.

A separate COM port is created for the

CAT system so the computer software

can communicate to the transceiver.

Introduction

RigExpert TI-3000

• PTT and CW output functions

Transceivers provide PTT (Push To Talk)

and CW (Continuous Wave) keyer inputs

to allow setting the transmitter on or off

and operating CW using external device

(PTT pedal, CW bug or paddle, terminal

node controller, or personal computer).

A separate COM port is created for PTT/

CW outputs.

• Squelch input

Some software, such as EchoLink, re-

quires the interface to provide a squelch

input to detect if the radio channel is

busy.

In RigExpert TI-3000, the squelch input is

assigned to the DCD line of the COM port

used for PTT and CW outputs.

User’s manual

Front panel:

1. ON. Lights when the RigExpert TI-3000

device is plugged in and the drivers are

installed.

2. CW. Shows transmissions in CW

mode.

3. PTT. Indicates when the transceiver

transmits.

4. CAT. Monitors CAT data exchange

between transceiver and computer.

5. Main. Input level, channel 1 (main

receiver audio).

6. Sub. Input level, channel 2 (sub-

receiver audio).

7. Out. Output level (audio to the trans-

ceiver).

Front and rear panels

Operating the

TI-3000

RigExpert TI-3000

Rear panel:

8. TRANSCEIVER. 25-pin transceiver

connector.

9. USB IN. Connect to the computer USB

port.

User’s manual

Transceiver and

computer connection

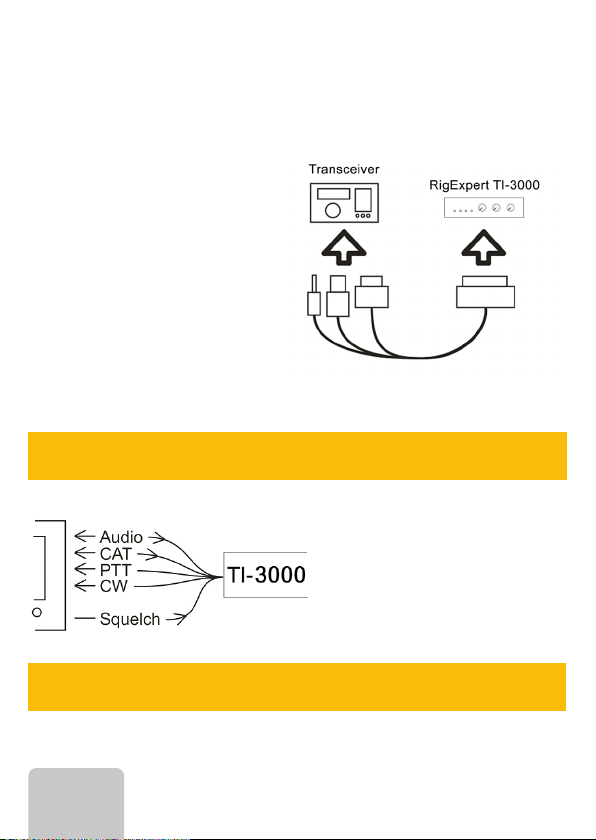

The connection to your transceiver is

made by using a specialized cable. A

specific type of the cable depends on

the manufacturer and the model of the

transceiver.

Please watch the marking to make

sure all plugs are inserted properly to

corresponding sockets located on your

transceiver.

You may either order a transceiver cable with your TI-3000 or assemble it yourself.

See the schematic diagrams on our website, www.rigexpert.com .

A number of analog and digital signals

are routed between your transceiver and

RigExpert TI-3000. Cables for most mod-

ern rigs (Icom, Kenwood, Yaesu, Ten-Tec,

Elecraft) are available; future rigs are sup-

ported by design of the universal 25-pin

connector of RigExpert TI-3000.

The squelch connection is not available in all cables manufactured by our company.

The user has to add this connection, if necessary.

RigExpert TI-3000

Use a standard USB A-B cable (up to 5

meters long) to connect your RigExpert

TI-3000 to a USB port of your computer.

It is recommended to use USB sockets

located at the back panel of the PC.

Once the cable is connected, computer

detects a new device. No drivers required

for modern operating systems.

More info on www.rigexpert.com/ti-3000.

Now your TI-3000 is ready for use!

User’s manual

General features:

• Transceiver audio interface for operating

digital modes

• CAT (Computer Aided Transceiver)

system

• PTT and CW outputs

• Squelch input

Computer connection:

• USB (Universal Serial Bus) connector

• Powered from the USB port (consuming

100 mA maximum)

• No external power supply needed

Audio interface:

• Insulated from digital nets

• Maximum input/output amplitude is 1V

• Input/output samplerate: 8 to 48 kHz

• True 16-bit DAC/ADC used

• Volume levels are adjusted by the front

panel potentiometers

CAT serial port:

• Baudrate: 300-115200 baud

• Electrical compatibility: RS-232, CI-V,

TTL or inverted-TTL (Yaesu, Icom,

Kenwood, Ten-Tec, Elecraft and JRC

transceivers)

PTT/CW outputs:

• PTT output: open collector and TTL-

level

• CW output: open collector

• Maximum current is 500 mA

System requirements:

• Desktop or laptop computer with USB

1/2/3 compliant port

• Windows XP/Vista/7/8/10 (32 or 64-bit),

Mac OS or Linux operating system

Annex 1

Specifications
