Light oil burner

轻油燃烧器

CODE - 编码 MODEL - 型号 TYPE - 类型

20013617 G10 LC 464T1

One stage operation

一段火运行

20013654

INFORMATION ABOUT THE INSTRUCTION MANUAL

INTRODUCTION

The instruction manual supplied with the burner:

- is an integral and essential part of the product and must not be sepa-

rated from it; it must therefore be kept carefully for any necessary

consultation and must accompany the burner even if it is transferred

to another owner or user, or to another system. If the manual is lost

or damaged, another copy must be requested from the Technical

Assistance Service of the area;

- is designed for use by qualified personnel;

- offers important indications and instructions relating to the installation

safety, start-up, use and maintenance of the burner.

DELIVERY OF THE SYSTEM AND THE INSTRUCTION MAN-

UAL

When the system is delivered, it is important that:

- The instruction manual is supplied to the user by the system manu-

facturer, with the recommendation to keep it in the room where the

heat generator is to be installed.

- The instruction manual shows:

- the serial number of the burner;

- the address and telephone number of the nearest Assistance

Centre;

- The system supplier carefully informs the user about:

- the use of the system,

- any further tests that may be necessary before the system is

started up,

- maintenance and the need to have the system checked at least

once a year by the manufacturer or another specialised techni-

cian.

To ensure a periodic check, recommends the drawing up

of a Maintenance Contract.

..................................................................................

1 20013654

TECHNICAL DATA

OFor use on hot air generator the burner must be fitted with control box type 479SE or 539SE.

OBurner with CE marking in conformity with EEC Directives: EMC 89/336/EEC - 2004/108/EC, Low

Voltage 73/23/EEC - 2006/95/EC, Machines 98/37/EEC and Efficiency 92/42/EEC.

OThe burner meets protection level of IP 40, EN 60529.

TYPE 464T1

Thermal power – output 54 – 120 kW – 4.5 – 10 kg/h

Fuel Light oil, viscosity 4 – 6 mm2/s at 20°C

Electrical supply Single phase, 230V ±10% ~50Hz

Motor Run current 0.8A – 2850 rpm – 298 rad/s

Capacitor 4 μF

Ignition transformer Secondary 8 kV – 16 mA

Pump Pressure 7 – 15 bar

Absorbed electrical power 0.170 kW

1– Return line

2– Suction line

3– Gauge connection

4– Pump pressure regulator

5– Vacuum gauge connection

6– Screws fixing air-damper

7–Airdamper

8 – Combustion head adjustment screw

9– Lock-out lamp and reset button

10 – Flange with insulating gasket

BURNER EQUIPMENT

Quantity Description

Flexible oil pipes with nipples

Flange with insulating gasket

Screws and nuts for flange

to be fixed to boiler

Hinge

Screw and nuts for flange

D5396

Fig. 1

20013654 2

WORKING FIELD (as EN 267)

OVERALL DIMENSIONS

BOILER FIXING

0.8

0.4

4 5 6 Fuel output - kg/h

50 60 120 Thermal power - kW

D5669 70 80 90 100 110

0.2

0.6

Pressure in the combustion

chamber – mbar

78910

Flange Burner

305 108 261

140

45°

262

204

D5670

189

83 83

170

45°

ø105

It is necessary that the insulating gasket

(9, fig. 1) is placed between the boiler door

and the burner flange.

This insulating gasket has six holes,

which, if necessary, can be modified as

shown on the drawing on the right. D5242

Fig. 2

Verify that the installed

burner is lightly leaned

towards the button.

(See figure 2).

The burner is designed to

allow entry of the flexible

oil-lines on either side of

the burner.

D5572

BURNER FIXING AND

HINGE ASSEMBLY

S7385

3 20013654

HYDRAULIC SYSTEMS

Warning: before starting the burner make sure that the return pipe-line is not clogged: any obstruction

would cause the pump seals to break.

The pump vacuum should not exceed a

maximum of 0.4 bar (30 cm Hg).

Beyond this limit gas is released from

the oil.

Oil lines must be completely airtight.

The return line should terminate in

the oil tank at the same level as the

suction line; in this case a non-return

valve is not required.

When the return line arrives over the

fuel level, a non-return valve must be

used.

This solution however is less safe than

previous one, due to the possibility of

leakage of the valve.

PRIMING THE PUMP

Start the burner and wait for the priming.

Should lock-out occur prior to the arrival

of the fuel, await at least 20 seconds

before repeating the operation.

A filter must be installed on the suction fuel line.

meters

Lmeters

I. D.

8 mm

I.D.

10 mm

0.5

1.5

100

WARNING

The pump is supplied for use with a two pipe system.

For use on a one pipe system, it is necessary to remove the by-pass

screw (A), (see figure).

meters

Lmeters

I. D.

8 mm

I.D.

10 mm

0.5

1.5

3.5

100

H max. 4 m

max. 4 m

min. 0.1 m

D5219

D5220

D5199

H=Difference of level.

L=Max.length of the

suction line.

I.D.=Internal diameter of the

oil pipes.

PRIMING THE PUMP

Loosen the plug of the vacuum gauge (5, fig. 1,

page 1) and wait until the fuel flows out.

SYSTEM NOT PERMITTED IN GERMANY

20013654 4

ELECTRICAL WIRING

Brown

White (50V)

Blue

Motor

Capacitor

Regulating thermostat

Neutral

Switch with fuse

6A max.

S7026

Black

NOTES

– Wires of 1 mm2section.

– The electrical wiring carried out by the installer

must be in compliance with the rules in force in

the Country.

– To remove the control-box from the burner,

loosen screw (A) (see figure) and pull towards

the arrow.

– The photoresistance is fitted directly into the con-

trol-box (underneath the ignition-transformer) on

a plug-in support.

TESTING

Check the shut-down of the burner by opening the

thermostats.

ATTENTION

Do not connect burner’s grounding, to failure

indicator terminal . This may result the destroy

of the control box.

WARNING

Do not exchange the neutral with the phase.

230V ~50Hz

Limit thermostat

with manual resetting

Remote lock-out lamp

(230V - 0.5A max.), if required

123456789

Blue

Brown

Terminal block of

control-box 530SE*

Valve

RUN OF THE ELECTRICAL CABLE

1- Grommet N- Neutral

2- Cable-clamp L- Phase

3- Terminal block - Burner-earth

A321

D5228

Black

CARRIED-OUT BY THE INSTALLER

CARRIED-OUT IN THE FACTORY

5 20013654

COMBUSTION ADJUSTMENT

In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjustment

and testing must be carried out observing the instruction manual of the boiler, including verification of

the CO and CO2concentration in the flue gases, their temperatures and the average temperature of the

water in the boiler.

To suit the required appliance output, fit the nozzle then adjust the pump pressure, the setting of the

combustion head and the air damper opening in accordance with the following schedule.

The values shown in the table are measured on a CEN boiler (as per EN 267).

They refer to 12.5% CO2at sea level and with light oil and room temperature of 20 °C.

RECOMMENDED NOZZLES: Monarch type R

Delavan type W - B

Steinen type S - Q

Danfoss type S

PUMP PRESSURE: 12 bar : The pump leaves the factory set at this value.

14 bar : Improves flame retention; it is therefore suitable for ignitions at

low temperatures.

COMBUSTION HEAD SETTING:

This is done when fitting the nozzle, with the

blast tube removed. It depends on the output of

the burner and is carried out by rotating the reg-

ulating rod, till the terminal plane of the blast

tube is level with the set-point, as indicated in

the schedule.

In the sketch on the left, the combustion head is

set for an output of 1.50 GPH at 12 bar, while

the shutter is level with set-point 3, as required

by the above schedule.

Combustion head settings indicated in the

schedule are valid for most cases.

The setting of the fan output according to the installation should normally be done only through the air

damper. Should one subsequently want to retouch also the setting of the combustion head, with the

burner running, operate on the rod (1) with a 6 mm spanner (2) as follows (see fig. 3, page 6).

Nozzle Pump pressure Burner output Comb. head

adjustment

Air damper

adjustment

GPH Angle bar kg/h ± 4% Set-point Set-point

1.10 60° 12 4.4 2 3

1.25 60° 12 5.0 2.5 3.4

1.50 60° 12 6.0 3 3.8

1.75 60° 12 7.0 4 4

2.00 60° 12 8.0 5 5

2.25 60° 12 9.0 6 6

2.50 60° 12 10.0 6 7

For 2.00 - 2.25 GPH nozzles it is

advisable to use, if possible,

full cones.

Blast tube

Regulating rod

Shutter

Terminal plane of the blast tube

D5398

135

20013654 6

TURN TO THE RIGHT: (sign +)

In order to increase the volume of air entering the com-

bustion chamber and thus diminishing its pressure.

There is a reduction of CO2and the adhesion of the

flame to the air diffuser disc improves.

(Setting advisable for ignitions at low temperatures).

TURN TO THE LEFT: (sign –)

In order to reduce the volume of air entering the com-

bustion chamber and thus increasing its pressure. The

CO2improves and the adhesion of the flame to the dif-

fuser tends to reduce.

(This setting is not advisable for ignitions at low temper-

atures).

In any case do not bring the combustion head setting

more than one point away from that indicated in the

schedule. One set-point corresponds to 3 turns of the

rod; a hole (3) at its end facilitates counting the number

of turns.

AIR DAMPER ADJUSTMENT, (fig. 4)

The regulation of the air-rate is made by adjusting the

air damper (1), after loosing the screws (2).

When the optimal regulation is reached, screw tight

the screws (2).

The settings indicated in the schedule are purely

indicative.

Each installation however, has its own unpredictable

working conditions: actual nozzle output; positive or

negative pressure in the combustion-chamber, the

need of excess air, etc. All these conditions may

require a different air-damper setting.

It is important to take account of the fact that the air

output of the fan differs according to whether the

burner has its metal cover fitted or not.

Therefore we recommended to proceed as follows:

– adjust the air damper as indicated in the schedule at

page 5;

– mount the cover, simply by means of the upper

screw;

– check smoke number;

– should it become necessary to modify the air output,

remove the cover by loosening the screw, adjust the

air damper, remount the cover and finally recheck the

smoke number.

NOTE: When the burner works at a firing rate higher

than 9 kg/h remove the panel fitted inside the

metal cover, (see figure 5).

2 3

D5671

Fig. 3

PANEL

D7178

Fig. 4

Fig. 5

D5231

7 20013654

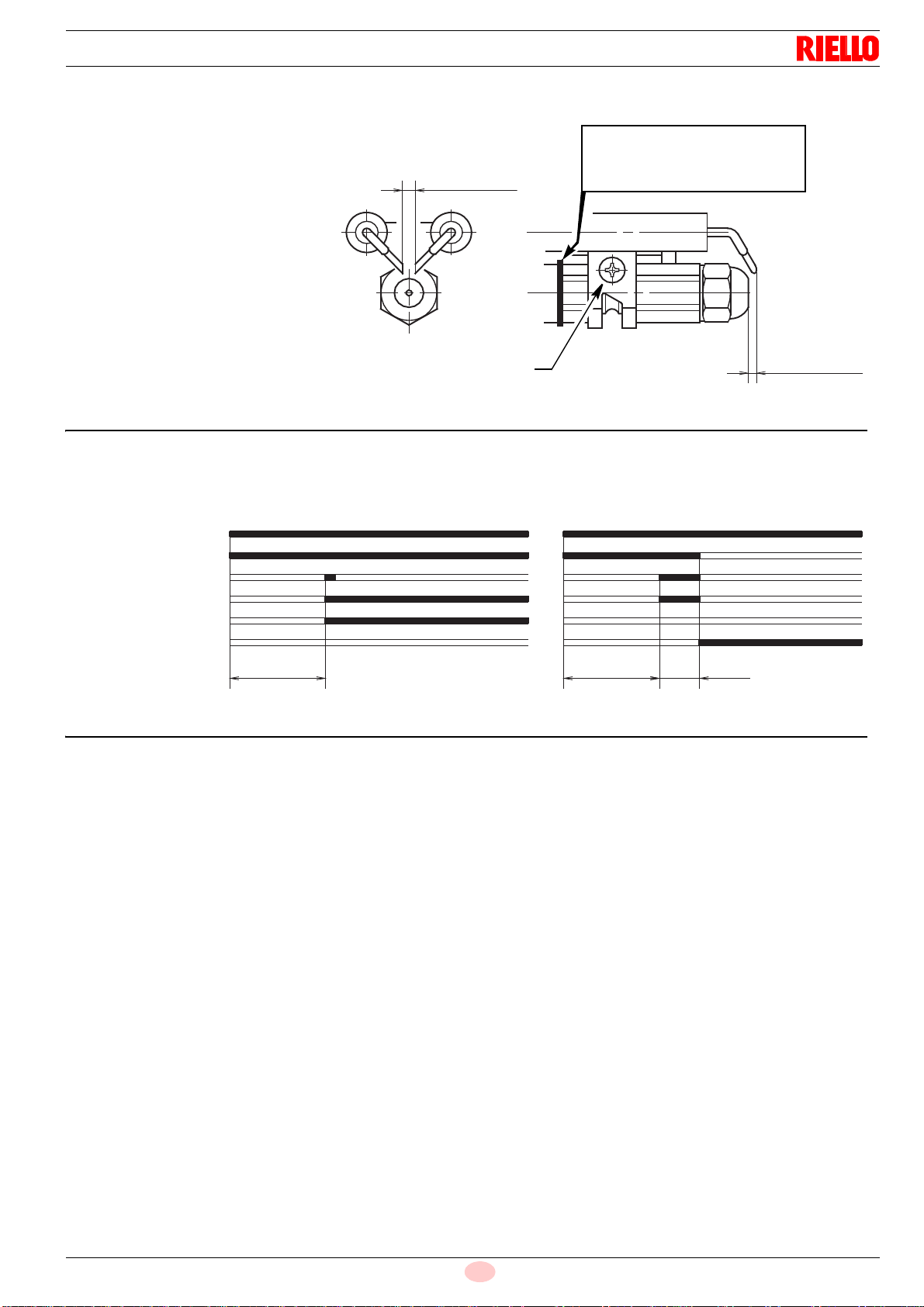

ELECTRODES SETTING (See fig. 6)

BURNER START-UP CYCLE

ADJUSTMENTS, TO AVOID FLAME - DETACHMENT, AT BURNER - IGNITION

This inconvenience can occur, when the temperature of the gas-oil decreases below + 5 °C.

1) CORRECT POSITIONING OF THE ELECTRODES

See figure 6.

2) PUMP - SETTING

The pump is factory set, at a pressure of 12 bar.

When the temperature of the light oil decreases below + 5 °C, increase the pressure to 14 bar.

3) COMBUSTION-HEAD SETTING

Regulate the combustion-head one set-point further ahead than indicated in the instructions.

Example: the instructions require to set the combustion-head on set-point 3.

Instead, the setting is made on set-point 4.

4) FAN - AIR DAMPER ADJUSTMENT

Adjust the air damper of the fan, such as to obtain a smoke-number not inferior to 1.

(i.e. a combustion with the lowest possible excess-air).

Attention:

Before assembling or remo-

ving the nozzle, loosen the

screw (A) and move the elec-

trodes ahead.

0.3 mm

D5288

A4.5

0.5 mm

MOVE THE ELECTRODE

HOLDER BACKWARDS TO

THE END

Fig. 6

Normal Lock-out, due to failure to light

Thermostat

Motor

Ignition transformer

Valve

Flame

Lock-out lamp ~12s D5229

~12s ~5s

20013654

说明书的相关信息

引言

说明书随燃烧器一起提供：

- 它是产品不可或缺的组成部分，不得将其与产品分离；因此必须小心

保存以便查阅，如果将燃烧器转给另一个用户或转移至另一个系统，

则说明书必须跟随燃烧器一起转移。如果说明书损坏或丢失，则必须

从您就近的 Technical Assistance Centre （技术支持中心）索取说

明书的复本；

- 说明书只能由有资格的人员使用；

- 说明书提供了有关燃烧器安装、启动、使用和维护的重要指示和安全

警告。

系统和说明书的交付

一旦交付系统：

- 系统制造商也必须将说明书交付给用户，并建议其将说明书保存在热

发生器的安装区域附近。

- 说明书上显示：

- 燃烧器的序列号；

- 最近 Assistance Centre （支持中心）的地址和电话号码；

- 系统制造商必须告知用户有关以下内容的准确信息：

- 系统的使用；

- 启动系统前需要进行的测试；

- 必需的维护和检查（每年必须由制造商代表或别的专业技术人员至少

检查系统一次）。

要保证定期检查，建议遵照 Maintenance Contract （维护合同）

的规定。

..............................................

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Quemador de Riello

Riello

Riello 3748950 Guía de inicio rápido

Riello

Riello RLS 38/E Guía de inicio rápido

Riello

Riello DR 32 SE FGR Guía de inicio rápido

Riello

Riello GULLIVER RG1 Guía de inicio rápido

Riello

Riello RL 28/1 Manual de usuario

Riello

Riello RDB1 50-90 Guía de inicio rápido

Riello

Riello GAS Series Guía de inicio rápido

Riello

Riello RDB1 50-70 SH Guía de inicio rápido

Riello

Riello 40 F10 A Instrucciones de instalación

Riello

Riello RLS 70 Guía de inicio rápido

Riello

Riello 652 T1 Guía de inicio rápido

Riello

Riello RS 55/E BLU Guía de inicio rápido

Riello

Riello RS 28 Guía de inicio rápido

Riello

Riello PRESS GV INCINERATOR Guía de inicio rápido

Riello

Riello RDB2.2 FIREBIRD C20 70K DGT Guía de inicio rápido

Riello

Riello RS5 Guía de inicio rápido

Riello

Riello 3433823 Guía de inicio rápido

Riello

Riello PRESS 450 T/N Guía de inicio rápido

Riello

Riello 20044636 Guía de inicio rápido

Riello

Riello RL 28/M Guía de inicio rápido

Riello

Riello RL 190 Manual de instrucciones

Riello

Riello RBS 200 2S Manual de usuario

Riello

Riello 908T4 Guía de inicio rápido

Riello

Riello RS 45/M C05 Guía de inicio rápido

Manuales populares de Quemador de otras marcas

True Induction

True Induction TI4B Manual de usuario

Weishaupt

Weishaupt WG20 Series Manual de usuario

Carolina Cooker

Carolina Cooker M116672 Manual de usuario

Unigas

Unigas HTP2000 Manual de usuario

baltur

baltur BT 250 DSG 4T Manual de usuario

muenkel design

muenkel design round burner Manual de usuario

Ecoflam

Ecoflam Multicalor 170.1 Manual de usuario

baltur

baltur BT 14 DSGW Manual de usuario

artisan

artisan Art-SB1 Guía

AESYS

AESYS TurboFire II Manual de usuario

IKEA

IKEA GRILLSKÄR Manual de usuario

RUSTA

RUSTA SAREK Manual de usuario

PROPOINT

PROPOINT 8933657 Manual de usuario

baltur

baltur TBL 1000 ME Manual de referencia

Riello Burners

Riello Burners P 200 P/G Guía de inicio rápido

WLD-TEC

WLD-TEC powerjet Manual de usuario

MSR

MSR DRAGONFLY Manual de usuario

baltur

baltur COMIST 23SP Manual de usuario
