Installation, use and maintenance instructions

OδηγÝε÷ εγκατÀσταση÷, χρÜση÷ και συντÜρηση÷

Oil burner

ΚαυστÜρε÷ ΠετρελαÝου

CODE -

Κ¿¢ΙΚΟΣ

MODEL -

ΜΟΝΤΕΛΟ

TYPE -

ΤΥΠΟΣ

3742693 G3X 450 M1

One stage operation

ΜονοβÀθíιοι

2604

ENGLISH

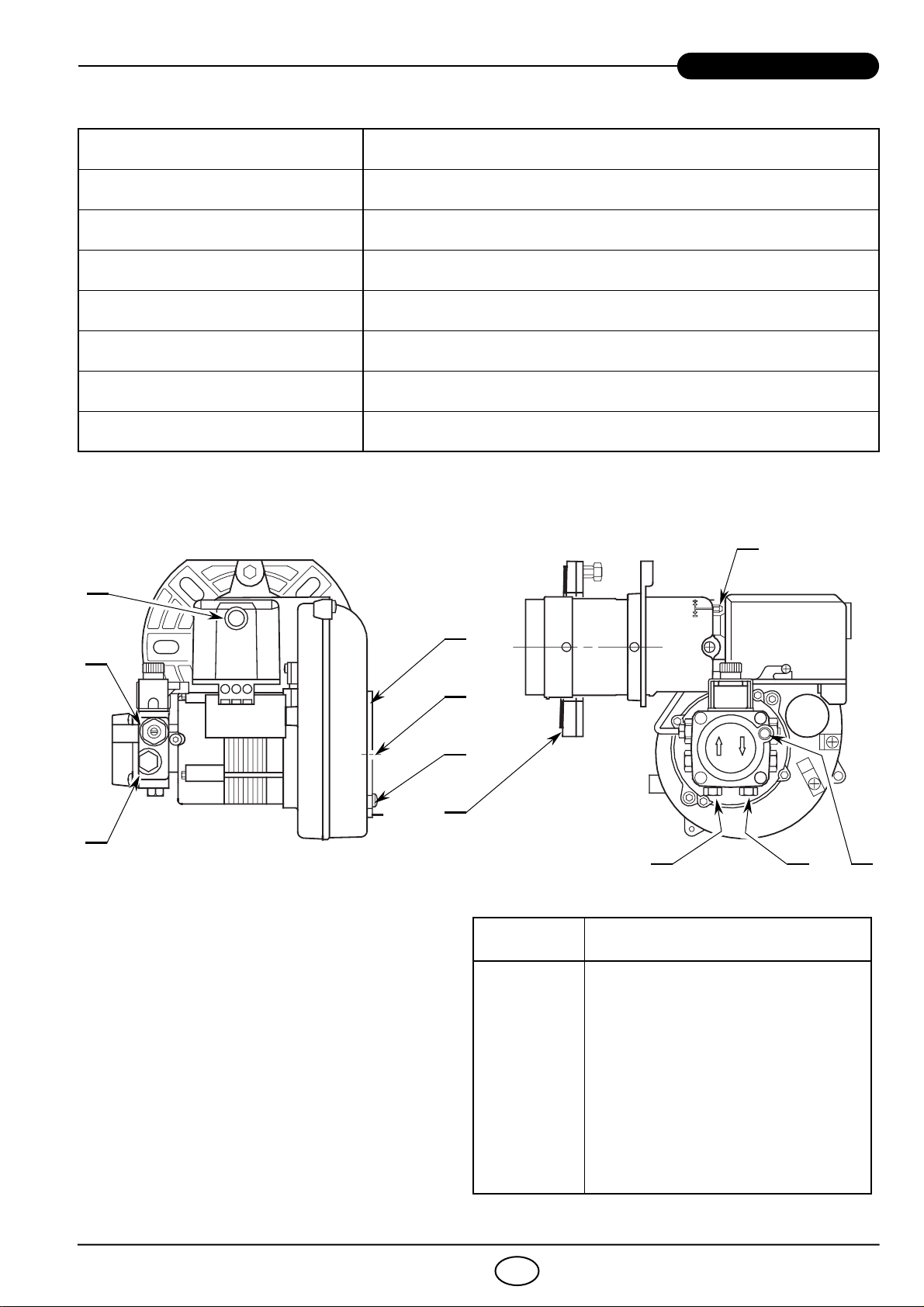

TECHNICAL DATA

◆

BurnerwithCEmarkinginconformitywithEECdirectives: EMC89/336/EECandEfficiency92/42/EEC

Thermal power – output 19 – 35 kW – 1.6 – 3 kg/h

Fuel Light oil, max. viscosity at 20 °C: 6 mm

Electrical supply Single phase, 230V ±10%

50Hz

Motor Run current 0.7A – 2850 rpm – 298 rad/s

Capacitor 4

Ignition transformer Secondary 8 kV – 16 mA

Pump Pressure 7 – 15 bar

Absorbed electrical power 0.115 kW

1 – Return line

2 – Suction line

3 – Gauge connection

4 – Pump pressure regulator

5 – Vacuum gauge connection

6 – Screws ﬁxing air-damper

7 – Air-damper

8 – Lock-out lamp and reset button

9 – Flange with insulating gasket

10 – Combustion head adjustmrnt screw

EQUIPMENT

Quantity Description

Flexible oil pipes with nipples

Flange with insulating gasket

Screws and nuts for ﬂange

to be ﬁxed to boiler

Screw and nuts for ﬂange

D6218 12

Fig. 1 10

2604

WORKING FIELD

OVERALL DIMENSIONS

BOILER FIXING

0.8

0.2

0.4

Pressure in the combustion

chamber – mbar

1.5 2 2.5 3 Fuel output - kg/h

20 25 30 35 Thermal power - kW

D5223

0.6

Flange Burner

115 79 194

130

45°

164

D6219

180

75 72

150

45°

ø89

109

It is necessary that the insulating gasket

(9, fig. 1) is placed between the boiler door

and the burner flange.

This insulating gasket has six holes,

which, if necessary, can be modified as

shown on the drawing on the right.

Verify that the installed

burner is lightly leaned

towards the button.

(See figure 2).

D5242

D5891

Fig. 2

BURNER FIXING

S7386

2604

HYDRAULIC SYSTEM

Warning:

before starting the burner make sure that the return pipe-line is not clogged: any obstruc-

tion would cause the pump seals to break.

The pump vacuum should not exceed a

maximum of 0.4 bar (30 cm Hg).

Beyond this limit gas is released from

the oil.

Oil lines must be completely air-

tight.

The return line should terminate in

the oil tank at the same level as the

suction line; in this case a non-return

valve is not required.

When the return line arrives over the

fuel level, a non-return valve must be

used.

This solution however is less safe than

previous one, due to the possibility of

leakage of the valve.

PRIMINGTHE PUMP

Start the burner and wait for the priming.

Should lock-out occur prior to the arrival

of the fuel, await at least 20 seconds

before repeating the operation.

A filter must be installed on the suction fuel line.

meters

L meters

I. D.

8 mm I.D.

10 mm

0.5

1.5

100

WARNING

The pump is supplied for use with a two pipe system.

For use on a one pipe system, it is necessary to remove the by-pass

screw (A),

(see figure)

meters

L meters

I. D.

8 mm I.D.

10 mm

0.5

1.5

3.5

100

H max. 4 m

max. 4 m

min. 0.1 m

D5616

D5617

D5199

H=Difference of level.

L= Max. length of the

suction line.

I.D.=Internal diameter of the

oil pipes.

PRIMINGTHE PUMP

Loosen the plug of the vacuum gauge (5, fig. 1,

page 1) and wait until the fuel flows out.

2604

ELECTRICALWIRING

Brown

White (50V)

Blue

Motor

Capacitor

Regulating thermostat

Neutral

Switch with fuse

6A max.

Black

NOTES

– Wires of 1 mm2section.

– The electrical wiring carried out by the

installer must be in compliance with the

rules in force in the Country.

– To remove the control-box from the

burner, loosen screw (A)

(see ﬁgure)

and

pull towards the arrow.

– The photoresistance is ﬁtted directly into the

control-box

(underneath the ignition-trans-

former)

on a plug-in support.

TESTING

Check the shut-down of the burner by opening

the thermostats.

ATTENTION

Do not connect burner’s grounding, to failure

indicator terminal .

This may result the destroy of the control box.

CARRIED-OUT IN THE FACTORY

WARNING

Do not exchange the neutral with the phase.

230V ~50Hz

Limit thermostat

with manual resetting

Remote lock-out lamp

(230V - 0.5A max.), if required

123456789

Blue

Brown

Terminal block of

control-box 530SE*

Valve

RUN OFTHE ELECTRICAL CABLE

1- Cable clamp N- Neutral

2- Terminal block L- Phase

- Burner-earth

D5228

Black

ELECTRICAL INSTALLATION OF

INSTALLER

2604 5GB

COMBUSTION ADJUSTMENT

In conformity with Efficiency Directive 92/42/EEC the application of the burner on the boiler, adjust-

ment and testing must be carried out observing the instruction manual of the boiler, including verifica-

tion of the CO and CO2concentration in the flue gases, their temperatures and the average

temperature of the water in the boiler.

To suit the required appliance output, fit the nozzle then adjust the pump pressure and the air damper

opening in accordance with the following schedule.

The values shown in the table are measured on a CEN boiler (as per EN 267).

They refer to 12.5% CO2at sea level and with light oil and room temperature of 20 °C.

RECOMMENDED NOZZLES: Monarch type R - NS; Delavan type W - A - E

Steinen type H - Q ; Danfoss type H - B

Angle: 60° : in most cases.

80° : in case of ﬂame detachment, during ignitions at low tem-

peratures.

PUMP PRESSURE 12 bar : the pump leaves the factory set at this value.

14 bar : improves ﬂame retention; it is therefore suitable for ignitions at

low temperatures.

COMBUSTION HEAD SETTING:This is done when ﬁtting the nozzle, with the blast tube

removed.It depends on the output of the burner and is car-

ried out by rotating the regulating rod, till the terminal plane

of the blast tube is level with the set-point, as indicated in

the schedule.

Nozzle Pump pressure Burner output Comb. head

adjustment Air damper

adjustment

GPH Angle bar kg/h ± 4% Set-point Set-point

0.40 80° 12 1.6 0 2.7

0.50 60°/80° 12 2.0 1 3.3

0.60 60°/80° 12 2.4 2 4

0.65 60°/80° 12 2.6 3 5,5

0.75 60° 12 3.0 4 7

1 2 3 4

D5496

135

In the sketch on the left, the combustion

head is set for an output of 0.60 GPH at

12 bar, while the shutter is level with set-

point 2, as required by the above sche-

dule.

Blast tube

Regulating rod

Shutter

Terminal plane of the blast tube

2604 6GB

Combustion head settings indicated in the schedule are valid for most cases.

The setting of the fan output according to the installation should normally be done only through the air

damper. Should one subsequently want to retouch also the setting of the combustion head, with the

burner running, operate on the rod (1) with a 6 mm spanner (2) as follows:

Turn to the right: (sign +), in order to increase the vol-

ume of air entering the combustion chamber and thus

diminishing its pressure.

There is a reduction of CO2and the adhesion of the

ﬂame to the air diffuser disc improves.

(Setting advisable for ignitions at low temperatures).

Turn to the left: (sign –), in order to reduce the volume

of air entering the combustion chamber and thus increas-

ing its pressure. The CO2improves and the adhesion of

the ﬂame to the diffuser tends to reduce. (This setting is

not advisable for ignitions at low temperatures).

In any case do not bring the combustion head setting

more than one point away from that indicated in the

schedule. One set-point corresponds to 3 turns of the

rod; a hole (3) at its end facilitates counting the number

of turns.

AIR DAMPER ADJUSTMENT:

The regulation of the air-rate is made by adjusting the air

damper (A), after loosing the screws (B).

When the optimal regulation is reached, screw tight the

screws (B).

The settings indicated in the schedule are purely indic-

ative.

Each installation however, has its own unpredictable

working conditions: actual nozzle output; positive or

negative pressure in the combustion-chamber, the

need of excess air, etc.

All these conditions may require a different air-damper

setting.

ELECTRODES SETTING

D5497

D5780

2 – 2.5 mm

4± 0.3 mm

IMPORTANT:

THESE DIMENSIONS

MUST BE OBSERVED

D5230 C

Attention:

Before removing or assembling the

nozzle, loosen the screw (C) and

move the electrodes ahead.

After fastening the nozzle in posi-

tion, restore electrodes to proper

distance.

2604 7GB

BURNER START-UP CYCLE

ADJUSTMENTS,TO AVOID FLAME - DETACHMENT, AT BURNER - IGNITION

This inconvenience can occur, when the temperature of the gas-oil decreases below +8 °C.

1) CORRECT POSITIONING OF THE ELECTRODES

2) NOZZLE: ATOMIZING CONE

Choose empt ies or semi-empt ies cones; Delavan type A - E; Steinen type H; Danfoss type H.

3) PUMP - SETTING

The pump is factory set, at a pressure of 12 bar.

When the temperature of the light oil decreases below +8 °C, increase the pressure to 14 bar.

4) COMBUSTION-HEAD SETTING

Regulate the combustion-head one set-point further ahead than indicated in the instructions.

Example:

the instructions require to set the combustion-head on set-point 2.

Instead, the setting is made on set-point 3.

5) FAN - AIR DAMPER ADJUSTMENT

Adjust the air damper of the fan, such as to obtain a smoke-number not inferior to 1.

(i.e. a combustion with the lowest possible excess-air).

Normal Lock-out, due to failure to light

Thermostat

Motor

Ignition transformer

Valve

Flame

Lock-out lamp ~12s D5229

~12s ~5s

2 – 2.5 mm

4± 0.3 mm

IMPORTANT:

THESE DIMENSIONS

MUST BE OBSERVED

D5230 C

2604

EΛΛHNIKA

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

◆

ΚαυστÜρα÷ íε πιστοποÝηση CE και σε συíφωνÝα íε τι÷ οδηγÝε÷ τη÷ Ε.Ε.: EMC/89/336/EΕ και

92/42/EΕ.

ΘερíικÜ ισχà÷ – παροχÜ 19 – 35 kW – 1,6 – 3 kg/h

Καàσιíο ΠετρÛλαιο diesel íεγÝστη÷ ρευστÞτητα÷ 6 mm

/s στου÷ 20

ΗλεκτρικÜ παροχÜ ΜονοφασικÜ , 230 V ± 10% ~ 50 Hz

ΚινητÜρα÷ 0,7A – 2.850 rpm – 298 rad/s

ΠυκνωτÜ÷ 4

ΜετασχηíατιστÜ÷ Ûναυση÷ ¢ευτερεàον 8 kV – 16 mA

ΑντλÝα ΠÝεση 7 - 15 bar

Απορροφñíενη ηλεκτρικÜ ισχà 0,115 kW

1 – επιστροφÜ καυσÝíου

2 – αναρρÞφηση καυσÝíου

3 – θÛση υποδοχÜ÷ íανοíÛτρου

4 – ρàθíιση πÝεση÷ αντλÝα÷

5 – ΘÛση υποδοχÜ÷ íÛτρηση÷ υποπÝεση÷

6 – βÝδε÷ στÜριξη÷ του τÀíπερ αÛρα

7 – τÀíπερ αÛρο÷

8 – λυχνÝα και íπουτÞν επαναφορÀ÷

9 – φλÀντζα íε θερíοíονωτικÞ

παρÛíβυσíα

10 – βÝδα ρàθíιση÷ τη÷ κεφαλÜ÷

ΕΞΑΡΤΗΜΑΤΑ

ΠοσÞτη÷ ΠεριγραφÜ

Εàκαíπτοι σωλÜνε÷ íε íαστοà÷

ΦλÀντζα íε ελαστικÞ

παρÛíβυσíα

ΒÝδε÷ και παξιíÀδια στÜριξη÷

τη÷ φλÀντζα÷

ΒÝδα íε δàο παξιíÀδια στÜριξη÷

του καυστÜρα

D6218 12

Εικ. 1

2604

ΠΕ¢ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ

¢ΙΑΣΤΑΣΕΙΣ

ΣΤΕΡΕ¿ΣΗ ΣΤΟΝ ΛΕΒΗΤΑ

0,8

0,2

0,4

ΠÝεση θαλÀíου καàσεω÷

mbar

1,5 2 2,5 3 ΠαροχÜ – kg/h

20 25 30 35 θερíικÜ ισχà÷ - kW

D5223

0,6

ΦλÀντζα÷ ΚαυστÜρα

115 79 194

130

45°

164

D6219

180

75 72

150

45°

ø89

109

ΤοποθετÜστε το θερíοíονωτικÞ

παρÛíβυσíα ενδιÀíεσα στην

πÞρτα του λÛβητα και τη φλÀντζα.

Αν χρειÀζεται, íεγαλñστε τι÷ τρàπε÷

του θερíοíονωτικοà παρεíβàσíατο÷,

Þπω÷ φαÝνεται δεξιÀ στο σχÛδιο.

Αφοà γÝνει η στερÛωση στο

λÛβητα, βεβαιωθεÝτε Þτι ο

καυστÜρα÷ στÛκεται íε

ελαφρÀ κλÝση προ÷ τα

íπροστÀ Þπω÷ φαÝνεται.

(στην εικÞνα 2).

D5242

D5891

Εικ. 2

ΣΤΕΡΕ¿ΣΗ ΚΑΥΣΤΗΡΑ

S7386

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Quemador de Riello Burners

Riello Burners

Riello Burners RL Series Guía de inicio rápido

Riello Burners

Riello Burners PRESS 60 N/ECO 628 T Guía de inicio rápido

Riello Burners

Riello Burners RL 250 Guía de inicio rápido

Riello Burners

Riello Burners RDB 4.2 EUROSTAR 56/70 Band A Guía de inicio rápido

Riello Burners

Riello Burners G3B Guía de inicio rápido

Riello Burners

Riello Burners RS BLU Series Guía de inicio rápido

Riello Burners

Riello Burners RS 45/M LN Guía de inicio rápido

Riello Burners

Riello Burners Gulliver RG5D Guía de inicio rápido

Riello Burners

Riello Burners Gulliver RG3D Guía de inicio rápido

Riello Burners

Riello Burners RDB1 70-90 Guía de inicio rápido

Riello Burners

Riello Burners RDB1R CF 26 Guía de inicio rápido

Riello Burners

Riello Burners Gulliver RG3 Guía de inicio rápido

Riello Burners

Riello Burners COH 110 Guía de inicio rápido

Riello Burners

Riello Burners Gulliver BLU Series Guía de inicio rápido

Riello Burners

Riello Burners 628 T Guía de inicio rápido

Riello Burners

Riello Burners RS 45/M BLU Guía de inicio rápido

Riello Burners

Riello Burners PRESS 30N Guía de inicio rápido

Riello Burners

Riello Burners 40 Series Guía de inicio rápido

Riello Burners

Riello Burners Gulliver BLU BGK1 Guía de inicio rápido

Riello Burners

Riello Burners RLS 70/E Guía de inicio rápido

Riello Burners

Riello Burners MB4LSE Guía de inicio rápido

Riello Burners

Riello Burners Gulliver RS5D Guía de inicio rápido

Riello Burners

Riello Burners Gulliver RG1RKD Guía de inicio rápido

Riello Burners

Riello Burners Gulliver Series Guía de inicio rápido

Manuales populares de Quemador de otras marcas

Riello

Riello RS 28/M Guía de inicio rápido

True Induction

True Induction TI4B Manual de usuario

Weishaupt

Weishaupt WG20 Series Manual de usuario

Carolina Cooker

Carolina Cooker M116672 Manual de usuario

Riello

Riello RX 500 S/PV Manual de instrucciones

Unigas

Unigas HTP2000 Manual de usuario

baltur

baltur BT 250 DSG 4T Manual de usuario

muenkel design

muenkel design round burner Manual de usuario

Ecoflam

Ecoflam Multicalor 170.1 Manual de usuario

baltur

baltur BT 14 DSGW Manual de usuario

artisan

artisan Art-SB1 Guía

Riello

Riello P 140 T/G Guía de inicio rápido

AESYS

AESYS TurboFire II Manual de usuario

Riello

Riello RG1RKD Guía de inicio rápido

IKEA

IKEA GRILLSKÄR Manual de usuario

RUSTA

RUSTA SAREK Manual de usuario

PROPOINT

PROPOINT 8933657 Manual de usuario

baltur

baltur TBL 1000 ME Manual de referencia
