RIDGID MS1060 Manual de usuario

OWNER’S MANUAL

For Your Safety:

Read all inst ructions carefully

Save this manual for future reference

10 INCH

COMPOUND MITER SAW

Part No. SP6402 PrintedinU.S.A.

MS1060

Repair Parts

Parts List for RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 1

26 27 28

31 32

Repair Parts

Parts List for RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 1

Always order by Part Number - Not by Key Number

* Standard hardware item - may be purchased locally.

WARNING: These items are important to the safety of this tool. Do not substitute common parts.

Key

No. Part No. Description

See Fig. 3

See Fig. 2

828647

828343

808275-4

826055-1

828648

817791

828501

827588

826163

823297-1

805553-24

9421621

823612

702204-1

Blade Guard Assembly

Motor Assembly

Table

Plate Throat

Screw Pan Cr 8-32 x 3/8

Knob Miter

Fence Asm

Arm Extension

Base

Shim Table

Cap Grip

Spring Index

Washer 11/32 x 7/8 x 1/16

Scr Soc Cap 5/16-18 x 5/8

Clamp Extension

* Screw Thumb 1/4-20 x 1/2

Key

No. Part No. Description

817793

805553-6

813056-2

826057

809169-3

9416630

823326

826068

828253

9416187

805553-4

821421-6

See Fig. 3

823314

SP6402

SP6402F

Stop Block

Washer 21/64 x 5/8 x 1/16

* Screw Pan Hd. 5/16-18 x 1-1/4

Pointer

* Screw Pan Hd. Type “T” 8-32 x 3/8

* Screw Hex Type “T” 5/16-18 x 1

Stop Bevel

Indicator Bevel

Knob Bevel

* Screw Hex Type “T” 5/16-18 x 3/4

Washer 21/64 x 9/16 x 1/16

O-Ring

Pivot Asm.

Wrench Combination

Owners Manual - English/Spanish

Owners Manual - French

Repair Parts

Parts List For RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 2 - Motor Assembly

10 11

Repair Parts

Parts List For RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 2 - Motor Assembly

WARNING: For your safety, this miter saw is specially insulated. To reduce the risk of electrical shock, fire or

injury, use only parts identical to those identified in the parts list. Reassemble exactly as originally assembled.

Always order by Part Number — Not by Key Number

*Standard hardware - may be purchased locally

WARNING: These items are important to the safety of this tool. Do not substitute common parts.

• WARNING: Any attempt to repair or replace electrical parts on this unit may create a hazard unless

repair is done by a qualified service technician. Repair service is available from authorized RIDGID Ser-

vice Center.

Key

No. Part No. Description

828736

828720

808380-5

828718

828717

826053

828719

826064

354653

826017

826016

Screw Pan Cr Pt K60 x 75mm

Handle Carry

*ScrewPanCr#8Plastite

Handle Upper

Actuator Switch

Spring Compression

Handle Lower

Cap Motor Housing

Bumper

Holder Brush

Brush

Key

No. Part No. Description

826453

805549-22

826163

826062

823322

823417

829512

828716

826066

828735

803709-1

Screw Pn Hd 10-32 x 2-1/4

* Washer 13/64 x 3/8 x 1/32

Cap Grip

Lock Arbor

Spring Arbor Lock

Seal

Motor Asm

Button Lock

•SwitchSPDT

•Cordw/Plug

Connector Wire

Repair Parts

Parts List For RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 3 - Blade Guard Assembly

20 21

Repair Parts

Parts List For RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

Figure 3 - Blade Guard Assembly

Always order by Part Number — Not by Key Number

*Standard hardware - may be purchased locally

WARNING: These items are important to the safety of this tool. Do not substitute common parts.

‡ CAUTION: See mechanical assembly caution below.

• WARNING: Uncontrolled spring release or misinstallation of these parts may create a hazard unless

repair is done by a qualified service technician. Repair service is available from authorized RIDGID Ser-

vice Center.

CAUTION: Mechanical Assembly, to qualified service technician.

1. Wear approved eye protection when working with coil spring including spring, arbor lock 823322.

2. Incorrect reassembly of torsion spring 823328 can cause an unsafe condition because cutting head fails

to rise fully to stop, or because spring fails through over-stress.

3. Improper reassembly of mechanisms controlling movement of lower guard 826039 can cause an unsafe

condition because guard fails to operate freely as cutting head is moved up and down.

Key

No. Part No. Description

37429

826487-1

823300-1

823316-1

821421-3

9416390

9416712

826481

829503

823303

827413

823304

Dust Elbow

Arm/Guard Asm

Washer Cup

Arbor Asm

Ring “O”

* Screw Pan Cr Ty “T” 10-32 x 5/8

Washer 3/16 x 5/8 x 1/16 Bl. Ox.

Screw Lock Set 1/4-20 x 3/8

Bumper

Collar Blade

Blade Saw Carbide

Screw Blade

Key

No. Part No. Description

826039

826765

820219-1

826026

821521-1

823840-3

823292

821521

823306-1

828364

‡ Guard Lower

Retainer Bearing

Screw Pan Cr Ty “TT”

1/4-20 x 3/8

Link Actuator

Screw Shoulder

Retainer Guard Asm

•‡ Spring Guard

Screw Shoulder

Bearing Cam

Bag Dust

Repair Parts

Parts List For RIDGID 10" Compound Miter Saw

Model No. MS10600

RIDGID parts are available on-line at www.ridgidparts.com

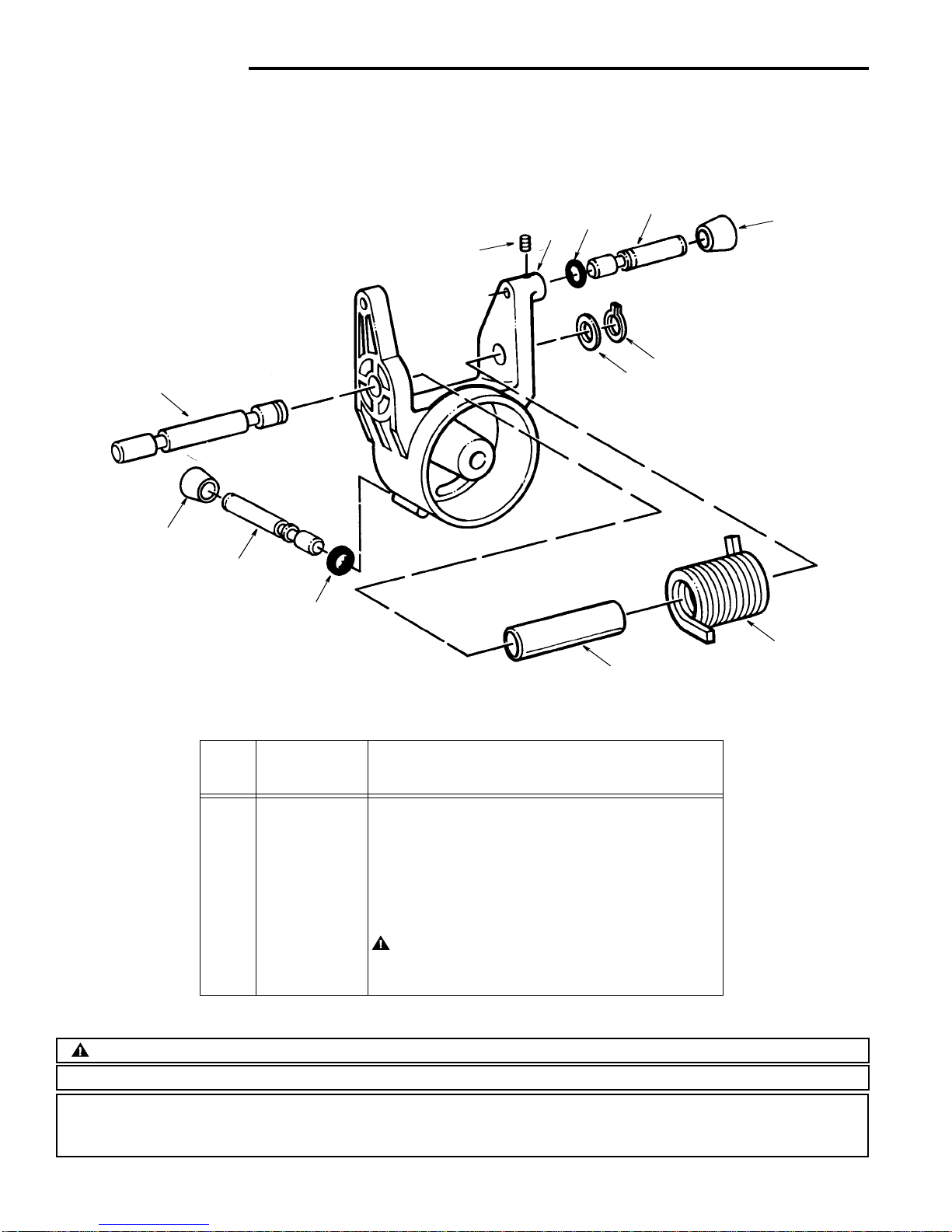

Figure 4 - Pivot Assembly

Always order by Part Number — Not by Key Number

*Standard hardware - may be purchased locally

WARNING: These items are important to the safety of this tool. Do not substitute common parts.

‡ CAUTION: See mechanical assembly caution on page 33.

• WARNING: Uncontrolled spring release or misinstallation of these parts may create a hazard unless

repair is done by a qualified service technician. Repair service is available from authorized RIDGID Ser-

vice Center.

Key

No. Part No. Description

803309-2

828504

821421-2

826058

826357

805606

803899-5

823328

823298-1

823301

Screw Set Hex Soc. Locking 10-32 x 3/8

Pivot

O-Ring

Shaft Stop

Knob

Ring Retaining

Washer Thrust

• ‡ Spring Torsion

Spacer Spring

Shaft Pivot

12345

Wiring Diagram

Troubleshooting Of Brake By Qualified

Service Person Only

1.Check commutation at no load. If there is a heavy

sparking which follows the curvature of the commutator

replace the armature.

2.To continue trouble shooting, now unplug the power

cord.

3.Install new brushes, especially if delayed come-in of

brake has been noticed before failure.

4.Check brake circuit for continuity: Remove motor cap

and brushes. Use ohmmeter to check continuity from

brush terminal to brush terminal. If open, locate exact

place using ohmmeter. As indicated by test, tighten

connection, replace field assembly, or replace switch.

5.After repair, check direction of blade rotation vs. guard

arrow.

Power Cord

White

Wire

Black

White

Gray

2N.C.

1COM

3N.O.

Field Winding

Brake Winding

Black

Brush #1

Armature

Brush #2

Blue

SPDT Switch

Nut

Wide Blade
