Ricoh Y024 Manual

Soleil-PJ1Training

Slide 1

Y024/Y025/Y026/Y027/Y028/Y029

Service Training

Altair-PJ1

Version 1.0

This training course provides service technician training for the Altair-PJ1

series.

Soleil-PJ1Training

Slide 2

Y024/Y025/Y026/Y027/Y028/Y029

Service Training

Product Overview

This section provides an overview of the machine, and the options that can

be installed.

Soleil-PJ1Training

Slide 3

What Models are there in the Series?

These are DLP projectors.

YesYesWXGA3000 lmY027PJWX3340N

NoYesXGA3000 lmY028PJX4240N

Yes

Auto Focus

NoXGA3000 lmY024PJX3340

YesXGA3000 lmY025PJX3340N

NoWXGAPJWX3340

YesWXGA3000 lmY029PJWX4240N

Network

3000 lmY026

ResolutionBrightnessModelModel Name

Soleil-PJ1Training

Slide 4

Main Specifications - 1

WXGAWXGA

Auto

3500 (5200)Lamp life (Eco)

297 ×

××

×235 ×

××

×100Dimensions (W×

××

×D×

××

×H)

40-240 40-24030-20030-200Projection size (inch)

Altair-PJ1 dwnAltair PJ1 dw Altair-PJ1 dxnAltair-PJ1 dx

YesHDMI

300WMax. Power Consumption

3.0 kg (6.6 lbs)Less than 2.9 kg (6.4 lbs)Weight

YesNo@Remote

YesNoPJLink

YesNoWireless LAN

Service Use, PC-Free

Presentation Use

Service Use OnlyUSB

YesNoWired LAN

High-pressure mercury lamp

(Standard mode: 230 W, Eco mode: 124 W)

Lamp type

3000lmBrightness

Desk Edge Model

Type DLP

Resolution XGA XGA

Focus Manual

Speaker 10W x 1

PointBlank Dongle Connector Yes

Altair-PJ1

Additional USB port: Users can use this to display JPEG or MPEG2 files

without PC or network connection.

LAN: For use with PJLInk. Users can also use the LAN to project files that

are stored on a PC or server on the network. @Remote will also be

available.

To enable projection of a file from a PC over a network, a network utility can

be downloaded to the PC or installed from the CD that comes with the

projector. No lengthy installation procedure is required.

Soleil-PJ1Training

Slide 5

Main Specifications - 2

3500 (5200)Lamp life (Eco)

ManualFocus

60-14050-120Projection size (inch)

Short Throw Model

YesHDMI

325WMax. Power Consumption

3 kg (6.7 lbs)Less than 3 kg (6.7 lbs)Weight

Yes@Remote

YesPJLink

YesNoWireless LAN

Service Use, PC-Free

Presentation Use

Service Use OnlyUSB

YesWired LAN

High-pressure mercury lamp

(Standard mode: 250 W, Eco mode: 135 W)

Lamp type

3000lmBrightness

Altair-PJ1 sx Altair-PJ1 swn

Type DLP

Resolution XGA WXGA

Dimensions (W×

××

×D×

××

×H) 257 ×

××

×144 ×

××

×221

Speaker 10W x 1

PointBlank Dongle Connector Yes

Altair-PJ1

Additional USB port: Users can use this to display JPEG or MPEG2 files

without PC or network connection.

LAN: For use with PJLInk. Users can also use the LAN to project files that

are stored on a PC or server on the network. @Remote will also be

available.

To enable projection of a file from a PC over a network, a network utility can

be downloaded to the PC or installed from the CD that comes with the

projector. No lengthy installation procedure is required.

Soleil-PJ1Training

Slide 6

Features

This product can be installed by users.

The DE model is designed for table-top and

ceiling mount use.

The ST model is designed for table-top and wall

mount use.

This product is designed for user maintenance.

Regular on-site maintenance is not needed.

There is no display panel, but LEDs show the

symptoms for troubleshooting (blinking/lit,

number of times the LEDs blink, etc).

A service mode is available.

No additional notes

Soleil-PJ1Training

Slide 7

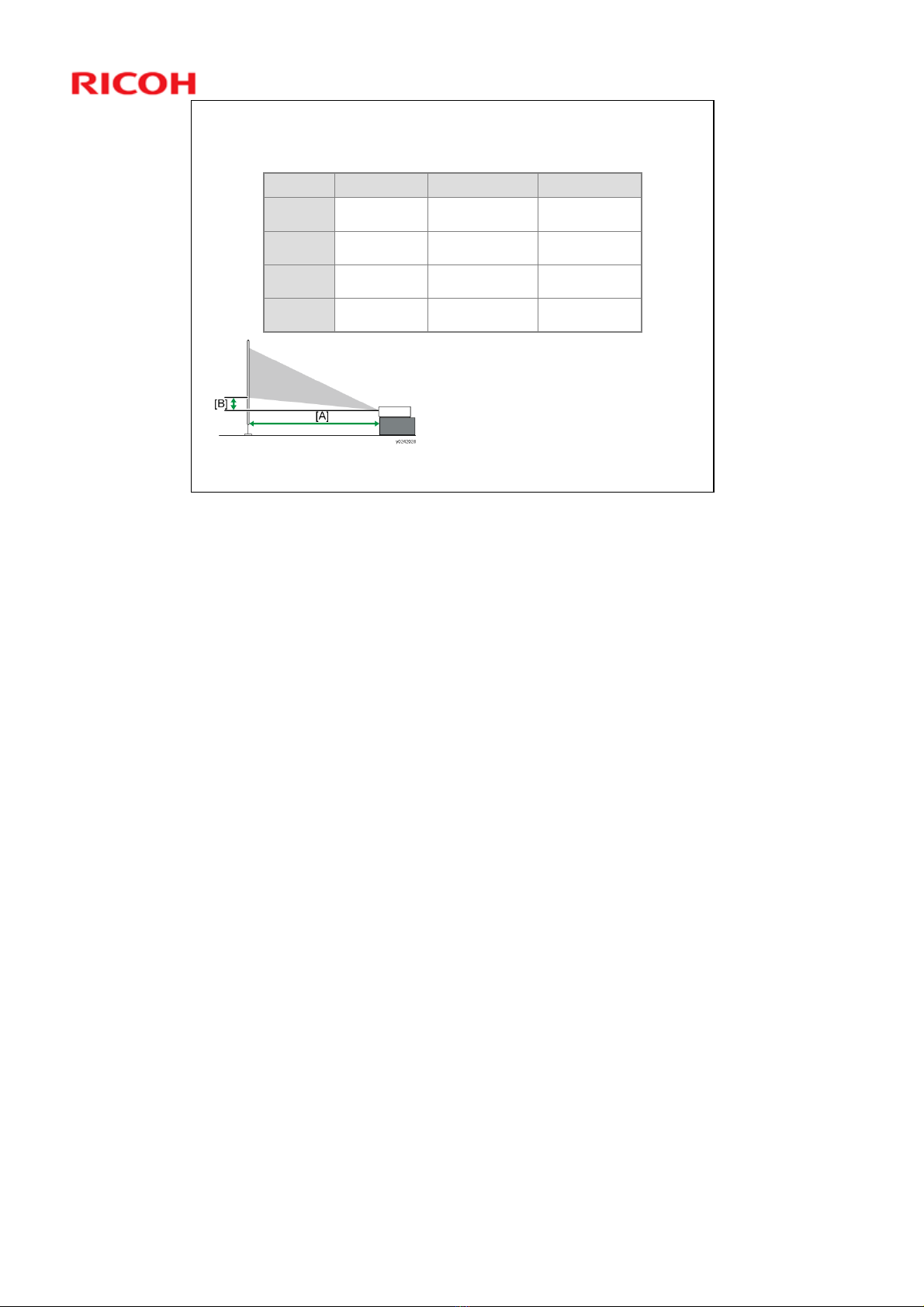

A: From the screen to the optical outlet

B: From the optical axis to the bottom of the

projected image

Relationship Between the

Projection Distance and the Screen Size

6~14 cm

(2~6 inches)

59~149 cm

(1.94~4.88 feet)

50~120 inches

Y028

Y029

Y026/Y027

Y024/Y025

5~11 cm

(2~4 inches)

61~148 cm

(2~4.85 feet)

60~140 inches

4~24 cm

(1~9 inches)

68~720 cm

(2.22~23.61 feet)

30~200 inches

3~18 cm

(1~7 inches)

77~733 cm

(2.53~24.06 feet)

40~240 inches

BAProjection Size

No additional notes

Soleil-PJ1Training

Slide 8

Network Features (Altair-PJ1)

Easy network setup

For network projection, Altair-PJ has an installation-

free network utility. Just download the file from the

Ricoh website to your PC or execute the program on

the attached CD, type in the PIN code, and you are

ready to project images.

¾Download network utility

from Ricoh website

[Step 1]

[Step 1] [Step 2]

[Step 2]

¾Type in the pass code

[Step 3]

¾Make wireless network

connection on the PC

No additional notes

Soleil-PJ1Training

Slide 9

Network Features (Altair-PJ1)

@Remote capability

Remaining Lamp hour information

Power and status reporting

Projection server function

JPEG files stored on a web server can be

projected without a PC. Files can be uploaded

onto the web server using the supplied software:

JPEG conversion tool type A.

No additional notes

Soleil-PJ1Training

Slide 10

New Options - Interactive Tool Kit

The Interactive Tool Kit consists of an electronic pen, adapters

for the projector and computer, and a drawing software.

The user can use the pen to manipulate and perform operations on the projected

image and save the changes using the drawing software. Although the electronic

pen can be used in place of a mouse to operate the PC projection screen, it is

difficult to obtain the same level of positioning accuracy. The user should use a

mouse connected to the PC if required.

Electronic pen

Electronic pen Adapters

Adapters

For Projector (Cartridge)

For PC (USB dongle)

Drawing software

* Support language :English/Chinese/ Japanese

Support language :English/Chinese/ Japanese

The characteristics of the Interactive Tool Kit are as follows.

1.It allows you to interact on any surface

2.It requires no calibration

3.The pen works from a distance or on the projected image surface

It allows flexible installation and interaction with large images
