INSTALLATION GUIDE
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO
ALLOW THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES
CLEAR.
CAUTION
ICC Prole
MAC OS X
PAGE 2 of 14 >>
Before you begin, you will need to verify what version of Operating System you are using on your Mac. This is important
when deciding which drivers to download.You should only download those drivers, which are compatible with your version
of Operating System.
Operating System
1.) To check the version of Operating System, rst click the apple icon in the top left corner of your
desktop. Then, scroll down and click About This Mac. The following screen containing the version
number should appear (see FIGURE 1). The below example is running Version 10.6.4. Please note
your version number and remember to only download those utilities which correspond with your
version of Mac OS.
FIGURE 1
1
3
2
Ricoh GXe3300N
ICC Prole — Installation Guide
Mac OS-X
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 3:14)
PAGE 3 of 14 >>
The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on Mac OS X.
Ricoh (OEM) Printer Driver Installation
1.) Before installing the SubliJet-R ICC Prole, you will need to install the Ricoh (OEM) printer driver.
If the Ricoh (OEM) printer driver has already been installed on your machine, then please proceed
to the SubliJet-R GXe3300N ICC Prole Installation section. First, access the support section on the
Ricoh website by entering http://www.ricoh-support.com/enduser/downloads/ in the address eld of
your web browser. Select the appropriate printer model from the ‘Printers’ drop down menu and
click the ‘Go’ button (see Figure 1).
FIGURE 1
2
2.) Select ‘Download le from external website’ link from the ‘Drivers and Software’ section indicated
by the green arrow (see FIGURE 2).
FIGURE 2
1
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 4:14)
PAGE 4 of 14 >>
FIGURE 4
FIGURE 3
FIGURE 6
FIGURE 5
1
2
3
3.) Locate and click the link that corresponds with your Computers Operating System (see FIGURE 3).
4.) Finally, locate the RPCS Raster Driver for your Operating System and click the Download Icon (see
FIGURE 4). The Ricoh (OEM) printer driver should now begin downloading to your computer.
5.) Once the driver download has completed, click the download icon in the bottom right corner of
your desktop (see FIGURE 5 > 1). Next, double-click the z41034en.dmg le (see FIGURE 5 > 2).
The GelSprinter_GX_e3300N_xxx window should now appear (see FIGURE 6). Finally, double-click
the GelSprinter icon to begin the Ricoh (OEM) printer driver installation process (see
FIGURE 6 > 3).
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 5:14)
PAGE 5 of 14 >>
FIGURE 7
FIGURE 8
FIGURE 9
6.) Click Continue to allow the program to determine if the software can be installed (see FIGURE 7).
7.) In the Introduction window, click Continue (see FIGURE 8).
8.) In the License window, read the terms of the Software License Agreement and click Continue when
nished (see FIGURE 9).
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 6:14)
PAGE 6 of 14 >>
FIGURE 10
FIGURE 11
FIGURE 12
9.) If you agree with the terms of the Software License Agreement, click Agree (see FIGURE 10).
10.) In the Destination window, select the Hard Drive on which the printer driver will be installed and click
Continue (see FIGURE 11).
11.) Ensure you have a sufficient amount of disk space free to install the printer driver and click Install
(see FIGURE 12).
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 7:14)
PAGE 7 of 14 >>
FIGURE 13
FIGURE 14
Congratulations! The Ricoh (OEM) printer driver has successfully been installed. Please proceed to the
SubliJet-R GXe3300N ICC Prole Installation.
NOTE: If you experience any communication errors, a powered USB Hub may be required.
During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic Main-
tenance Utilities to keep the print head nozzles clear. The Ricoh GelSprinter has been engineered to perform automatic
maintenance at various times in an effort to keep the print head nozzles in top condition. If this maintenance cannot be
automatically performed, it is possible that the nozzles may suffer permanent effects. As a result, head cleanings may be
unable to restore the print head to optimal operation.
CAUTION
12.) Note that you will need to restart your computer once installation is complete. Save any work that
may be open and click Continue Installation (see FIGURE 13).
13.) Once installation has completed successfully, click Restart to nish installing the software (see
FIGURE 14). Your computer will automatically restart so be sure to save any work that may be open.
PAGE 8 of 14 >>
The following instructions will demonstrate how to install the SubliJet-R GXe3300N ICC Prole on Mac OS X. In
this example, we show how to download and install the GXe3300N ICC Prole on systems with 10.6.4 OS. There-
fore, if your printer model or OS version is different, you will need to substitute your printer model or OS version for
every instance that GXe3300N or 10.6.4 is used.
SubliJet-R GXe3300N ICC Prole Installation
Ricoh GXe3300N
ICC Prole — Installation Guide
Mac OS-X
FIGURE 1
NOTE: Before proceeding, be sure you have the correct Ricoh (OEM) printer driver installed.
1.) First, access the Sawgrass Europe website by entering www.sawgrasseurope.com in the address
eld of your web browser. Once there, navigate to:
Technical Support > SubliJet-R Technical Support > SubliJet-R ICC Prole Downloads
(see FIGURE 1).
1
2
3
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 9:14)
PAGE 9 of 14 >>
FIGURE 4FIGURE 3
1
3
2.) On the SubliJet-R ICC Prole Download page, scroll down to ICC PROFILES FOR MAC OS and
select the link that corresponds with your printer model (see FIGURE 2). The SubliJet-R GXe3300N
ICC Prole should now begin downloading to you computer.
3.) Once the download has completed, click the download icon in the bottom right corner of
your desktop (see FIGURE 3 > 1). Next, double-click the SubliJet-R GXe3300N.dmg le (see
FIGURE 3 > 2). The Sawgrass Installer window should now appear (see FIGURE 4). Finally,
double-click the SubliJet-R GXe3300N.pkg le to begin the installation process (see FIGURE 4 > 3).
2
FIGURE 2
Ricoh GXe3300N — Mac OS-X
SubliJet-R ICC Prole - Installation Guide (Continued; Page 10:14)
PAGE 10 of 14 >>
FIGURE 5
NOTE: You must have a separate Registration Code for every machine on which the
SubliJet-R ICC Prole is installed.
FIGURE 6

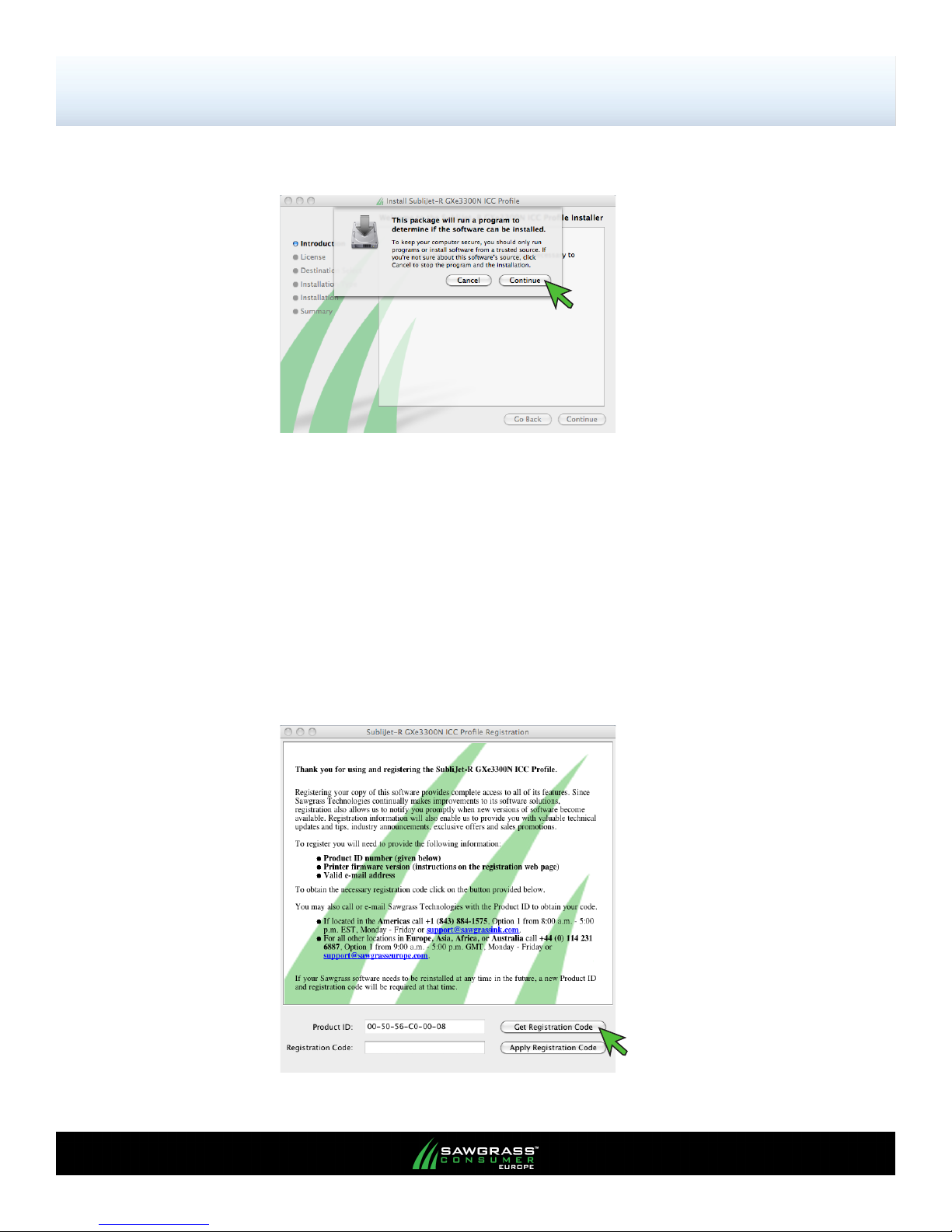

4.) Click Continue to allow the program to determine if the software can be installed and to begin the
installation process (see FIGURE 5).
5.) Before installation can begin, you will need to register the SubliJet-R ICC Prole. A Registration
Code can be obtained online via the registration page:
6.) The following instructions will show how to register On-line. Note the Product ID as this will be
needed during the registration process and click Get Registration Code (see FIGURE 6).
