Ricoh GXe3300N Manual de usuario

DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.

DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.

DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW

THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.

CAUTION

Ricoh GXe3300N

INSTALLATION GUIDE

SECTIONS:

Microsoft Windows Operating System Verication (1 page)

Ricoh (OEM) Printer Setup (2 pages)

Ricoh (OEM) Driver Download & Installation (8 pages)

PowerDriver-R Installation & Registration (7 pages)

Ricoh GXe3300N – Installation Guide: (3:20)

Microsoft Windows OS Verication (1:1)

PAGE 1 Of 1 >>

Before you begin, you will need to verify the Windows Edition and System Type you are using on your PC. This is

important when deciding which drivers to download. You should only download those drivers, which are compat-

ible with your version of Operating System.

1.) To check your version of Operating System, rst click the Start icon in the bottom left corner of your

desktop. Then, right-click Computer. Finally, click Properties (see FIGURE 1).

FIGURE 1

2.) The following screen containing the Windows Edition and System Type should appear (see FIGURE

2). The below example is running Windows 7 on a 32-bit OS. Please note your version number and

remember to only download those utilities which correspond with your version of Windows OS.

FIGURE 2

PAGE 1

1.) Open the printer box, remove the cables and other accessories, and place them aside. Next, remove

the printer from the box, and place it on a sturdy work surface with sufficient operational clearances

(the printer weighs approximately 31 lb). Finally, remove the orange adhesive tape and attach the

power cord and the USB cable. DO NOT POWER ON THE PRINTER AT THIS TIME.

2.) Remove the SubliJet-R ink cartridges from their packages. Open the right front cover on the printer, and

insert the cartridges in the order indicated—from left to right (as you face the printer): black (K), cyan (C),

magenta (M) and yellow (Y). Press each cartridge in until it engages securely, and close the cover once

all of the cartridges are in place. Never shake or agitate the cartridges.

3.) Remove the paper tray, pull the cover straight up, and adjust the guides for the paper size you will be

using. Load the paper, put the cover back on, and reinsert the tray into the printer. For larger paper sizes,

refer to the documentation provided with your Ricoh printer for extending the paper tray.

Ricoh GXe3300N – Installation Guide: (4:20)

Ricoh (OEM) Printer Setup (1:2)

Of 2 >>

PAGE 2

4.) Plug the power cord into a power outlet and plug the USB cable into a 2.0 USB port located on the back of

the computer. DO NOT POWER ON THE PRINTER AT THIS TIME.

5.) Start your computer, wait until Windows is fully operational and proceed to the Ricoh (OEM) driver

download and installation section.

Note: If you experience any communication errors, a powered USB Hub may be required.

During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic

Maintenance Utilities to keep the print head nozzles clear. The Ricoh GelSprinter has been engineered to perform

automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-

nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,

head cleanings may be unable to restore the print head to optimal operation.

CAUTION

SubliJet-R: Ricoh GXe3300N – Installation Guide: (5:20)

Ricoh (OEM) Printer Setup (cont’d 2:2)

Of 2 >>

PAGE 1

The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers running

Windows Operating Systems.

1.) Before installing the SubliJet-R PowerDriver, you will need to install the Ricoh (OEM) printer driver. If the

Ricoh (OEM) printer driver has already been installed on your machine, then please proceed to the

SubliJet-R PowerDriver Installation section. First, access the Ricoh website by entering

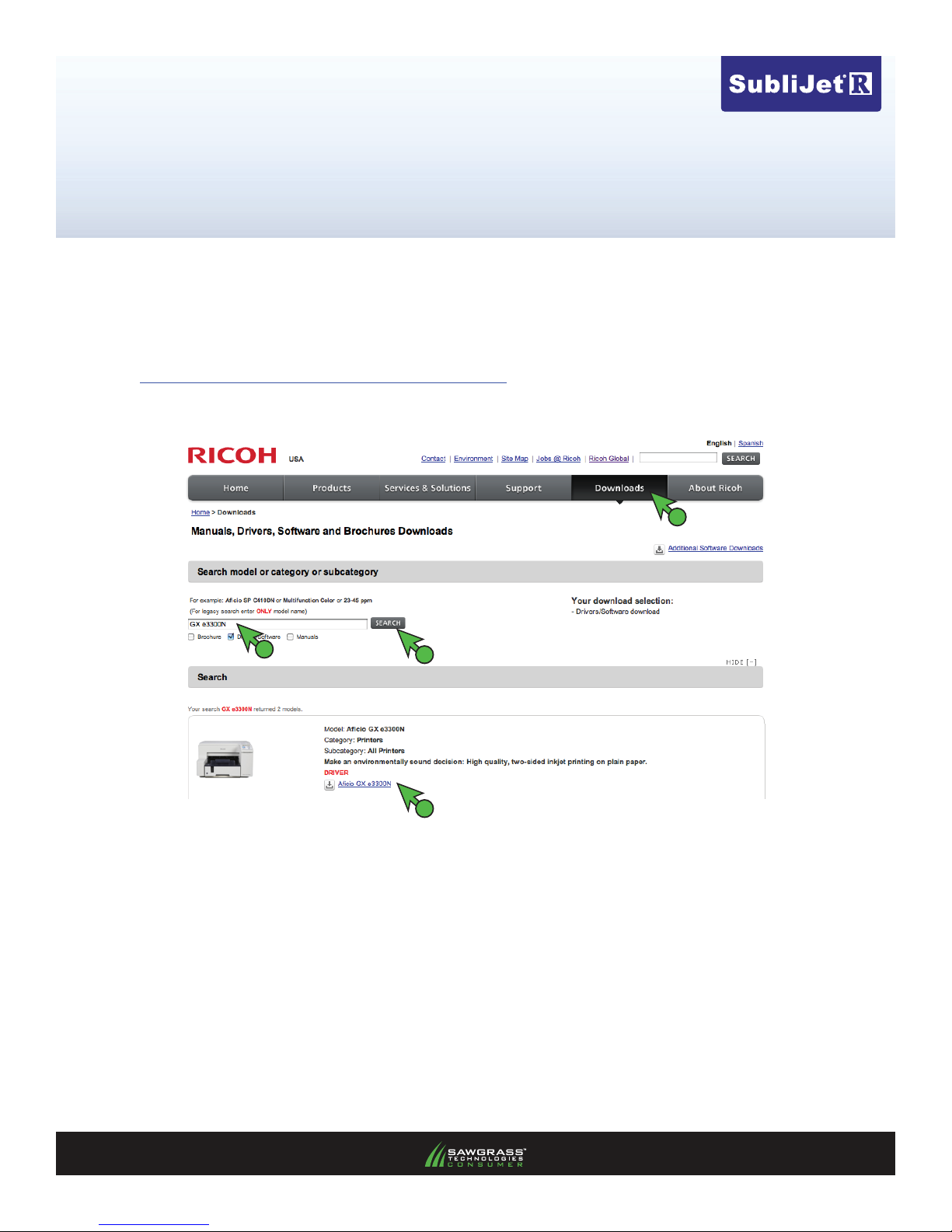

http://www.ricoh-usa.com/downloads/downloads.aspx in the address eld of your web browser. Once

there, enter the model number of your printer and click Search. Finally, click the link for your printer

model under Driver in the results eld (see FIGURE 1).

FIGURE 1

Ricoh GXe3300N – Installation Guide: (6:20)

Ricoh (OEM) Driver Download & Installation (1:8)

Of 8 >>

PAGE 2

2.) To proceed, read the Ricoh Software License Agreement. If you agree with the terms of the agreement,

click I Agree (see FIGURE 2).

FIGURE 2

3.) Clicking I Agree will open the following web page. Locate and click the link that corresponds with your

computers Operating System (see FIGURE 3).

FIGURE 3

Of 8 >>

SubliJet-R: Ricoh GXe3300N – Installation Guide: (7:20)

Ricoh (OEM) Driver Download & Installation (cont’d 2:8)

PAGE 3

4.) Locate the RPCS Raster Driver for your Operating System and click the Download Icon

(see FIGURE 4).

FIGURE 4

5.) The following screen will appear asking to Run the installation or Save the le to your computer. In this

example we will choose to Run the installation (see FIGURE 5).

FIGURE 5

6.) The following screen displaying the download status should now appear (see FIGURE 6).

FIGURE 6 Of 8 >>

SubliJet-R: Ricoh GXe3300N – Installation Guide: (8:20)

Ricoh (OEM) Driver Download & Installation (cont’d 3:8)

PAGE 4

7.) Once the download has completed, the following screen may appear (see FIGURE 7). Click Run to

continue.

FIGURE 7

8.) The executable will need to be extracted before continuing. Note the folder location where the les will

be stored and click Unzip (see FIGURE 8).

FIGURE 8

9.) Once the les have been unzipped, the following screen will appear (see FIGURE 9). Click OK to

continue. This will return you to the WinZip Self-Extractor (see FIGURE 10). Again, note the folder

location of the unzipped les and click Close.

FIGURE 9

FIGURE 10

1 2

Of 8 >>

SubliJet-R: Ricoh GXe3300N – Installation Guide: (9:20)

Ricoh (OEM) Driver Download & Installation (cont’d 4:8)

PAGE 5

10.) Navigate to the folder location containing the unzipped les. In this example the folder location was

Computer > C: > temp > z48155Lf. However, your folder location may differ. Once you have located

the folder, double-click RDISETUP.exe (see FIGURE 11). This will begin the installation process.

FIGURE 11

FIGURE 12

11.) You must accept the Software License Agreement before you can install the printer driver. If you agree

with the terms select I accept the agreement and click Next (see FIGURE 12).

Of 8 >>

SubliJet-R: Ricoh GXe3300N – Installation Guide: (10:20)

Ricoh (OEM) Driver Download & Installation (cont’d 5:8)
