FT3320

FIELD SERVICE MANUAL

ICOH COMPANY, LTD.

Table of Contents

INSTALLATION

1

.

2

3

4

5

SERVICE TABLES

REPLACEMENT AND ADJUSTMENT

i

VINYL ENVELOPE

POINT-TO-POINT

ELECTRICAL COMPONENT AND CONNECTOR LAYOUTS

TABLE OF ADJUSTMENTS ●

SERVICE TABLES

1

Q

SECTION 1

INSTALLATION

INSTALLATION

5-1 SHORT HAUL TRANSPORTATION .............................1-14

5-2 LONG HAUL TRANSPORTATION BY VEHICLE ..... ...1-14

1-1 ENVIRONMENT

1 NOV. ’87

1. INSTALLATION REQUIREMENTS

1. Temperature Range: 10*C to 30°C (50°F to 86°F)

2. Humidity Range:

15% to 90% RH

3. Ambient Illumination: Less than 1,500 Iux (Do not expose to direct

sunlight.)

4. Ventilation: Room air should turn over at least 3 times/hour.

5. Ambient Dust: Less than 0.15 mg/m3 (4 x 10-3 oz/yd3)

6. Room Size:

More than 10 m3 (13.4 yd3)

7. If the installation place is air-conditioned or heated, place the machine:

●

Where it will not be subjected to sudden temperature changes.

●

Where it will not be directly exposed to cool air from an air conditioner

in the summer.

●

Where it will not be directly exposed to reflected heat from a space

heater in winter.

8. Avoid placing the copier in an area filled with corrosive gas.

9. Avoid any areas higher than 2,000 meters (6,500 feet) above sea level.

10. Place the copier on a strong and level base.

11. Avoid any areas where the copier may be subjected to frequent strong

vibration.

,.

1-1

1 Nov. ’87

1-2 MACHINE LEVEL

1. Front to back: Within 5 mm (0.2”) of level.

2. Right to left: Within 5 mm (0.2”) of level.

Set a carpenter’s level on the exposure glass to check the machine level.

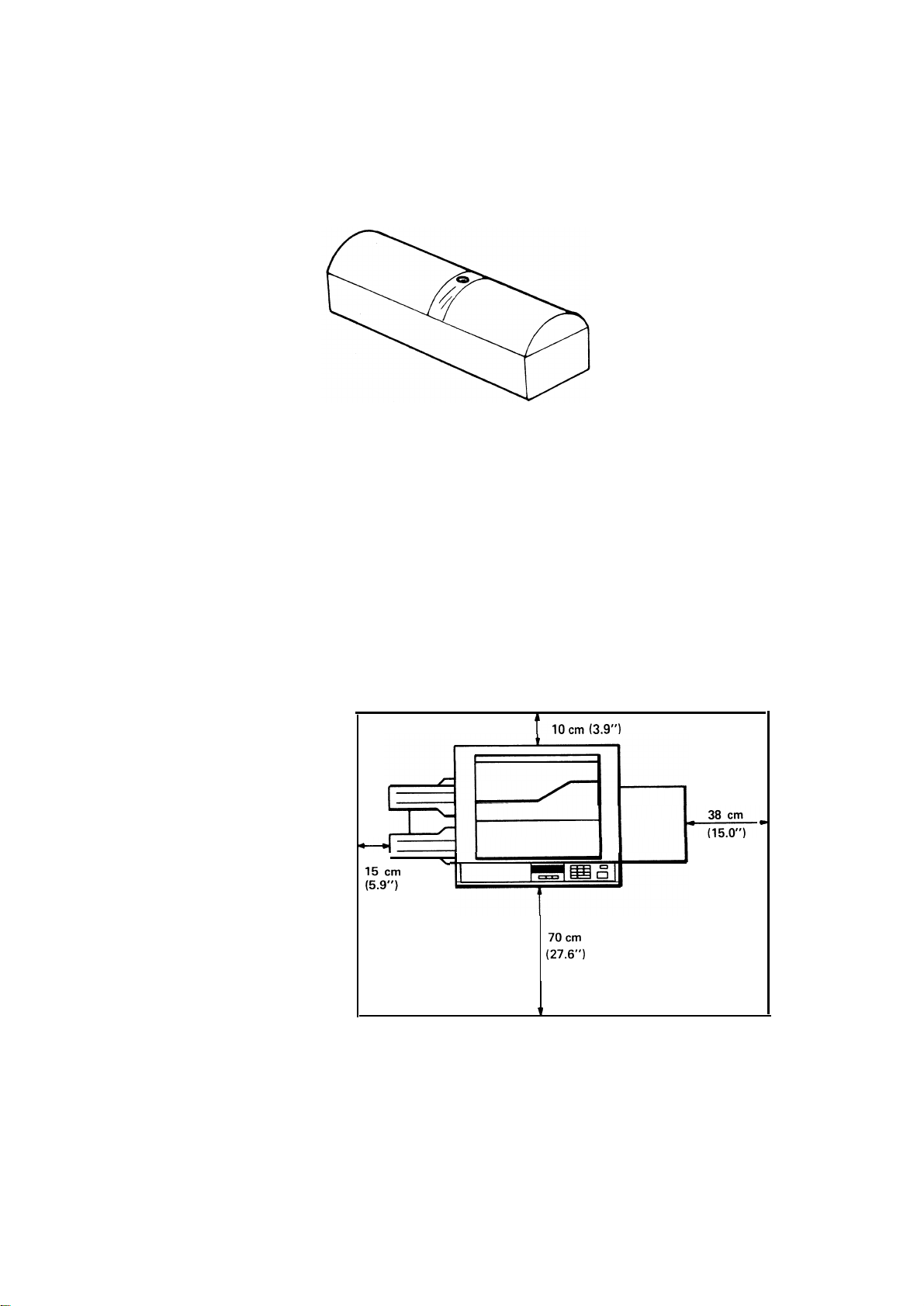

1-3 MINIMUM SPACE REQUIREMENTS

1. Front :70 cm (27.6”).

2. Back :10 cm (3.9”).

3. Right :38 cm (31 .5”).

4. Left :15 cm (3.9”).

1=2

1-4

POWER REQUIREMENTS

1 Nov. ’87

1. Input voltage level:

• 110V/60Hz

:

More than 12A



ž115V/60Hz : More than 12A

•220V/50Hz : More than 6A

2. Permissible voltage fluctuation: 10%.

3. Permissible extension At least 300V, 30A capacity and less than 5

cord:

meters (16.4 ft) long.

Be sure to ground the machine. (Do not connect the grounding wire

to a gas pipe.)

Make sure the plug is firmly inserted in the outlet.

Avoid multi-wiring.

Do not set anything on the power cord.
