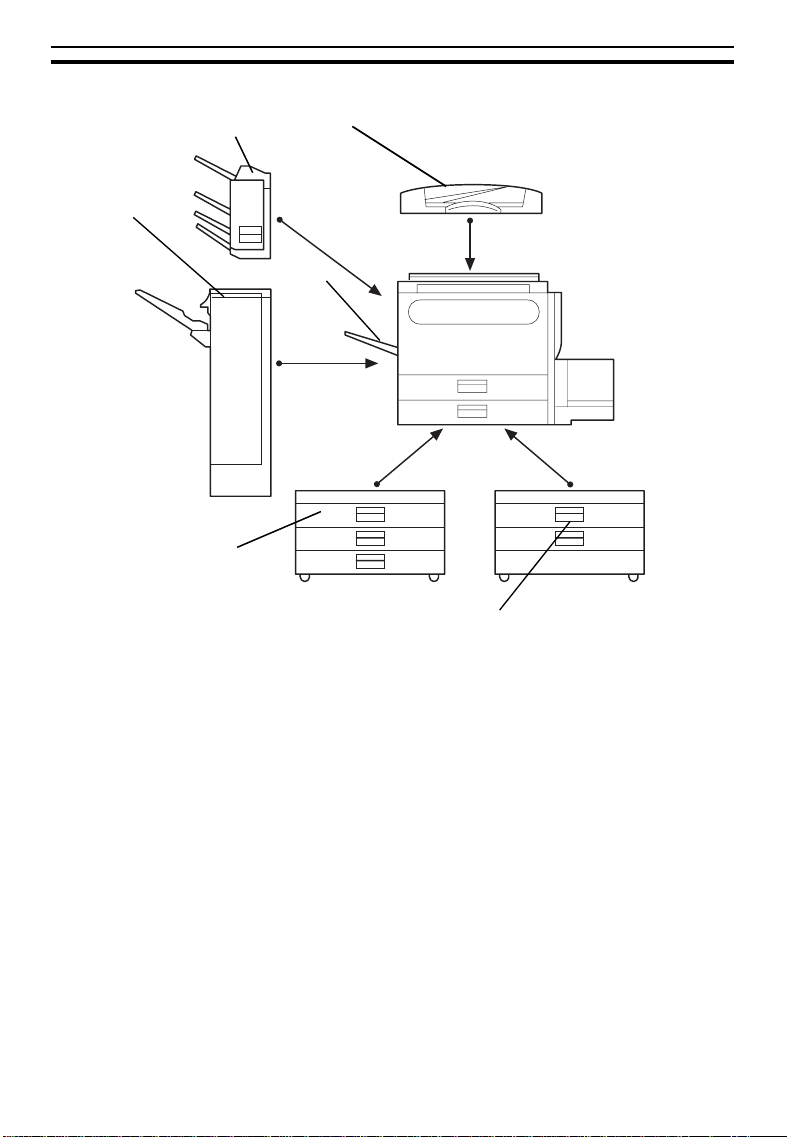

MAIN UNIT AND OPTIONS

1. Document feeder

(Option) Insert a stack of originals here. They will be fed

automatically.

2. Copy tray

(Option) Copied/printed papers are delivered here.

3. 3 - bin sorter

(Option) Sorts, stacks copied/printed papers.

4. Finisher

(Option) Sorts, stacks, and staples copied/printed papers.

5. 1500-sheet tray unit

(Option) Holds 1500 sheets of paper.

6. 1000-sheet tray unit

(Option) Holds 1000 sheets of paper.

❐Other mechanical options: platen cover and key counter

nb-2

MAIN UNIT AND OPTIONS

EXTERIOR AND INTERIOR PART NAMES

nb-2

234

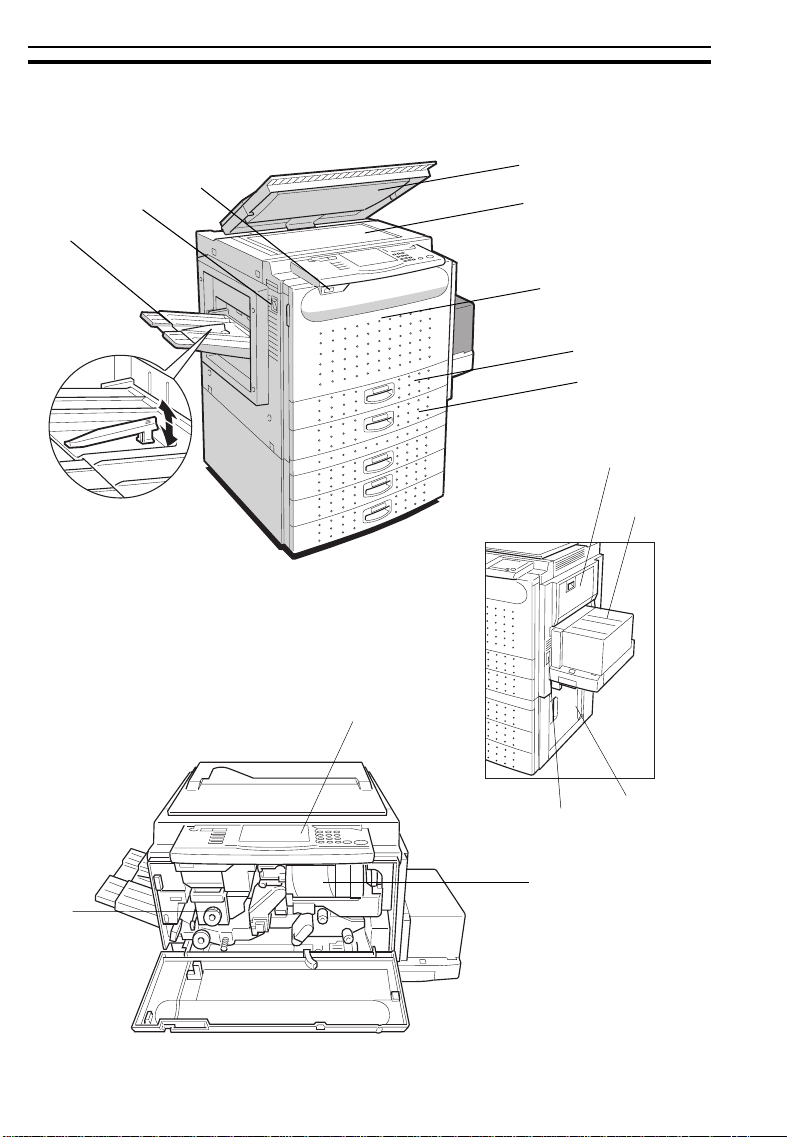

EXTERIOR AND INTERIOR PART NAMES

1. Copy tray (option) Completed copies are delivered here. Regarding

the capacity of the tray.

2. Main switch Switches the machine between on and standby

conditions.

3. Auto response

(human) sensor When someone comes close to the machine, it

will automatically switch from Low Power mode

to standby mode.

4. Platen cover (option) Lower this cover over originals for copying.

5. Exposure glass* Position originals here face down for copying/

scanning.

*Afterturningoffthemainswitch,theexposureglassmightbehot

becauseoftheanticondensationfunction.Thisisnotaproblem.

6. Front cover Open to access the inside of the machine.

7. Unit for two-sided

copies/prints

(Duplex unit)

Makes two-sided copies/prints.

8. Paper tray Holds 500 sheets of copy paper.

9. Bypass tray Use to copy/print onto OHP sheets, adhesive la-

bels, translucent paper, post cards, and non-

standard size paper.

10. Large capacity tray Holds 1,000 sheets of paper.

11. Right cover of

the optional tray unit Open to remove misfed paper.

12. Key counter holder Insert the optional key counter here.

13. Operation panel Operator controls and touch panel are located

here.

14. Toner bottle Replace the toner bottle when " fAdd Toner"

is displayed on the display.

15. Fusing unit Fuses the image to the paper. When accessing

the inside of the machine, use caution. This unit

may be very hot.

nb-2

EXTERIOR AND INTERIOR PART NAMES

OPERATION PANEL

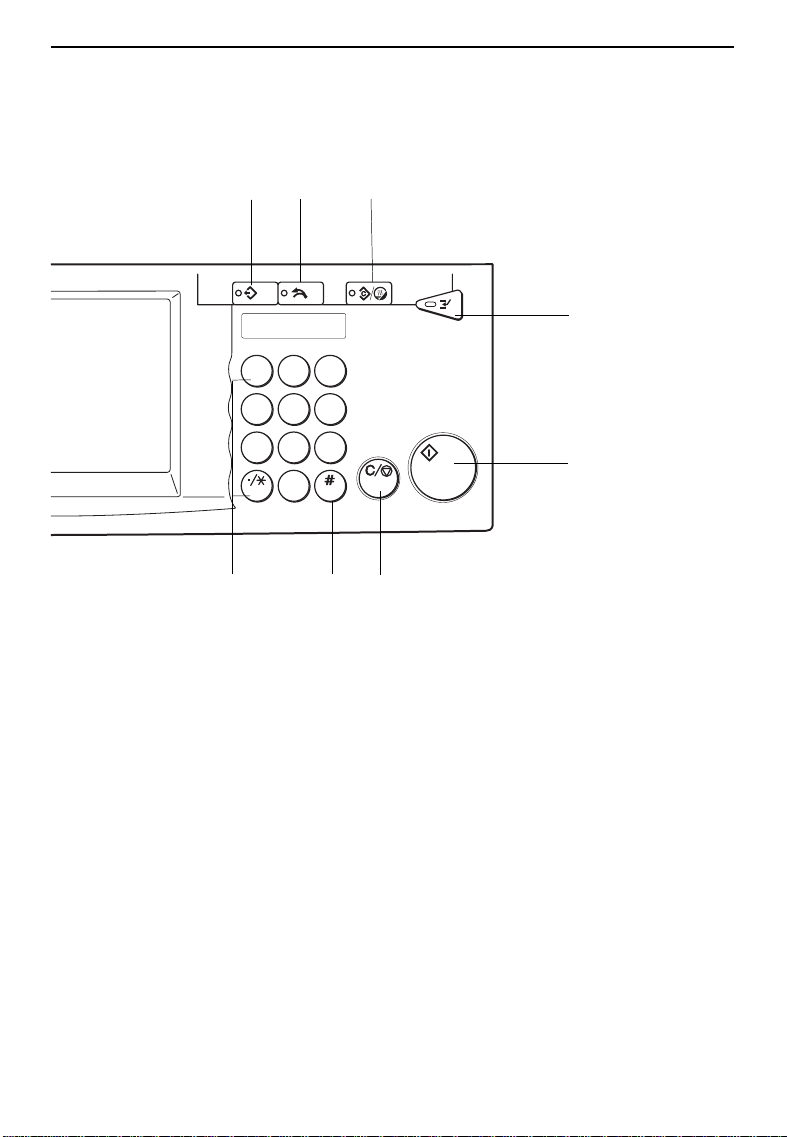

Keys

nb-2

234

1. Contrast Dial

Changes the brightness of the

display.

2. User Tools key

Changes the basic settings and

copy features.

3. Guidance key

Shows guidance for functions.

4. Touch Panel Display

5. Program key

Press to select the program

mode.

6. Job Recall key

Use to recall your previous copy

settings.

7. Clear Modes/Low Power Mode

key

Press to clear the previously en-

tered copy job settings. Also use

to switch to and from Low Power

mode.

8. Interrupt key

Press to make interrupt copies.

OPERATION PANEL

nb-2

123

456

9. Start key

Press to start copying. Use to set

the Auto Start.

10. Clear/Stop key

While entering numbers, press to

cancel a number you have en-

tered. While copying, press to

stop copying.

11. Enter key

Use to enter data in selected

modes.

12. Number keys

Use to enter the desired number of

copies and data for selected modes.

13. Copy key

Use to enter Copy mode from

Printer/Scanner mode.

14. Printer/Scanner key

Use to enter Printer/Scanner

mode from the copy mode.

15. Data in indicator

16. On line indicator

OPERATION PANEL

How To Use The Operation Panel

The type of operation panel is different depending on your location.

For U.S. model

For Europe model

The panel layout is grouped as follows:

❐Touch Panel Display

Use to make selections and navigate menus. Also shows the machine status

and various messages. The status area is blank when in Printer mode and

off-line.

❐Numeric Keypad

Use to enter numbers and control how the machine functions.

❐Control Keys

Other keys used when printing and configuring the machine.

When you first turn on the machine, the Touch Panel Display shows the

Copy Menu. To access Printer mode, press the [Printer/Scanner] button on

the left side of the operation panel.

nb-2

123

456

123

456

OPERATION PANEL

Printer Mode (Printer controller option must be installed)

Press the Printing/Scanner key.

The on-line status screen will appear as below.

In this screen shot, access priority is "share".

Scanner Mode (Scanner kit option must be installed)

Press the Printer/Scanner key.

Touch [Scanner].

nb-2

OPERATION PANEL

nb-2

OPERATION PANEL
