Ricoh GR-C1 Series Manual

GR-C1 Training

Slide 1

D117/D118

Service Training

GR-C1

Version 1.0

This training course provides service technician training for the GR-C1 series

copiers.

GR-C1 Training

Slide 2

D117/D118

Service Training

Product Overview

This section provides an overview of the machine, and the options that can be

installed.

GR-C1 Training

Slide 3

MT-C4

60-90 ppm

Al-C1.5

40-50 ppm

R-C5.5

28-33 ppm

PR-C1

25ppm

A3 MFP

A3 MFP A4 MFP

A4 MFP

V-C3

60-75 ppm

AP-C2.5

45-55 ppm

AT-C2.5

30-35 ppm

Di-C1.5

20–25 ppm

A3 MFP

A3 MFP A4 MFP

A4 MFP

Black and White Full Color

K-C3.1

15-21 ppm

２

Rn-MF1

28ppm

S-C4.5

20ppm

Panache-MF2

20ppm

PE-MF2

20ppm

Sh-MF1

45-55ppm

Z-C1

30-40ppm GR

GR-

-C1

A4 color

color

desktop

Desktop

Floor

Floor Desktop

Desktop

Floor

Position in the Product Lineup

The GR-C1 fills this empty slot in the product lineup.

It is a successor to the S-series and K-series black-and white copiers, to try to

get customers to change over to color.

PE-MF2 is user maintenance, but GR-C1 is maintained by techicians.

GR-C1 Training

Slide 4

What Models are there in the Series?

GR-C1 SPF (D117): Aficio MP C305SPF

30 cpm (full color/black-and-white)

Contains a fax unit as standard equipment

GR-C1 SP (D118): Aficio MP C305SP

30 cpm (full color/black-and-white)

Fax is available as an option

ARDF: Standard for all models except the EU and China

versions of D118

All models contain a duplex unit and a bypass tray as

standard equipment.

All models contain scanner and printer kits as standard

equipment

A hard disk is not included (an optional hard disk is

available).

The GW+ controller is used.

SPF: Scanner, Printer, Fax

SP: Scanner, Printer

GR-C1 Training

Slide 5

Appearance

In addition to the above, up to two optional paper tray units can

be installed below the main unit.

One-bin tray: This is the first time that a one-bin tray has been

offered as an option for an A4 desktop MFP series.

There are no optional or built-in finishers.

ARDF

Standard (except

EU and China

versions of the

Standard model)

One paper tray is

standard

Optional one-bin

tray

Duplex and bypass are

standard

Color LCD Touch

panel

For Europe standard model, the ARDF or a platen cover are available as

options.

One-bin tray: This is the first time that a one-bin tray has been offered as an

option for an A4 desktop MFP series.

GR-C1 Training

Slide 6

Machine Layout

Toner Bottles

Image Transfer

Belt Unit (ITB)

Fusing Unit

Duplex Path

Paper Transfer

Roller (PTR)

ID Sensor

ITB Cleaning

Unit

PDCU

(Photoconductor and

Development Unit)

Laser Units and

Polygon Mirrors

Just a quick look – more detail later.

GR-C1 Training

Slide 7

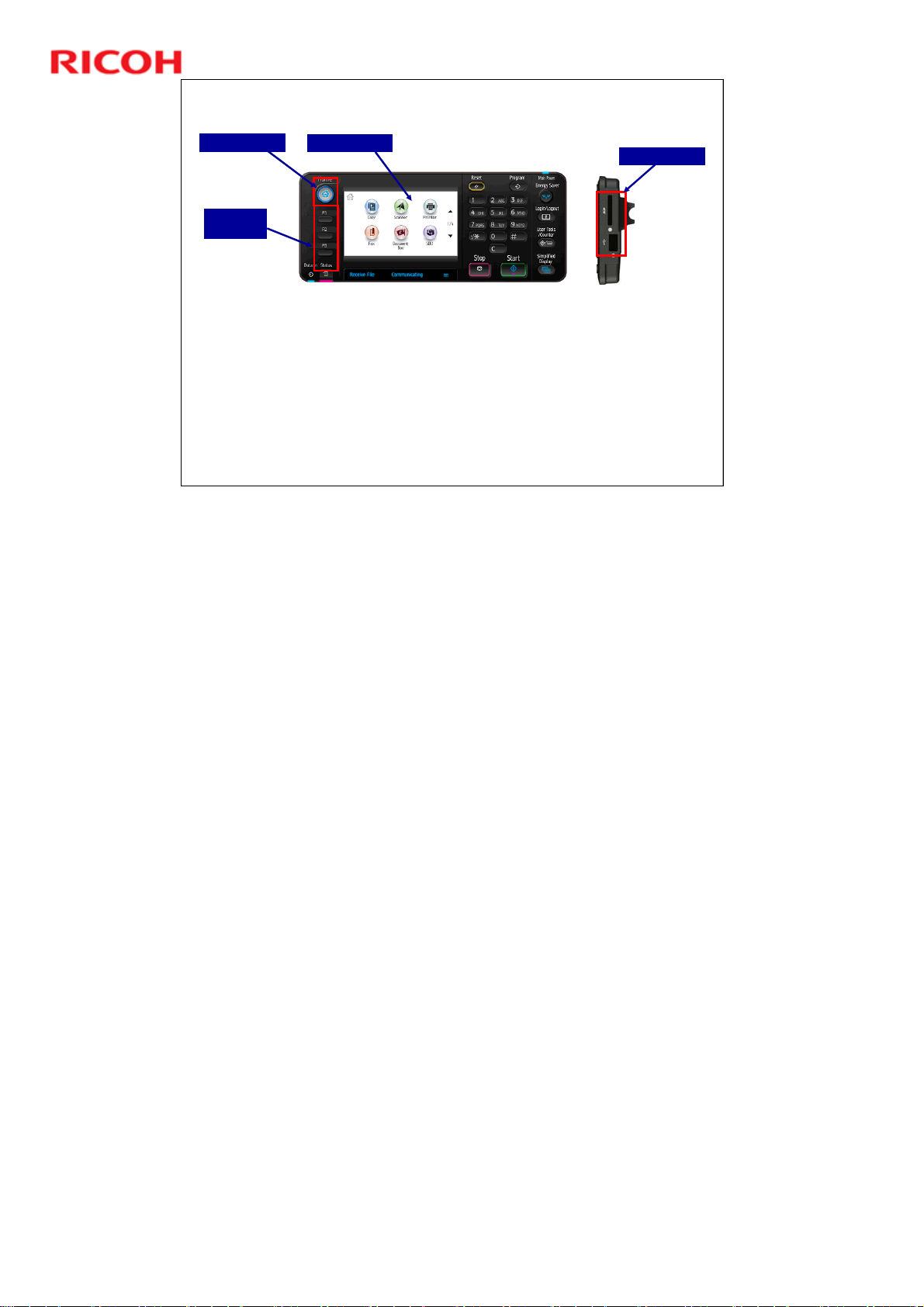

Operation Panel - 1

A 4.3” color touch panel is included.

A home button is added. You can return to the home

screen from anywhere.

Three function keys are available, to which you can assign

your own designated functions.

An SD/USB slot is built-into the right side of the panel as

standard equipment (not an optional unit).

Home Button

Function

Keys

SD/USB Slot

Touch Panel

SP5074 can be used to customize the application that appears when the Home

button is pressed.

Function keys:

¾Nothing is assigned when the machine leaves the factory.

¾If the browser unit is installed, a URL can be assigned to a function key.

GR-C1 Training

Slide 8

Operation Panel - 2

Status key: When the error lamp lights, press this key. The machine

displays a list that shows the status of all jobs

Energy saver key: There is no operation panel power button, only this

energy saver button. Press this once, and the machine goes to the energy

saver mode.

To cut the power, turn of the main switch; the machine goes into the safe

shutdown process.

Energy saver lamp: Blinks slowly when the machine is in energy saver

mode. Stays off when the machine is in normal operation mode (full

power).

Stop key: For the GW+ controller, this button can be used to stop all types

of jobs, including printer, fax, etc.

With the old GW controller, this button can only be used to stop copy jobs.

Energy Saver

Key and Lamp

Status Key and

Error Lamp

No additional notes

GR-C1 Training

Slide 9

Operation Panel - 3

The angle of the operation panel can be changed.

No additional notes

GR-C1 Training

Slide 10

Options: Original Feed

S-C5NewPlaten cover (D607):

Platen Cover PN1010

D118 Europe/China: The

customer must buy one

of these.

S-C5NewARDF (D606): DF1030

Also used with these

new models: NoteSimilar to:

These are only options for the RE and China versions of the D118. All other

models have an ARDF as standard equipment.
