Notes for Users

This supplement provides corrections and additional information for the manuals pro-

vided with this machine.

Troubleshooting

Clearing Misfeeds > Removing Jammed Paper > Removing Jammed Paper When the

Procedure Is Not Displayed on the Control Panel

Additional information

If you cannot remove the misfed paper from the right side of the fusing unit, use the

knob located on the inside of the left front cover.

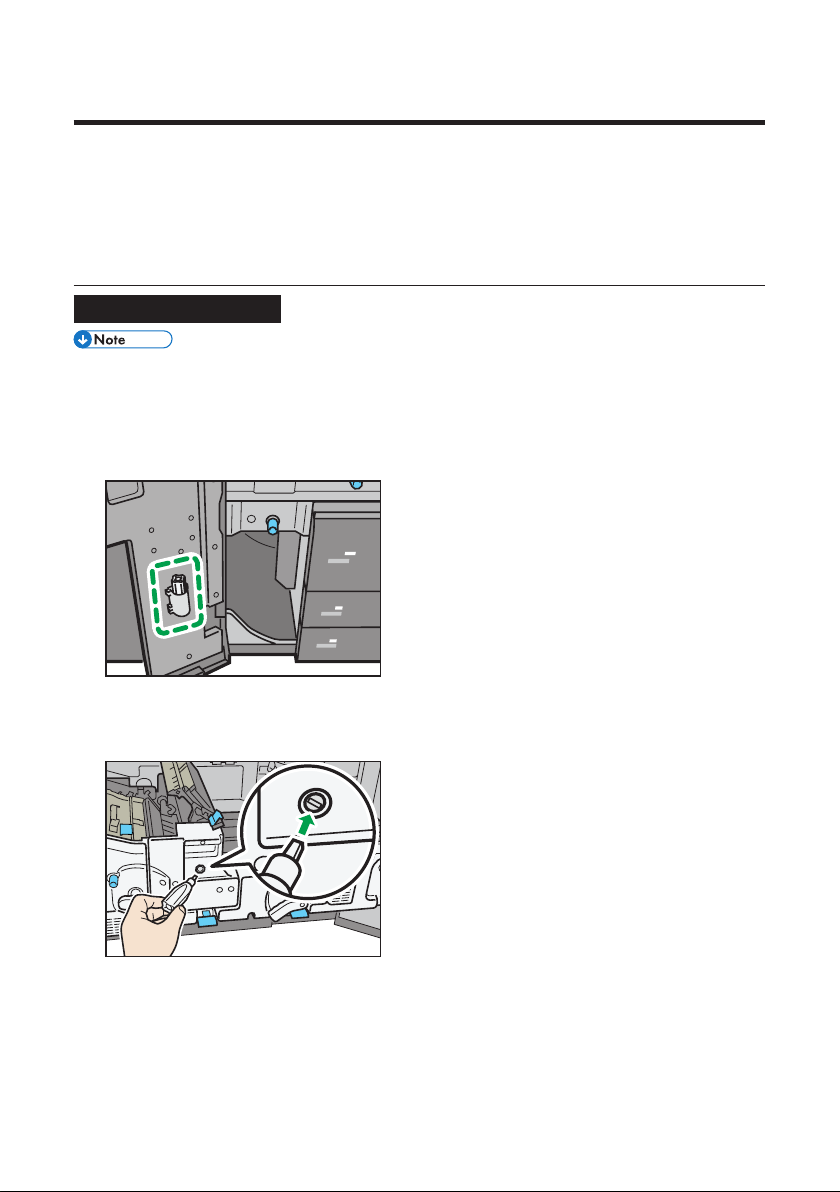

1. Open the left and right front covers, and then remove the knob from its stow-

age space behind the left front cover.

DBL001

2. Pull out the drawer unit.

3. Align the knob with the slot on the fusing unit, and then insert it.

DBL002



•

4. Turn the knob counterclockwise until the misfed paper comes out from the

right side of the fusing unit, and then remove it.

DBL003

5. Return the drawer unit to its original position.

6. Return the knob to its stowage space, and then close the front covers.

Useful Functions for Binding and Sorting Printed Documents > Booklet Printing >

Additional information

If you attempt to execute booklet printing using PostScript 3 with custom size paper

whose short sides are less than half the length of the long sides, the job is reset.



•

Connecting the Machine/ System Settings

Connecting the Machine > Connecting to the Interface > Connecting to the Gigabit

Ethernet

Error

1. Make a loop 5 cm (2 inches) (1) from the end of the Ethernet cable and attach

the included ferrite core to the loop as shown.

CXB005

Correction

1. Make loops 5 cm (2.1 inch) (1) from the end of each Ethernet cable and attach

included ferrite cores to each loop as shown.

CKD005



Getting Started

Using the Ring Binder

Additional information

Be sure not to exit from Energy Saver mode or to switch the machine on when the ring

binder door is open and the binding unit is disconnected. Doing so will affect initializa-

tion, causing the ring binder function to become unavailable (although other functions

will be unaffected).

If you inadvertently do this, connect the ring binder's binding unit again, close the

door, and then turn the power off and back on to restore normal operation.

Paper Settings

Registering a Custom Paper > Registering a Custom Paper

Additional information

When you print on 12×18 coated paper weighing 163.1 to 300.0g/m2, be sure to use

one of the following items in [Paper Name] in the Paper Library.

"Coated: Glossy 163.1-220.0 12x18"

"Coated: Glossy 220.1-256.0 12x18"

"Coated: Glossy 256.1-300.0 12x18"

"Coated: Matted 163.1-220.0 12x18"

"Coated: Matted 220.1-256.0 12x18"

"Coated: Matted 256.1-300.0 12x18"

Also, when you print on custom paper with a length of 297.1 to 304.8 mm, select one

of the abovementioned items in [Paper Name], and then adjust the paper size before

printing.

Printing in other configurations may affect the print quality.

Printing on the abovementioned paper at a temperature below 15°C may affect the

print quality, so it is recommended to print at 15°C or above.

Paper Settings

Adjustment Settings for Operators > Setting Values > Machine: Image Position > 0101:

Adjust Image Position With Feed Direction

Error Correction

Setting Items > Paper Weight 8 Not applicable to this model.



•



•



Paper Settings

Adjustment Settings for Operators > Setting Values > Machine: Paper Feed/ Output >

0302: When Double Feed is Detected

Error Correction

If you select [Suspended After Ppr. Dvr-

sion.], the machine, on detecting a dou-

ble feed, stops printing and delivers the

double fed sheets to the purge tray. After

the double fed sheets are delivered to the

purge tray, the machine displays a paper

misfeed message.

If you select [Auto Eject], the machine de-

livers the double fed sheets to the proof

tray.

If [Suspended After Ppr. Dvrsion.] is se-

lected, the machine stops printing if a

double feed is detected, then delivers the

sheets to the paper trap inside the ma-

chine at the bottom left, and displays a

paper misfeed message.

This setting is enabled only if 0301: [Dou-

ble Feed Detection] is set to [On].

Selection > Auto Eject Not applicable to this model.

Default Value > Auto Eject Default Value > Suspended After Ppr.

Dvrsion.

Paper Settings

Adjustment Settings for Operators > Menu Items and Functions

Adjustment Settings for Operators > Setting Values > Machine: Paper Feed/ Output

Additional information

The following menu item and function does not apply to this model.

0303: After Double Feed Paper is Automatically Ejected



•

Paper Settings

Adjustment Settings for Operators > Menu Items and Functions

Adjustment Settings for Operators > Setting Values > Machine: Maintenance

Additional information

Add the following menu item and function.

0520: [Back Up / Restore Custom Paper Data]

Back up and restore custom paper profiles.

With [Back Up Saved Paper Library], custom paper profiles saved in [Saved Paper

Library] can be backed up to the SD card inserted in the back of the machine.

With [Back Up Custom Paper Settings], custom paper profiles registered under the

[Edit Custom Paper] setting can be backed up to the SD card inserted in the side of the

control panel.

With [Restore Custom Paper Settings], custom paper profiles backed up with [Restore

Custom Paper Settings] can be restored.

For details, see the following procedure(*).

Setting Items Selection

Back Up Saved Paper Library Press [OK].

Back Up Custom Paper Settings

Restore Custom Paper Settings

* Backing up Custom Paper Profiles Saved in the Saved Paper Library

You can back up custom paper profiles saved in the Saved Paper Library to the SD card

inserted in the back of the machine.

The backup can be used to restore the custom paper profiles if the controller board has

to be replaced.

To prevent data loss, we recommend making regular backups. Only the customer en-

gineer is allowed to perform data restoration using a backup. Contact your service

representative.

1. Open the [Adjustment Settings for Operators] menu.

2. Press [Machine: Maintenance].

3. Press [Back Up / Restore Custom Paper Data].

4. Press [Back Up Saved Paper Library].

5. Press [OK].

6. Press [Exit].



•

* Backing up Custom Paper Profiles Registered Under the [Edit Custom Paper]

Setting

Backing up the Data

1. Insert an SD card into the SD card slot on the side of the control panel.

2. Open the [Adjustment Settings for Operators] menu.

3. Press [Machine: Maintenance].

4. Press [Back Up / Restore Custom Paper Data].

5. Press [Back Up Custom Paper Settings].

6. Press [OK].

Restoring the Data

1. Insert the SD card containing the backup custom paper profiles into the SD

card slot on the side of the control panel.

2. Cancel all custom paper profiles allocated to paper trays.

3. Open the [Adjustment Settings for Operators] menu.

4. Press [Machine: Maintenance].

5. Press [Back Up / Restore Custom Paper Data].

6. Press [Restore Custom Paper Settings].

7. Press [OK].

If a previously created backup file is on the SD card, it is overwritten by the back-up.

All custom paper profiles registered in the machine are overwritten during the data

restoration.

The backup data is restored under the registration number allocated at the time of the

back-up.

•

Printed in Japan

EN GB EN US EN AU D181-2546

Adjustment Item Menu Guide: TCRU/ORU

2. Details of Menu Items in Adjustment Settings for Skilled Operators > Setting Values

> [Machine: Maintenance] > 0515: [Reset Replaceable Parts Counter]

2. Details of Menu Items in Adjustment Settings for Skilled Operators > Setting Values

> [Machine: Maintenance] > 0516: [Estimated Life Already Used]

Additional information

Add the following to the setting items.

Paper Feed Roller: Tray 1

Paper Feed Roller: Tray 2

Paper Feed Roller: Tray 3

Paper Feed Roller (Tray 4: Wide LCT)

Paper Feed Roller (Tray 5: Wide LCT)

Paper Feed Roller (Tray 6: Wide LCT)

Paper Feed Roller: Tray 4

Paper Feed Roller: Tray 5

Paper Feed Roller: Tray 6

Paper Feed Roller: Tray 7

ADF



•
