Ricoh Aficio SG 3110DN Manual de usuario

DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.

DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.

DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW

THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.

CAUTION

Ricoh SG 3110DN

INSTALLATION GUIDE

WinProle

WIN OS

v20120522

SECTIONS:

Microsoft Windows Operating System Verication (1 page)

Ricoh (OEM) Driver Download & Installation (12 pages)

WinProle Installation & Registration (9 pages)

Note: If you experience any communication errors, a powered USB hub may be required.

During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic

Maintenance Utilities to keep the print head nozzles clear. The Ricoh GelSprinter has been engineered to perform

automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-

nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,

head cleanings may be unable to restore the print head to optimal operation.

CAUTION

Ricoh SG 3110DN – Installation Guide

Microsoft Windows OS Verication

PAGE 1 of 1 >>

Before you begin, you will need to verify your Windows Edition and System Type. This is important

when deciding which driver to download.You should only download drivers which are compatible with

your version of Windows OS.

1.) To check your version, click the Start icon in the bottom left corner of your Desktop. Then, right-click

Computer and click Properties (see FIGURE 1).

FIGURE 1

2.) The following screen containing the Windows Edition and System Type should appear (see FIGURE

2). The below example is running Windows 7 on a 64-bit OS. Note your version and remember to only

download drivers which are compatible with your system.

FIGURE 2

Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

PAGE 1 of 12 >>

The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers

running Windows OS.

1.) Before installing the ChromaBlast-R SG 3110DN WinProle, you will need to install the Ricoh (OEM)

printer driver. First, access the Ricoh website by entering www.ricoh.co.uk in the address eld of your

web browser. Once there, click the Downloads tab (see FIGURE 1).

2.) Select Office Product Downloads (see FIGURE 2).

FIGURE 1

FIGURE 2

PAGE 2 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

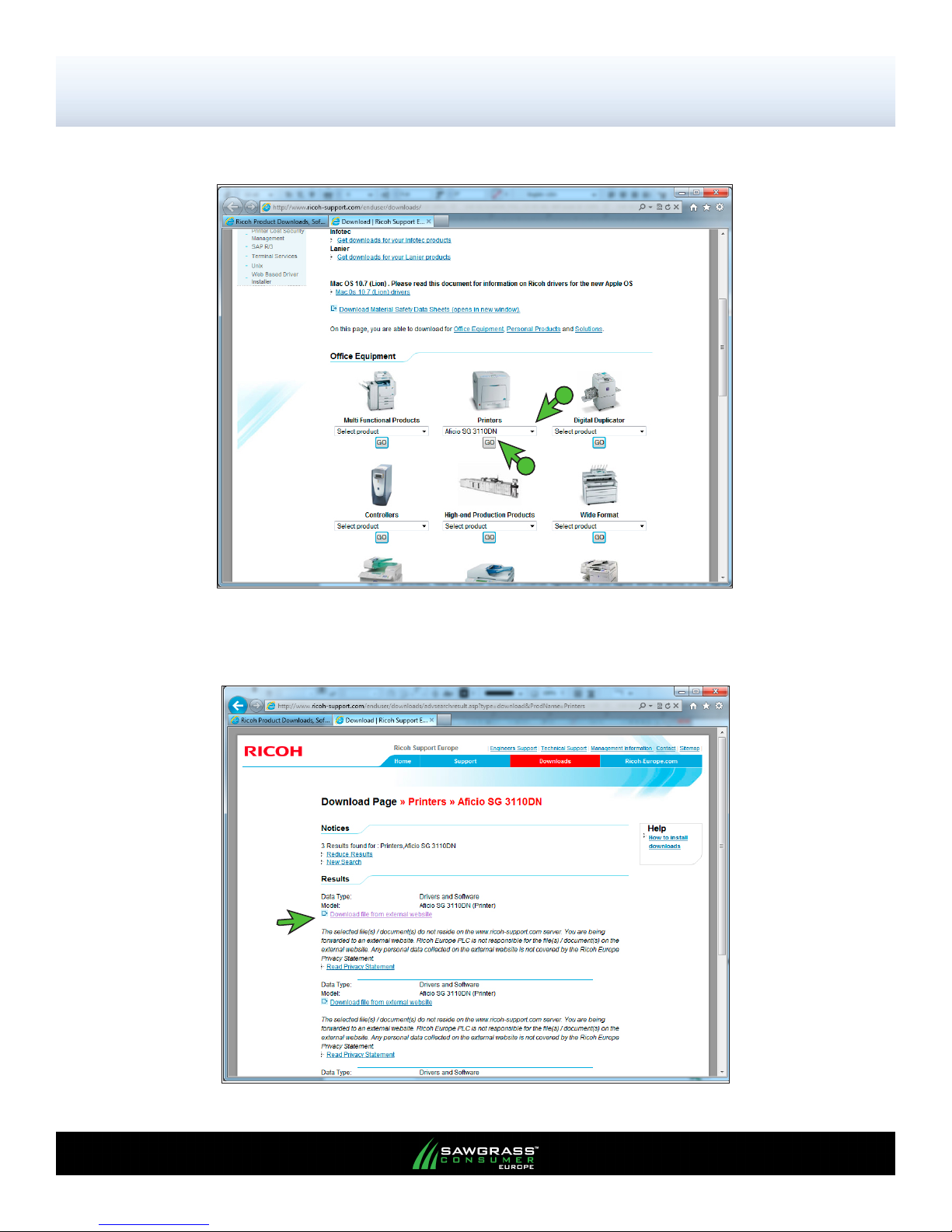

3.) Select Acio SG 3110DN from the Printers drop down box and click GO (see FIGURE 3).

FIGURE 3

4.) Select the link to Download le from external website (see FIGURE 4).

FIGURE 4

PAGE 3 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

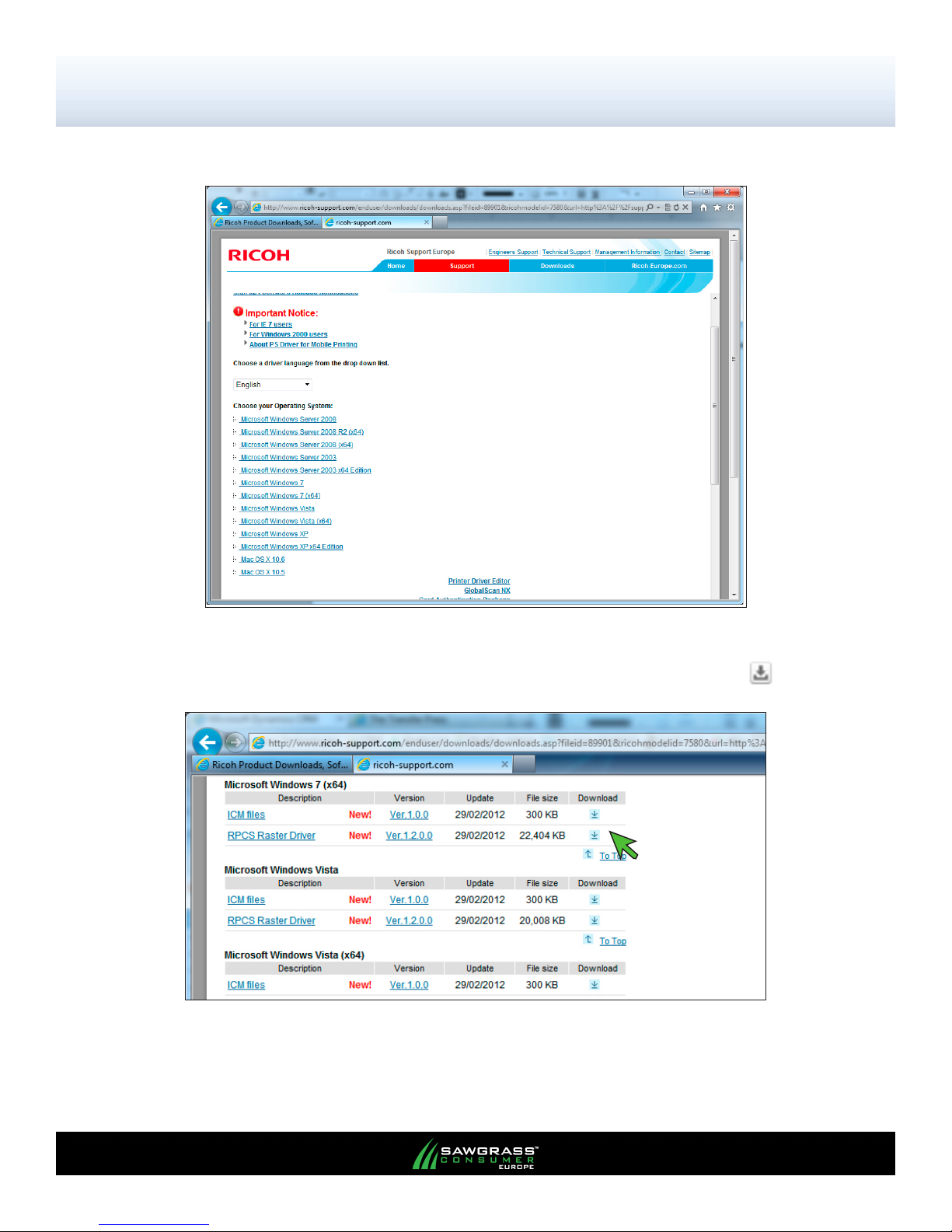

5.) Locate and click the link for your Operating System (see FIGURE 5).

FIGURE 5

6.) Locate the RPCS Raster Driver for your Operating System and click the Download Icon

(see FIGURE 6).

FIGURE 6

PAGE 4 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

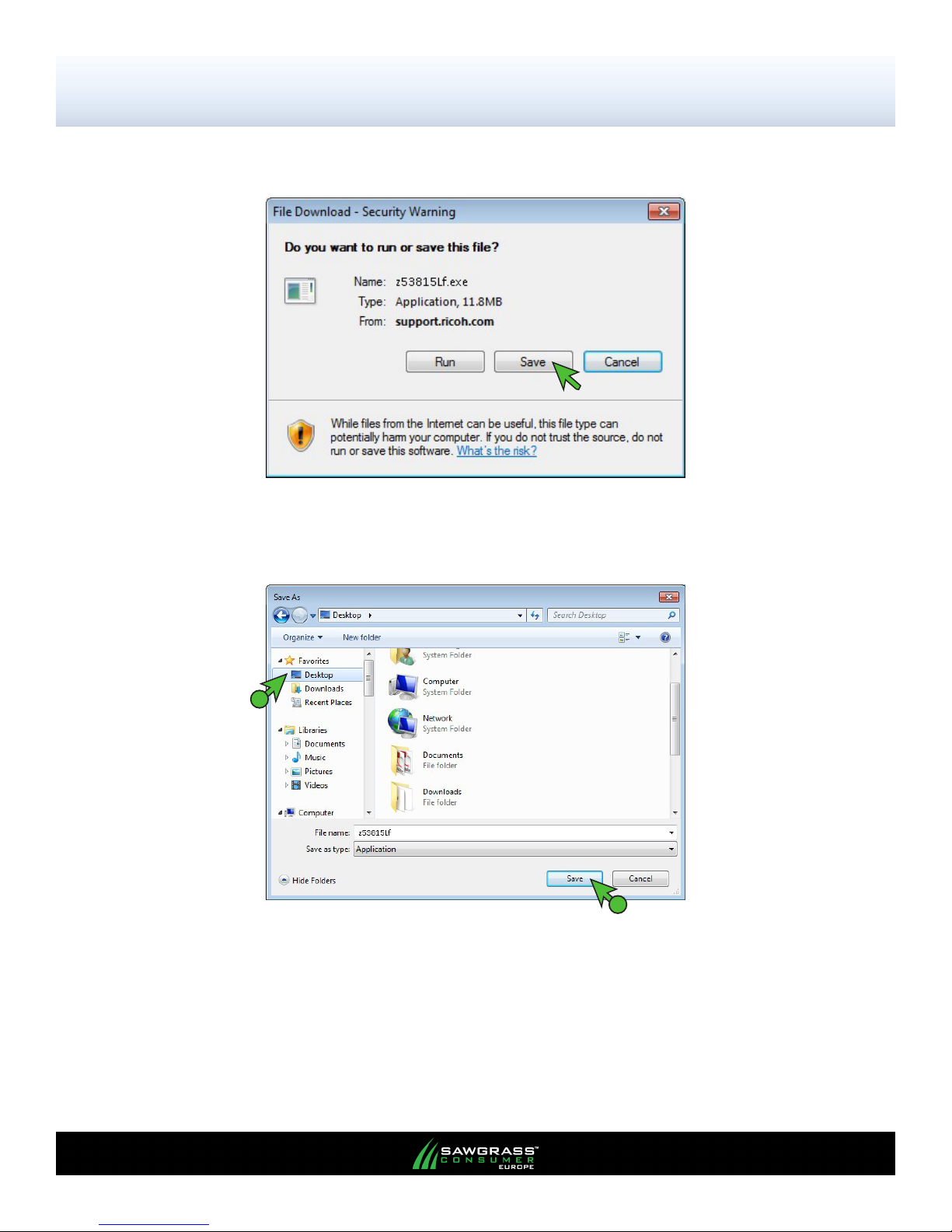

7.) The following screen will appear asking to Run the installation or Save the le to your computer. For this

example we will Save the le to our Desktop. Click Save to continue (see FIGURE 7).

FIGURE 7

8.) Select Desktop as your download destination and click Save (see FIGURE 8).

FIGURE 8

PAGE 5 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

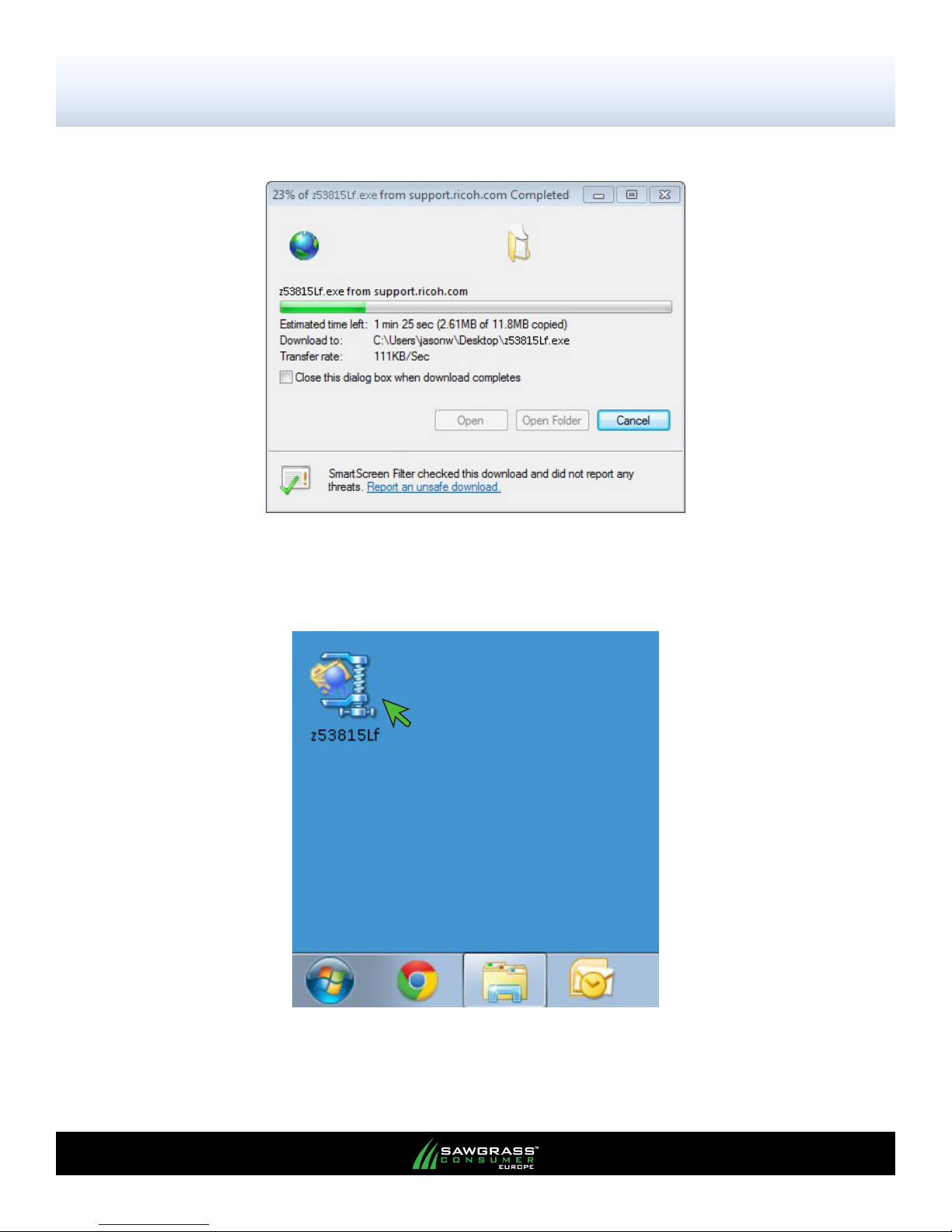

9.) The following screen displaying the download status should now appear (see FIGURE 9).

FIGURE 9

10.) Once the download has completed, double-click the Executable Icon to begin the installation process

(see FIGURE 10).

FIGURE 10

PAGE 6 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

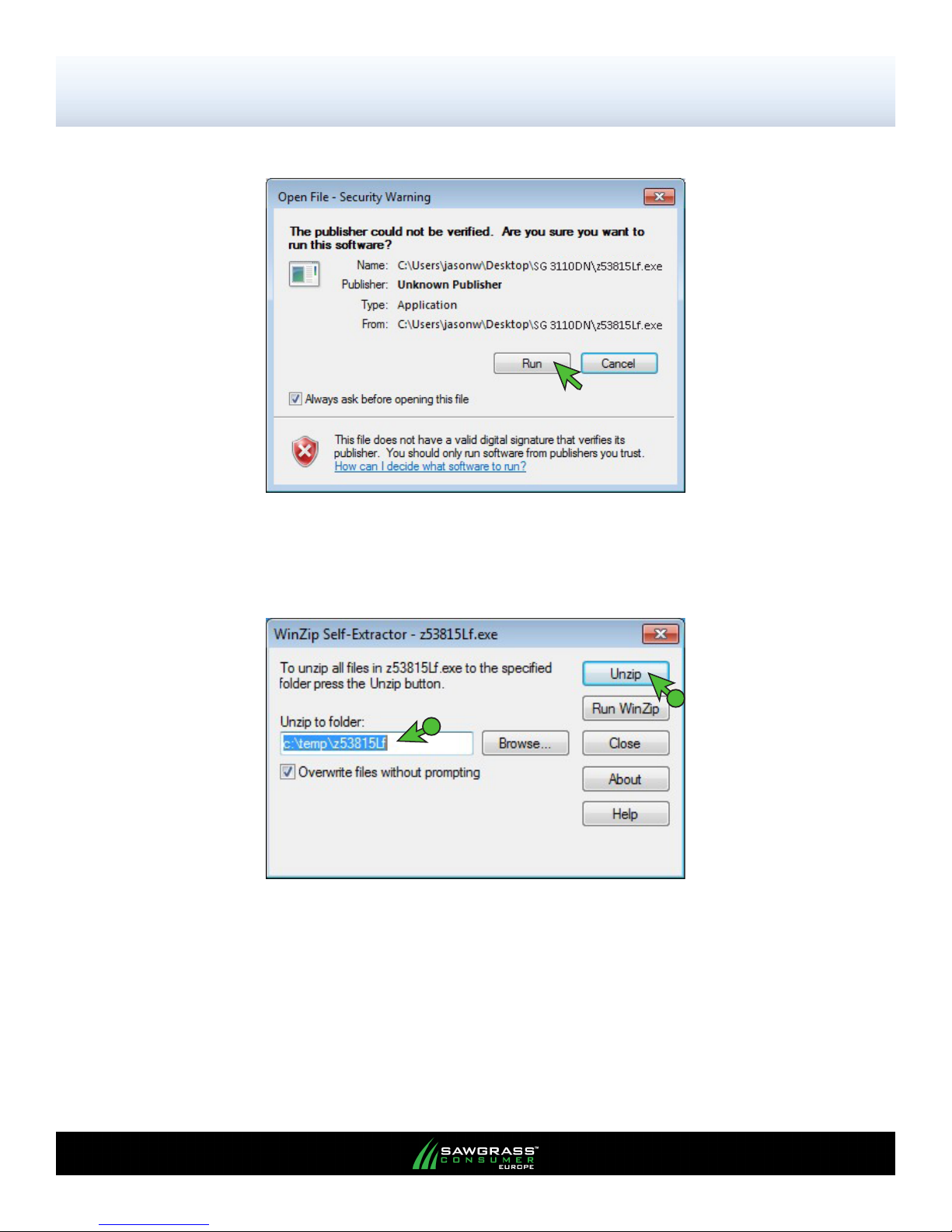

11.) Click Run to continue with the installation (see FIGURE 11).

12.) The software executable will need to be extracted before continuing. Note the folder location where the

les will be stored and click Unzip (see FIGURE 12).

FIGURE 12

FIGURE 11

PAGE 7 of 12 >>

ChromaBlast-R: Ricoh SG 3110DN – Installation Guide

Ricoh (OEM) Driver Download & Installation

14.) Navigate to the folder location containing the unzipped les. In this example the folder location is

Computer > C: > temp > z53815Lf. However, your folder location may differ. Once you have located

the folder, double-click rp_setup64.exe (see FIGURE 15).

FIGURE 15

13.) Once the les have been unzipped, the following screen will appear (see FIGURE 13). Click OK to

continue. This will return you to the WinZip Self-Extractor (see FIGURE 14). Again, note the folder

location of the unzipped les and click Close.

FIGURE 13

FIGURE 14
