Option Setup Guide

For safety, please read this manual carefully before you use this product and keep it handy

for future reference.

Overseas Affiliates

U.S.A.

RICOH CORPORATION

5 Dedrick Place

West Caldwell, New Jersey 07006

Phone: +1-973-882-2000

The Netherlands

RICOH EUROPE B.V.

Groenelaan 3, 1186 AA, Amstelveen

Phone: +31-(0)20-5474111

United Kingdom

RICOH UK LTD.

Ricoh House,

1 Plane Tree Crescent, Feltham,

Middlesex, TW13 7HG

Phone: +44-(0)20-8261-4000

Germany

RICOH DEUTSCHLAND GmbH

Mergenthalerallee 38-40,

65760 Eschborn

Phone: +49-(0)6196-9060

France

RICOH FRANCE S.A.

383, Avenue du Général de Gaulle

BP 307-92143 Clamart Cedex

Phone: +33-(0)-821-01-74-26

Spain

RICOH ESPAÑA S.A.

Avda. Litoral Mar, 12-14,

08005 Barcelona

Phone: +34-(0)93-295-7600

Italy

RICOH ITALIA SpA

Via della Metallurgia 12,

37139 Verona

Phone: +39-045-8181500

Hong Kong

RICOH HONG KONG LTD.

21/F., Tai Yau Building,

181, Johnston Road,

Wan Chai, Hong Kong

Phone: +852-2862-2888

Singapore

RICOH ASIA PACIFIC PTE.LTD.

260 Orchard Road,

#15-01/02 The Heeren,

Singapore 238855

Phone: +65-830-5888

Model number: Aficio CL3000, CL3000DN

Printed in The Netherlands

EE GB G081-6530

Paper type: Wood Free 80g/m2, Paper Thickness=100 µm // Pages in book=44 // Print scale=81%

Gap (when printed at 81% scale) = Pages in book ×Paper thickness / 2 = 0 mm

ZPIntroduction

To get maximum versatility from this machine all operators should carefully read and follow the instruc-

tions in this manual. Please keep this manual in a handy place near the machine.

Please read the Safety Information before using this machine. It contains important information related

to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be li-

able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper-

ating the machine.

Caution:

Use of controls or adjustment or performance of procedures other than those specified in this manual

might result in hazardous radiation exposure.

Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This

printer contains a laser beam generator and direct exposure to laser beams can cause permanent eye

damage.

Notes:

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Two kinds of size notation are employed in this manual. With this machine refer to the metric version.

For good copy quality, supplier recommends that you use genuine supplier's toner.

Supplier shall not be responsible for any damage or expense that might result from the use of parts

other than genuine supplier's office product.

Trademarks

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in the United

States and/or other countries.

served.

Other product names used herein are for identification purposes only and might be trademarks of their

respective companies. We disclaim any and all rights in those marks.

The proper names of the Windows operating systems are as follows:

•The product name of Windows®95 is Microsoft®Windows®95.

•The product name of Windows®98 is Microsoft®Windows®98.

•The product name of Windows®Me is Microsoft®Windows®Millennium Edition (Windows Me).

•The product names of Windows®2000 are as follows:

Microsoft®Windows®2000 Advanced Server

Microsoft®Windows®2000 Server

Microsoft®Windows®2000 Professional

•The product names of Windows®XP are as follows:

Microsoft®Windows®XP Professional

Microsoft®Windows®XP Home Edition

•The product names of Windows NT®4.0 are as follows:

Microsoft®Windows NT®Server 4.0

Microsoft®Windows NT®Workstation 4.0

TABLE OF CONTENTS

How to Read This Manual .....................................................................................1

1. Options

Available Options...................................................................................................3

PAPER FEED UNIT Type 3000 ..............................................................................8

AD440 (Duplex Unit) ............................................................................................11

Memory Unit Type C (SDRAM Module) ..............................................................13

Printer Hard Disk Type 3000 ............................................................................... 16

Formatting the Printer Hard Disk drive.....................................................................18

1394 Interface Unit Type 4510............................................................................. 19

Connecting the cable to the 1394 Interface Unit......................................................22

IEEE 1394 Configuration..........................................................................................22

802.11b Interface Unit Type A.............................................................................25

IEEE 802.11b (Wireless LAN) Configuration ...........................................................28

Bluetooth Interface Unit Type A .........................................................................32

Network Interface Board Type 3000...................................................................35

Connecting the Network Interface Cable to the Network .........................................37

User Account Enhance Unit Type B...................................................................38

INDEX......................................................................................................... 41

AresPGBOptionSetup-F_FM.book Page i Monday, July 29, 2002 1:12 PM

AresPGBOptionSetup-F_FM.book Page ii Monday, July 29, 2002 1:12 PM

How to Read This Manual

Symbols

In this manual, the following symbols are used:

WARNING:

This symbol indicates a potentially hazardous situation which, if instructions

are not followed, could result in death or serious injury.

CAUTION:

This symbol indicates a potentially hazardous situation which, if instructions

are not followed, may result in minor or moderate injury or damage to property.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, or data might be lost.

Be sure to read this.

Preparation

This symbol indicates the prior knowledge or preparations required before op-

erating.

Note

This symbol indicates precautions for operation, or actions to take after misop-

eration.

Limitation

This symbol indicates numerical limits, functions that cannot be used together,

or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[]

Keys that appear on the machine's panel display.

Keys and buttons that appear on the computer's display.

{}

Keys built into the machine's control panel.

Keys on the computer's keyboard.

AresPGBOptionSetup-F_FM.book Page 1 Monday, July 29, 2002 1:12 PM

AresPGBOptionSetup-F_FM.book Page 2 Monday, July 29, 2002 1:12 PM

1. Options

Available Options

CAUTION:

By installing options, you can improve the printer performance and have an ex-

panded variety of features to use. For the specifications of each option, see the

Administrator Reference.

❖

❖❖

❖Option List

❍: Available option

*1 With Basic model, these cannot be installed at the same time

*2 With Network standard model, these cannot be attached at the same time.

When installing multiple options on the printer, we recommend the following

order of installation.

Important

❒The voltage rating of the connector for options is 24V DC or less.

•Before installing options, the machine should be turned off and unplugged

for at least an hour. Components inside the machine become very hot, and

can cause a burn if touched.

•Before moving the machine, unplug the power cable from the outlet. If the

cable is unplugged abruptly, it could become damaged. Damaged plugs or

cables can cause an electrical or fire hazard.

•When lifting the machine, use the grips on both sides. The machine could

break or cause an injury if dropped.

Basic model Printer Network standard model

Printer

PAPER FEED UNIT Type

3000

❍❍

AD440 (Duplex Unit) ❍

Memory Unit Type C ❍❍

Printer Hard Disk Type 3000 ❍❍

1394 Interface Unit Type 4510 ❍*1 ❍*2

802.11b Interface Unit Type A ❍*1 ❍*2

Bluetooth Interface Unit Type

❍*1 ❍*2

Network Interface Board

Type 3000

❍*1

User Account Enhance Unit

Type B

❍❍

AresPGBOptionSetup-F_FM.book Page 3 Monday, July 29, 2002 1:12 PM

Options

❖

❖❖

❖Option Installation Flow Chart

Attach the Paper Feed Unit.

(PAPER FEED UNIT Type 3000)

Attach the Paper Feed Unit to the bottom of the printer.

You can attach up to two Paper Feed Units.

Install the Duplex Unit.

(AD440)

Install the unit to the back of the front cover.

Install the SDRAM Module.

(Memory Unit Type C)

Install the module to the SDRAM module slot on the con-

troller board.

64MB, 128MB, and 256MB Memory Units are available.

Install the Printer Hard Disk.

(Printer Hard Disk Type 3000)

Install the Printer Hard Disk to the controller board.

Install the 1394 Interface Unit.

(1394 Interface Unit Type 4510)

Install the 1394 Interface Unit to the slot on the controller

board.

If you choose to install the 1394 Interface Unit, remove the

USB2.0 Interface Board and you cannot install the 802.11b

Interface Unit or Bluetooth Interface Unit.

Install the 802.11b Interface Unit

(802.11b Interface Unit Type A)

Install the 802.11b Interface Unit to the slot on the controller

board.

If you choose to install the 802.11b Interface Unit, remove

the USB2.0 Interface Board and you cannot install the 1394

Interface Unit or Bluetooth Interface Unit.

Install the Bluetooth Interface

Unit

(Bluetooth Interface Unit Type

Install the Bluetooth Interface Unit to the slot on the control-

ler board.

If you choose to install the Bluetooth, remove the USB2.0 In-

terface Board and you cannot install the 802.11b Interface

Unit or 1394 Interface Unit.

Install the Network Interface

Board

(Network Interface Board Type

3000)

Install the Network Interface Board to the slot on the con-

troller board, only for basic model printer.

If you choose to install the Network Interface Board, you

cannot install the 1394 Interface Unit, 802.11b Interface Unit

or Bluetooth Interface Unit.

AresPGBOptionSetup-F_FM.book Page 4 Monday, July 29, 2002 1:12 PM

Available Options

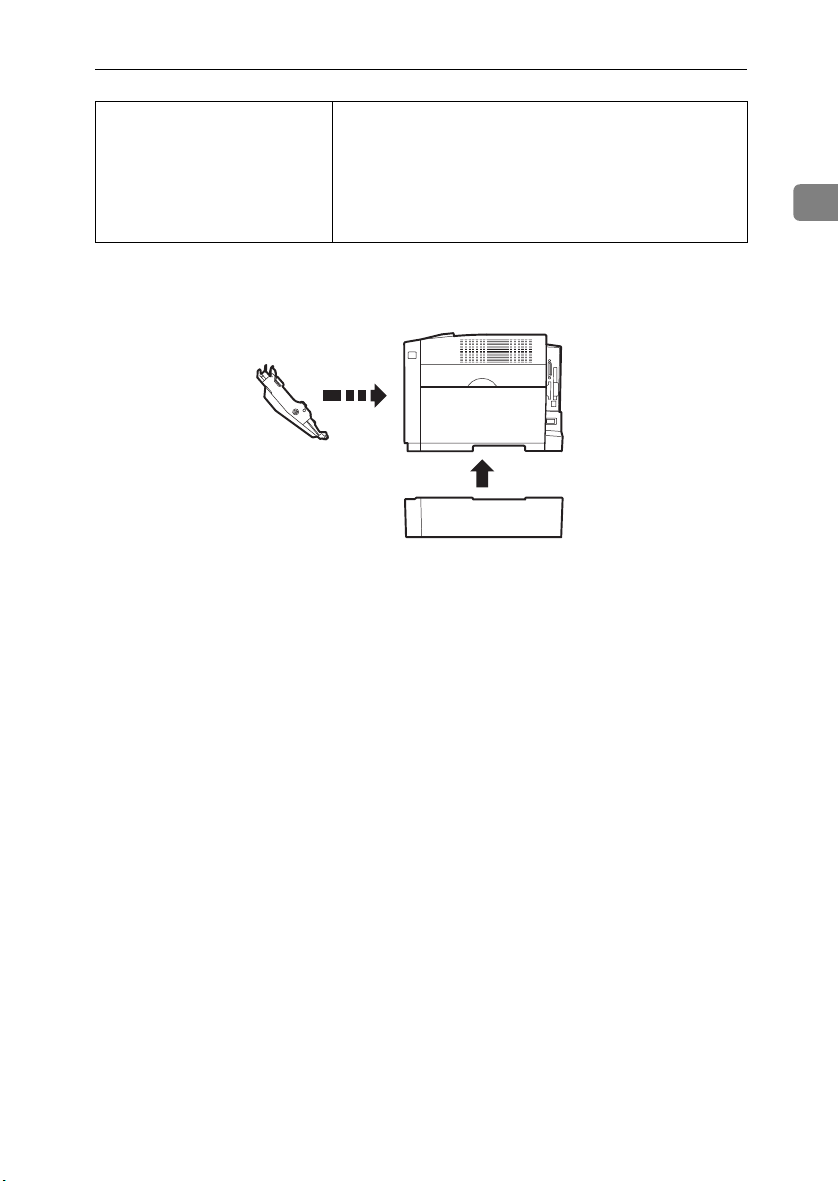

Install options in the positions as shown in the illustration.

❖

❖❖

❖Exterior

1. AD440 (Duplex Unit)

Install to the back of the front cover.

Makes duplex prints.

See p.11 “AD440 (Duplex Unit)”.

2. PAPER FEED UNIT Type 3000

Loads up to 530 sheets of paper. Up to

two units can be attached to the print-

er. "Tray 2" appears on the panel dis-

play for the first unit and "Tray 3"

appears on the panel display for the

second unit.

See p.8 “PAPER FEED UNIT Type

3000”

Install the User Account Enhance

Unit.

(User Account Enhance Unit

Type B)

Install the module to the User Account Enhance Unit slot on

the controller board.

ZHBH050E

AresPGBOptionSetup-F_FM.book Page 5 Monday, July 29, 2002 1:12 PM

Options

❖

❖❖

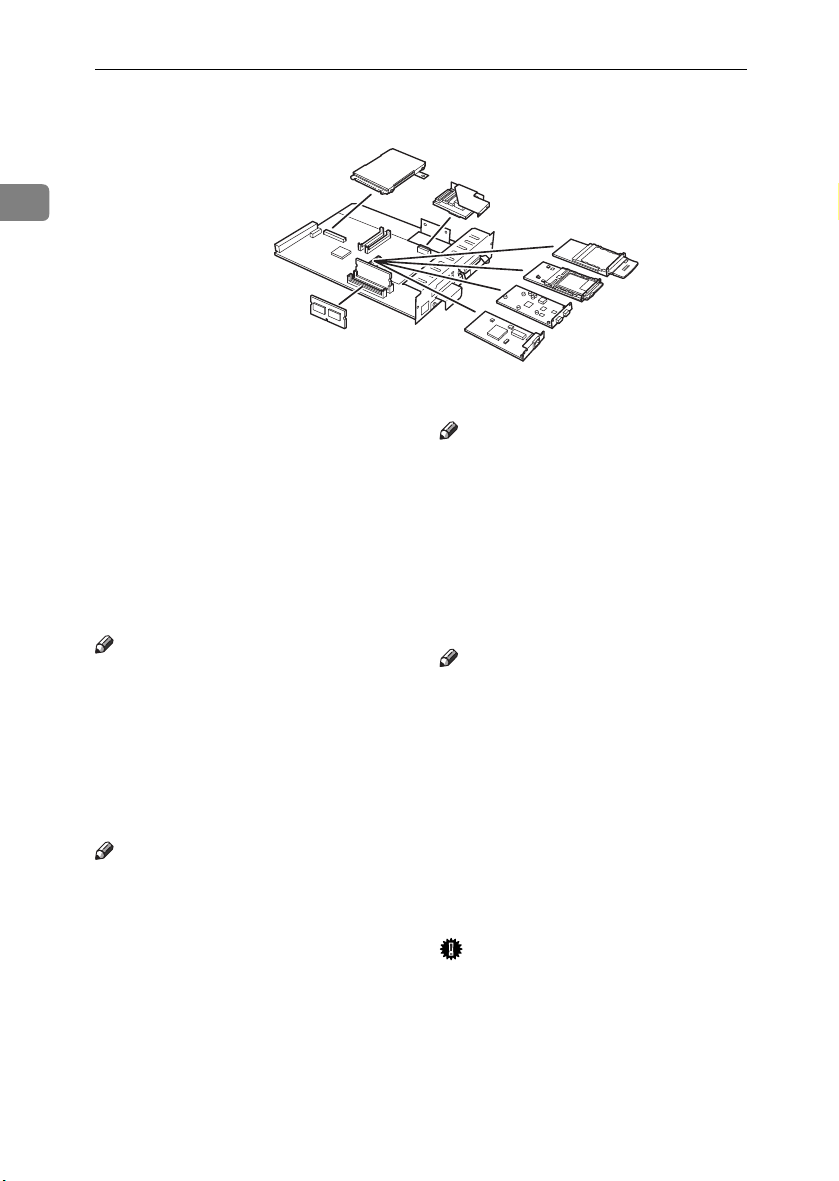

❖Basic model Printer : Interior

1. Printer Hard Disk Type 3000

Install Printer Hard Disk to the con-

troller board.

See p.16 “Printer Hard Disk Type

3000”.

2. User Account Enhance Unit Type

See p.38 “User Account Enhance Unit

Type B”.

3. 802.11b Interface Unit Type A

Note

❒802.11b Interface Unit, USB2.0 In-

terface Board, Bluetooth Interface

Unit and 1394 Interface Unit can-

not be installed in the printer at the

same time.

See p.25 “802.11b Interface Unit Type

A”.

4. Bluetooth Interface Unit

Note

❒Bluetooth Interface Unit, USB2.0

Interface Board, 802.11b Interface

Unit and 1394 Interface Unit can-

not be installed in the printer at the

same time.

5. 1394 Interface Unit Type 4510

Note

❒1394 Interface Unit, USB2.0 Inter-

face Board, Bluetooth Interface

Unit and 802.11b Interface Unit

cannot be installed in the printer at

the same time.

See p.19 “1394 Interface Unit Type

4510”.

6. Netwok Interface Board Type

3000

Note

❒Netwok Interface Board, USB2.0

Interface Board, 802.11b Interface

Unit, Bluetooth Interface Unit and

1394 Interface Unit cannot be in-

stalled in the printer at the same

time.

7. Memory Unit Type C (SDRAM

Module)

Install 64MB, 128MB, or 256MB RAM

into the slot on the controller board.

See p.13 “Memory Unit Type C

(SDRAM Module)”.

Important

❒Remove USB2.0 Interface Board

when you install 1394 Interface

Unit, 802.11b Interface Unit,

Bluetooth Interface Unit or Net-

wok Interface Board.

ZHBHA061E

AresPGBOptionSetup-F_FM.book Page 6 Monday, July 29, 2002 1:12 PM

Otros manuales para Aficio CL3000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Ricoh

Ricoh

Ricoh SP 311DN Manual de usuario

Ricoh

Ricoh MP 7503SP Guía de inicio rápido

Ricoh

Ricoh Aficio MP 8001 Manual de usuario

Ricoh

Ricoh B064 SERIES Manual de usuario

Ricoh

Ricoh Aficio MP C7500 Manual de usuario

Ricoh

Ricoh Aficio 3025 Manual de instrucciones y seguridad

Ricoh

Ricoh Aficio 3131 Manual de usuario

Ricoh

Ricoh Aficio SG 3100SNw Manual de uso y cuidado

Ricoh

Ricoh Aficio MP C3001 Manual de usuario

Ricoh

Ricoh MP C2003 Series Manual de usuario

Ricoh

Ricoh Aficio 350 Manual de usuario

Ricoh

Ricoh Aficio MP 2500 Instrucciones de instalación y mantenimiento

Ricoh

Ricoh PRIPORT VT2130 Manual de usuario

Ricoh

Ricoh K-C1 Manual de usuario

Ricoh

Ricoh C220S - Aficio SP Color Laser Manual de instrucciones

Ricoh

Ricoh Aficio MP C2800 Manual de usuario

Ricoh

Ricoh C252 Manual de usuario

Ricoh

Ricoh Aficio 3515MF Manual de usuario

Ricoh

Ricoh SP 320SFN Manual de usuario

Ricoh

Ricoh 2018 Manual de usuario

Ricoh

Ricoh Aficio MP 2000L Manual de servicio

Ricoh

Ricoh AFICIO2060 - Aficio 2060 B/W Laser Instrucciones de uso

Ricoh

Ricoh SP 204SFNw Manual de usuario

Ricoh

Ricoh Printer/Scanner Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
