Rheem R801T DF Series Manual de usuario

Rheem Classic Plus™Series

Downflow Gas Furnace

FORM NO. G11-549

•80% residential Gas Furnace CSA certified

•PlusOne

™

Diagnostics — 7 Segment LED all units

•PlusOne

™

Ignition System – DSI for reliability and longevity

•Heat exchanger is removable for improved serviceability.

Aluminized steel construction provides maximum corrosion

resistance and thermal fatigue reliability.

•Low profile 34" cabinet ideal for space constrained

installations

•Integrated Control board features dip switches for easy

system set up

•QR code for quick access to product information from your

smart phone or tablet

•Constant Torque electrically commutated motor

Air Gas Furnaces

R801T (DF) Series

✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with

Department of Energy test procedures.

R801T Downflow Series

80% A.F.U.E.†

Input Rates 75-125 kBTU

Air Table of Contents

R801T (DF) Series

TABLE OF CONTENTS

Standard & Optional Equipment ......................................................................3

Model Features/Physical Data & Specifications..................................................4

Model Number Identification ............................................................................5

Dimensional Data............................................................................................6

Blower Performance Data ................................................................................7

Accessories....................................................................................................8

Limited Warranty ............................................................................................9

HEAT EXCHANGER

INTEGRATED

FURNACE

CONTROL

DIRECT SPARK IGNITOR

WITH REMOTE SENSE

IN-SHOT BURNERS

DRAFT INDUCER MOTOR

Air Standard & Optional Equipment

R801T (DF) Series

STANDARD EQUIPMENT

Completely assembled and wired; induced draft; pressure

switch; redundant main gas control; blower compartment door

safety switch; solid state time on/time off blower control; limit

control; manual shut-off valve, pressure regulator for natural

and L.P. (propane) gas; transformer; direct drive multi-speed

blower motor. Furnaces are equipped with cooling/heating

relay and transformer (40VA) ready for air conditioning

applications. (Please note: a thermostat is not included as

standard equipment.) Flame sensor diagnostics; on-board

twinning; fused-protection (secondary), 3rd speed option for

continuous fan; common heat/cool terminal.

OPTIONAL EQUIPMENT

NOTE: Furnace is not listed for use with fuels other than

natural or L.P. (propane) gas.

The complete terms of limited and other warranties are

available at our sales office, or through local installer.

All models can be converted by a qualified Rheem distributor

or local service dealer to use L.P. (propane) gas without

changing burners. Factory approved kits must be used to

convert from natural to L.P. (propane) gas and may be ordered

as optional accessories from a Rheem parts distributor.

For L.P. (propane) operation, refer to Conversion Kit Index Form.

NOTE: For natural and L.P. (propane) gas models, direct spark

ignition is 100% lockout type.

WARNING

THIS FURNACE IS NOT APPROVED

OR RECOMMENDED

FOR USE IN MOBILE HOMES

CONSTANT TORQUE ECM MOTOR

MODEL NUMBERS

R801T (DF) SERIES R801TA075317Z*A R801TA075521Z*A

Input

in BTU’s/Hr [kW] ➁

75,000

[22]

75,000

[22]

Heating Capacity

in BTU’s/Hr [kW] ➀

60,000

[18]

60,000

[18]

High Altitude Input

in BTU’s/Hr [kW]*

67,500

[20]

67,500

[20]

Blower (D x W) in inches [mm] 11 x 7

[279 x 178]

11 x 10

[279 x 254]

Motor H.P.-Speeds -

Type [W]

1/2hp, 5spd,

X-13 [373]

1hp, 5spd,

X-13 [746]

Motor Full Load Amps 6.8 10.9

Heating Speed (factory setting) MED-HIGH MED

Cooling Speed (factory setting) HIGH HIGH

Cooling in CFM [L/s] @ 0.5"wc

[0.12 kPa] E.S.P. (nominal)

1200

[566]

2000

[944]

Rated E.S.P.

in "wc [kPa]

0.5

[0.12]

0.5

[0.12]

Temperature Rise Range

in °F [°C]

30-60

[17-33]

25-55

[13.9-30.6]

Max Outlet Air

in °F [°C]

165

[73.8]

165

[73.8]

Approx. Shipping Weight

in Lbs. [kg]

105

[48]

120

[54]

High Altitude Output Capacity

in BTU’s/Hr [kW]*

53,500

[16]

53,500

[16]

Heat Ext. Static Pressure

in "wc [kPa]

0.12

[0.029]

0.12

[0.029]

R801TA100521Z*A R801TA125524Z*A

100,000

[29]

125,000

[37]

72,500

[21]

89,000

[26.1]

81,000

[24]

99,000

[29]

0.15

[0.037]

0.2

[0.05]

90,000

[26]

112,500

[33]

11 x 10

[279 x 254]

11 x 10

[279 x 254]

1hp, 5spd,

X-13 [746]

1hp, 5spd,

X-13 [746]

10.9 10.9

MED-HIGH MED-HIGH

HIGH HIGH

2000

[944]

2000

[944]

0.5

[0.12]

0.5

[0.12]

30-60

[17-33]

35-65

[19.4-36.1]

190

[87.7]

185

[85.0]

120

[54]

140

[63]

80.0% 80.0%

AFUE - Electronic Ignition Modules ➀80.0% 80.0%

NOTES: All models are 115V, 60HZ, 1

. Gas connection size for all models is 1/2" N.P.T.

➀In accordance with D.O.E. test procedures.

➁See Conversion Kit Index Form for high altitude derate in U.S. applications.

[ ] Designates Metric Conversions

Air Model Features/Physical Data & Specifications

R801T (DF) Series

Physical Data and Specifications

U.S. and Canadian Models

•80% residential Gas Furnace CSA certified

•PlusOne

™

Diagnostics — 7 Segment LED all units

•PlusOne

™

Ignition System – DSI for reliability and longevity

•Heat exchanger is removable for improved serviceability.

Aluminized steel construction provides maximum corrosion

resistance and thermal fatigue reliability.

•Low profile 34" cabinet ideal for space constrained

installations

•Integrated Controls board features dip switches for easy

system set up

•QR code for quick access to product information from your

smart phone or tablet

•Constant Torque electrically commutated motor

Model Features

Air Model Number Identification

R801T (DF) Series

Model Number Identification—Downflow Models

R80 1 T A 075 417 Z S A

Rheem 80 =

80% AFUE

1 = Single Stage T =

Constant

Torque

Design Series

A = 1st Design

Input

BTU/HR [kW]

075 = 75,000 [22]

100 = 100,000 [29]

125 = 125,000 [37]

3 = Up to

3 Ton

4 = 21/2to

4 Ton

5 = 31/2to

5 Ton

Cabinet

Width

17 = 17.5"

21 = 21".0

24 = 24.5"

Z = Down

and Zero

Clearance

Downflow

X = Low NOx

S = Standard

Revision-

Marketing

(A – First Time

Release)

[ ] Designates Metric Conversions

Air Dimensional Data

R801T (DF) Series

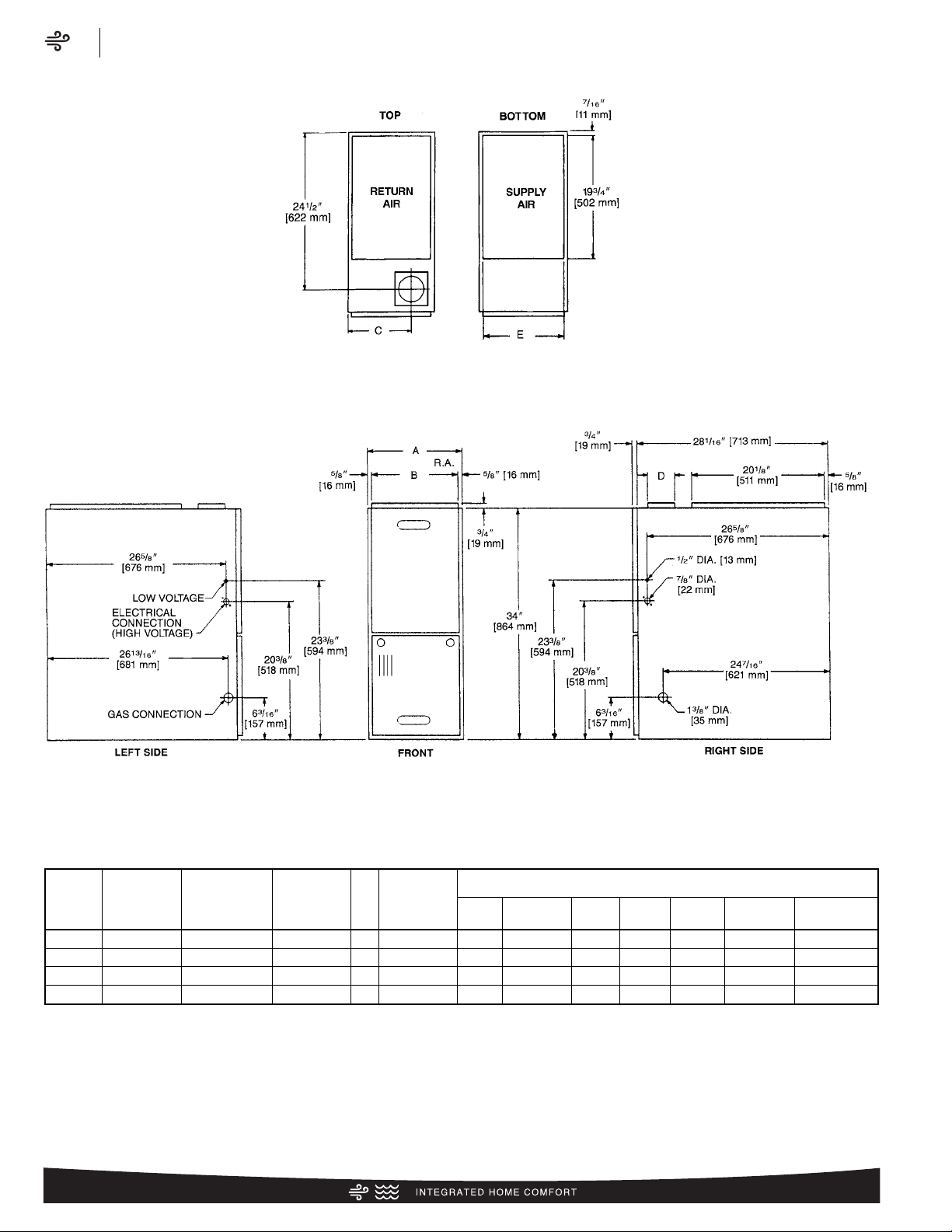

Downflow Dimensions

REDUCED CLEARANCES (IN.) [mm]

LEFT

SIDE

RIGHT

SIDE BACK TOP FRONT VENT SHIP. WGTS.

(LBS.) [kg]

075317 171/2[445] 1611/32 [415] 121/8[308] ➀165/8[422] 0 3 ➁0 1 [25] 3 [76] 6 [152] ➂105 [47.6]

075521 21 [533] 1927/32 [504] 137/8[352] ➀201/8[511] 0 00 1 [25] 3 [76] 6 [152] ➂120 [54.4]

100 21 [533] 1927/32 [504] 137/8[352] ➀201/8[511] 0 00 1 [25] 3 [76] 6 [152] ➂120 [54.4]

125 241/2[622] 2311/32 [593] 155/8[397] ➀235/8[600] 0 0 0 1 [25] 3 [76] 6 [152] ➂140 [63.5]

MODEL

R801T

(DOWNFLOW)

SERIES

B C D E

Dimensional Data

NOTES: ➀May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.

➁May be 0" [0 mm] with type B vent.

➂May be 1" [25 mm] with type B vent.

Furnaces must be vented in accordance with the National Fuel Gas Code, ANSI Z223.1 and in accordance with local codes.

[ ] Designates Metric Conversions

AIR FLOW PERFORMANCE - (-)801T SERIES (Downflow) MODELS

MODEL

MOTOR H.P. [W]

BLOWER SIZE

IN [mm]

SPEED

TAP

CFM [L/s] AIR DELIVERY

EXTERNAL STATIC PRESSURE INCHES WATER COLUMN [kPa]

0.1 [.02] 0.2 [.05] 0.3 [.07] 0.5 [.12] 0.6 [.15] 0.8 [.19]

(-)801TA075317ZSA

1/2 [373]

11 x 7

[279 x 178]

Low

Med. Lo

Med

Med. Hi

High

916

993

1205

1367

1475

803

952

1158

1333

1444

669

910

1124

1300

1416

561

827

1056

1236

1354

504

793

1024

1203

1329

421

706

950

1140

1264

(-)801TA075521ZSA

1 [748]

11 x 10

[279 x 254]

Low

Med. Lo

Med

Med. Hi

High

1198

1411

1608

1918

2122

1105

1358

1564

1877

2083

1093

1317

1529

1840

2054

931

1227

1451

1767

1977

901

1196

1416

1706

1945

791

1093

1340

1636

1874

(-)801TA100521ZSA

1 [748]

11 x 10

[279 x 254]

Low

Med. Lo

Med

Med. Hi

High

1240

1405

1600

1903

2072

1120

1364

1561

1877

2028

1073

1317

1526

1833

2006

974

1232

1445

1766

1940

917

1181

1403

1711

1908

799

1083

1325

1631

1840

(-)801TA125524ZSA

1 [748]

11 x 10

[279 x 254]

Low

Med. Lo

Med

Med. Hi

High

1225

1302

1553

1902

2403

1073

1240

1503

1859

2369

988

1191

1455

1822

2332

864

1074

1370

1722

2246

795

1027

1313

1686

2190

697

932

1237

1602

2059

NOTE: Bold data is factory heating tap

[ ] Designates Metric Conversions

Air Blower Performance Data

R801T (DF) Series

Blower Performance Data—Downflow Models

Air Accessories

R801T (DF) Series

DOWNFLOW ACCESSORIES

DOWNFLOW WARNING: Unit design is certified for installation on non-

combustible floor. A special factory supplied combustible floor sub-

base is required when installing on a combustible floor. Failure to install

the sub-base may result in fire, property damage and personal injury.

RXGF-CC*

FILTER RACK—Downflow top return mount. Requires (2) 14 x 20 Filters.

NOTE: Filter racks are shipped without filters.

*Filters available through PROSTOCK ®.

FOR HIGH ALTITUDES:

HIGH ALTITUDE OPTION CODE: U.S. & Canada –

None required for high altitudes.

HIGH ALTITUDE CONVERSION KITS: U.S. & Canada –

None required for high altitudes.

80+ HIGH ALTITUDE INSTRUCTIONS

Caution: Always follow National Fuel Gas Code (NFGC) guidelines when

converting for high altitudes.

High altitude option codes are not required for these models. However, the

burner orifice size needs to be recalculated and verified at elevations above

2000 ft. See Installation Instructions for more information.

NOTE: For Canadian installations only, an optional derate (manifold gas

pressure reduction) method may be used to adjust the furnace for

altitude. See Installation Instructions for more information. This

optional method may NOT be used for U.S. installations.

COMBUSTIBLE FLOOR BASE DIMENSIONS

COMBUSTIBLE

FLOOR BASE

USE WITH

FURNACE SIZES

IN. [mm]

RXGC-B17 R801T075317 18 [457] 163/4[425] 143/4[451]

RXGC-B21 R801T100521, R801T075521 211/2[546] 201/4[514] 181/4[464]

RXGC-B24 R801T125 25 [635] 233/4[603] 213/4[552]

[ ] Designates Metric Conversions

Air Limited Warranty

R801T (DF) Series

GENERAL TERMS OF LIMITED WARRANTY*

Rheem will furnish a replacement for any part of this product

which fails in normal use and service within the applicable

period stated, in accordance with the terms of the limited

warranty.

*For complete details of the Limited and Conditional Warranties,

including applicable terms and conditions, contact your local contractor

or the Manufacturer for a copy of the product warranty certificate.

Heat Exchanger........................................Twenty (20 Years

Conditional Parts (Registration Required) ........Ten (10) Years

Air Notes

R801T (DF) Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de Rheem

Rheem

Rheem GPH series Manual de usuario

Rheem

Rheem (-)802PA050314MSA Manual de usuario

Rheem

Rheem RGRJ series Manual de usuario

Rheem

Rheem 80PS Series Manual de usuario

Rheem

Rheem 05EAUER Manual de usuario

Rheem

Rheem classic R801S series Manual de usuario

Rheem

Rheem OBF Series Manual de usuario

Rheem

Rheem Gra Series Manual de usuario

Rheem

Rheem R95P Manual de usuario

Rheem

Rheem 96P Series Manual de usuario

Rheem

Rheem Classic Plus 05EAUER Manual de usuario

Rheem

Rheem CRITERION II PLUS 2 LXE RGPL- SERIES Manual de usuario

Rheem

Rheem R95P Manual de usuario

Rheem

Rheem 05EAUER Manual de usuario

Rheem

Rheem Prestige RGFE-09EZCMS Guía

Rheem

Rheem RGPR 05EBMKR Manual de usuario

Rheem

Rheem 96V Series Manual de usuario

Rheem

Rheem 90RJ Series Manual de usuario

Rheem

Rheem *96V series Manual de usuario

Rheem

Rheem Prestige R96V series Manual de usuario

Rheem

Rheem GF801U UPFLOW Series Manual de usuario

Rheem

Rheem GPT series Manual de usuario

Rheem

Rheem RGFG Manual de usuario

Rheem

Rheem LX2000 Series Manual de usuario

Manuales populares de Horno de otras marcas

Armstrong

Armstrong EG7H SERIES Manual de usuario

Payne

Payne PG92ESA Guía

SUPREME

SUPREME FEM10-M2301CM-A Instrucciones de montaje

Ingersoll-Rand

Ingersoll-Rand S9V2B080D4VSAC/D Instrucciones de montaje

Johnson Controls

Johnson Controls TM9T Guía

Fluke

Fluke 9118A Manual de usuario

Lennox

Lennox EL195UHE Elite Series Manual de instalación y operación

Intertherm

Intertherm M7RL Series Manual de usuario

HDG

HDG Pelletmaster 15 Manual de usuario

Pinnacle

Pinnacle Aero Bella AB-716C-QH Manual

Nortek

Nortek MG2S Series Manual de usuario

VERDER

VERDER CARBOLITE GERO ABF 8/28 Manual

Goodman

Goodman GMV9 Manual

SUPREME

SUPREME SUP10-M2301C Instrucciones de montaje

Dettson

Dettson AMT400B34-SM1PMA Instrucciones de montaje

Evcon

Evcon DGD 60 MBH Manual de usuario

Trane

Trane S8B1A026M2PSAB Instrucciones de montaje

Hart Sceintific

Hart Sceintific 9113 Manual de usuario
