Rezontech RFD-2000 Manual de usuario
Flame detector ( UV/IR Type )
RFD-2000 User’s Manual
Rezontech co., ltd
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 1 -
TABLE OF CONTENTS
1 Product Overview
1.1 Product Introduction
1.2 Contents of User Manual
1.3 Revision of User Manual
1.4 Warranty
2 Technical Specifications
2.1 Electrical Specifications
2.2 Mechanical Specifications
2.3 Environmental Specifications
3 Installation
3.1 Unpacking & Checking
3.1.1 Product Compositions
3.1.2 Components
3.1.3 Necessary tools
3.2 Selection of Installation Location
3.2.1 Cone of Vision
3.2.2 Range of Detection
3.2.3 Environment points to be considered when use
3.3 Installation and Electrical Wiring
3.3.1 Electrical Wiring
3.3.1.1 Standard for Electrical Wiring
3.3.1.2 Cable Gland Specification
3.3.2 Using of bracket during installation
3.3.2.1 Bracket Specification
3.3.2.2 Product & Bracket Combination
3.3.3 Terminal Wiring
3.3.3.1 Relay Signal
3.3.3.2 4-20mA (Current Source Wiring Contact)
3.3.3.3 RS485
3.3.3.4 External Recovery Signal Electrical Wiring
3.3.3.5 Signal of Electrical wiring for external remote self-test
3.3.4. Installation/Setting
3.3.4.1 Sensitivity setting
3.3.4.2 Setting of delay time
3.3.4.3 Setting of others function
3.3.5. Ground connection
3.3.5.1 Internal Ground connection method
3.3.5.2 External Ground connection method
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 2 -
4 Operation
4.1 Product checklist
4.2 Initial Operation of Product
4.3 Safety Handling
4.4 Product Testing
5 Maintenance & Troubleshooting Instructions
5.1 Tools of Maintenance and Products Training
5.2 Maintenance Procedures
5.3 Troubleshooting
5.3.1 No LED responds after the power connection.
5.3.2 Yellow LED blinking (2Hz)
5.3.3 When receiver unable to detect various signal
6 Customer Support
6.1 Contacts Information
7 Appendix
7.1 Abbreviation
7.2 Choosing of Wiring
7.2.1 Reference: Standard Chart for Power Supply Electrical Wiring during
setting (AWG Standard)
7.2.2 Things to be consider when choosing electrical wiring for power supply
7.3 Certification & Approvals
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 3 -
1. Product Overview
1.1 Product Introduction
Model RFD-2000 from Rezontech Co., Ltd. is UV/IR type flame detector. It activates alarm
signal or fire extinguishing system via fire or flame detection. This function can be used
directly with output terminal and through connected control circuits are also available.
Various output methods are available for choice:
ㆍ Dry contact Relays (Fire, Fault, Warning)
ㆍ 4~20mA Current Output
ㆍ RS-485 Communication
RFD-2000 is a product with additional Internal/External recovery feature which enables to
be widely used in difference applications.
1.2 Contents of User Manual
All the information about detectors and its features are described on this handling manual.
its contents consist of 7 different sections as per stated on [Table 1] below .
Title
Content
1. Product Introduction
General introduction, products overview, brief
introduction on each part
2. Technical Specification
Electrical, mechanical and environmental specifications
3. Installation
Wiring, mode select, proper installation
4. Operation
Operation mode and user interface display
5. Maintenance &
Troubleshooting
Maintenance and technical support procedure
6. Customer Support
About This product will be customer service will
describe the information
7. Appendix
Abbreviations, authentication, and parts will be describe
information about products
[Table 1] Contents of User Manual
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 4 -
1.3 Revision of User Manual
Version
Date of Revision
Content
Remarks
1.0
March, 2012
Registration of document
[Table 2] Revision of User Manual
1.4 Warranty
Rezontech warrants the Models RFD-2000 to be free from defects in workmanship or
material under normal use and service within two years from the date of shipment.
Rezontech will repair or replace without charge any such equipment found to be defective
during the warranty period. Full determination of the nature of, and responsibility for,
defective or damaged equipment will be made by Rezontech’ personnel.
Defective or damaged equipment must be shipped to Rezontech’ plant or representative
from which the original shipment was made. In all cases this warranty is limited to the
cost of the equipment supplied by Rezontech. The customer will assume all liability for
the misuse of this equipment by its employees or other personnel.
All warranties are contingent upon proper use in the application for which the product was
intended and does not cover products which have been modified or repaired without
Rezontech’ approval, or which have been subjected to neglect, accident, improper
installation or application, or on which the original identification marks have been removed
or altered.
Except for the express warranty stated above, Rezontech disclaims all warranties with
regard to the products sold, including all implied warranties of merchantability and fitness
and the express warranties stated herein are in lieu of all obligations or liabilities on the
part of Rezontech for damages including, but not limited to, consequential damages
arising out of, or in connection with, the performance of the product.
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 5 -
2. Technical Specifications
2.1 Electrical Specifications

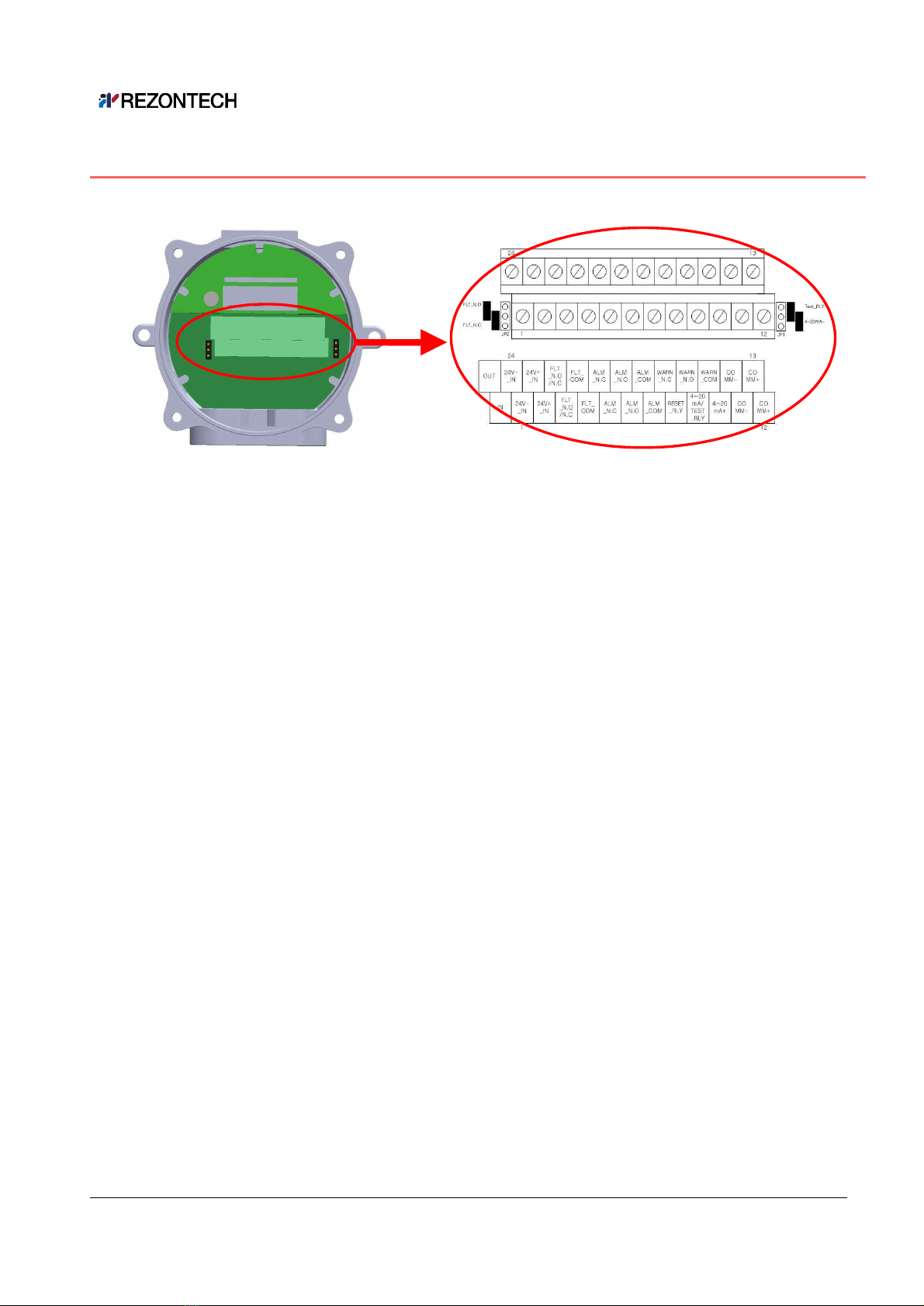

[Figure 1] TB1 Terminal address at product cover
2.1.1 Electrical
ㆍ Recommended Operating Voltage : 24VDC
ㆍ Rating Voltage : 17VDC ~ 32VDC
ㆍ Max Input Voltage : 36VDC
ㆍ Max Consumption Power : 1.8W (at 32VDC )
ㆍ Normal Average Current : approximate 35mA (at 24VDC)
ㆍ Max Operating Current : approximate 70mA
(at 17VDC, during detection of fire or self-diagnosis test)
2.1.2 Relay Output
ㆍ 2A 28VDC, 4A 125VAC, 2A 250VAC
ㆍ Dry Contact
ㆍ A(Normally Open) or B(Normally closed)
2.1.3 4~20mA Current Output
ㆍ Non-isolation output, Common 24V-_IN(-Power)
ㆍ Max. Terminating Resistance : 500Ω
ㆍ 0mA (+0.5mA) : Connection Fault
ㆍ 2mA (±0.5mA) : Self-diagnosis test Fault
ㆍ 4mA (±0.5mA) : Normal
ㆍ 8mA (±0.5mA) : IR Detection
ㆍ 12mA (±0.5mA) : UV Detection
ㆍ 16mA (±0.5mA) : Warning (UV and IR Detection, fire occurs during delay time)
ㆍ 20mA (±0.5mA) : Fire Detection
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 6 -
2.1.4 RS485 Communication
ㆍ Non-isolation output (2 wiring)
ㆍ Communication Speed : 9600bps
2.1.5 LED Indicator
ㆍ Two LED's(Yellow, Red) indicator
- Yellow LED : Provides indication of Normal or Fault state
- Red LED : Provides indication of Warning or Alarm state
ㆍ Product reset process : Yellow & Red LED intersection blinking repeatedly (3 sec)
ㆍ Normal : Yellow LED blinking (0.5Hz)
ㆍ Power supply or Self-diagnosis test fault : Yellow LED blinking (2Hz)
ㆍ Warning : Yellow LED blinking (0.5Hz) and Red LED blinking (2Hz)
ㆍ Alarm : Yellow LED blinking (0.5Hz) and Red LED lighting
ㆍ Warning at BIT Fault : Yellow LED blinking (2Hz) and Red LED blinking (2Hz)
ㆍ Alarm at BIT Fault : Yellow LED blinking (2Hz) and Red LED lighting

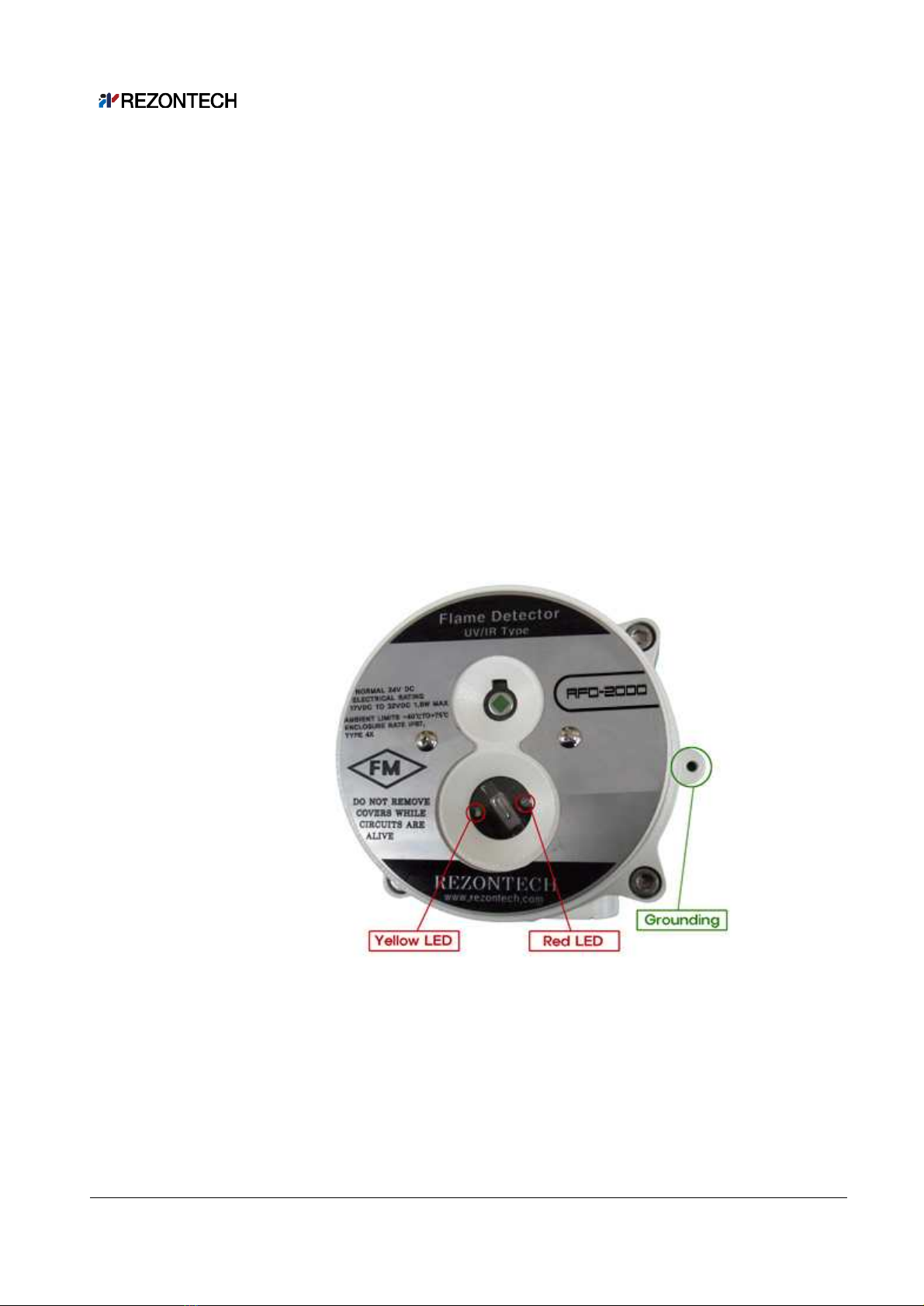

[Figure 2] Product Image LED position indicator
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 7 -
2.2 Mechanical Specifications

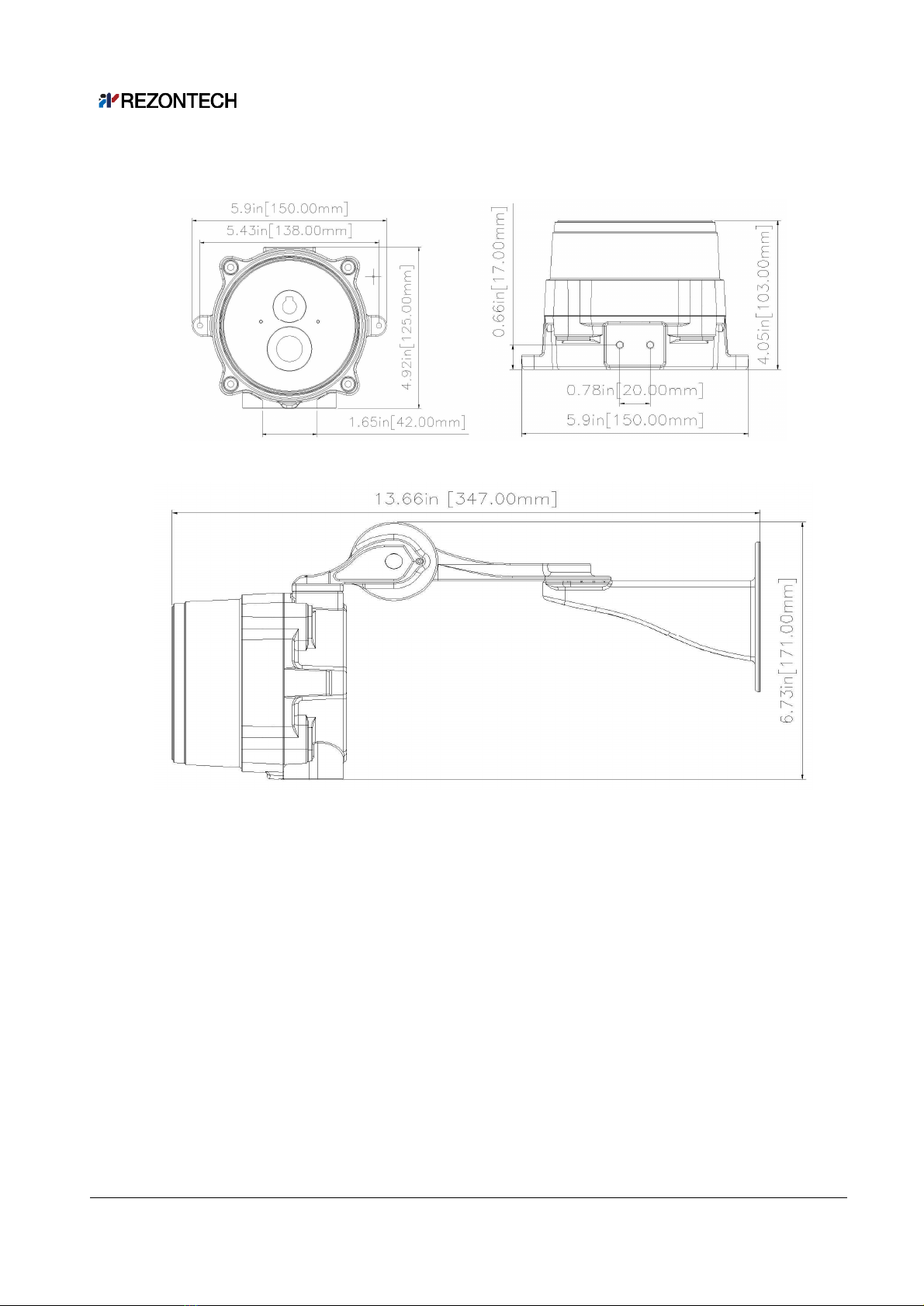

[Figure 3] Front, inch[mm]
[Figure 4] Side, inch[mm]
[Figure 5] Combination of Detector and Bracket, inch[mm]
ㆍ Enclosure (Material) : Aluminum alloy, Texture power coating
ㆍ Weight : Product - approximate 1.2㎏, Overall - approximate 2.2㎏(With Bracket)
ㆍ Dimension(Body) : W5.9[150] × H4.9[125] × D4.1[103] (inch[mm])
ㆍ Dimension(Overall) : W5.9[150] × H6.7[171] × D13.7[347] (inch[mm])
ㆍ Color : Ivory
ㆍ Electrical connection (External) : 2 × 1/2″ PF
ㆍ Wire gauge (Power supply & Signal) : AWG #14 (2.08㎟) ~ #24 (0.205㎟)
ㆍ Water and Dust Tight : IP67, NEMA Type 4X
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 8 -
2.3 Environmental Specifications
ㆍ Operating Temperature : -40℃ ~ +75℃
ㆍ Storage Temperature : -50℃ ~ +80℃
ㆍ Humidity : Relative humidity 95%
Co.,Ltd.
UV/IR Type Flame Detector
RFD-2000
Document No. Manual-2000 (Rev. 01)
March 2012
- 9 -
3. Installation
3.1 Unpacking & Checking
Please check the external condition of detector when unpacking the product carefully. If
there is any damage on the products, please contact the local distributor immediately or
any trouble in used products, please send it to A/S center with fee applied.
3.1.1 Product Compositions
ㆍ RFD-2000 1EA
ㆍ BK-2(Bracket) 1EA
ㆍ Spare Bolt 1set
ㆍ Tools
3.1.2 Components
3.1.2.1 Fundamental components
Component
standard
Q'ty (pcs)
Description
Hexagon wrench Bolt
M6×10
2
Join the Detector and Bracket
Hexagon wrench Bolt
M6×35
(OEM)
4
Join the Detector
Metric button screw (+)
M5×30
4
Install the Bracket
[Table 3] Fundamental components
3.1.2.2 Spare components
Component
Standard
Q'ty (pcs)
Description
Hexagon wrench Bolt
M6×10
2
Join the Detector and Bracket
Hexagon wrench Bolt
M6×35
(OEM)
4
Join the Detector
Metric button screw (+)
M5×30
4
Install the Bracket
[Table 4] Space Components
3.1.3 Necessary tools
Tool name
Standard
Q'ty (pcs)
Description
Hexagon wrench driver
Metric,5M
1
Join the detector, bracket
Screw driver
+
1
Install the Bracket
[Table 5] Necessary tools
