ISL5585XEVAL Evaluation Board User’s Guide

AN1038 Rev 0.00 Page 1 of 14

Sep 2002

Introduction

The ISL55185XEVAL1 board can be used to evaluate the new

ISL5585 3.3volt SLIC. This platform supports the evaluation of

the performance of the ISL5585 at 3.3 volts with a 5 volt

CODEC. The lab data presented in this application note had

the following supplies voltages: Vcc (ISL5585) = 3.3V,

Vcc (CODEC) = 5V, VBH = -100v and Vbl = -24v.

The ISL5585XEVAL1 evaluation board provides a complete

evaluation system for the ISL5585 family of ringing SLICs.

Included on the evaluation board is a single +5V CODEC for

line circuit evaluations and on board logic for stand alone

operation. The evaluation boards have been designed to

support back to back operation, providing further insight to

the complete signal path and solution.

The transient behavior of the ISL5585 in response to mode

changes has been improved. The benefit to the application

is reduction or more likely elimination of DET glitches when

off hook events occur.

Voltage ratings for external components have been selected

based on 100V device operation, therefore compatibility to

lower voltage versions is guaranteed.

Getting Started

Your evaluation kit should contain application note AN1038

and the following hardware.

1. One ISL5585XEVAL1evaluation board.

2. One ISL5585X device sample, already in board.

3. One PLCC extraction tool.

4. One cable assembly with multi colored conductors.

5. One cable assembly with solid white conductors.

The evaluation board should have the same appearance as

the silk screen shown in Figure 1.

Applying Power to the Evaluation Board

Here are a few safeguards with power sequencing until you

are accustomed to using the high voltages required by the

devices.

1. Limit the current on all power supplies to 100mA.

2. Turn on the power supplies after the power cables are

attached to the evaluation boards.

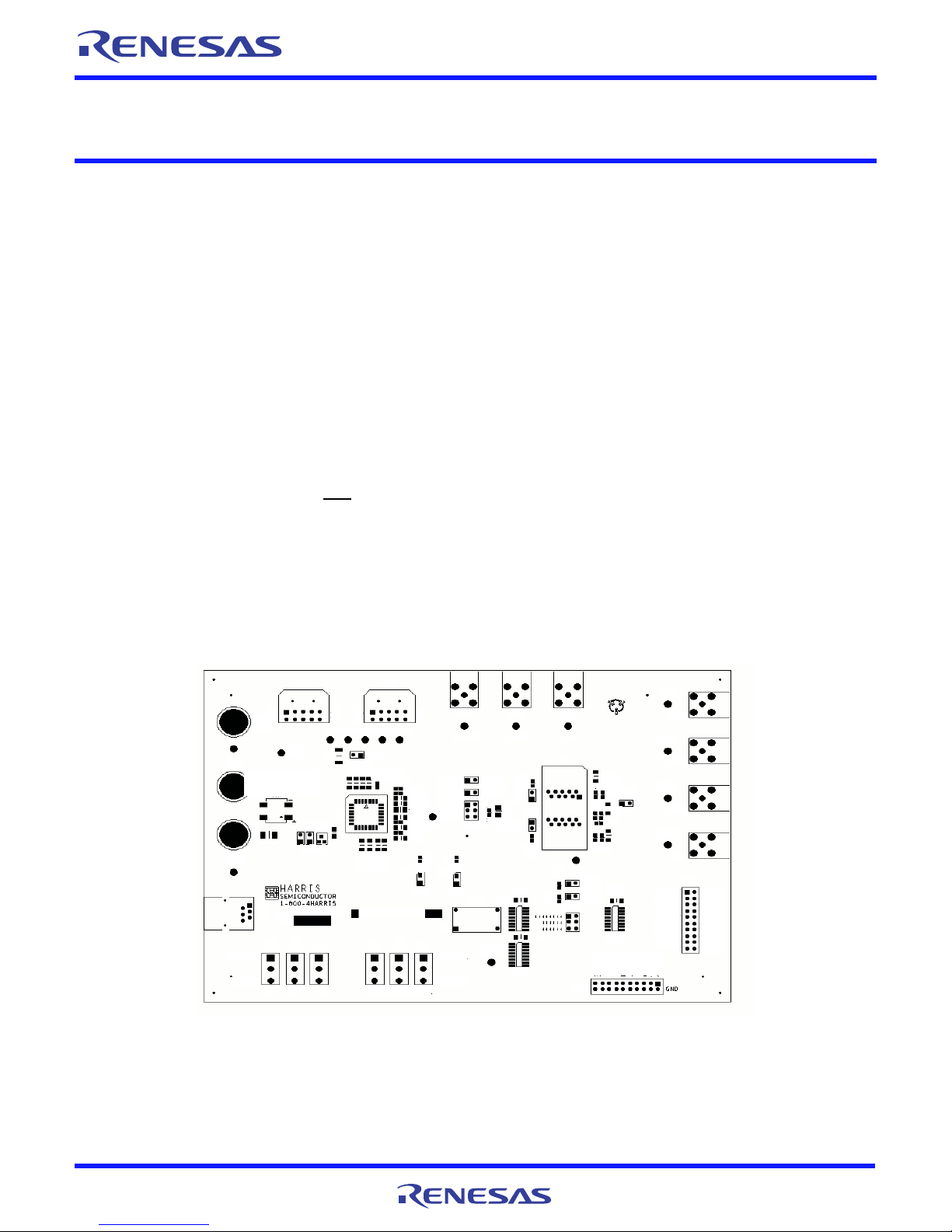

FIGURE 1. EVALUATION BOARD SILK SCREEN

AN1038 Rev 0.00 Page 2 of 14

Sep 2002

Evaluation Board Functional Description

ISL5585

APP CKT

CODEC

APP CKT

CLOCK GENERATION & MUX

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

J5 J6

J10

J13

J14

J7 J8

J11

J12

J15

S1 S2 S3 S4 S5 S6

FIGURE 2. EVALUATION BOARD FUNCTIONAL DIAGRAM

Evaluation Board Jumper Definitions

JUMPER DESCRIPTION

JP1 Connects SW- directly to the device Ring terminal of device. Used in conjunction with external load DTA and RTA .

JP2 Connects SW+ through test load to the Tip terminal of device. Used in conjunction with external load DTA and RTA .

JP3 Not used. Leave open.

JP4 Connects the receive output of the CODEC (U6) to the device receive input -IN. Path is AC coupled with CIN.

JP5 Position1, CODEC: Connects the CODEC receive output to the device ringing input. Path is AC coupled by CRS .

Position 2, EXT: Connects the VRS connector J9 to the device ringing input. Path is AC coupled by CRS.

Position 3 TRAP: Connects the VRS connector J9 thru RC network to the device ringing input. Path is AC coupled.

JP6 Connects the device transmit output VTX to the CODEC amplifier for transhybrid balance. Path is AC coupled by CTX.

JP7 Connects the receive output of CODEC to transhybrid amplifier, AC coupled by C1. Normally inserted for proper operation.

JP8 Inserting jumper sets the CODEC to A-law coding. Open sets the CODEC to -law coding.

JP9 Inserting jumper powers down the CODEC. Open provides normal CODEC operation.

JP10 Position 1: Sets the CODEC master clock to 2.048MHz.

Position 2: Sets the CODEC master clock to 512kHz

Position 3: Sets the CODEC master clock to 256kHz.

JP11 Enables the on board logic multiplexer. Should be installed for single board or back to back evaluations. Remove when driving

BNCs J10 thru J13.

JP12 Inserting jumper selects on board clock and frame sync generator. Insert to configure board as master for back to back

evaluations or for single board evaluations. Remove to configure board as slave for back to back evaluations.

AN1038 Rev 0.00 Page 3 of 14

Sep 2002

Test Points

Each connector interface to the evaluation board has a test

point. All test points are DC coupled and should be guarded

against ground shorts. High impedance test inputs, such as

oscilloscopes or DVMs, should be used to monitor these

points. Unused BNC connections also provide convenient test

point access.

Toggle Switches

The six toggle switches, S1 thru S6, interface directly to the

ISL5585 device. Positioning any switch towards the top of the

board is a logic “1”. Positioning any switch towards the bottom

of the board is a logic “0”. All switches are labeled with the

control signal names.

The switch E0 selects the switch hook (E0 = 1) or the ground

key detector (E0 = 0) to appear at DET. During ringing, the

device overrides E0 and sends the ring trip detector to DET.

The switched labeled SWC turns on the uncommitted switch

when set to a logic low. The battery select signal BSEL, selects

the high battery when set to logic high. The operating modes

for the ISL5585 device are provided in Table 1.

Refer to the device electrical data sheet for detailed

descriptions regarding each operating mode according to the

device under evaluation.

TABLE 1. ISL5585 OPERATING MODES

OPERATING MODE F2 F1 F0

Low Power Standby 0 0 0

Forward Active 0 0 1

Unused 0 1 0

Reverse Active 0 1 1

Ringing 1 0 0

Forward Loop Back (Note) 1 0 1

Tip Open 1 1 0

Power Denial 1 1 1

NOTE: The ISL5585 device should always operate from low battery

voltage when using the Forward Loop Back mode.

Evaluation Board Connector Descriptions

CONNECTOR DESCRIPTION

J1 RJ11 type phone connector.

J2 Ring terminal of board.

J3 Tip terminal of board.

J4 Grounding lug connected to board ground plane.

J5 1: VCC. Positive 5V supply to CODEC U6, clock generator U5 and logic devices U2 thru U4 (red wire).

2: VBH. High negative battery supply to the ISL5585 device (orange wire).

3: VBL. Low negative battery supply to the ISL5585 device (yellow wire).

4: +5V. Positive 5V supply to the ISL5585 device and LEDs (green wire).

7 thru 10: GND. Twisted pair returns for external supply connections (black wires).

J6 Identical pinout as J5. Either connector provides daisy chain connection to second board for back to back evaluation.

J7 Transmit analog output from ISL5585 device, VTX. This path is AC coupled by CTX.

J8 Receive analog input to ISL5585 device, VREC. This path is AC coupled by CIN.

J9 Ringing input to ISL5585 device, VRS. This path is AC coupled by CRS.

J10 Serial transmit data output of CODEC U6.

J11 Serial receive data input to CODEC U6.

J12 Common frame sync input for receive and transmit digital data.

J13 Common clock for CODEC data transfer and conversion.

J14 20 pin, 100 mil spacing header with all digital PCM data interfaces to CODEC U6.

J15 20 pin, 100 mil spacing header with all digital interfaces to ISL5585 device.

AN1038 Rev 0.00 Page 4 of 14

Sep 2002

Stand Alone Configuration

Description

The standalone configuration supports any measurement of

the ISL5585 device. With all the jumper locations open, the

device is totally isolated from all other active circuitry on the

evaluation board. All other circuitry is powered, but does not

interfere with proper SLIC operation.

Power Supply Connections

Power should be applied to the evaluation board using the

primary power cable. Either J5 or J6 may be used. Prior to

applying power, the voltage setting of each supply should be

verified. The power supplies should be turned off while mating

the primary power cable to the evaluation board.

Jumper Settings

All jumper positions should be open for the stand alone

configuration.

Measurement Capability

Nearly all AC and DC parameters of the device can be

measured using this configuration. The device has been

socketed to allow easy measurements of more than a single

device. An extraction tool has been included with the evaluation

kit and should be used to remove the device from the socket.

The typical device measurements are listed below.

1. Power supply current per operating mode.

2. Tip and Ring DC voltages per operating mode.

3. On hook AC gains G42, G24 and G44.

4. Off hook AC gains G42, G24 and G44.

5. Other AC parameters such as longitudinal balance.

Status LEDs

The status LEDs DET and ALM are active for the stand alone

configuration. DET should only light when a DC current path

exists from Tip to Ring or during forward loop back. ALM

should only light during forward loop back operation. Normal

device evaluations should not cause the ALM indicator to light.

Uncommitted Switch Jumpers

When the jumpers JP1 and JP2 are installed, the uncommitted

switch is connected across Tip and Ring. The test load of DTA

and RTA will connect across the Tip and Ring terminals when

the uncommitted switch is turned on. The DC load will result in

DET transitioning to a logic low. The circuit diagram is shown

below.

Socket Removal

The surface mount socket for the ISL5585 device has the

same solder foot print as the PLCC package. Therefore, the

socket may be removed for more extensive characterization.

ISL5585

APP CKT

CODEC

APP CKT

CLOCK GENERATION & MUX

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

J5 J6

J10

J14

J7 J8

J11

J12

J15

S1 S2 S3 S4 S5 S6

FIGURE 3. STAND ALONE CONNECTORS AND JUMPERS

FIGURE 4. TEST LOAD SWITCHING

RING

TIP

RTA

DTA

SW+

SW- SWC

JP1

JP2

AN1038 Rev 0.00 Page 5 of 14

Sep 2002

Stand Alone Configuration Typical Measurements

Supply Currents (milli amps) - On Hook

OPERATING MODE F2, F1, F0 E0 SWC BSEL

ICC

(Vcc= 3.3v)

IBH

(Vbh= -100v)

IBL

(Vbl = -24v)

Low Power Standby 0, 0, 0 x 1 1 2.9 0.6 0.3

Forward Active 0, 0, 1 x 1 0 3.7 0 1.2

Unused 0, 1, 0 n/a n/a n/a n/a n/a n/a

Reverse Active 0, 1, 1 x 1 0 3.7 0 1.2

Ringing 1, 0, 0 x 1 1 5.6 1.5 0.7

Forward Loop Back 1, 0, 1 x 1 0 11.9 0 20

Tip Open 1, 1, 0 x 1 1 2.9 0.6 0.3

Power Denial 1, 1, 1 x 1 x 3.3 0 0.2

Tip and Ring Voltages (Volts) - On Hook

OPERATING MODE F2, F1, F0 E0 SWC BSEL TIP RING

Low Power Standby 0, 0, 0 x 1 1 -0.7 -52

Forward Active 0, 0, 1 x 1 0 -3.9 -17

Unused 0, 1, 0 n/a n/a n/a n/a n/a

Reverse Active 0, 1, 1 x 1 0 -17 -3.9

Ringing 1, 0, 0 x 1 1 -50 -50

Forward Loop Back 1, 0, 1 x 1 0 -3.9 -17

Tip Open 1, 1, 0 x 1 1 Float -52

Power Denial 1, 1, 1 x 1 x Float Float

AC Gains (dB), Off Hook, 600 Termination - Forward and Reverse Active Only

OPERATING MODE F2, F1, F0 E0 SWC BSEL G42 G24 G44

Forward Active 0, 0, 1 x 1 0 0.0 -7.3 -7.3

Reverse Active 0, 1, 1 x 1 0 0.0 -7.3 -7.3

AC Gain Equations G42

G24

G44

G4-2 =

V2W

VIN

------------ = 2

RIN

----------





 ZL

ZLZO

+ + 2RP

----------------------------------------2

ZLZL

--------------------

RIN

----------==

G24

ZO2RPZL

---------------------------------------







–=

G44 G42 G24

RIN

----------







–

ZL2RPZO

---------------------------------------







AN1038 Rev 0.00 Page 6 of 14

Sep 2002

Ringing Configuration

Description

The ringing configuration supports full evaluation of the ringing

capability of the ISL5585 device. The evaluation board design

does not include a 20Hz digital code generator, therefore, all

ringing waveforms will be sourced by external test equipment.

Power Supply Connections

Power should be applied to the evaluation board using the

primary power cable. Either J5 or J6 may be used. Prior to

applying power, the voltage setting of each supply should be

verified. The power supplies should be turned off while mating

the primary power cable to the evaluation board.

Jumper Settings

The jumper JP5 provides three positions for different ringing

techniques.

CODEC Ringing

Most test equipment designed to evaluate the CODEC PCM

interface are capable of output frequencies as low as 20Hz. If

such a piece of equipment is available, then CODEC ringing

can be evaluated. The digital interface to the CODEC would be

provided by the BNC connectors J10 thru J13. Verify JP11 is

open prior to driving signals into the BNC connectors. An

output level of 0dBm from the CODEC will provide full scale

ringing when operating from -100V battery.

External Ringing Source

Using an external function generator at J9 provides the most

control of the ringing waveform. The flexibility of the ringing

interface can be fully exercised by the function generator. To

evaluate DC offsets during ringing, the capacitor CRS must be

shorted. Most functions generators provide DC offset as part of

the output waveform. Positive DC offsets on VRS move Tip

towards ground and Ring towards battery.

Trapezoidal Ringing

A logic level square wave, at J9, with 50% duty cycle will be

shaped by the components RTRAP and CTRAP when this

jumper position is selected. The components shipped with the

evaluation board will result in a 75VRMS trapezoidal ringing

waveform when operating from a -100V battery.

Ring Trip Control

Three very distinct actions occur when the devices detects a

ring trip. First, the DET output is latched low. The latching

mechanism eliminates the need for software filtering of the

detector output. The latch is cleared when the operating mode

is changed externally. Second, the VRS input is disabled,

removing the ring signal from the line. Third, the device is

internally forced to the forward active mode. The low battery is

not automatically selected upon ring trip.

ISL5585

APP CKT

CODEC

APP CKT

CLOCK GENERATION & MUX

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

J5 J6

J10

J13

J14

J7 J8

J11

J12

J15

S1 S2 S3 S4 S5 S6

100 x11

FIGURE 5. RINGING CONNECTORS AND JUMPERS

TABLE 2. JP5 JUMPER POSITIONS

JP5 POSN DESCRIPTION

CODEC Connects the CODEC receive output to the device

ringing input. Signal path is AC coupled.

EXT Connects the VRS connector J9 to the device ringing

input. Signal path is AC coupled.

TRAP Connects the VRS connector J9 thru RC network to

the device ringing input. Signal path is AC coupled.

AN1038 Rev 0.00 Page 7 of 14

Sep 2002

Digital Loop Back Configuration

Description

The digital loop back configuration verifies the interface and

operation of the ISL5585 device and the CODEC. This

configuration provides a self test to verify proper operation of

the board. In addition, it provides a complete digital loop,

allowing analog control of the digital input and output of the

CODEC. Forward active and reverse active or teletax will

support the digital loop back configuration.

Power Supply Connections

Power should be applied to the evaluation board using the

primary power cable. Either J5 or J6 may be used. Prior to

applying power, the voltage setting of each supply should be

verified. The power supplies should be turned off while mating

the primary power cable to the evaluation board.

Jumper Settings

All jumper settings and functions are described below.

Signal Flow

Driving a signal at VREC, J8, will result in a signal from the

CODEC receive output when the ISL5585 device is terminated

at Tip and Ring. The following diagram shows the signal path

formed by the jumpers and terminated SLIC.

With VREC input signal level of 0.775VRMS, a signal level of

0.337VRMS should result at the VTX output when terminated

with 600. The signal level at VTX is determined by the 4-wire

to 4-wire gain, G44, of the ISL5585. The transhybrid balance is

not connected, therefore, the digitized signal level at the

CODEC will be approximately 0.674VRMS. The CODEC

transfer functions are set for unity gain, therefore the signal

level at PO- should be approximately 0.674VRMS.

The signal levels for digital loop back are independent of the

clock selected by JP10.

Refer to the device electrical data sheet for the design

equations for the 4-wire to 4-wire gain as a function of

termination and synthesized impedance.

ISL5585

APP CKT

CODEC

APP CKT

CLOCK GENERATION & MUX

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

J5 J6

J10

J13

J14

J7 J8

J11

J12

J15

S1 S2 S3 S4 S5 S6

010 x10

FIGURE 6. DIGITAL LOOP BACK CONNECTORS AND JUMPERS

TABLE 3. DIGITAL LOOP BACK JUMPER POSITIONS

JUMPER DESCRIPTION

JP6 Connects the device transmit output VTX to the

CODEC amplifier for transhybrid balance.

JP10, POSN 2 Sets the CODEC master clock to 512kHz.

JP11 Enables the on board logic multiplexer.

JP12 Inserting jumper selects on board clock and frame

sync generator.

J14, POSN 1 Connects the CODEC digital output DT to digital

input DR.

FIGURE 7. DIGITAL LOOP BACK SIGNAL FLOW

JP6

TIP

RING

-IN

VTX -2

PO-

ISL5585 CODEC

J14

VREC (J8) JP4

600

RIN

AN1038 Rev 0.00 Page 8 of 14

Sep 2002

PCM4 Configuration

Description

The PCM4 configuration verifies the AC transmission of the

ISL5585 and CODEC. Any piece of test equipment capable of

PCM testing with digital and analog interfaces can be used in

this configuration.

Power Supply Connections

Power should be applied to the evaluation board using the

primary power cable. Either J5 or J6 may be used. Prior to

applying power, the voltage setting of each supply should be

verified. The power supplies should be turned off while mating

the primary power cable to the evaluation board.

Jumper Settings

All jumper settings are described below.

Clock and Frame Sync

The clock and frame sync signals are driven at connectors J13

and J12 respectively. The clock input is common to the MCLK,

BCLKT and BCLKR of the CODEC. The frame sync input is

common to the receive and transmit frame syncs, FSR and

FST, of the CODEC. These connections define synchronous

mode of operation.

Digital to Analog

The receive signal path is defined from the CODEC PCM input

to the ISL5585 Tip and Ring outputs. The PCM4 tester is

capable of driving digital test signals on the PCM bus and

measuring the resultant signal at Tip and Ring. With this type of

capability, the full receive path can be evaluated. Typical

performance measurements include overall loss, gain variation

versus frequency, gain versus signal level and 2-wire return loss.

In addition fidelity measurements such as idle channel noise and

distortion are also performed.

Analog to Digital

The transmit signal path is defined from ISL5585 Tip and Ring

interface to the CODEC PCM output. The same tests

performed for the receive path also apply to the transmit path.

Digital to Digital

The digital to digital path is from the CODEC PCM input to the

CODEC PCM output. This signal path provides a measure of

the transhybrid balance for the line circuit. Most other AC

performance metrics are base on analog to digital or digital to

analog measurements. For proper transhybrid measurements,

verify jumper JP7 is inserted.

ISL5585

APP CKT

CODEC

APP CKT

CLOCK GENERATION & MUX

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

JP10

JP11

JP12

J5 J6

J10

J13

J14

J7 J8

J11

J12

J15

S1 S2 S3 S4 S5 S6

010 x10

FIGURE 8. PCM4 CONNECTORS AND JUMPERS

TABLE 4. PCM4 JUMPER POSITIONS

JUMPER DESCRIPTION

JP4 Connects the receive output of the CODEC (U6) to

the device receive input -IN through RIN. Signal

path is AC coupled.

JP6 Connects the device transmit output VTX to the

CODEC amplifier for transhybrid balance. Signal

path is AC coupled.

JP7 Connects the receive output of CODEC to

transhybrid amplifier, AC coupled by C1.

JP8 Inserting jumper set the CODEC to A-law coding.

Open sets the CODEC to -law coding. This must

match PCM test equipment coding scheme for

proper operation.

AN1038 Rev 0.00 Page 9 of 14

Sep 2002

PCM4 Configuration Typical Measurements

FIGURE 9. DIGITAL TO ANALOG GAIN vs FREQUENCY FIGURE 10. ANALOG TO DIGITAL GAIN vs FREQUENCY

FIGURE 11. DIGITAL TO ANALOG GAIN vs LEVEL FIGURE 12. ANALOG TO DIGITAL GAIN vs LEVEL

FIGURE 13. DIGITAL TO ANALOG TOTAL DISTORTION FIGURE 14. ANALOG TO DIGITAL TOTAL DISTORTION

+1.5

+1.0

+0.0

-1.0

-1.5

200 1000 2000 3000 3600

MODE A 33 VAR. GAIN/FRE. TX:

RESULT

TX: TS 0 +0.00 dBm0 201Hz



=100Hz

D-D

A-D

A-A

RX: -0.dBr

FREQ.

SWP/S

D-A

MODE A 33 VAR. GAIN/FRE. TX: +0.0 RX: dBr

+1.5

+1.0

RESULT

TX: TS 0 +0.00 dBm0 201Hz  = 100Hz

A-A

D-A

D-D

RX:

+0.0

-1.0

-1.5

200 1000 2000 3000 3600

FREQ.

SWP/S

A-D

MODE A 43 VAR. GAIN/LEV. TX: RX: -0.0dBr

RX:

RESULT

TX:

MODIF. +2.0

+1.0

+0.0

-1.0

-2.0

-55.0 -40.0

1014Hz

+0.0

TS 0 -55.0  = 2.0dB0dBM0

A-A

A-D

D-D

-20.0 LEVEL

SWP/S

D-A

MODE A 43 VAR. GAIN/LEV. TX: +0.0 RX: dBr

MODIF.

RX:

RESULT

TX: TS 0 0dBm0 1014Hz  = 2.0dB-55.0

A-A

D-A

D-D

+2.0

+1.0

+0.0

-1.0

-2.0

-55.0 -40.0 -20.0 +0.0

LEVEL

SWP/S

A-D

MODE A 55 TOTAL DIST. TX: RX: 0.0dBr

RX:

RESULT

TX: TS 0 -55.0 0dBm0 1014Hz  = 2.0dB

+44.0

+40.0

+30.0

+20.0

+14.0

A-A

A-D

D-D

-55.0 -40.0 -20.0 +0.0

LEVEL

SWP/S

D-A

MODE A 55 TOTAL DIST. TX: +0.0 RX: dBr

RX:

RESULT

TX: TS 0 -55.0 0dBm0 1014Hz  = 2.0dB

D-D

D-A

A-A

A-D

SWP/S

LEVEL

+44.0

+40.0

+30.0

+20.0

+14.0

-55.0 -40.0 -20.0 +0.0

AN1038 Rev 0.00 Page 10 of 14

Sep 2002

Back to Back Configuration

Description

The back to back configuration connects two evaluation boards

together at the PCM interface. The PCM output data from one

board is the PCM input data to the other board. One board is

configured as a master for clock generation and the other is

configured as a slave. A secondary power cable provides daisy

chain power to the second evaluation board.

Power Supply Connections

Power should be applied to the evaluation board using the

primary power cable. Either J5 or J6 may be used. Prior to

applying power, the voltage setting of each supply should be

verified. The power supplies should be turned off while mating

the power cables to the evaluation boards.

Jumper Settings

All jumper settings are described below.

In this configuration the master board provides the clock and

frame sync to the slave board. The selection of the clock rate is

arbitrary and may be any of the available frequencies.

The ribbon cable used to connect the two boards at J14 also

connects the ground planes of the two evaluation boards.

Having returns adjacent to the high speed clock edges is

critical to reducing board level noise.

If transmission quality is poor verify both master and slave

boards are set up for same coding scheme, JP8. In addition,

verify the transhybrid jumper, JP7, is inserted in both boards. If

signal quality still does not improve, verify JP12 of the slave

board is not populated.

Analog to Analog Verification

The back to back configuration verifies the complete signal

path of two evaluation boards. Full duplex transmission is

provided from one Tip and Ring interface to the other. Both

ISL5585 devices do not have to be in the same transmission

mode (forward, reverse or teletax) for proper back to back

operation.

SECONDARY POWER CABLE

MASTER

SLAVE

FIGURE 15. BACK TO BACK CONNECTORS AND JUMPERS

010x11

01x1 00

TABLE 5. MASTER BOARD JUMPER POSITIONS

JUMPER DESCRIPTION

JP4 Connects the receive output of the CODEC (U6) to

the device receive input -IN through RIN.

JP6 Connects the device transmit output VTX to the

CODEC amplifier for transhybrid balance.

JP7 Connects the receive output of CODEC to

transhybrid amplifier, AC coupled by C1.

JP10, POSN 2 Sets the CODEC master clock to 512kHz.

JP11 Enables the on board logic multiplexer.

JP12 Configures board as master.

TABLE 6. SLAVE BOARD JUMPER POSITIONS

JUMPER DESCRIPTION

JP4 Connects the receive output of the CODEC (U6) to

the device receive input -IN through RIN.

JP6 Connects the device transmit output VTX to the

CODEC amplifier for transhybrid balance.

JP7 Connects the receive output of CODEC to

transhybrid amplifier, AC coupled by C1.

JP11 Enables the on board logic multiplexer.

Tabla de contenidos

Otros manuales de Placa madre de Renesas

Renesas

Renesas ISL81801EVAL2Z Manual de usuario

Renesas

Renesas R0E5562GAPFK00 Manual de usuario

Renesas

Renesas PiggyBack Y-RH850-E2X-468PIN-PB-T1-V1 Manual de usuario

Renesas

Renesas EVK-5P1103ALL Manual de usuario

Renesas

Renesas P9235A-RB-EVK Manual de usuario

Renesas

Renesas RA4 Series Manual de usuario

Renesas

Renesas ISL97519AIUZEVALZ Manual de usuario

Renesas

Renesas RA4 Series Manual de usuario

Renesas

Renesas EK-RA6E2 v1 Manual de usuario

Renesas

Renesas HS4100-EVK Manual de usuario

Renesas

Renesas OB1203SD-BT2-EVK Manual de usuario

Renesas

Renesas intersil ISL73007SEH Manual de usuario

Renesas

Renesas R9A06G062GNP Manual de usuario

Renesas

Renesas RTKA489206DK0000BU Manual de usuario

Renesas

Renesas RC22312A Manual de usuario

Renesas

Renesas RA2L1 Manual de usuario

Renesas

Renesas PEB383 QFN Manual de usuario

Renesas

Renesas Y-RH850-F1X-324PIN-PB-T1-V1 Manual de usuario

Renesas

Renesas RAA210130 Manual de usuario

Renesas

Renesas EK-RA4M1 Manual de usuario

Renesas

Renesas ISL28022EVKIT1Z Manual de usuario

Renesas

Renesas ISL8212MEVAL1Z Manual de usuario

Renesas

Renesas ZMOD4410 Manual de usuario

Renesas

Renesas ISL85003EVAL2Z Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
