Renault MEDIA-NAV EVOLUTION Manual de usuario
MEDIA-NAV Evolution
Quick guide
1
WELCOME TO THE WORLD OF MEDIA NAV Evolution.
Congratulations on your choice.
In order to ensure you make the most of your integrated touch screen device, we recommend that you read this document to find out about the main functions and
settings for your multimedia system.
Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from the vehicle manufacturer.
This document does not replace the driver’s handbook.
Please read the driver’s handbook for more detailed information on the features mentioned in the “References” guide for your multimedia system.
The “References” guide covers all the functions (standard and optional) available; their presence in the Média Nav Evolution navigation system depends on the
version, the options selected and the marketing country. Depending on the make and model of your telephone, some functions may be partially or completely
incompatible with your vehicle’s multimedia system.
For more details, please consult an Authorised Dealer.
First use
3
Entering a destination
6
Guidance
9
Listening to the radio
10
Multimedia
12
Bluetooth® device connection
14
Making and receiving a call
16
Eco² driving
18
System settings
19
Updating the system
21
3
AA
Switching on
The multimedia system switches on automatically
when the ignition is switched on. In other cases,
press the 1button on your system.
With the ignition off, the system will operate
for 20 minutes. Press 1again to switch on your
system after 20 minutes.
Switching off
The system switches off automatically when the
vehicle’s ignition is switched off.
TOUCH SCREEN A
The multimedia system is fitted with a touch-
screen device A. Touch with a finger to select a
menu or a display button.
Auxiliary function
You have a USB connection 3and an analogue aux-
iliary input 4on the control panel for connecting an
external audio device.
Standby screen
With the ignition on, press the 1or 5button on
your system to put the system on standby. The
clock and the exterior temperature are displayed
on the screen.
Note: in this mode, the radio or the guidance
system do not operate.
Volume
To modify the volume of the sources and the voice
navigation instructions (during an instruction),
turn 5or press one of the buttons 2.
Voice recognition
The button 6on the steering wheel allows you
to use the voice recognition on your multimedia
system and/or your phone if it is connected to the
system.
For more information, see the multimedia system
user manual.
2
FIRST USE (1/3)
13 4 5
3
4
6
4
12
7 8
11
Radio Media Phone
Driving eco² Nav Setting
Dark
FIRST USE (2/3)
910
Set Time
13 14
15
Player List Presets Options
13 Mode selection area:
– displays the selected mode;
– when the mode selection area is touched, a
drop-down menu will appear.
14 Table of contents area:
– shows the contents of a menu item and
related information.
15 Menu area:
– display subordinate menu of mode;
– shows current menu as highlighted.
16 Home or return to navigation area.
Menu screen
7Mode standby and clock display
8Telephone information area.
9Exterior temperature.
10 Time area.
11 Area for selecting programmed engine start-up
12 Menus area.
16
Navigation screen
17 Map mode (2D /3D and 2D North).
18 Name of the next street to take on your route.
19 Access the current media (USB, AUX, AM, FM,
DAB, iPod®, and Bluetooth®)
20 Options for route and map setting.
21 Voice guidance On/Off.
22 Traffic information (TMC).
Destination
18
192022 21
17
5
Steering column controls
23 Choose audio source (FM / AM / DAB / USB /
iPod® / Bluetooth® / AUX).
24 Tap: access the “Phone” menu.
Press and hold: activate/deactivate multimedia
system voice recognition.
When receiving a call:
– short press: answer the call;
– long press: reject the call.
Brief press during a call: end call.
25, 26 Adjust the volume.
25+26 Mute/unmute the sound;
FIRST USE (3/3)
27 Change the playback mode of the radio stations
or the media (USB / iPod®) currently in use.
28 Rear dial:
– radio: change radio mode (preset/list/fre-
quency);
– media: previous/next track.
29 Change media (CD / USB / AUX).
30 Tap: change radio mode (FM /AM /DAB).
Press and hold: activate/deactivate multimedia
system voice recognition.
23 24
25
26
27
29 30
31
32
33
27
28
28
31
32
33
34
29 30
31, 33 Adjust the volume.
32 Listening to an audio source: mute/unmute.
When receiving a call:
– short press: answer the call;
– long press: reject the call.
Brief press during a call: end call.
34 Rear dial:
– radio: change radio mode (preset/list/fre-
quency);
– media: previous/next track.
Short press: confirm an action.
6
– select a destination on the map from “Find on
map”;
– select a latitude and longitude from “Coordinate”.
ENTERING A NEW “ADDRESS”
This item allows you to enter all or part of the ad-
dress: country, city, street and house number.
Note: only addresses known on the digital map are
authorised.
When using this for the first time, you must select
your country. Then enter the name of the town or
city wanted using the keypad;
The system may suggest several town names in
the area 1.
If these choices are not correct, access the full
list corresponding to your search by pressing
the 2button.
The system displays a list.
ENTERING A DESTINATION (1/3)

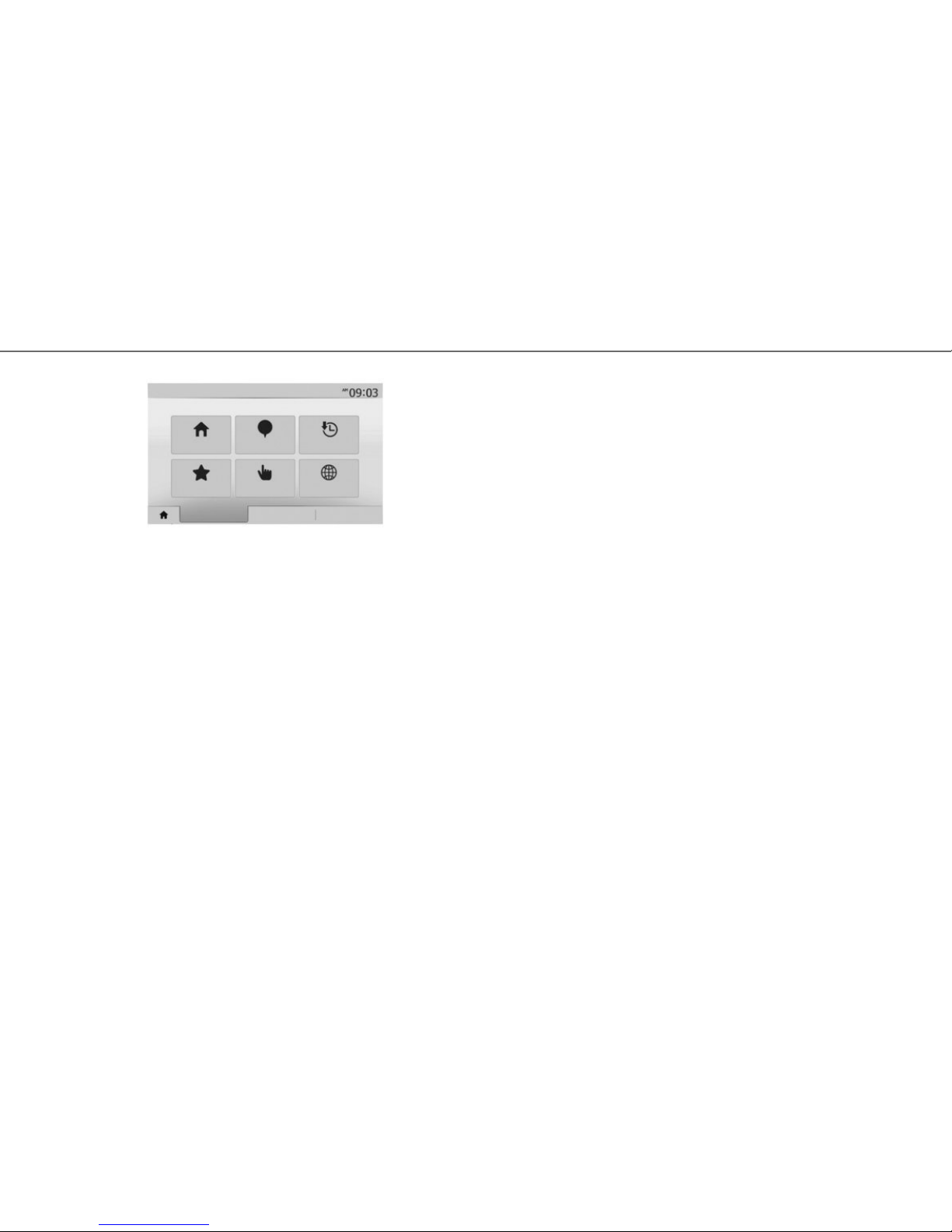

Menu “Destination”
Press the home button to access the “Nav” menu,
then on the “Destination” tab at the bottom of the
screen.
To enter a destination:
– enter an address from “Address”;
– select an address from “Points of interest”;
– select a recent destination from the locations in
“History”;
– select a previously saved address from
“Favourites”;
Refer to the instructions for further information.
– select the town or city;
– follow the same procedure for the “Street”,
“Intersecting street” and “Street number”
screens, if necessary.
When entering the address, the system will high-
light certain letters to help with entering the in-
formation.
Note: “Intersecting street” and “Street Number”
can be activated after selecting “Street”.
Note: The system stores previous addresses in its
memory. Once you have entered a destination by
address, that address will be displayed when the
device is next used.
12
Address Points of interest History
Favourites Find on map Coordinate
Destination Itinerary Options Options
Navigation
7
ENTERING A DESTINATION (2/3)
“POINTS OF INTEREST”
A place of interest is a service, an establishment
or a tourist destination. The locations are classified
into different categories – restaurants, museums,
car parks, etc.
You can search for a point of interest by:
– category:
– name of the point of interest;
– finding a point of interest on the map.
“FAVOURITES”
The favourites can be destinations such as your
place of work, home, school, etc. You can include
a new destination on your favourites list when set-
ting a route to this destination for the first time
(see the “Confirm destination” section).
– select the Home button, “Nav”, then the
“Destination” tab;
– choose “Favourites”;
– select the required destination in the list of
stored addresses.
Address Points of interest History
Favourites Find on map Coordinate
Destination Itinerary Options
Navigation
“HISTORY”
This item enables you to select a destination from
the list of addresses last used. This information is
stored automatically once guidance starts.
From the main menu select “Nav”, the “Destination”
tab, then choose the “History” menu.
From the list of stored destinations, select an ad-
dress then confirm this address as the destination.
8
ENTERING A DESTINATION (3/3)
“FIND ON MAP”
This function allows you to define a destination
from the map.
From the navigation screen, move around on the
map to position the cursor on your destination,
then press “OK” to confirm: the system calculates
the route.
“COORDINATE”
This function allows you to define a destination
using latitude and longitude values.
– “Options”, then “Back to car” enables you to pin-
point your vehicle’s current location;
– “OK” activates guidance.
Confirming the
destination
When the calculation is complete, the system
offers you several options:
– “Options”, then “Add to favourites” enables you
to add destination addresses to your favourites;
– “Options” then “Current traffic” obtains informa-
tion on traffic incidents flagged on your route, or
in your immediate vicinity;
– “Options”, then “News” allows you to consult the
address, latitude, longitude and phone number
(phone number is only activated after selecting
a point of interest known to the system);
Options OK Options OK
Add to favourites
Current traffic
News
Close
Coordinate
Options OK
If the coordinates or map location entered do not
match an accessible location (street or path), the
system will create an error message.
Back to car
9
GUIDANCE
Cancel the route
To stop guidance when in progress, in the main
menu, select “Nav”, “Itinerary” in the tab at the
bottom of the screen, “Cancel Route” then con-
firm.
Configuring a route
“Route settings”, accessible from the “Options”
menu, allows you to select the type of route to take
during navigation.
Route information
This function allows you to view your route before
guidance begins. Select the home button, “Nav”,
then “Itinerary” after entering a destination.
There are six types of settings:
– “Edit route”;
– “Avoidances”;
– “Overview”;
– “Cancel Route”;
– “Alternative routes”;
– “Itinerary”.
Alternative routes
This section, which is accessed through the
“Options” menu after activating your route, enables
the driver to modify the route planning method.
There are three options available:
– “Fast”;
– “Economical”;
– “Short”.
Note: The choice of route configuration, accord-
ing to the selected road type, can greatly affect the
proposed route.
Destination Itinerary Options
Navigation
Destination Itinerary Options
Navigation
Warnings Route settings Map settings
Language Setting Coordinate format GPS
Edit route Avoidances Overview
Cancel Route Alternative routes Itinerary
Alternative routes
Fast
Economical
Short
Otros manuales para MEDIA-NAV EVOLUTION
4
Tabla de contenidos
Otros manuales de Sistema de vídeo para coche de Renault
Renault
Renault Radio Connect R & GO Manual de usuario
Renault
Renault R-LINK2 Manual de usuario
Renault
Renault Radio Connect R & GO Manual de usuario
Renault
Renault R&Go Manual de usuario
Renault
Renault R&Go Manual de usuario
Renault
Renault EASY LINK Manual de usuario
Renault
Renault Radio Connect R & GO Manual de usuario
Renault
Renault R-Link Manual de usuario
Renault
Renault EASY CONNECT Manual de usuario
Renault
Renault MEDIA-NAV EVOLUTION Manual de usuario
Renault
Renault EASY CONNECT EASY LINK Manual de usuario
Renault
Renault EASY CONNECT EASY LINK Manual de referencia
Renault
Renault EASY CONNECT Manual de usuario
Renault
Renault R-Link 2 Manual de usuario
Renault
Renault MEDIA-NAV EVOLUTION Manual de usuario
Renault
Renault R-Link 2 Manual de usuario
Renault
Renault R-Link 2 Manual de usuario
Renault
Renault Clio 4 Manual de usuario
