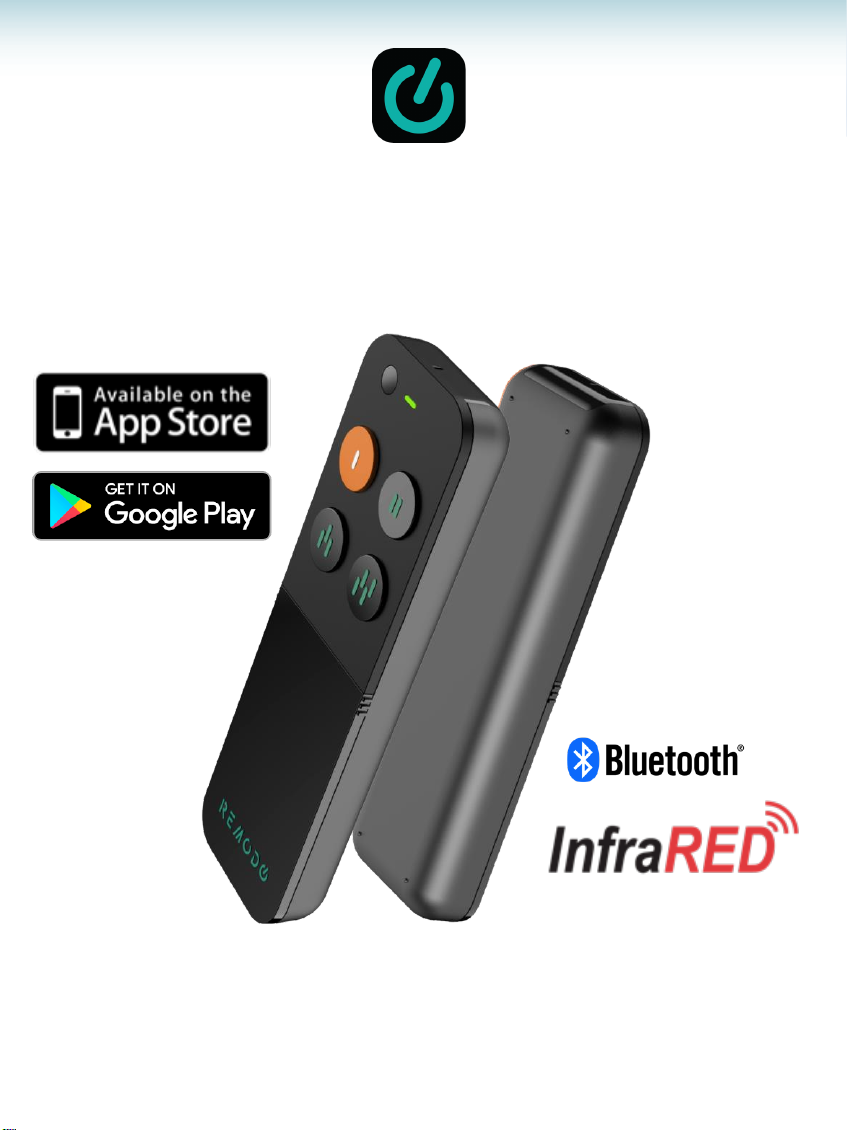

Remodo X

User Manual

Version 1.6 1

•Introduction

•Features & Requirements

•App Installation

•Setup Mode and Control Mode

•Pairing

•Platform Selection & Pairing

•Clear Bonding Information

•Adding or Modifying Commands

•Programming HID Keys

•Adding & Controlling IR Devices

•Find My Remote

•Technical Specifications

•Warranty

•Customer Service & FAQ

Table of Content

Introduction:

Remodo X is an elegantly designed Bluetooth remote

for Raspberry Pi. With 4 programmable buttons,

Remodo X can be optimized to carry out 8 commands

and shortcuts (short & long press). It also boasts the

capability to be used as a presentation clicker or a

universal IR remote controller that supports over 6000

branded devices.

Product Overview: IR

LED Indication

Keys

1-4

Features:

•Programmable HID keys

•Presentation mode & IR remote controller mode

•Comprehensive access to cloud-based infrared code

library database

•LED indication

•Upgradeable firmware over-the-air (OTA)

Requirements:

iOS 13 or above (Supports BLE4.2)

Android - Android 5.0 or above (Supports BLE4.2)

Application Software (App) Installation

Scan QR code or search “REMODO” to download

Setup Mode and Control Mode:

Setup Mode serves to pair to and configure keys

through our Remodo app. Hold “Key 3” and “Key 4” until

you hear the “beep” sound and see blinking red light in

order to switch the remote to this mode. This mode

should be used for the initial pairing and key

configurations setup and whenever you want to change

the key commands and configurations.

Setup Mode Example

Remodo

Configure key

commands through

app

Switch to

Setup Mode

Volume

decrease

Volume

increase

Switch to Control mode to

use newly configured keys

Key 3 Key 4

Setup Mode and Control Mode:

Control Mode serves to connect to and operate your

targeted platform or device. Hold Keys 1 & 2 until you

hear a “beep” sound and see blinking green light to

switch to this mode. Switching the remote to Control

mode is required in order to control your devices after

setup and/or configuring keys.

Control Mode Example

POWER ON

IR signal

Accept Call

BLE connection

Key 1 Key 2

Pairing:

Pairing the remote controller requires both Wi-Fi and

Bluetooth to be turned on. Insert 2 AAA batteries to

battery compartment and place the remote near the smart

phone handset. Hold “Key 3” and “Key 4” until you hear

the “beep” sound and see blinking red light indicating

setup mode then press “Start Pairing” to pair the remote

with the app.

Key 3 Key 4

Each remote has a unique id (e.g. Remodo_X_setup

_00006) and the app will scan for this remote controller

and indicate it to you.

If the app fails to find the remote controller, please

repeat the above steps to reinitialize the pairing

process.

*Please ensure the remote controller has batteries inside and is

placed nearby

Connecting Failure to connect

Platform Selection & Pairing:

If the app pairing is successful, you will be able to

download the relevant HID commands for the platform

of your device (Windows or MacOS). After selecting the

platform, you can name the remote. Press “Complete” to

confirm the remote name. Then you can proceed to

holding Keys 1 & 2 until you hear a “beep” sound and

see green light indicating Control mode in order to

pair the remote with your PC or laptop through

Bluetooth.

Key 2

Key 1

Clear bonding information with your platform

(MacOS or Windows):

If there is a situation that you want to configure other

keys but the Mac OS / Windows keeps showing the

loading icon and is unable to connect to Remodo X, you

can clear the bonding information by pressing and

holding Keys 1 & 4 until you hear the “beep” sound and

see a green light indicating Control mode after which

you should be able to pair the remote with your platform

through Bluetooth.

Key 4

Key 1
