INDUSTRIAL BUTTON SEWER PROGRAMMINGMANUAL

RELIABLE

8100BS

RELIABLE 8100BS

INDUSTRIAL BUTTON SEWER

PROGRAMMING MANUAL

RELIABLE. RIGHT THERE WITH YOU.

At Reliable, we do what we love, and take pride in doing it right.

You want what’s best for the people, places and things that matter

in your life – from where you live to what you wear. So do we. From

the start, we approach every product with a craftsman’s attention

to detail and passion for making it right. Quality, functionality,

design and customer service play an equally important part in

delivering what’s right for you.

For your safety and to fully enjoy the advantages of this product,

please take a few minutes to read all of the important safeguards

and care instructions. Keep this manual handy and review the

product warranty for your reference.

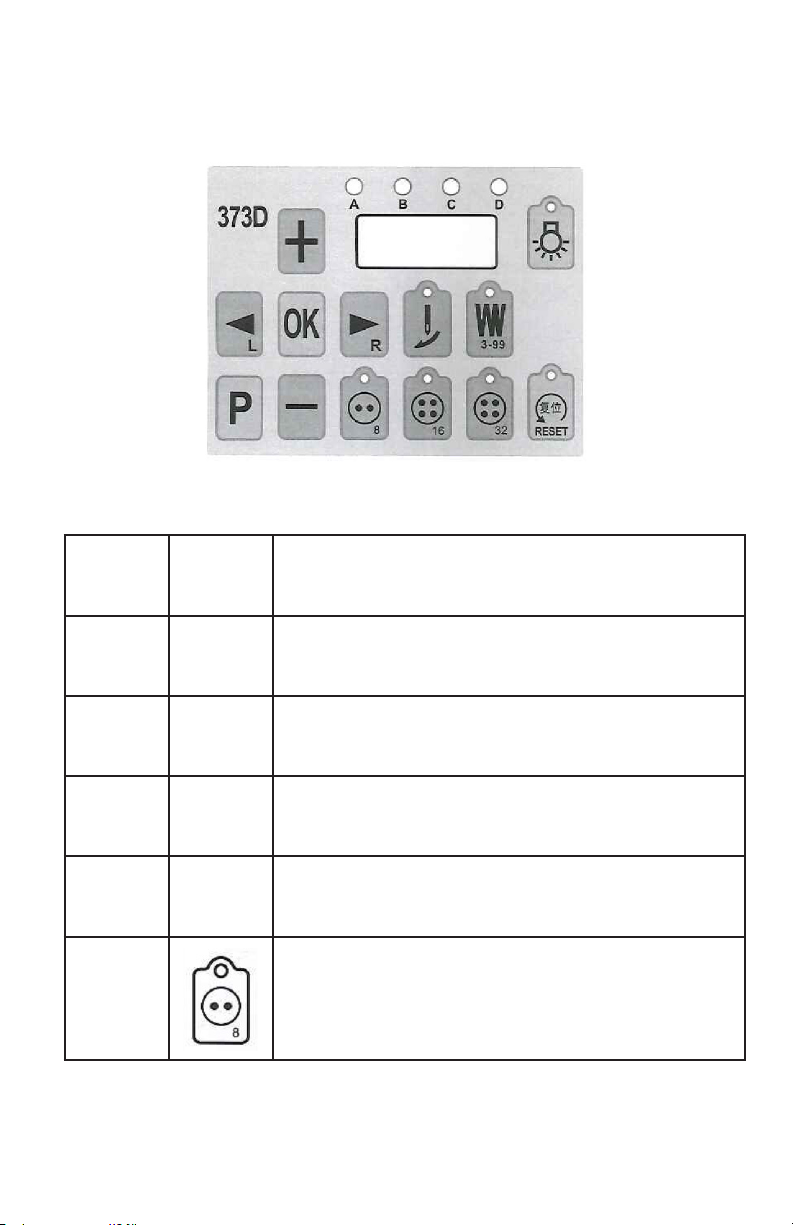

DISPLAY SCREEN OPERATION INSTRUCTIONS

No. Button

Icon Function Description

1LED (A)

When presser foot is in the correct place, the LED (A) will illuminate.

When the presser foot is up or put into the wrong position, LED (A)

will not illuminate.

2LED (B)

When the hand wheel on the right side of the machine is rotated to

a fixed position (the A1. wheel will auto to find needle stop position),

it will be detected by the sensor, LED (B) will illuminate.

3LED (C)

Up needle position of motor LED

4LED (D)

LED (D) is a status indicator. When the system is running, LED (D)

will illuminate. When the system is on stand-by or waiting, LED

(D) is off.

Two hole button sewing machine 8-stich shortcut key.

When this button is selected, LED will illuminate to indicate

the selection. The sewing machine will run in 8-stitch mode.

(Can run with 16-stitch or 32-stitch switchable)

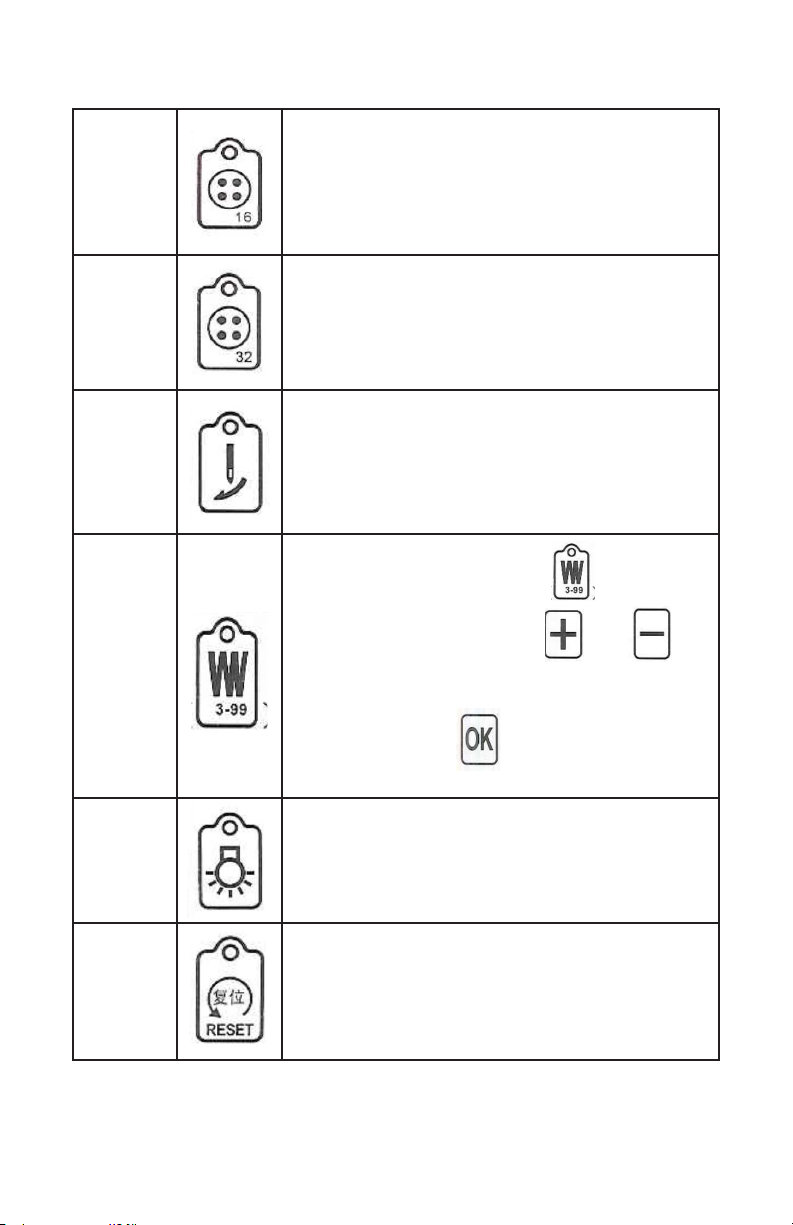

Four hole button sewing machine 16-stitch shortcut key.

When this button is selected, LED will illuminate to indicate

the selection. The sewing machine will run in 16-stitch mode.

(Can run with 8-stitch or 32-stitch switchable)

Four hole button sewing machine 32-stitch shortcut key.

When this button is selected, LED will illuminate to indicate

the selection. The sewing machine will run in 32-stitch mode.

(Can run with 8-stitch or 16-stitch switchable)

Wiper function key.

When selected the LED will illuminate above the button to

indicate it is on. When off, the LED will not illuminate.

Stitch count adjust key.

To adjust the stitch count, select the key. The screen

will display and flash "n-08". Select or

to adjust the stitch count number. Once the desired stitch

count is selected, press to save.

Built-in LED light.

To turn on the LED, simply select the button. To turn the LED

off, press the button again.

Reset function.

When the machine is turned on, press the reset button to clear

parameters. Once the reset button is selected, set new param-

eters based on sewing needs.

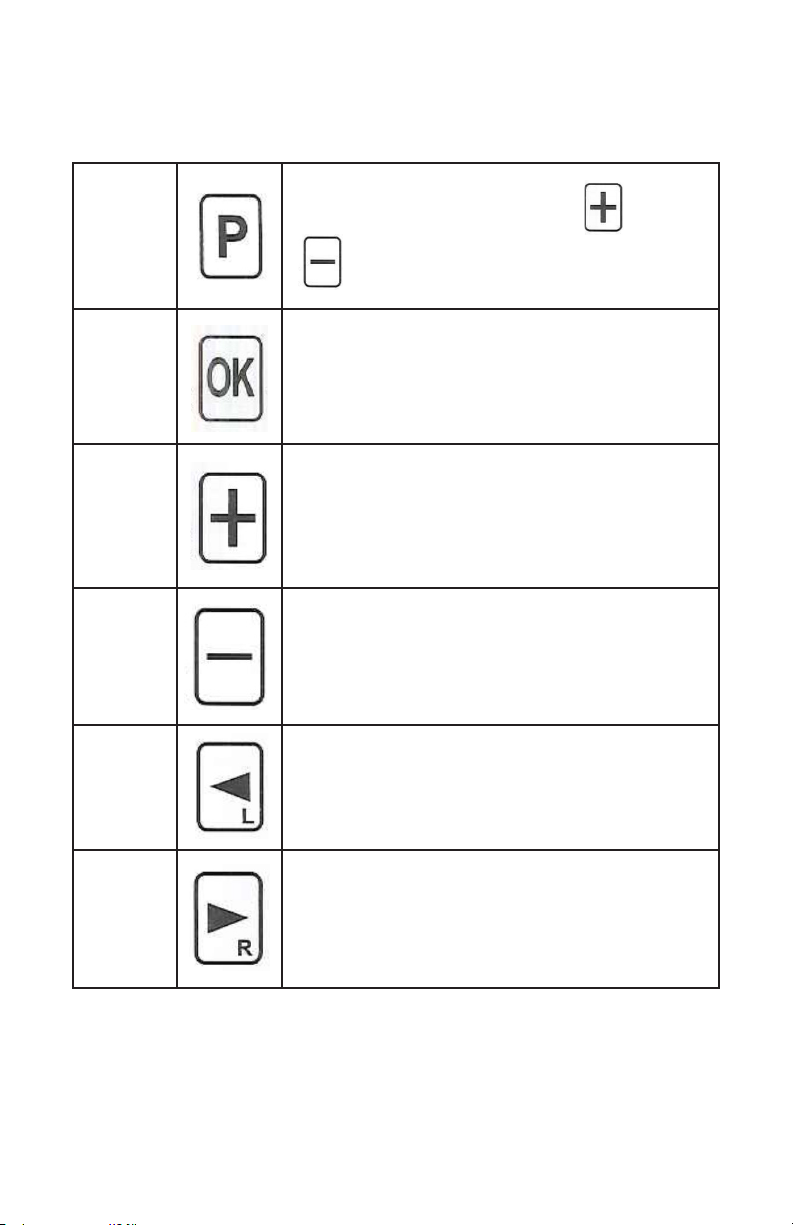

Parameter adjustment and selection.

Once the parameter key is selected, press or

to select the desired parameter.

Press the "OK" button so save desired parameters.

The "+" button (modify parameters plus)

The "-" button (modify parameters minus)

Arrow left.

Function in the parameter list to return to the previous page.

Arrow right.

Function in the parameter list to enter the parameter for

adjustment.

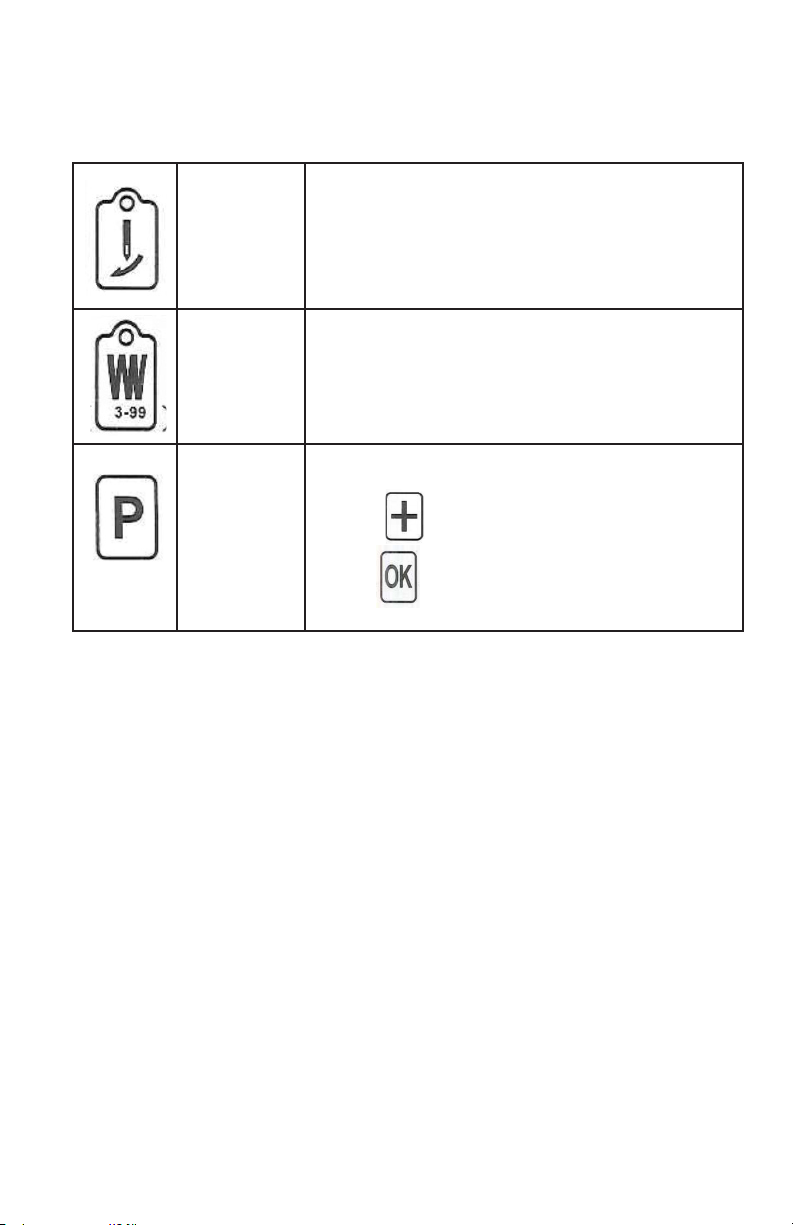

SHORTCUT KEY FUNCTIONS

Hold button to

initiate.

This will engage the shortcut to enter the wiper parameter

adjustment.

Hold button to

initiate.

This will engage the shortcut to enter the wiper parameter

adjustment.

Hold button to

initiate.

To reset to factory settings,

press the button. The screen will display "000". Press

and hold button for 5 seconds to complete.

HOW TO ENTER & MODIFY PARAMETERS

Press the and button at the same time to enter into the "System Parameters" list.

The screen will display "0000" and press button to enter. Once you are in the parameter

setting screen, press and/or to switch through the parameter numbers. Once you

find the parameter you wish to set, press the button and to save.

SYSTEM PARAMETERS LIST

System

Function

Description

Function

Parameter

Default

Values

Function

Parameter

Ranges

Parameter

Description

Precautions

002 Reset Speed 200 150-800

021 Reset system

password

000 000~003 This parameter is

adjusted to 003,

hold "OK" button.

Restoring the fac-

tory password

023 Display speed 200~1800 Press the "P"

button

Display motor

speed

024 Governor

deteceted

200 Detection governor

normal

Detection should be

before reset

025 Automatic

running

0 0: CLOSE

1: OPEN

Machine running Turn the power on

again to close the

parameter

031 Presser foot

advance angle

80 10~90 Larger the angle,

greater the

sensitivity

046 Wiper action

delayed start

time

40 10~2000

047 Wiper action

time

70 10~2000

048 Wiper action

time at full

power

70 10~990

050 Wiper action

time at main-

tained power

50 1~100

051 Wiper action

release

50 20~800

055 Wiper function

on/off switch

000 (off) 0001 (on)

058 Foot lift action

time at full

power

160 0~900 Affects elecrto-

magnets when too

high

059 Foot lifter power 100% 0~100% Opinion param-

eters 80~100

060 Foot lifter at

maintained

power

6% 0~100% Not recommended

at high - affects

heat

061 After presser

foot release -

delay time of

needle down

1 1~900

063 Foot lifter

needle sensor

switch

1 0: OFF

1: ON

When parameter

63 is closed, you

need to set param-

eter 61 to 350 to

prevent needle

from breaking

065 Presser foot

delay time

0 0~900

071 Running speed 1500 200~1800

ERROR CODE ANALYSIS

ERROR CODE SOLUTION

ER-O1

Needle position error

1. Hand wheel & motor issue

2. Hand wheel magnet off

3. Hand wheel magnet polarity reversal

4. Nine-pin terminal head poor contact

5. Motor hall damaged

ER-02

Pedal velometer signal wrong

1. Velometer not plugged in

2. Velometer not plugged in to correct box

3. Velometer line broken

4. Velometer damage

ER-03

Motor phase error signal

1. Nine-pin terminal poor contact

2. Hall and rotor has large deviations when the

motor is mounted

3. Motor hall damage

ER-04

Motor stall protection

1. Sewing overweight or blocked

2. Motor overload

3. 4-wire motor drive cable is not connected or

inserted

ER-05

Hardware over current

1. Sewing overweight or blocked

2. Motor overload

3. Motor phase signal line is not connected

ER-07

Serial communication timeout

1. Display - bad cable connection to motherboard

2. Motherboard chip damage

ER-09

Poor memory

1. Motherboard memory corruption

ER-13

No signal to presser foot

1. Presser foot sensor is mounted too far away

2. Presser foot sensor damage

3. Magnet on presser foot connecting bar is not

connected properly or installed backwards

ER-14

Reset sensor can not find the needle position

1. The sensor on left induction aluminum wheel

is damaged

2. Magnet on aluminum wheel not connected or

installed backwards

ER-15

9700 Error signal

1. 9700 encoder is damaged
