WARNING:

Iftheinformationintheseinstructionsarenotfollowedexactly,

a ﬁre or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁed

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical switch:

do not use any phone in your

building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁre department.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

918-932

Regency Horizon™HZ42E

Gas Fireplace

04/12/11

Owners &

Installation Manual

www.regency-ﬁre.com

Tested by:

Installer

: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

MODELS: HZ42E-NG Natural Gas

HZ42E-LP Propane

2HZ42E Regency Horizon™ Gas Fireplace

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ42E has been

designed to provide you with all the warmth and charm of a ﬁreplace at the ﬂick of a switch. The

model HZ42E has been approved by Warnock Hersey/Intertek for both safety and efﬁciency. As

it also bears our own mark, it promises to provide you with economy, comfort and security for

many trouble free years to follow. Please take a moment now to acquaint yourself with these

instructions and the many features of your Regency®Fireplace.

HZ42E Regency Horizon™ Gas Fireplace 3

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following standards:

VENTEDGASFIREPLACEHEATERSANSIZ21.88a-2007/CSA2.33a-2007andGAS-FIREDAPPLIANCESFORUSEATHIGHALTITUDES

CAN / CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home

Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes

followthe currentNational FuelGas Code,ANSIZ223.1 andthe currentNational ElectricalCodeANSI/NFPA70in theU.S.A., andthe current

CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to

local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.Aonly) or mobile home, where not prohibited

by local codes.

This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

Ensure that structural members are not cut or weakened during installation.

4HZ42E Regency Horizon™ Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Decal.....................................................5

REQUIREMENTS

MA Code - CO Detector.................................................6

DIMENSIONS

Unit Dimensions ............................................................7

INSTALLATION

Important Message ......................................................8

Before You Start ............................................................8

General Safety Information............................................8

Installation Checklist......................................................9

Locating Your Gas Fireplace .........................................9

Clearances ..................................................................10

Mantel Clearances.......................................................11

Mantel Leg Clearances................................................11

Unit Assembly Prior To Installation..............................12

Standoff Assembly...............................................12

Nailing Strips........................................................12

Framing Dimensions....................................................13

Non-Combustible Requirements .................................14

Non-combustible facing installation ............................14

Framing & Finishing.....................................................15

Vent Restrictor Position...............................................17

Exterior Vent Termination Requirements.....................18

4” x 6-5/8” Rigid Pipe Cross Reference Chart only .....19

Venting Introduction.....................................................21

Venting Arrangement for Horizontal Terminations.......21

Horizontal Terminations...............................................22

Flex Vent 4" x 6-5/8"....................................................22

horizontal terminations ................................................23

Rigid Pipe 4" x 6-5/8"...................................................23

Horizontal Terminations...............................................24

Rigid Pipe 4" x 6-5/8"...................................................24

Venting Arrangement for Vertical Terminations............27

Vertical terminations....................................................28

Rigid Pipe 4" x 6-5/8"...................................................28

Vertical Terminations ...................................................29

Rigid Pipe 4" x 6-5/8"...................................................29

Unit Installation with Horizontal Termination ...............31

4" x 6-5/8" venting .......................................................31

Unit Installation with Horizontal Termination ...............32

unit installation with Vertical Termination.....................33

4" x 6-5/8" venting .......................................................33

High Elevation .............................................................34

Gas Line Installation....................................................34

Pilot Adjustment...........................................................34

Gas Pipe Pressure Testing..........................................34

886 S.I.T. Valve Description.........................................34

Aeration Adjustment ....................................................34

Wiring Diagram............................................................35

Optional accent lighting Wiring Diagram ....................35

Optional Wall Thermostat ...........................................36

Optional Remote Control.............................................36

Wall Switch..................................................................36

GT remote installation .................................................37

GTM remote installation ..............................................38

Optional Reﬂective Panel Installation..........................40

Optional Light Installation............................................41

Glass Crystals or optional ceramic stones ..................44

Installation On Burner..................................................44

Optional Pebble / Crystal Installation...........................45

Glass door Installation.................................................46

Faceplate Installation..................................................47

OPERATING INSTRUCTIONS

Operating Instructions .................................................49

First Fire ......................................................................49

Shutdown Procedure...................................................49

Normal Operating Sounds of Gas Appliances.............49

Copy of Lighting Plate Instructions..............................50

MAINTENANCE

Maintenance Instructions.............................................51

General Vent Maintenance..........................................51

Glass Gasket...............................................................51

Glass Door...................................................................51

Glass Replacement .............................................51

Glass Door Removal ...................................................52

Valve assembly Replacement .....................................53

Bulb replacement.........................................................54

PARTS LIST

Main Assembly ............................................................55

Accessories.................................................................55

WARRANTY

The Warranty: Limited Lifetime ...................................59

HZ42E Regency Horizon™ Gas Fireplace 5

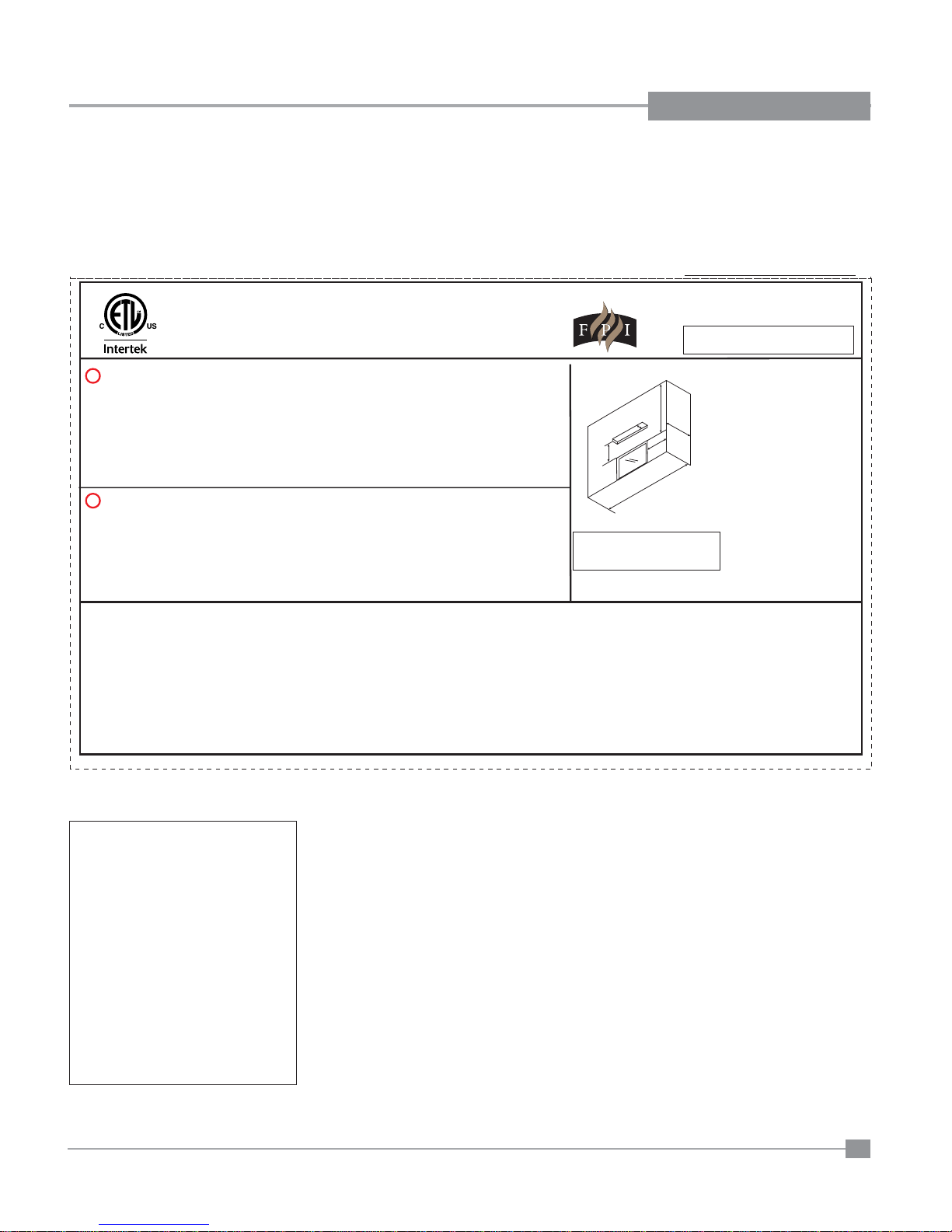

SAFETY LABEL

This is a copy of the label that accompanies each HZ42E-NG and HZ42E-LP Direct Vent Gas Fireplace. We have printed a copy of the contents here for

your review.

NOTE: Regency®units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

COPY OF SAFETY DECAL

FortheState of Massachusetts, installation

and repair must be done by a plumber or

gasﬁtter licensed in the Commonwealth of

Massachusetts.

FortheStateofMassachusetts,ﬂexiblecon-

nectorsshallnotexceed36inchesinlength.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordancewithNFPA720and a COalarm

withbatterybackupinthesameroomwhere

the gas appliance is installed.

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

371

DOOR SEAL: Please

check that the door is

properly sealed

FPI Fireplace Products International Ltd. Delta, BC, Canada

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

Serial No./ No de serie

918-931

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Listed:

Certified for/Certifi e pour:

Tested to:

VENTED GAS FIREPLACE HEATER /

CANADA and U.S.A.

FOYER AU GAZ À ÉVACUATION

CAN/CGA-2.17-M91,ANSI Z21.88a-2007/CSA 2.33a-2007

4001172

Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.

NOT FOR USE WITH SOLID FUELS. /

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.

Made in Canada/ Fabrique au Canada

(See Instruction Manual for

detailed instructions)

ÉÉ

QUIP A L'UISINE POUR GAZ PROPANE

CONCU POUR ETRE POELE: Mod le HZ42E

PROPANE GAS: Model HZ42E-LP

Minimum supply pressure

Manifold pressure high

Manifold pressure low

Orifice size

Minimum input

Maximum input

Altitude

NATURAL GAS: Model HZ42E-NG

APPAREIL FONCTIONNANT AU NATURAL GAS

CONCU POUR ETRE POELE: Mod le HZ42E

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Pression à la tubulure d' chappement basse

Grandeur de l'injecteur

D bit minimum selon

D bit maximum selon

l'altitude

Calorifique

ééé

5.0" (1.25 kPa)

3.5" (0.87 kPa)

1.6" (0.40 kPa)

#40 DMS

0-4500 ft/pi (0-1372 m)

WC/C.E.

17,500 Btu/h (5.13 kW)

26,000 Btu/h (7.62 kW)

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Pression à la tubulure d' chappement basse

Grandeur de l'injecteur

D bit minimum selon

D bit maximum selon

l'altitude

Calorifique

ééé

12“ WC (2.98 kpa)

WC/C.E.

19,500 Btu/h (5.71 kW)

24,500 Btu/h (7.18 kW)

10" (2..49 kPa)

6.4" (1.60 kPa)

#53 DMS

0-4500 ft/pi (0-1372 m)

Minimum supply pressure

Manifold pressure high

Manifold pressure low

Orifice size

Minimum input

Maximum input

Altitude

Side Walls

A 8” (203mm)

B 22” (559mm)

C 13" (330mm)

D 13” (330mm)

E 84" (2133mm)

F 36" (914mm)

Ceiling

Min. Mantel Height

Max. Mantel Depth

Alcove Width

Alcove Depth

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.

This appliance must be installed in accordance with the Standard CAN/CSAZ240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in

the United States, or when such a standard is not applicable,ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard orANSIA119.2 ou NFPA 501C Standard for Recreational Vehicles

This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See

owner's manual for details.

Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.

Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety

Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational

Vehicles.

This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.

FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY

Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si

les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL

6HZ42E Regency Horizon™ Gas Fireplace

REQUIREMENTSREQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

HZ42E Regency Horizon™ Gas Fireplace 77

DIMENSIONSDIMENSIONS

UNIT DIMENSIONS

47” (1194mm)

15-5/8” (397mm)

18-5/8” (473mm)

½” (13mm)

30” (762mm)

48-3/4” (1238mm)

23-5/8” (600mm)

14-5/32” (360mm)

28-7/8” (733mm)

1-½” (38mm)

36” (914mm)

12-7/8” (327mm)

½” (13mm)

36-7/8” (937mm)

1-½” (38mm)

41-3/16”” (1046mm)

21-3/16” (538mm)

38”” (965mm)

8HZ42E Regency Horizon™ Gas Fireplace

INSTALLATIONINSTALLATION

10) Beaware of electricalwiringlocations in walls

andceilingswhencuttingholesfortermination.

11) Undernocircumstancesshouldthisappliance

bemodiﬁed.Partsthathavetoberemovedfor

servicingshouldbereplacedpriortooperating

this appliance.

12) Installation and any repairs to this appliance

should be done by an authorized service per-

son. A professional service person should be

calledtoinspectthisapplianceannually.Make

it a practice to have all of your gas appliances

checked annually.

13) Do not slam shut or strike the glass door.

14) Undernocircumstancesshouldanysolidfuels

(wood, paper, cardboard, coal, etc.) be used

in this appliance.

15) The appliance area must be kept clear and

freeofcombustiblematerials,(gasesandother

ﬂammable vapours and liquids).

Emissions from burning wood or gas could

contain chemicals known to the State of

California to cause cancer, birth defects or

other reproductive harm.

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

TheHZ42E Direct VentFireplace must be installed

inaccordancewiththeseinstructions.Carefullyread

all the instructions in this manual ﬁrst. Consult the

"authorityhavingjurisdiction"todeterminetheneed

for a permit prior to starting the installation. It is the

responsibilityoftheinstallertoensurethisﬁreplace

is installed in compliance with manufacturers

instructions and all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance

requirescommonsense,however,wearerequired

by the Canadian Safety Standards and ANSI

Standards to make you aware of the following:

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes,

with the current Canadian or National Gas

Codes,CAN1-B149orANSIZ223.1Installation

Codes.

2) The appliance when installed, must be electri-

callygroundedinaccordance withlocalcodes,

orintheabsenceoflocalcodeswiththecurrent

NationalElectricalCode,ANSI/NFPA70orCSA

C22.1 Canadian Electrical Code.

3) See general construction and assembly in-

structions. The appliance and vent should be

enclosed.

4) Thisappliancemustbeconnectedtothespeci-

ﬁed vent and termination cap to the outside of

the building envelope. Never vent to another

room or inside a building. Make sure that the

vent is ﬁtted as per Venting instructions.

5) Inspect the venting system annually for block-

age and any signs of deterioration.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing must

be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is

unfamiliarwiththeoperationtousetheﬁreplace.

9) Wear gloves and safety glasses for protection

while doing required maintenance.

CHILDREN AND ADULTS SHOULD BE

ALERTED TO THE HAZARDS OF HIGH

SURFACE TEMPERATURES, ESPE-

CIALLY THE FIREPLACE GLASS, AND

SHOULD STAY AWAYTO AVOID BURNS

OR CLOTHING IGNITION.

INSTALLATION AND REPAIR SHOULD

BE DONE BY AN AUTHORIZED

SERVICE PERSON. THE APPLIANCE

SHOULD BE INSPECTED BEFORE

USE AND AT LEAST ANNUALLY BY A

PROFESSIONAL SERVICE PERSON.

MORE FREQUENT CLEANING MAY

BE REQUIRED DUE TO EXCESSIVE

LINT FROM CARPETING, BEDDING

MATERIAL,ETC. IT IS IMPERATIVETHAT

CONTROL COMPARTMENTS,BURNERS

AND CIRCULATING AIR PASSAGEWAYS

OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE

APPLIANCE SHOULD BE LOCATED

OUT OF TRAFFIC AND AWAY FROM

FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS

APPLIANCE CORRECTLY WILL VOID

YOUR WARRANTY AND MAY CAUSE A

SERIOUS HOUSE FIRE.

CLOTHING OR OTHER FLAMMABLE

MATERIAL SHOULD NOT BE PLACED

ON OR NEAR THE APPLIANCE.

YOUNG CHILDREN SHOULD BE CARE-

FULLY SUPERVISED WHENTHEY ARE

IN THE SAME AREA AS THE APPLI-

ANCE. TODDLERS,YOUNG CHILDREN

AND OTHERS MAY BE SUSCEPTIBLE

TO ACCIDENTAL CONTACT BURNS. A

PHYSICAL BARRIERS IS RECOMMEND-

ED IFTHERE ARE AT RISK INDIVIDUAL

INTHE HOUSE. TO RESTRICT ACCESS

TO A FIREPLACE OR STOVE, INSTALL

AN ADJUSTABLE SAFETY GATE TO

KEEP TODDLERS, YOUNG CHILDREN

AND OTHER AT RISK INDIVIDUALS OUT

OF THE ROOM AND AWAY FROM HOT

SURFACES.

HZ42E Regency Horizon™ Gas Fireplace 9

INSTALLATION

This includes:

1) Clocking the appliance to ensure the correct

ﬁring rate (rate noted on label 26,000 Btu/h

(NG),24,500Btu/h(LP)afterburningappliance

for 15 minutes.

2) If required, adjusting the primary air to ensure

thattheﬂame does not carbon. Firstallowthe

unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that

causes sooting or carboning that results in

damage is not the responsibility of the manu-

facturer.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Roomlocation(Referto"LocatingYourGas

ﬁreplace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Mantel

Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "Venting"

section)

2) Assemble Standoffs (Refer to "UnitAssembly

Prior to Installation).

3) Slide unit into place.

4) Install vent (Refer to "Venting Arrangement"

sections).

5) Make gas connections (Refer to "Gas Line

Installation section).

6) Make electrical connections to receptacle

supplied with unit (recommended).

7) Test the pilot (Refer to "Pilot Adjustment"

section).

8) TestGasPressure(Referto"GasPipePressure

Testing" section).

9) Installstandard and optional features. Refer to

the following sections:

a) Glass Crystals/ Optional Ceramic

Stones

b) Optional Firebox Base Pebbles

c) Optional Reﬂective Panels

d) Optional Accent Light

e) Faceplate

f) Remote Control or Wall Thermostat

10) Wall Mounted ON/OFF Switch:

Use the toggle wall switch supplied with the

manualpackage.Useofa“decor”switchcauses

higher resistance which is a problem on gas

ﬁreplaces.

11) Final check.

Before leaving this unit with the customer, the

installer must ensure that the appliance is ﬁring

correctly and operation fully explained to

customer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁreplace,

ensure that the clearances are met.

2) Theappliancemustbeinstalledon a ﬂat, solid,

continuoussurfaceForexampleawood,metal

or concrete ﬂoor or in a raised (on the wall) ap-

plication. The appliance must be installed on

a metal or wood panel extending the full width

and depth of the appliance.

3) The HZ42E Direct Vent Gas Fireplace can be

installed in a recessed position or framed out

into the room as in A, B, C and D.

See Diagram 1.

Diagram 1

A) Flat on Wall

B) Flat on Wall Corner

C) Recessed into Wall/Alcove

D) Corner

4) ThisapplianceisListedforbedroom installations

usingthestandardRemote(millivoltthermostat

system). Some areas may have further

requirements, check local codes before

installation.

5) The HZ42E Direct Vent Gas Fireplace

is approved for alcove installations, see

"Clearances" section for details.

6) We recommendthatyouplanyourinstallationon

paperusingexactmeasurementsforclearances

andﬂoorprotectionbeforeactuallyinstallingthis

appliance.Haveanauthorizedinspector,dealer,

orinstallerreviewyourplansbeforeinstallation.

Note: For vent terminations refer to "Exterior

Vent Termination Locations" section.

10 HZ42E Regency Horizon™ Gas Fireplace

INSTALLATION

Caution Requirements

The top, back and sides of the ﬁreplace are deﬁned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

WARNING

Fire hazard is an extreme risk

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁreplace and vent

system be installed only in accordance with these instructions.

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

Amajor causeofchimneyrelated ﬁres is failure to maintain required clearances (air space) to combustible materials.Itisofthe greatest importance

that this ﬁreplace and vent system be installed only in accordance with these instructions.

Clearance: Dimension Measured From:

A: Mantel Height (min.) 13" (330mm) Top of Fireplace Opening

B: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening

C: Ceiling

(room and/or alcove) 22" (559mm) Top of Fireplace Opening

D: Mantel Depth (max.) 13" (330mm) 22" Above Fireplace Opening

E: Alcove Width 84" (2134mm) Sidewall to Sidewall (Minimum)

F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

G: From Floor 25-3/4" Top of Fireplace Opening

Note: 0" No hearth required

Flue Clearances to Combustibles

Horizontal - Top 3"

Horiztonal - Side 2"

Horiztonal - Bottom 2"

Vertical 2"

Passing through wall/

floor/ceiling - when

ﬁrestop is used. 1-1/2"

Alcove

IMPORTANT NOTE

Combustible material can only be installed to

the bottom lip of the ﬁreplace as shown below.

The ﬁnished ﬂoor must not come in contact with

the front face of the ﬁreplace. Non-combustible

material (see "Framing and Finishing" section)

must act as a barrier between the front face and

ﬁnished ﬂoor.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Regency Fireplace Products

Regency Fireplace Products

Regency Fireplace Products Skope E110-2 Manual de funcionamiento

Regency Fireplace Products

Regency Fireplace Products CB72EPV-NG Manual de usuario

Regency Fireplace Products

Regency Fireplace Products Panorama P36 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products I2400M Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products I31-2 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products I2403M Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products F1100S Manual de servicio

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTE Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products I2404M Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products P36-NG4 Natural Gas Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products P121-NG Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products L390E Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Albany Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products P33-NG4 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products FPI E33 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products HORIZON HZ33CE Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Greenfire GFi350LNG-R Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Alterra CI1150 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Albany F200B-2 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products HZ54E-NG1 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products CI2600 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Contura Ri50 Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTCE Guía de inicio rápido

Regency Fireplace Products

Regency Fireplace Products Grandview G800C Guía de inicio rápido

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
