Reebok TITANIUM TC1.0 Manual de usuario

TC1.0/TC2.0/TC3.0 USER MANUAL

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

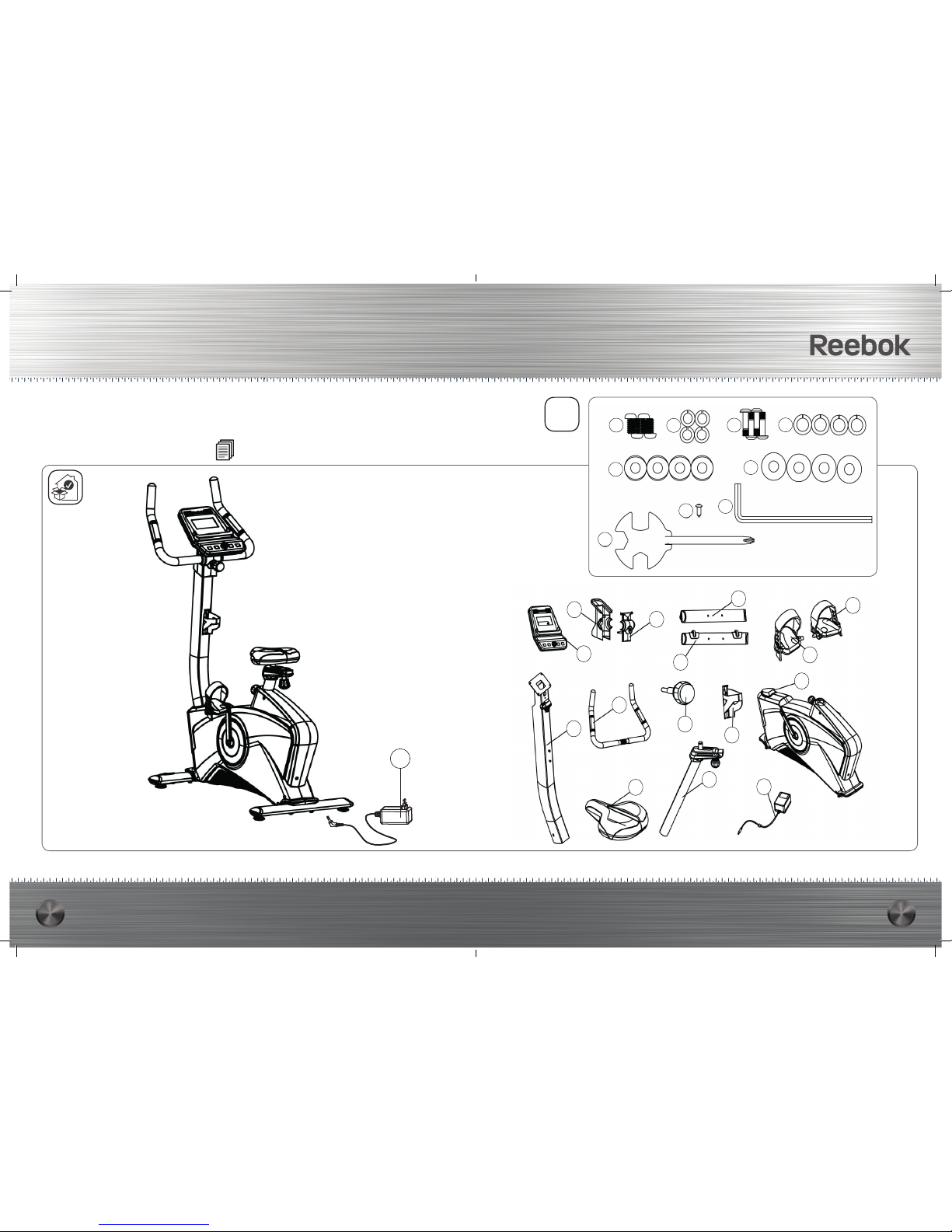

ASSEMBLY GUIDE

tc1.0/tc2.0/tc3.0

42 77

80

85 84

Images for illustration purposes only

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

= +

Images for illustration purposes only

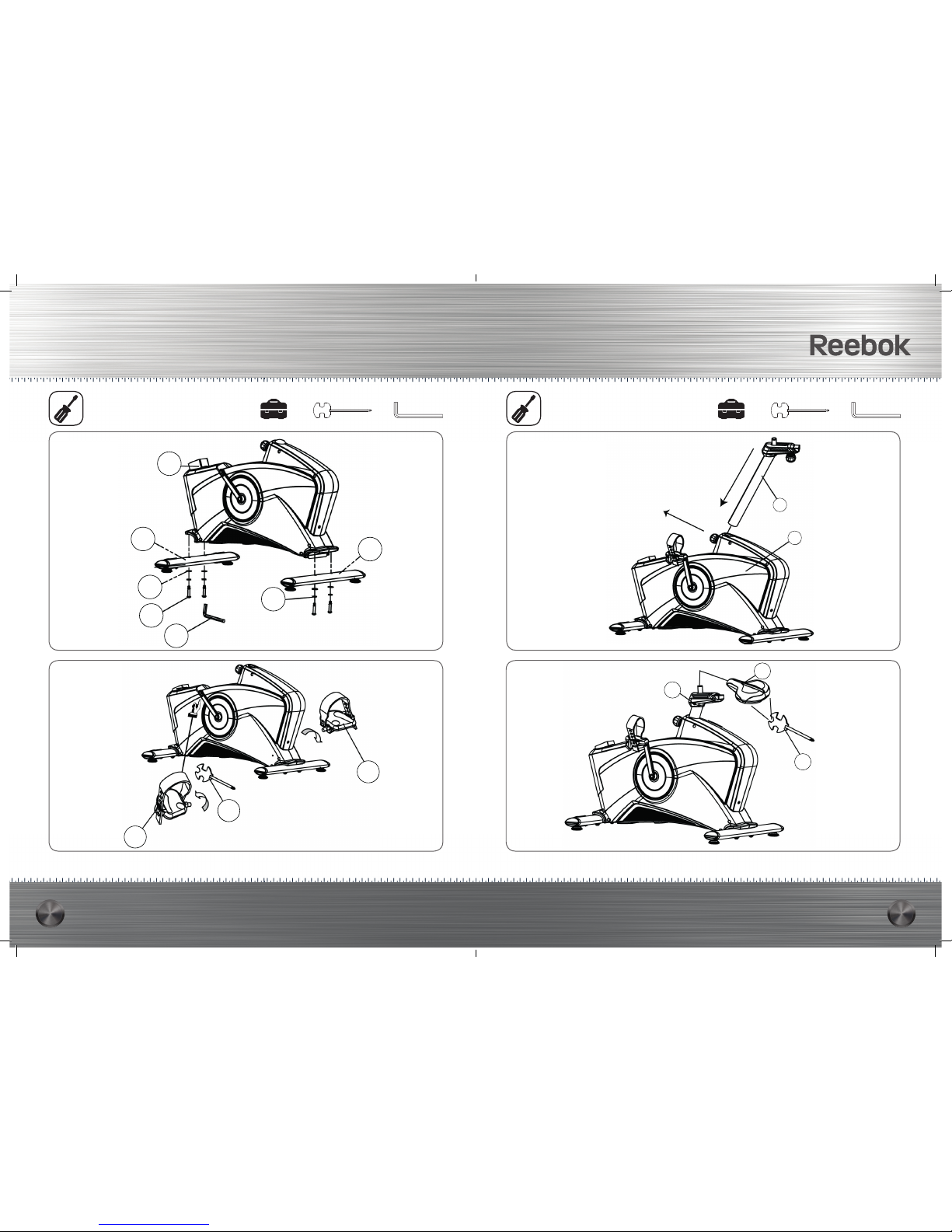

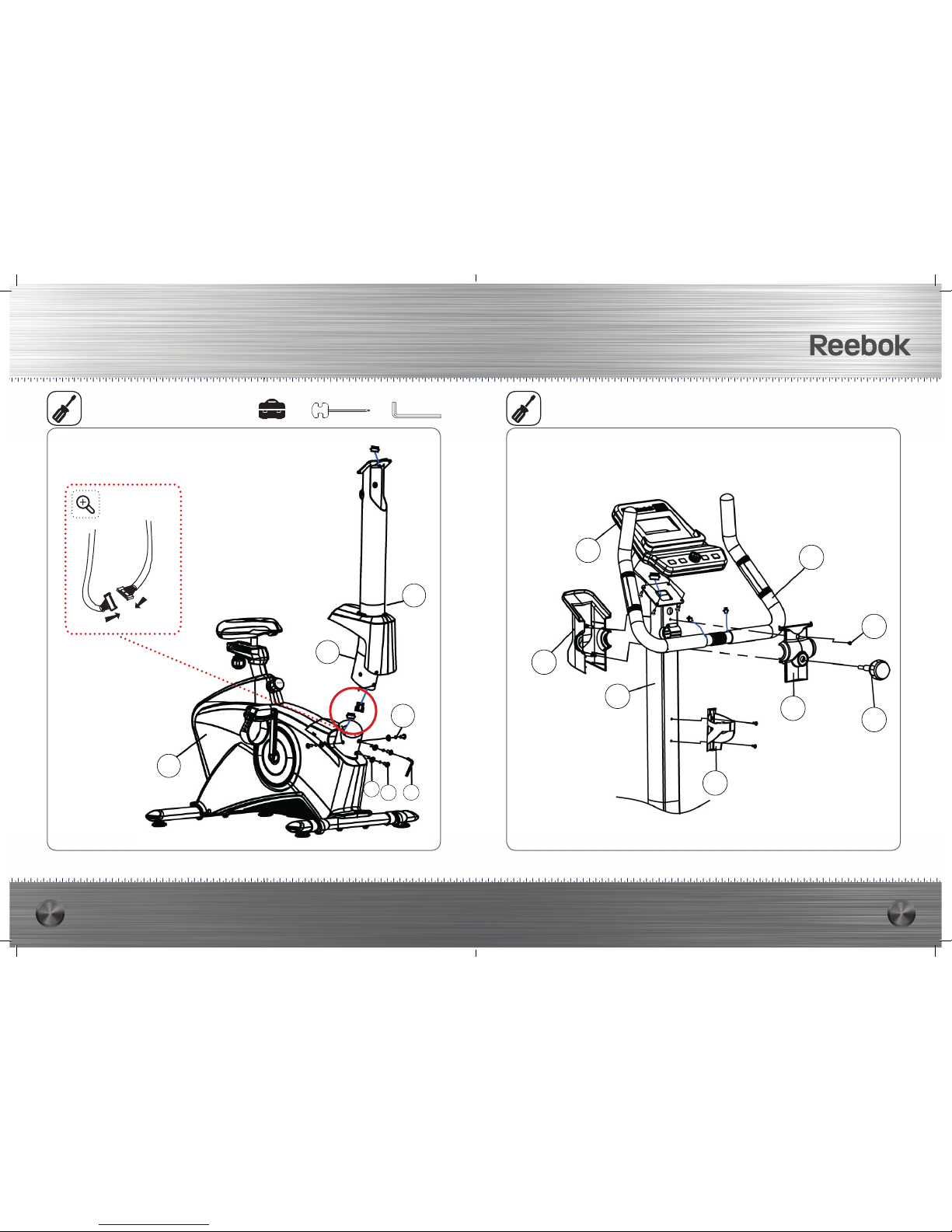

ASSEMBLY GUIDE

= +

Images for illustration purposes only

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

ASSEMBLY GUIDE

Images for illustration purposes only

= +

Images for illustration purposes only

80 88

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

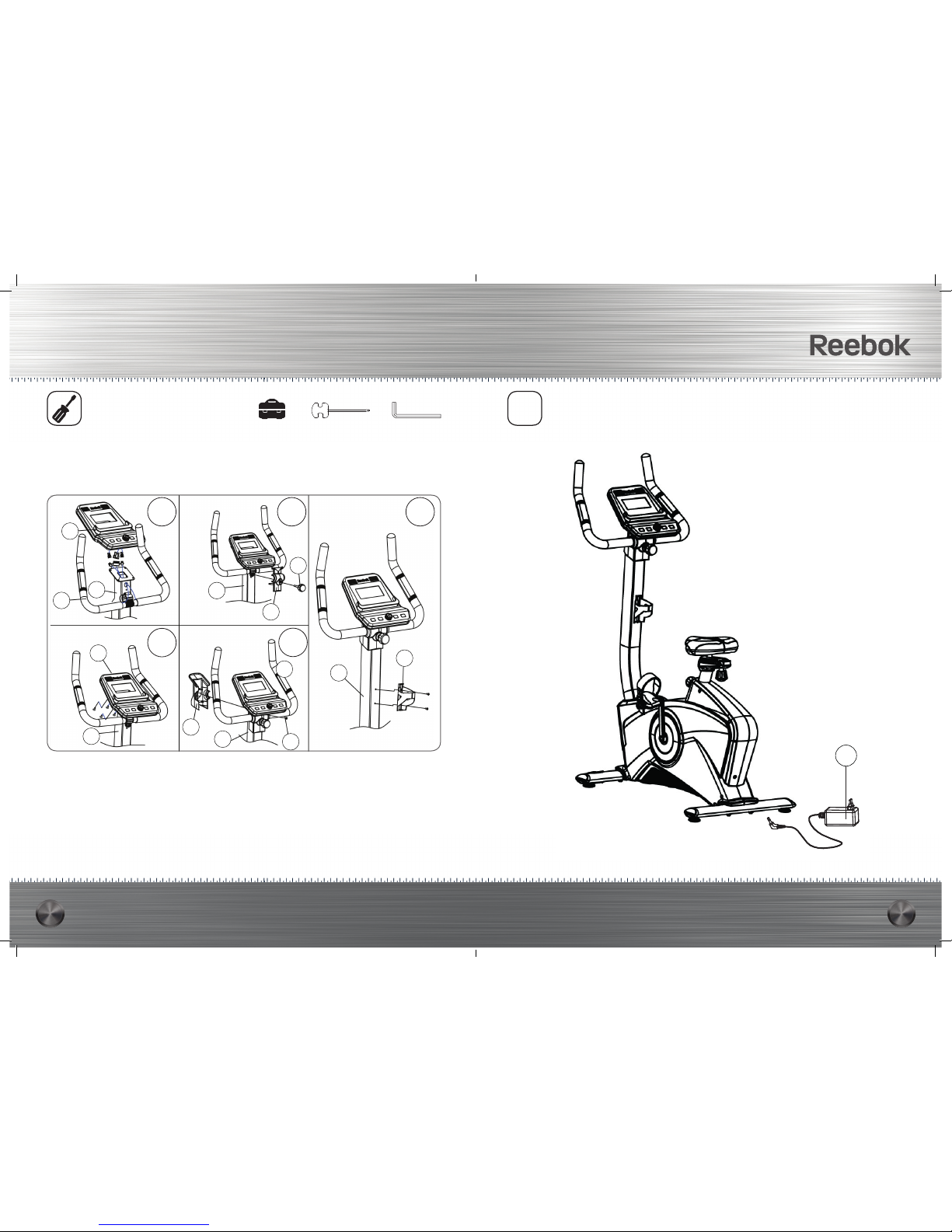

ASSEMBLY GUIDE



42 87

75 42

= +

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

10 11

26 28

12 10

73B

73A

40 83

68 77

52 52

85 62

26 28

12 10

73B

73A

40 83

68 77

52 52

85 62

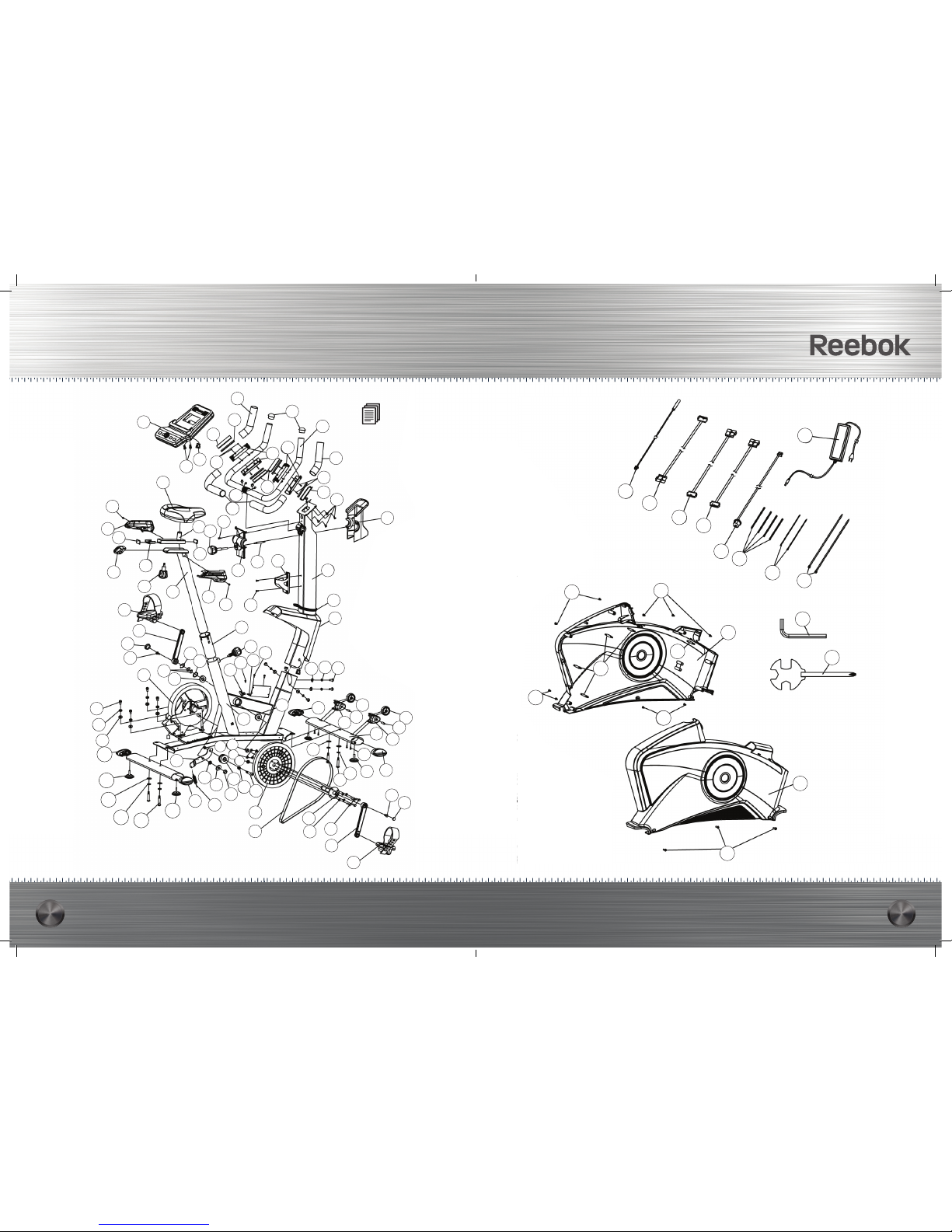

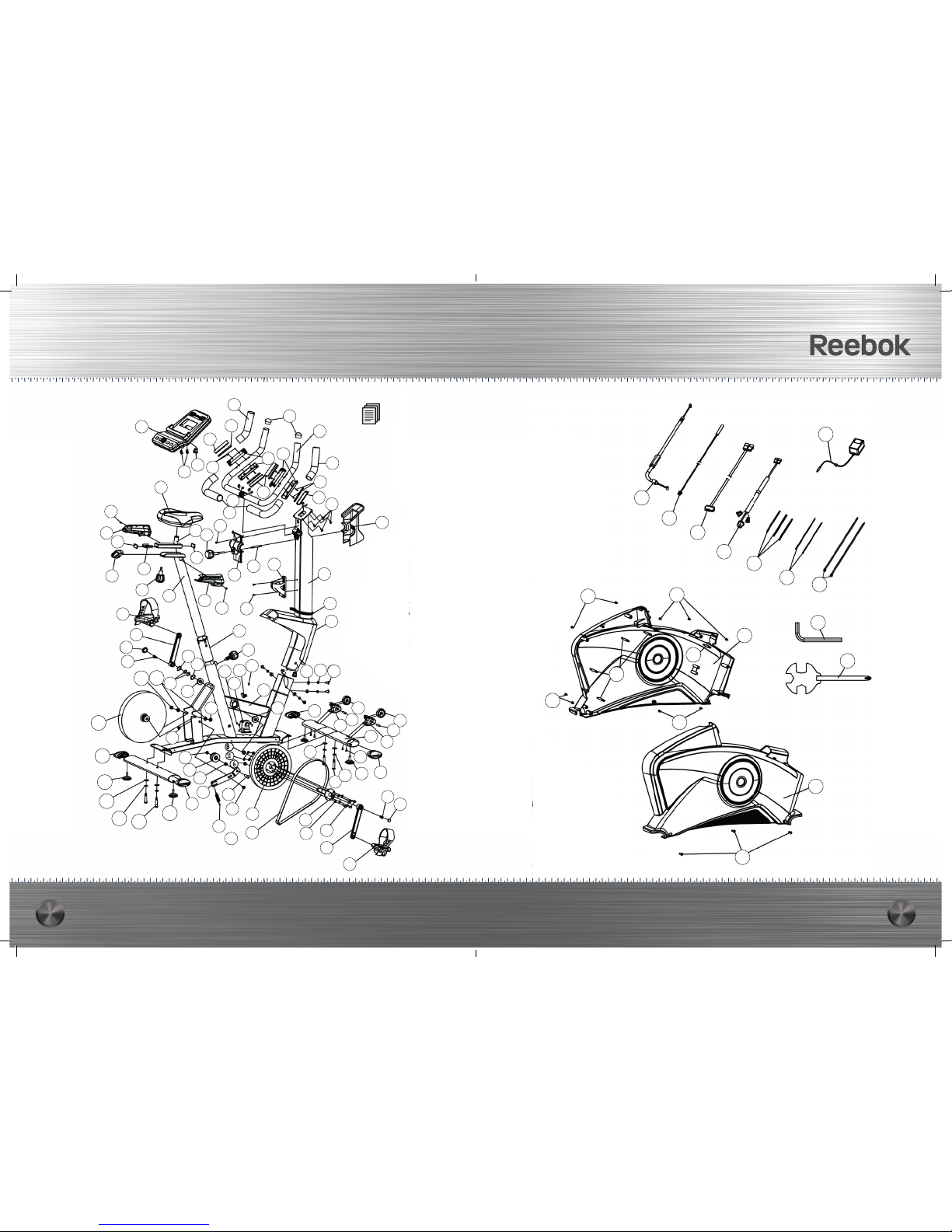

TC1.0 EXPLODED DIAGRAM

tc1.0

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

12 13

Part Name QT Y Part Name QTY

1Frame 1 36 Idler tension spring 1

2Seat post lock knob 1 37 Left chain cover 1

3Seat Post Sleeve 1 38 Right chain cover 1

4Bearing 6003ZZ 2 39 Upright Lower Cover 1

5Belt Wheel 1 40 Handlebar insert 6

6Sensor Magnet 1 41 Upright lower insert 1

7Crank Shaft 1 42 Upright 1

8Bushing 1 43 Middle Computer Wire 1

9C Clip 1 44 Philips Screw 2

10 Crank Shaft Screws 4 45 CRANK COVER 2

11 Nylon Nut 4 46 Crank Screw 2

12 Spring Washer 4 47 Fixing Plate 1

13 Wave washers 2 48 Handlebar 1

14 Flat washers 2 49 Foam Grip - Upper 2

15 Drive Belt 430J6 1 50 Foam Grip - Lower 2

16 Power Cord 2 51 Line plug 2

17 Adjust tight wire 1 52 Pulse sensor housing 4

18 Sensor wire 1 53 Hand Pulse Sensor 4

19 Lower control wire 1 54 Fixing tape 4

20 Sensor Fixed Base 1 55 Round head philips screw 4

21 Round head screw 1 56 Nut 4

22 Motor 1 57 Handlebar end caps 2

23 Round head cross screws 4 58 Front Stabilizer 1

24 Girding 2 59 Stabilizer wheel housing 2

25 Flywheel 1 60 Stabilizer End Cap 4

26 Flange nut 1 61 Stabilizer Wheel 2

27 Hexagon nut 1 62 Stabilizer adjustment foot 4

28 Washer 2 63 None

29 Crank Left 1 64 None

30 Crank Right 1 65 Rear Stabilizer 1

31 Jockey Wheel 1 66 None

32 Casing pipe 1 67 Seat Post 1

33 Flat head screw M10x38mm 1 68 Saddle adjustment bracket 1

34 Flat head screw M10x20mm 1 69 Saddle bracket end caps 2

35 Nylon Nut 2 70 Slider Bracket 1

Part Name QT Y

71 Seat adjustment knob 1

72 Saddle 1

73A. Seat tube cover left 1

73B. Seat tube cover right 1

73 Seat tube cover rear 1

75 Computer 1

76 Power adaptor 1

77 Handlebar adjustment knob 1

78 Upright upper cover - rear 1

79 Upright upper cover - front 1

80 Upright bolt M8x20 4

81 Arc Washer 4

82 Cross head screw 20

83 Water Bottle Holder 1

84 Stabilizer Bolt 4

85 SPRING WASHERS 8

86 Flat washers 4

87 Cross head screw 1

88 Allen Key 1

89 Philips open end Wrench 1

90 Hex wrench 1

91 Pulse sensor wires 2

92 Upper computer wire 1

93 Computer screws 4

94 Strap 3

95 iron core 2

1A. Pedal and strap - left 1

1B. Pedal and strap - right 1

TC1.0 PARTS LIST

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

14 15

TC2.0 EXPLODED DIAGRAM

52 49

51 93

35 08

60 36

12 10

73B

73A

68 77

13 17

85 60

40 83

52 49

51 93

35 08

60 36

12 10

73B

73A

68 77

13 17

40 83

tc2.0

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

16 17

Part Name QT Y Part Name QTY

1Frame 1 36 Idler Flexing spring 1

2Seat Post Lock Knob 1 37 Left Chain cover 1

3Seat Post Sleeve 1 38 Right Chain cover 1

4Bearing 6003ZZ 2 39 Upright Lower Cover 1

5Belt Wheel 1 40 Handlebar insert 6

6Sensor magnet 1 41 Upright Lower insert 1

7Crank Shaft 1 42 Upright 1

8Bushing 1 43 Middle computer wire 1

9C-Clip 1 44 Philips Screw M5x15 2

10 Crank Shaft Screws 4 45 Crank cover 2

11 Nylon Nut 4 46 Crank Screw 2

12 Spring washer 4 47 Fixing Plate 1

13 Wave washer 2 48 Handlebar 1

14 Flat washer 2 49 Foam Grip Upper 2

15 Drive Belt 1 50 Foam grip - lower 2

16 Belt 2 51 Line Plug 2

17 Control Board 1 52 Pulse sensor housing 4

18 Sensor Wire 1 53 Hand Pulse sensor 4

19 Lower Control Wire 1 54 Fixing tape 4

20 Sensor ﬁxed base 1 55 Round head Philips screw 4

21 Round head screw 3 56 Nut 4

22 Lower control connecting wire 1 57 Handlebar end caps 2

23 Power Wire 1 58 Front stabilizer 1

24 Belt 2 59 Stabilizer wheel housing 2

25 Flywheel 1 60 Stabilizer End cap 4

26 Column head hex screw 4 61 Stabilizer wheel 2

27 Washer 4 62 Stabilizer adjustment foot 4

28 Spring washer 4 63 None

29 Crank arm Left 1 64 None

30 Crank arm Right 1 65 Rear stabilizer 1

31 Jockey Wheel 1 66 None

32 Bushing 1 67 Seat Post 1

33 Flat hex screw M10x32mm 1 68 Saddle adjustment bracket 1

34 Washer Ø25xØ10.2x3.0t 1 69 Saddle bracket end caps 2

35 Nylon nut 2 70 Slider Bracket 1

TC2.0 PARTS LIST

Part Name QT Y

71 Seat adjustment knob 1

72 Saddle 1

73A. Seat tube cover left 1

73B. Seat tube cover right 1

73 Seat tube cover rear 1

75 Computer 1

76 Power adaptor 1

77 Handlebar adjustment knob 1

78 Upright upper cover - rear 1

79 Upright upper cover - front 1

80 Upright bolt M8x20 4

81 Arc washer 4

82 Cross Head screw 20

83 Water Bottle holder 1

84 Stabilizer Bolt 4

85 Spring washer 8

86 Flat washer 4

87 Cross Head screw 1

88 Allen Key 1

89 Philips open end wrench 1

91 Pulse sensor wire 2

92 Upper computer wire 1

93 Computer Screws 4

94 Strap 4

95 Iron core 2

97 Idler plate sleeve 1

1A. Pedal and strap left 1

1B. Pedal and strap right 1

reebokﬁtnessequipment.com

TITANIUM USER MANUAL

18 19

TC3.0 EXPLODED DIAGRAM

52 49

51 93

35 08

73B

73A

13 17

85 60

12 10

62 31

60 36

40 83

68 77

52 49

51 93

35 08

73B

73A

13 17

12 10

62 31

60 36

40 83

68 77

tc3.0
