Redarc LBAT12150-SB Manual de usuario
LBAT12150-SB
REDARC Lithium Battery
Powered by SuperB
POWERED BY
POWERED BY
POWERED BY
2
LBAT12150-SB
REDARC Lithium Battery powered by SuperB
The REDARC Lithium Battery is a self-protected Lithium Iron Phosphate rechargeable Battery. The
Battery operates as a 12 V energy source in power systems, making it suitable for recreational and
commercial vehicles, leisure boats, commercial vessels and stationary applications.
Built with state-of-the art technology, the Lithium Battery is a robust, safe and easy to use energy
storage solution. With its integrated Battery Management System (BMS) the Lithium Battery is
protected from deep discharging, overcharging and overheating. Eliminating the need for an external
safety relay means the Lithium Battery is very easy to install.
The Lithium Battery also has integrated battery monitoring which provides details about its status
such as voltage, current, temperature, state of charge and remaining runtime. Real-time monitoring is
possible via the REDARC Lithium Battery App, CI-bus, external monitoring devices and LED indicators
to inform you the status of your Lithium Battery.
CONTENTS
WARNINGS AND SAFETY INSTRUCTIONS ............................ 4
PRODUCT DESCRIPTION........................................................... 5
KIT CONTENTS ........................................................................... 6
OPERATION ................................................................................. 7
Terminals.........................................................................................8
Status LEDs ....................................................................................8
Signal Interfaces .............................................................................9
FASTON Connections...................................................................10
Modes of Operation......................................................................11
INSTALLATION ..........................................................................12
Unpacking.....................................................................................13
Mounting the Battery ....................................................................13
Connection Wires .........................................................................13
Communication and FASTON Connections..................................17
Connecting to the CAN Bus Interface (For Future Use).................18
Connecting to the LIN Bus Interface (For Future Use)...................19
Charging the Battery.....................................................................21
Connecting Lithium Batteries in Parallel .......................................22
Disconnecting the Lithium Battery................................................23
BATTERY USE............................................................................24
General Information ......................................................................25
Heater Functionality......................................................................25
Battery Balancing .........................................................................26
REDARC Lithium App ...................................................................27
Bluetooth®....................................................................................27
MAINTENANCE.........................................................................29
Inspection .....................................................................................29
Cleaning........................................................................................ 29
Storage .........................................................................................30
Transportation............................................................................... 30
Disposal and Recycling ................................................................30
TROUBLESHOOTING ................................................................31
SPECIFICATIONS ......................................................................33
WARRANTY...............................................................................36
4
WARNINGS AND SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS — This manual contains
important safety instructions. Do not operate the
LBAT12150-SB Lithium Battery unless you have read and
understood this manual. REDARC recommends that the
LBAT12150-SB Lithium Battery referenced in this manual
be installed by a suitably qualied person.
Disclaimer: REDARC accepts no liability for any injury,
loss of property damage which may occur from the
improper or unsafe installation or use of its products.
SAFETY MESSAGE CONVENTIONS
Safety messages in this manual include a signal word to
indicate the level of the hazard as follows:
WARNING: Indicates a potentially hazardous situation
which could result in death or serious injury to the
operator or to bystanders.
CAUTION: Indicates a potentially hazardous situation
which may result in moderate or minor injury to the
operator or to bystanders.
NOTICE: Indicates a situation that may cause equipment
damage.
WARNING
RISK OF FIRE, EXPLOSION AND BURNS.
Avoid eye and skin contact with electrolyte. If contact has
been made, wash the affected area with water and seek
medical advice.
CAUTION
Do not dismantle, crush, puncture, open or shred the
Lithium Battery.
Do not install multiple batteries in series.
Do not heat above 60°C (140°F) or incinerate.
Do not connect Battery in reverse polarity.
Do not short Battery terminals.
Do not expose the Lithium Battery to heat or re.
Avoid exposure to direct sunlight.
Always use a charger which is designed for use with a
Lithium Iron Phosphate battery (LiFePO4).
Do not mix batteries of different manufacturer,
capacity, size, type or age within a system.
Keep the Lithium Battery clean and dry. Keep away
from water, dust and contamination.
Do not leave the Lithium Battery on prolonged charge
when not in use.
NOTICE
Do not operate Battery beyond published maximum
specications.
This product can store fault conditions internally,
like excessive charge current or deep discharge
situations. REDARC may use this information in the
warranty process.
Place the Battery in well ventilated areas.
Do not remove the Battery from its original packaging
until required for use.
After extended periods of storage, it may be
necessary to charge and discharge the Battery
several times to obtain maximum performance.
During long periods of storage, periodic charging is
needed to prevent excessive self discharge.
Disconnect the Lithium Battery from the equipment
when not in use.
Observe the positive (+) and negative (–) marks on the
Lithium Battery and equipment to ensure correct use.
DISPOSAL
Dispose the Lithium Battery in accordance with local,
state and federal laws and regulations. Do not mix with
other (industrial) waste.
THE BATTERY MUST BE CHARGED BEFORE
FIRST USE. WHEN THE BATTERY IS AT 0%
CHARGE IMMEDIATELY.
5
PRODUCT DESCRIPTION
PRODUCT FEATURES
Operates as a 12 V energy source in power systems.
Suitable for recreational vehicles, commercial vehicles, leisure boats, commercial vessels and stationary
applications.
A-grade prismatic cells for highest possible energy density and quality.
Integrated short circuit protection.
Integrated protection device for maximum protection and safety.
Integrated BMS (Battery Management System).
Integrated cell heating to allow safe charging below 0°C (32°F) (with autonomous operation).
Adaptive cell balancing.
Robust casing made from environmentally friendly materials.
Overheating protection on Battery terminals in case of poorly connected cables.
Communication interface: Bluetooth®(wireless), CANBus (wired) and LIN Bus (wired).
Monitoring via REDARC Lithium app (iOS and Android).
Congurable general purpose inputs /outputs to control external devices (chargers for example).
Separate power output connection for powering accessories. Analog SoC output.
Multi-connectable coated aluminium terminals, including temperature sensors for protection.
ENVIRONMENTAL CONDITIONS
WARNING: The LBAT12150-SB Lithium Battery may only be used in conditions specied in this manual.
Exposing the Lithium Battery to conditions outside the specied boundaries may lead to serious damage to the
product, user and/or environment.
CAUTION: Use the LBAT12150-SB Lithium Battery in a dry, clean, dust free, and well ventilated space. Do not
expose the Lithium Battery to re, water, solvents or excessive heat.
6

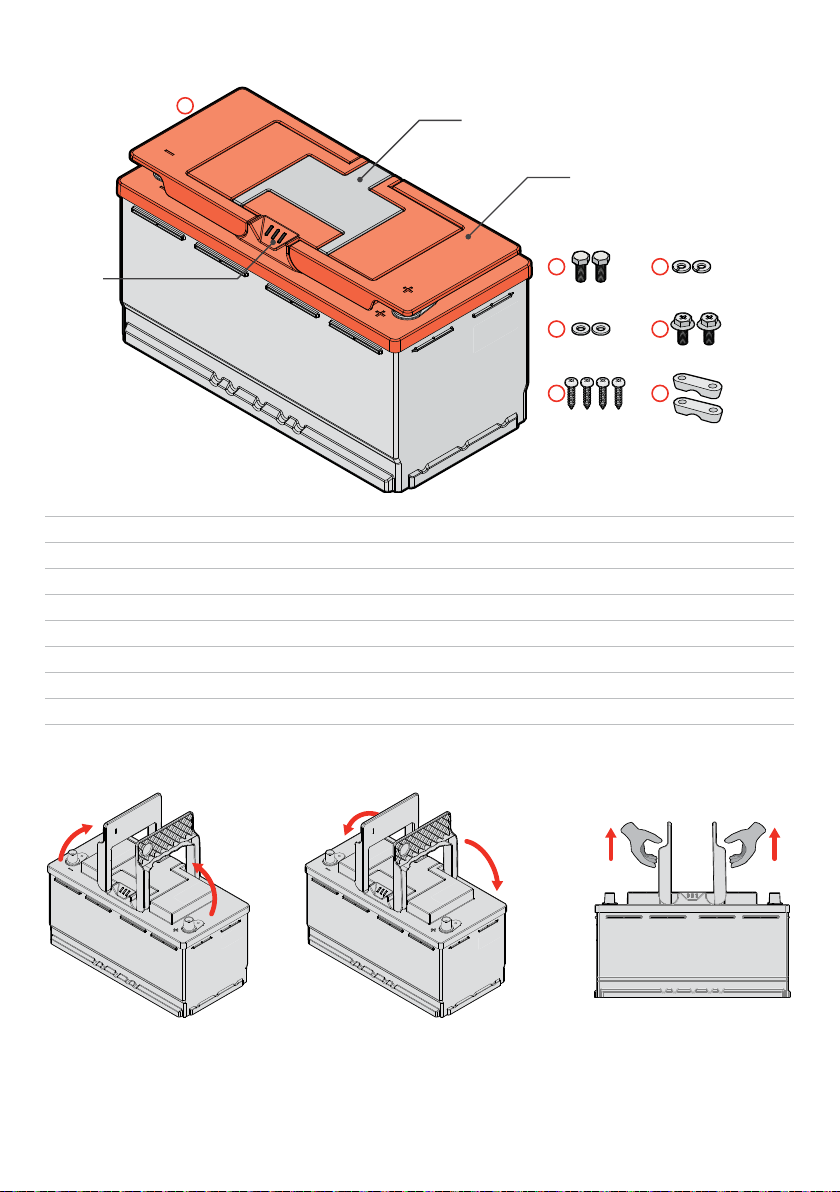

KIT CONTENTS
2
1
4
6
5
7
3
Ref. Part Description QTY
1Lithium Battery 1
2M8 Hex Head Bolt 2
3M8 Spring Washer 2
4M8 Washer 2
5M6 Terminal Bolt 2
6Phillips Head Screw 4
7Cable Clamp 2
Protective Cover
Status
LEDs
Carry Handles (×2)

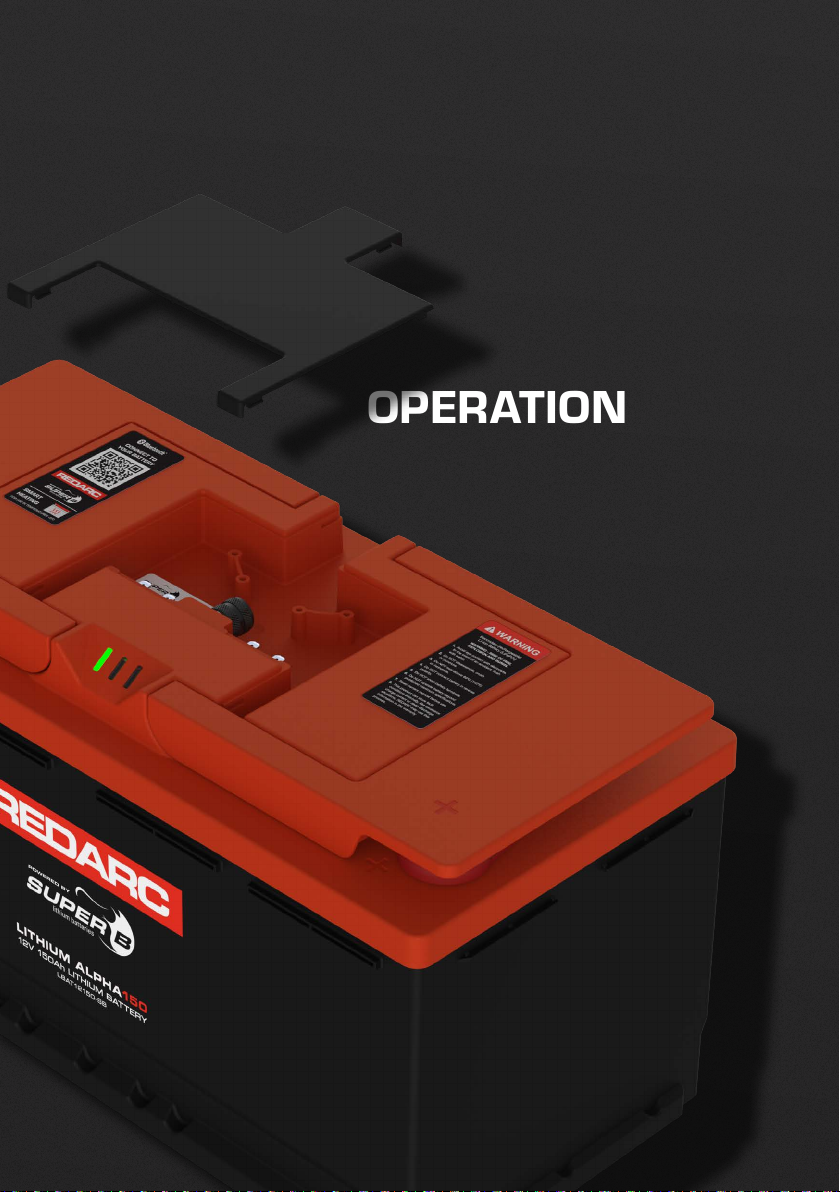

OPERATION
8
TERMINALS
Connect up to 95 mm2(3/0 AWG) cables to the M8 Terminals.
M6 Terminals are provided for connecting low-current devices.
Battery Negative (−)
Terminal
Battery Positive (+)
Terminal
+ (14.6 VDC)
M8 Automotive
Power Terminal
M6 Terminal
M8 Automotive
Power Terminal
M6 Terminal
STATUS LEDS
Green Yellow Red
LED Indication Mode
Green Operational Mode
Yellow Warning Mode
—Empty / Deep-Discharged Mode
Red Error Mode
When the Lithium Battery is in Operational Mode (not charging or discharging), the LED indicator ashes green every
3 seconds (see "Troubleshooting" on page 31 for more information).
9
SIGNAL INTERFACES
The Signal Interfaces are located underneath the Protective Cover.
3
2
1
1
1. FASTON Connections
Located underneath the protective cover. See page 10 for more information.
2. J1 CAN Bus Interface (for future use)
The CAN Bus Interface of the Lithium Battery is not galvanically isolated.
The CAN Bus ground pin is fused with respect to the negative (–) terminal with a 200mA resettable fuse.
3. Protective Cap (M12)
CAUTION: Always use the supplied protective M12 Cap when the CANBus Connection is not used. Otherwise,
ingress protection is not guaranteed and water/moisture may enter the Lithium Battery casing, which may cause
serious damage.
10

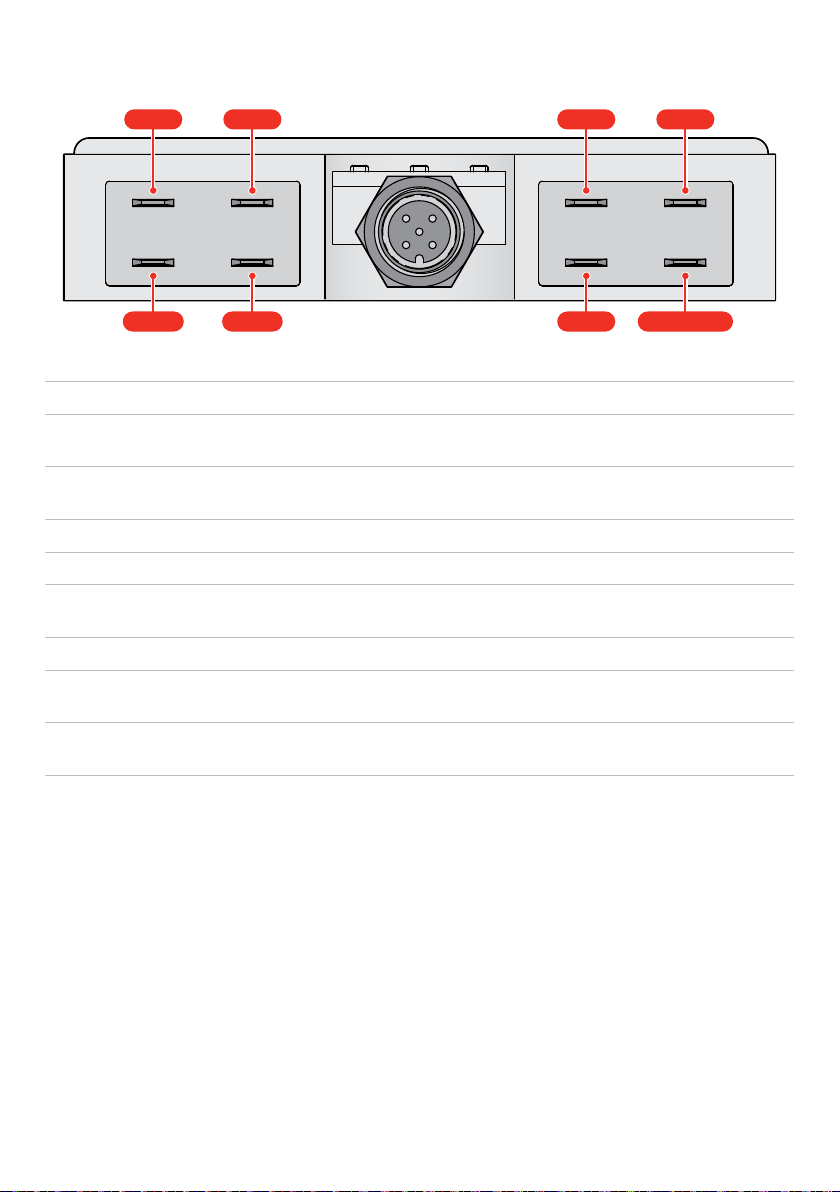

FASTON CONNECTIONS
1. ACC 2. LIN 3. IO1 4. IO2
5. SoC 6. GND 7. IO3 8. Heater In
FASTON No. Description Function
1. ACC Accessory Power Output Connection for power to accessories
(fused internally, resettable).
2. LIN LIN Bus Connection
(for future use) LIN Bus communication channel (CI-Bus support).
3. IO1 IO1 Connection Input or output 1 (congurable).
4. IO2 IO2 Connection Input or output 2 (congurable).
5. SoC SoC Output (analogue) Analogue SoC output (0 –10V)
(load must be higher than 100 kOhms).
6. GND GND Connection GND connection (fused internally, resettable).
7. IO3 IO3 Connection
(for future use) Input or output 3 (congurable).
8. Heater In Heater Power Supply Input External power supply for heater (12 – 14V)
(120 W / 10 A maximum).
