PIR Sensors
Product Codes: PIRB1, PIRW1
Box Contents -
1 x PIR Sensor

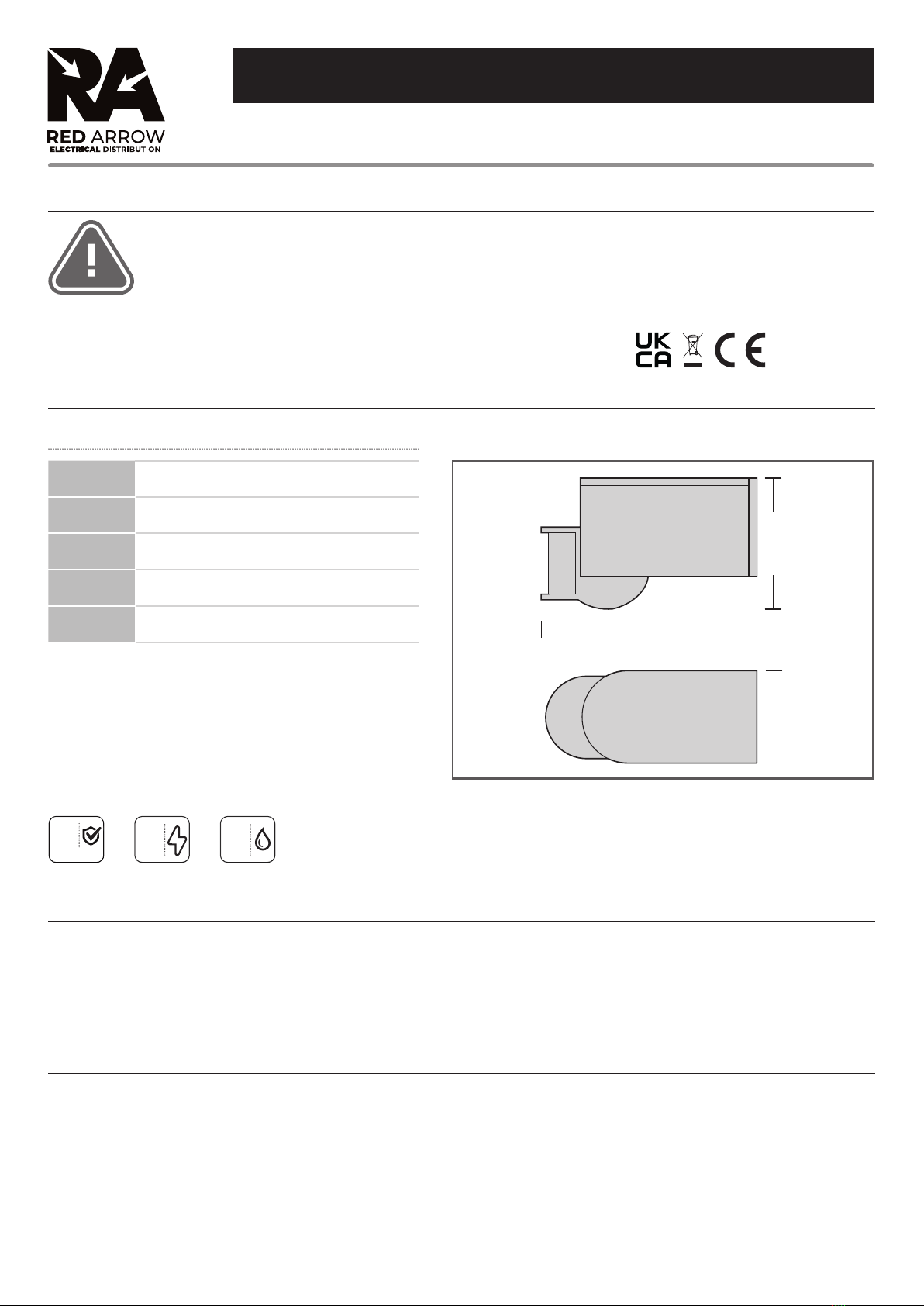

Dimensions: L: 125 x W:76 x D:100mm
Material: Flame Retardant ABS
IP Rating: IP44
Working
Temperature: -10°C - 40°C
Guarantee: 1 Year
Safety Warning
• The installation should be carried out
by a qualied electrician in compliance
with the current edition of the IEE
Wiring Regulations.
• Prior to installation, carry out the
necessary risk assessment considering
the people who could be at risk,
the level of risk and the precautions
required to control the risk
• Ensure that the circuit supply is
isolated either by the circuit supply
fuse being removed or the applicable
circuit breaker being turned o before
installation or any maintenance.
• Check the total load on the circuit
ensuring the luminaire does not exceed
the rating of the circuit cable, fuse or
circuit breaker.
• Long-term use and voltage uctuations
can reduce the life span of the tting.
• If the tting incorporates control gear,
ensure careful sizing to avoid instances
of nuisance tripping of the protective
device used in the installation.
• Follow the provided installation
instructions, using the xings supplied
or recommended.
• Keep out of reach of children.
INSTALLATION INSTRUCTIONS
Specication
Avoid installing it near heating or air conditioning.
N-Blue
L-Brown
Red
Connect Blue to the Neutral of the load and Red to the Live of the load. This product must be installed by a qualied electrician.
Installation Instructions
GUARANTEE
1
YR IP44
240V
L125mm
D100mm
W76mm
• The Sensor is equipped with two adjustment controls;
• After installation, please turn the time controller anti-clockwise to the minimum position before you switch on the power. Turn the lux control anti-
clockwise to the minimum value.
• Restore the main power; the light will be on for 30seconds.
• Adjust the lux and the time with the controls to suit your requirement.
Test: Auto Mode
PAGE 4 (THREE - INSIDE DPS)
PAGE 3 (TWO - INSIDE DPS)
This product is guaranteed for a period of 1 year from the date of purchase. The guarantee is invalid in the case of improper use, tampering, removal of the Q.C.
date label, installation in an improper working environment or installation not according to the current edition of the I.E.E. Wiring Regulations (BS7671). The
guarantee is also invalidated if the luminaire has been insulation tested. Should this product fail during the guarantee period it will be replaced free of charge,
subject to correct installation and return of the faulty unit. We do not accept responsibility for any installation costs associated with the replacement of this
product. Your statutory rights are not aected. We reserve the right to alter specications without prior notice.
Guarantee
• This tting will require routine cleaning if used in adverse (dust, paint, welding, oils etc) environments. Do not use solvents, aggressive detergents or
abrasives.
• When this tting comes to the end of it’s life or you choose to replace it, please do not dispose of it with your normal waste. Please recycle where the
facilities exist, check with your local authority for suitable options.
Maintenance
INS/ACCESSORIES/0007/PIR/V1
T: 0800 195 0006
sales@redarrowelectrical.co.uk
Red Arrow Electrical Distribution
Cortonwood Drive, Brampton,
Barnsley, S73 0UF
redarrowelectrical.co.uk
• To test the MANUAL mode (light permanently on), switch the light o and on quickly within 1-2 seconds at the light switch. The light should remain
permanently on regardless of the sensor operation.
• To reset the light into AUTO mode, switch it o for approximately 30-60 seconds before switching back on.
• After successfully testing the light, please ensure you adjust the settings to the desired LUX and TIME settings. Position the angle of the sensor head so
that the optimum coverage is achieved.
Test: Manual Mode
• To override the AUTO sensor mode and to use the light tting as an ordinary light, it needs to be switched to MANUAL mode. To do this, switch the unit o
and on quickly within 1-2 seconds at the light switch. The light will now remain permanently on regardless of the sensor settings.
• To reset the light into AUTO mode, switch it o for approximately 30-60 seconds before switching back on.
• NOTE: Avoid installing the Sensor near heating or an air conditioning outlet. Protect the lens from sharp objects.
Switching to Manual Mode
