Realfiction DEEPFRAME BASIC Manual de usuario
1
DEEPFRAME ONE - ASSEMBLY GUIDE
VERSION 1.1 - ORIGINAL ASSEMBLY GUIDE
It is important to read this assembly guide before using the DeepFrame One, and to follow advices and
instrucons on safety, operaon and general use to get the best possible experience with your DeepFrame One.
The DeepFrame One is designed to showcase products and other objects in combinaon with free oang 3D
video animaons. Realcon and DeepFrame are registered trademarks owned by Realcon ApS.
2
Content:
When receiving the DeepFrame One 3
Setup me and persons needed 4
Assembling the DeepFrame One 5
Assembling the display 5
Aaching the OLED screen to the OLED housing 9
Connecng the media player and wires 13
Aaching the speaker module 15
3
When receiving the DeepFrame One
The DeepFrame One comes in two ightcases that holds all the dierent parts.
Please note that we cannot be hold responsible for any damage or failure that has occurred due
to the use of third party constructed ight case or packaging. This limitaon shall also apply if the
original packaging has been altered in any way.
Package content
1. 1 x Glass opc
2. 1 x Installaon & Service Toolbox
3. 2 x Leg Frames
4. 1 x 4K curved OLED 65” TV
5. 1 x Opc Safety Bracket
6. 1 x Speaker module
7. 1 x Spirit level
8. 1 x OLED housing
9. 1 x Brightsign Media Player
10. 1 x Top protector
11. 2 x Extension rods
12. 2 x Screen protectors
Addional items
4
Setup me and persons needed
Seng up the display can be done by 2 persons in around 2 hour.
5
ASSEMBLING THE DEEPFRAME ONE
For assembling the display we recommend being to persons.
Unpacking the display
DeepFrame One comes in 2 ight cases.
1. Begin by opening the tallest ight case rst and locate the Toolbox inside, then set this ight case aside.
2. Now open the shorter ight case and locate the Speaker Module. Li it out and set it aside for now
3. Remove all the assembly parts from the boom of the ight case and unpack them.
6
5. When the bolts have been removed, li the OLED Housing out from the ight case and place it on the oor.
6. Place the spirit level on top and adjust the feet using a spanner size 13 unl the OLED Housing is correctly levelled.
4. Remove the transport bolts in each side to unlock the OLED Housing from the ight case.
Use the wrench and Umbraco key size 8 for this.
7. In the other ight case, take out the rst Leg Frame and aach it with 2 bolts in the lowest of the grooves underneath
the OLED Housing, using spanner size 19. Then, take out the second Leg Frame and aach it in the same way.
7

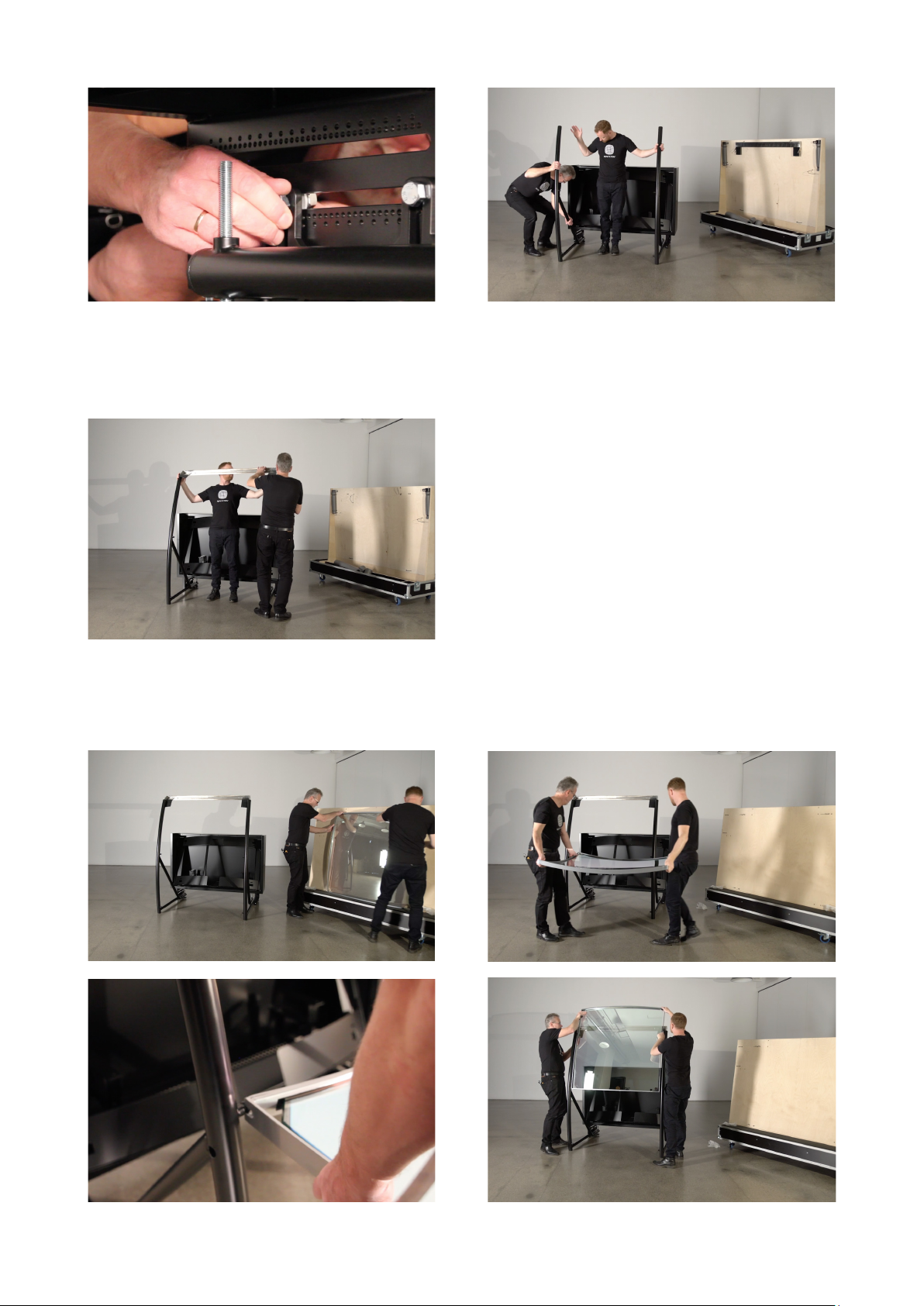

8. Take out the Opc Safety Bracket and slide it down into the holes on the top of each Leg Frame, as this will
set the correct distance between the leg structures and provide support when mounng the DeepFrame Opcal
Lens aerwards.
9. Now, take out the DeepFrame Opcal Lens from the ight case and gently li it over to the Leg Frames and
aach the lower part rst by sliding the notches in to t the pins on each Leg Frame. Then slowly raise it upwards
to rest it safely on the Opc Safety Bracket on top.
8
10. Secure the DeepFrame Opcal Lens in place using 1 long black 10mm bolt in each side – make sure you do
not use the transport bolts you have removed previously.
IMPORTANT: In order to proceed assembling the display, make sure that all the bolts are ghtened completely,
both underneath the OLED Housing and on the Leg Frames now supporng the weight of the DeepFrame
Opcal Lens. We recommend that the OLED Housing and DeepFrame Opcal Lens are posioned as far away
from each other as possible, as this will allow more space to aach the OLED Screen aerwards.
11. When all the bolts are secured and ghtened, nish by removing the Opc Safety Bracket, making sure not
to scratch the inside of the DeepFrame Opcal Lens.
9
2. For one side plate at a me, remove the 2 screws located at the top and then gently push out the plate just
enough to free it at the top and then li it up and out. Beware: Do not to pull the side plate too far down as
this will damage the metal pins in the boom. Repeat this for the second side plate as well.
1. To begin with we recommend removing the 2 side plates and front plate on the OLED Housing, as this will
create more room to work with when aaching the OLED Screen.
ATTACHING THE OLED SCREEN TO THE OLED HOUSING
3. Take o the front plate by removing the 2 screws located at the boom and then gently push out the plate and li
it down and out. Beware: Do not to pull the front plate too far up as this will damage the metal pins in the top.
10
4. Loosen the screw for the Screen Adjuster located in each side.
5. Tilt it forward and then ghten the screws again.
6. Remove the top brackets on the Sound Bar Holders.
7. Open the box holding OLED Screen and remove the Styrofoam sides
