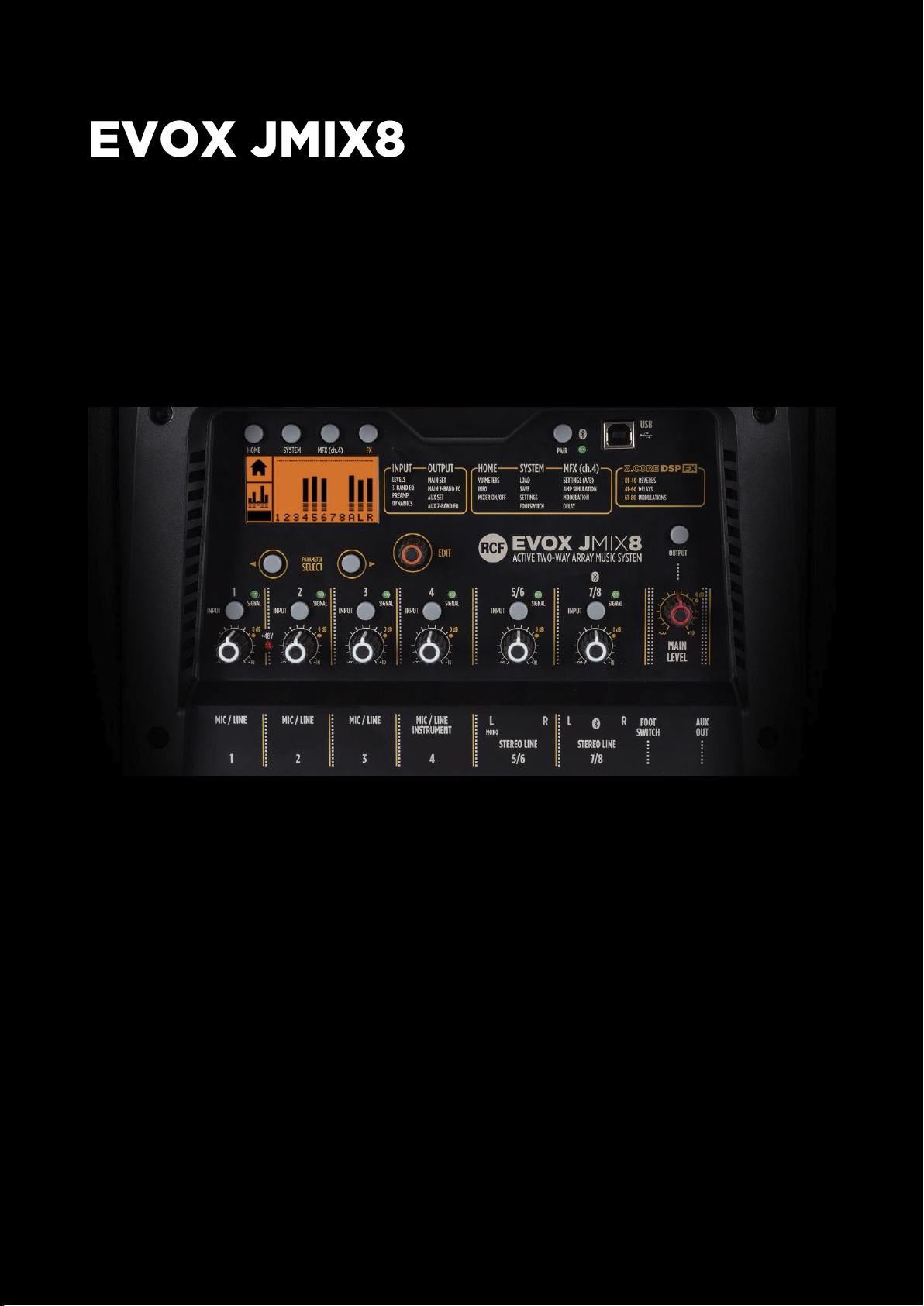

RCF EVOX JMIX8 Instrucciones de montaje
November 2018 RCF S.p.A. Ver 1.0
Firmware Update Guide
November 2018 RCF S.p.A. Ver 1.0 –page 1
Two separate steps are required to perform a firmware update of the EVOX JMix8 loudspeaker:
-update application installation
-Firmware update operation
Please follow the instructions below, depending on your host operating system.
The first step is to download the appropriate files from RCF web site, within the EVOX Jmix8 support page:
-Windows installer: RCF-EVOX-JMIX8_Win.zip
-Mac OS installer: RCF-EVOX-JMIX8_Mac.zip
-EVOX firmware package: RCF-EVOX-JMIX8-Firmware-xxxx.zip (where xxx is the firmware version)
WINDOWS INSTALLATION
This executable requires Windows 7, 8, or 10
1) Unzip the installer file to a temporary folder
2) From the temporary folder, click on Setup.exe to launch the installation, and follow the on-screen
instructions pressing the [Next] button until the installation is completed
3) When the installation is completed, press the [Close] button
November 2018 RCF S.p.A. Ver 1.0 –page 2
On the desktop of your computer, two icons will appear: “EVOX
JMIX8 Driver Setup” and “EVOX JMIX8 Firmware Update”.
4) Click on the icon “EVOX JMIX8 Driver
Setup”, agree to the license terms
and conditions and then click on the
[Install] button.
5) When the setup is complete, please
press the [Close] button on the
topmost window.
6) On the “Device Driver Wizard”
window, click on the [Next] button.
When the drivers are installed
please click on the [Finish] button.
November 2018 RCF S.p.A. Ver 1.0 –page 3
MAC OS INSTALLATION
This package type requires Mac OS X 10.5 or higher
1) Unzip the installer file to a temporary folder
2) From the temporary folder, click on EVOX JMix8 Firmware Update.pkg to launch the installation
3) Press the [Continue] button to proceed with the installation and then press the [Install] button.
Do not change the settings on the Customize page. For the software to work properly, both items
(EvoxUpdate and Libusb) must remain selected
4) Enter the User Name and Password of your Mac to allow the installation
5) When the installation is completed, press the [Close] button
On the Applications of your Mac it will appear “EVOX JMIX8 Firmware Update”
November 2018 RCF S.p.A. Ver 1.0 –page 4
FIRMWARE UPDATE
The firmware update procedure is composed of two steps: binary files transfer into the unit, and the actual
internal rewrite. It is very important to use a stable power supply and that the unit is never unpowered in
the middle of this procedure.
Power on the EVOX JMix8; connect EVOX JMix8 to your computer using a USB cable and launch the Update
Program.
Windows
[Start] menu > [All Programs] > EVOX JMIX8 Firmware Update
Mac OS
[Application] > EVOX JMIX8 Firmware Update
Unzip the RCF-EVOX-JMIX8-Firmware-xxxx.zip into
a temporary folder. Open the DFU firmware
package and click on the [Program] button.
Unzip the RCF-EVOX-JMIX8-Firmware-xxxx.zip into a
temporary folder. Load the DFU firmware package
and click on the [Send] button.
Unplug and plug again the USB cable, as reported
on the dialog box, and click on the [OK] button
Unplug and plug again the USB cable, as reported
on the dialog box, and click on the [OK] button
The transfer process begins; wait until the
progress bar is complete
The transfer process begins; wait until the progress
bar is complete
November 2018 RCF S.p.A. Ver 1.0 –page 5
Once the transfer step is completed, the update
step begins:
Please click on the [OK] button, and refer to the
instructions on the display on the EVOX JMIX8 to
complete the update and press the OK button
Once the transfer step is completed, the update
step begins:
Click on the [OK] button.
Refer to the instructions on the display on the EVOX
JMIX8 to complete the update and press the OK
button
The update is now complete. Please turn off and turn on the EVOX JMix8 as indicated on the on board
display and enjoy the new features
