RCA RLED5592A Manual de usuario

55" 1080p LED Television

RLED5592A

Contents

Caution

Safety Information

Unit and Accessories

Introduction

1. Front View

2. Rear View

4. Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Audio menu

3. Time menu

4. Setup menu

5. Lock menu

6. Channel menu

Simple Troubleshooting

5-9

8-9

11-17

16-17

Contents

3. Instruction for Wall Mount 7

lntertek

EP 4005700

ENERGY

PERFORMANCE

VERIFIED

RENDEMENT

ENERGETIQUE

VERIFIE

Caution

is intended to alert the user to the presence of un-insulated "dangerous

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling centre.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

CERTIFIED TO CSA STD. C22.2 No.60065

3124140

This unit complies with Canada Energy efficiency directives.

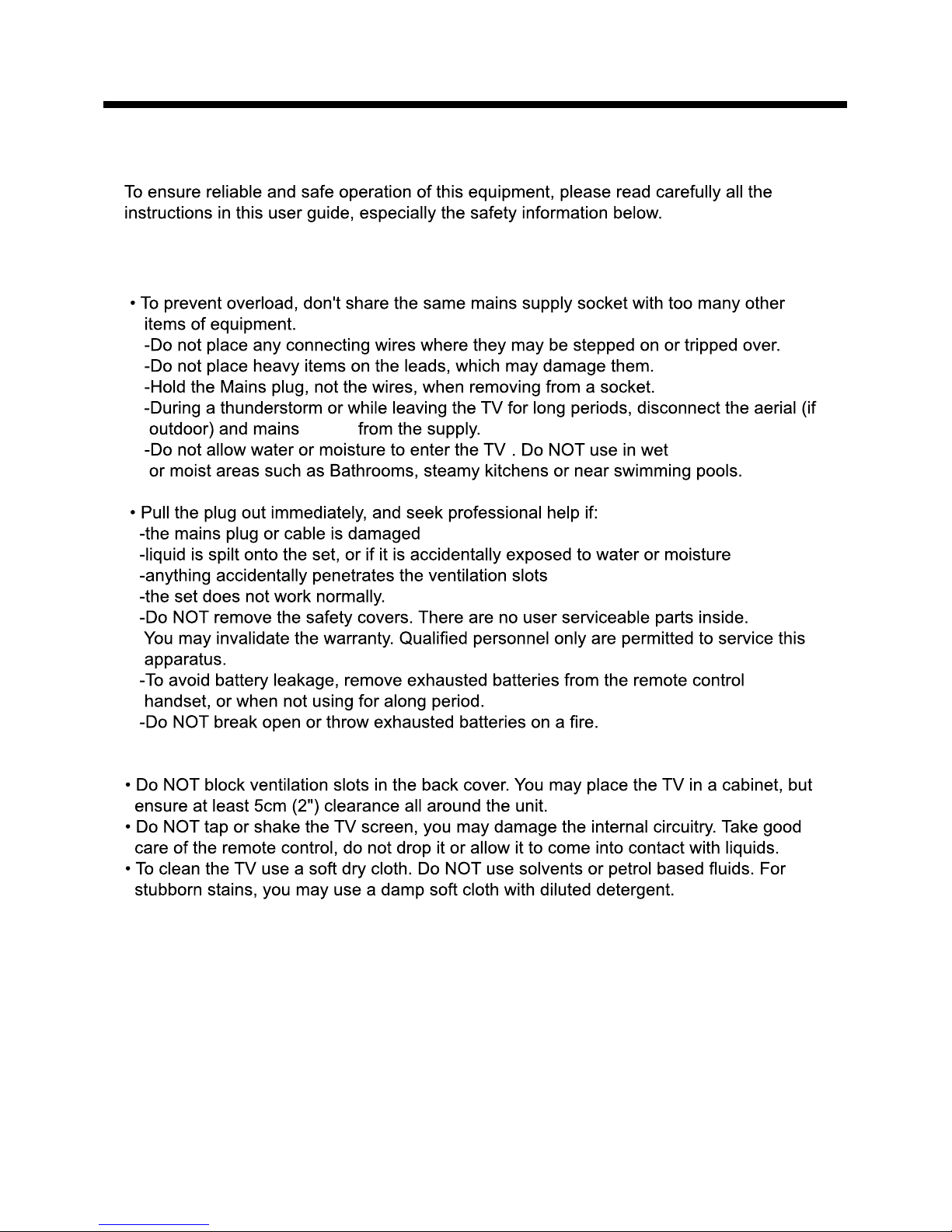

Electrical safety

Physical safety

power

Safety Information

Remote control

Batteries: 2xAAA

TV set

User's manual

Unit and Accessories

Instructions for fixing stand

Instructions for

fixing stand

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPG

MTS

INPUT: Press to display the input source menu.

MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels.

VOL+/-: Press to adjust the volume.

POWER

Turn on/standby theTV set.

Introduction

1. Front View

Introduction

1). (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2). The functions of the buttons:

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Press INPUT button on the TV set or remote control to

display the input source menu, and use CH+/- button on

the TV set or / button on remote control to select the

input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the

connections are prepared.

Component

HDMI1

HDMI2

HDMI3

VGA

Power Indicator

Remote Control window (Keep clear)

INPUT MENU CH+ CH- VOL+ VOL-

USB

（for Service）PC-IN

AC POWER IN

Headphone out: Connect it to your headphone or audio equipments.

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

COAX : Digital audio output.

: Connect it to the HDMI output of video device.

HDMI1/2/3

L/R in : Connect them to audio output of video device.

AUDIO L/R out : Connect them to audio equipments.

VIDEO : Connect it to video output of video device.

USB for Service : For service use only.

YPbPr : Connect them to the video output terminal of DVD.

AC POWER IN:

PC in

Connect it to AC100-240V~ 50/60Hz power supply with the mains cable.

Audio out

Introduction

2. Rear View

400mm

3. Instruction for Wall Mount

- Do not mount your RCA TV at more than a 15 degree tilt.

- Always use two people to mount the TV to a wall.

- Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

The wall mount kit (not included) with your purchase allows you to mount your

RCA TV on the wall. For detailed information on installing the wall mount, refer

to the instructions provided by the wall mount manufacturer. It is strongly

recommended to contact a technician for professional assistance for wall mount

installation. RCA is not responsible for any damage to the product or injury to

yourself or others resulting from the wall-mounting.

- 4 pcs of type M6 screws are required for installing the wall mount bracket to

your RCA TV. Do not use screws that are longer than 12 mm. Screws that

are too long may cause damage to the inside of the TV set.

- Do not fasten the screws too tight for this may damage the TV or cause the

TV to fall, resulting in personal injury. RCA is not liable for these kinds of

incidents

Dimensions for Mounting Hole Pattern

This RCA TV is compatible with a 400mm x 400mm mounting hole pattern.

Introduction

CC: Press to display the closed caption.

MTS: Press to select the audio channels.

FAV: Press to add or remove favorite channel.

EPG: Press to enter the EPG menu directly.

DISPLAY: Display the information of current mode.

Thumbstick( ): Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK: CONFIRM button.

MENU: Press to display the OSD menu.

EXIT: Press to exit the OSD menu.

MUTE: Press to mute the sound, press again or press VOL+ to

unmute.

VOL+/-: Press to adjust the volume.

CH+/-: Press to scan through channels.

SLEEP : Shutdown timer.

Number Buttons: Choose channel directly.

Select channel 5, Press button "5";

Select channel 62, Press button "6", then press button "2" in 2

seconds;

Select channel 151, Press button "1", and press button "5" in 2

seconds, and press button "1" in 2 seconds;

Select channel 5-1, Press button "5", and press button "- / - -"

in 2 seconds, and press button "1" in 2 seconds;

PICTURE: Press repeatedly to cycle through the available

video picture modes.

SOUND: Press to cycle through the different sound settings.

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPGMTS

(RETURN): Return to the previous channel viewed.

POWER(red button): Turn the TV on/standby.

INPUT: Press to display the input source menu.

Universal Remote Code:11359

Universal Remote Control not included.

Introduction

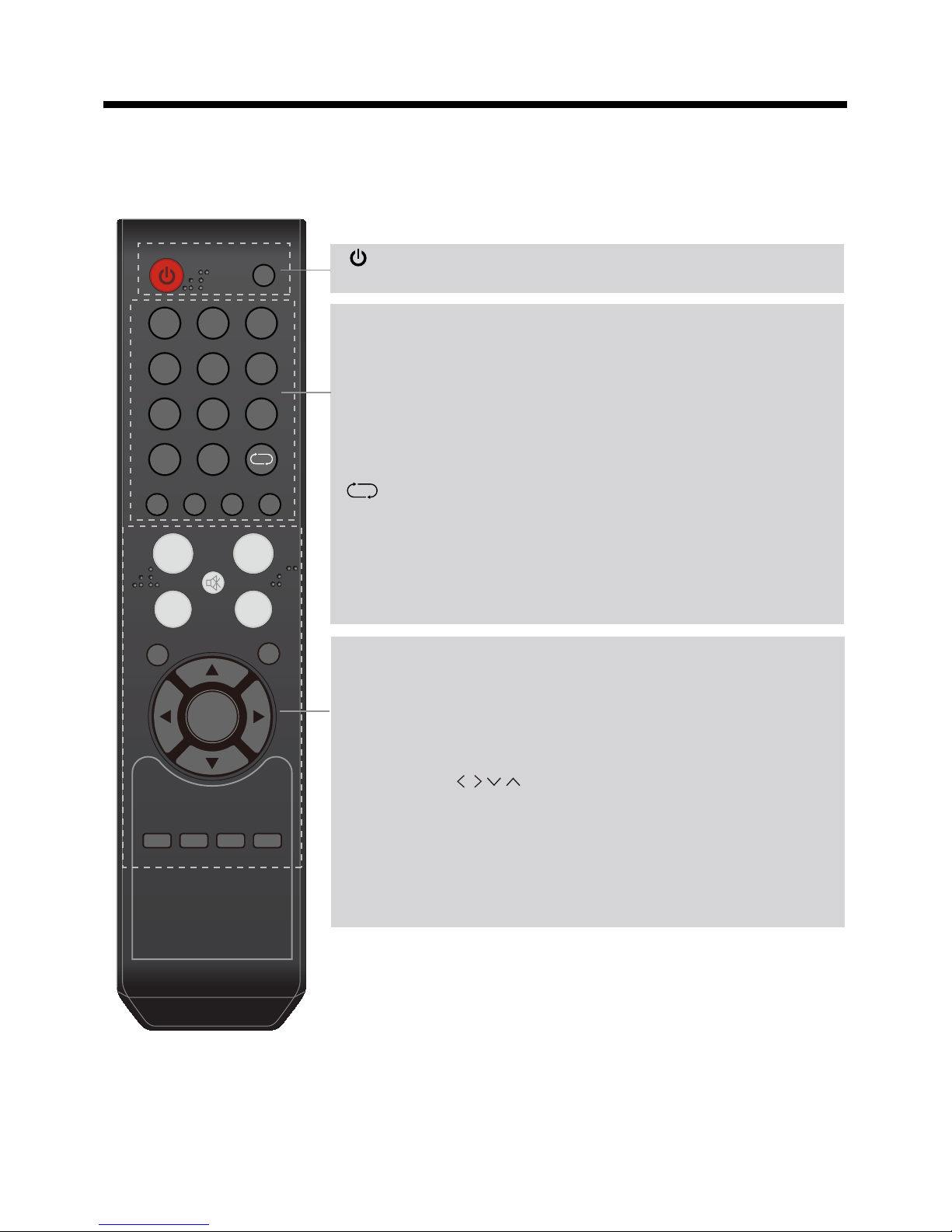

4. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote

control may not work correctly if it is operated out of range or out of angle.
