WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

_o°::d(UCrebahc__.iSNk°fu:_ e_tr_ciSchea°b_e dp:r_°_red°ve

Refer servicing to qualified service personnel.

_IL This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

_i This symbol indicates

important instructions

accompanying the product.

personal injury.

Caution: To reduce the risk of electric shock, match wide blade of

plug to wide slot, fully insert.

POWER CONSUMPTION: 120V ~ 60 Hz A.C.

105 Watts (Models MR19011, F19261, and MR19035)

135 Watts (Models MR25035 and MR27035)

If fixed (non-moving) images are left on the screen for long periods, they

may be permanently imprinted on the screen. Such images include

network Iogos, phone numbers, and video games. Extended viewing

of channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code which provides guidelines for proper

grounding and, in particular, specifies that the cable ground shall be connected

to the grounding system of the building as close to the point of cable entry

as practical.

TABLE OF CONTENTS .................................................... 1

SETUP AND CONNECTIONS ....................................... 2

THE MENU SYSTEM ..................................................... 3

TV Main Menu .................................................................................. 3

Point and Select Method ................................................................. 3

Picture Quality Menu ....................................................................... 4

Screen Menu ..................................................................................... 5

Channel Menu .................................................................................. 6

The Time menu ................................................................................. 7

V-Chip and Parental Controls .......................................................... 7

Tour of the TV: the Front Panel ....................................................... 8

Channel Marker ................................................................................ 8

USING THE REMOTE .................................................... 9

Tour of the Remote .......................................................................... 9

TROUBLESHOOTING ................................................. 10

INDEX ........................................................................... 11

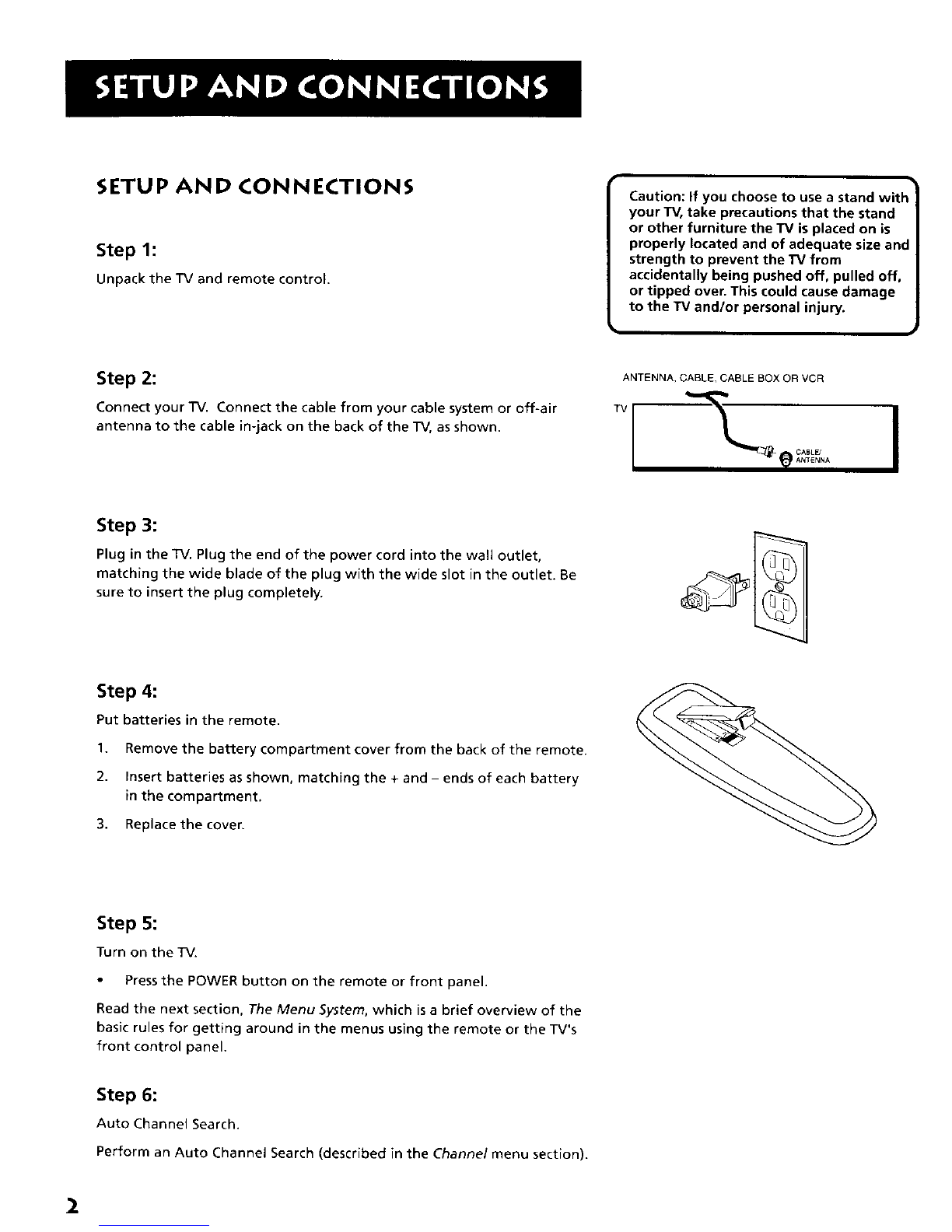

SETUP AND CONNECTIONS

Step 1:

Unpack the TV and remote control.

Caution: If you choose to use a stand with i

your TV, take precautions that the stand

or other furniture the TV is placed on is

properly located and of adequate size and

strength to prevent the TV from

accidentally being pushed off, pulled off,

or tipped over. This could cause damage

to the TV and/or personal injury.

Step 2:

Connect your TV. Connect the cable from your cable system or off-air

antenna to the cable in-jack on the back of the TV, as shown.

ANTENNA, CABLE, CABLE BOX OR VCR

Step 3:

Plug in the TV. Plug the end of the power cord into the wall outlet,

matching the wide blade of the plug with the wide slot in the outlet. Be

sure to insert the plug completely.

Step 4:

Put batteries in the remote.

1, Remove the battery compartment cover from the back of the remote,

2. Insert batteries as shown, matching the + and - ends of each battery

in the compartment.

3. Replace the cover.

Step 5:

Turn on the TV.

Press the POWER button on the remote or front panel.

Read the next section, The Menu System, which is a brief overview of the

basic rules for getting around in the menus using the remote or the TV's

front control panel.

Step 6:

Auto Channel Search.

Perform an Auto Channel Search (described in the Channel menu section).

THE POINT AND SELECT METHOD

You only need to know one rule to use the on-screen menus and control

panels point and select

1. Point to a menu item using the VOL +/- to move left or right, and

the CH ^Iv buttons to move up or down

2. Select a menu item by pressing the MENU button

Selecting an item tells the TV's menu system to go ahead and make the

change or go to a place you have indicated You can also select menu

items using the number buttons on your remote

TV MAIN MENU

The Main menu usyour gateway to controlhng the TV. It lets you adjust

the TV's picture quahty, screen, channel settmgs, parental controls, and

time functions

To select a menu ntem

1 Press MENU to bring up the TV's Main menu

2 Use the Point and Select method to make chonces

3 To exit any menu screen, point to Exit and press MENU, or press

CLEAR

TV Main Menu

1 Picture Qualuty

2 Screen -_

3 ChanneT ':"

4V-Chip Parenta_ Controls I'_

5 Time _.

0 Exit

The TV Maln Menu

THE PICTURE QUALITY MENU

The P_cture Quality menu contains five slider controls that adjust the TV's

picture Use the VOL +/- and CH ^Iv buttons to adjust the controls

Contrast AdJusts the difference between hght and dark areas of the

picture.

Color Adjusts the richness of the color

Tint AdJusts the balance between the red and green levels

Black Level Adjusts the brightness of the picture

Sharpness Adjusts the crispness of edges in the picture.

Auto Color Displays a choice list that lets you turn on the feature

that automatically corrects the color of the picture. (This is especially

useful for tracking realistic flesh tone colors as you switch from

channel to channel.) Choose On or Off, as preferred.

Reset Picture Controls Resets the picture controls to their original

settings

Picture Quahty

1Contrast

2Color

3Tint

4 Bl_.k Level

,_5 S_ness

6Aul_ Color:

<.... I ..... >

<...... { ....... >

•::....... .[ .......... >

•7 P,e_etPictureControls

The Picture Quality Menu

ITip }

You can also use the RESETbutton on the

remote at any time to reset the picture

controls to thmr original settings.

THE SCREEN MENU

The Screen menu contains the controls that let you adjust the Closed-

Caption display, Closed-Caption mode and Menu Language

Closed-Caption Display Lets you choose the way closed captioning

informatlon isshown on the screen Use the MENU button to toggle

between the following

Off No captioning information displayed

On Captioning information shown always, when available

On When Muted Displays captioning information, when available,

whenever you press the MUTE button The capttonlng reformation is

not displayed when the sound isnot muted

Closed-Caption Mode Lets you choose which captioning mode is used

for displaying captioning information. Use the MENU button to toggle

between the choices CC1 and CC2

Not all programs are encoded with dosed-captioning information When

a program isclosed captioned, the letters CC are displayed in the

Channel Marker.

Menu Language Lets you select the language of your choice. English,

French, or Spanish Use the MENU button to toggle between the chotces

Screen ]

1 CC Display: OFF

2 CC Mode" ccl I

3 Menu Language: ENGLISH, .I

0 Exit " "_'",I

TheScreen Menu

Closed Caption Modes

CCI: full translation of the primary

language In your area

CC2: secondary language translation,

simplified English, or whatever is being

broadcast in your area

THE CHANNEL MENU

The Channel menu contains all the commands used to control your

channels, including custom-budding your channel list

Signal Type Displays a toggle that lets you select the current antenna

type

Antenna Choose this if you are currently using an off-air antenna

for UHF/VHF TV signals

Cable TV Choose this if you are currently using cable or a cable

box for TV signals

Auto Channel Search Selecting this option tells the TV to search

automatically for all the channels available through the antenna input

When the TV finds an active channel, it places _tin the channel list

Inactive channels. (Weak stations or channels with no signal at all) will

be removed from the channel hst You may interrupt this process by

pressing the MENU button )

Lists and Labels Displays a control panel that lets you custom-budd

your channel scan list and choose a four-character label for each

channel Usethe VOL +/- buttons to move left and right between fields,

use the CH^/v buttons to move up and down enter settings and create

labels PressMENU to exit

Channel Number Use the CH^/v buttons to scroll through the

channel scan list You can also enter the channel number dtrectly

using the number buttons

Channel Labels Use the CH^/v buttons to enter afour-character

label for each channel

Scan List Only the channels included in the Scan list are avadable

when you scan up and down using the CH ^Iv buttons Use them to

indicate whether the channel number indicated _sincluded (YES) or

ts not included (NO) m the channel scan list.

Channel

1 SignalType: ANTENNA

2 Auto Channel Search

3 ListsandLabels

0 Exit

The Channel menu

Lists and Labels

Chart Chan Scan

#Labe_ L_st

16 NBC YES

Press MENU to exit

The Lists and Labels screen

ITip

You can always press MENU to exit

back to the prewous screen ]

V-CHIP AND PARENTAL CONTROLS

The V-Chip Parental Controls menu allows you to program your TV so

that children cannot see certain programs

The choices in this menu involve a chip inside your TV, called V-Chip

These V-Chip functtons will not work on your TV because the features

depend upon special additions to the broadcast signal, not yet

available in your market Please disregard them

Unlocking V-Chip Parental Controls

The V-Ch_p inside your TV comes turned "off " However, if the screen

shown on the right appears, the V-Chp Parental Controls have been

locked Follow these steps to unlock the Parental Controls and return

to normal viewing

1 Press DISPLAY on the remote control to bring up the Enter

Password screen shown on the rtght.

2 With the Enter Password screen stdl up, press the following

buttons on the remote, one by one MUTE, DISPLAY, CLEAR and

RESET

TV Main Menu

1 Picture QuahLy

2 Screen

3 Channel

4 V-Chip Parental Controls

5 Time

0Exit

Selecting V-ChipParental Controls

-;. This program ts blocked.

-_ : :-uNRATED

-,_ .," Ch_ge channel or

....3_l_r_ _DISP_.AY't_en_r password.

Enter Password

,q_ .

Enter four_digi_ Password.

PreSs MENU tb_xit.

TheEnter Passwordscreen

THETIMEMENU

The Time menu contains the controls that let you set the Sleep Ttmer

and Set Time functions

Sleep Timer Displays a control panel that lets you select the

amount of t_me you want to gwe the TV before It shuts ttself off

Use the CH^/v buttons to increase or decrease the sleep bmer by 15

minute increments Press MENU to exit

Set Time Displays acontrol panel that lets you enter the current

time UsetheCH ^/vand number buttons to set the time Press

MENU to ex=t

Time

1SleepTimer

2SetTime

0Exit

The Time menu

CHANNEL MARKER

The Channel Marker comes up when you first turn on the "IV, change

channels, or press the DISPLAY button

08:59 Displays the current time

WRTV Displays the label assigned to the current channel

06 Displays the current channel

Sleep Displayed when the Sleep Timer has been set

Stereo Displayed when the current channel is broadcasting in Stereo

CC Dtsplayed when Closed Capttonmg ts avadable

Mute Displayed when you mute the audto

Unlocked Displays whether the V-Chtp system ts locked, unlocked, or

disabled

01:30 Displayed to count down t_me left on the commeroal skip timer

08 59 •WRTV 06

Sleep Stereo CC

The Channel Marker shown is just an example of

what your screen may look like

rYou can press MENU or CLEARto make the

Channel Marker disappear; it will disappear|

automatically after a short time. )

TOUR OF THE TV:THE FRONT PANEL

VOL < Decreases the volume When m the menu system, VOL < isused

to point left to ttems and adjust menu controls

VOL > Increases the volume When in the menu system, VOL > _sused

to point right to ttems and adjust menu controls

tHAN ^ Scans up through the channelhst in the menu system, it

points up to items and adjusts menu controls

CHANv Scans down through the current channelhst In the menu

system, _tpoints down to Items and adJusts menu controls

MENU Brings up the Main menu When in the menu system, It selects

highhghted _tems Also returns you to the prewous menu

POWER Turns the TV on and off

M_,u V c.,,, A < voL> pO*ER

111111

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
