RCA WHP150 Manual de usuario

Headphones w

with 900 MHz Transmitter

_ ;.

2,.

,,.

The 900 MHz stereo wireless headphone system uses latest

wireless technology that enables you to enjoy music and TV

., :‘:!

sound anywhere inside or outside your home. You can simply

.~I,,!

.~,

I:,,: /

connect the system to any sound source such as CD, TV, VCR,

,‘,i

‘.

., ‘::;

Hi-Fi and radio. It is also perfect for usage in class rooms,

:i: hospitals, meetings, churches, as a hearing aid, and for the

,,::j

~:,‘,.,,

,,,+:.I

purpose of language translation.

*:_:: ~:,,I

900 MHz Radio Frequency (RF) technology

RF technology lets you roam freely throughout your home

Operating distance up to 125 ft.

No line-of-sight limitations

Built-in charger in the transmitter

Virtually interference free stereo quality

.e Automatic Level Control and auto ON/OFF control.

Do not play your headset at a high volume.

Hearing experts advise against continuous

extended play.

If you experience a ringing in your ears,

reduce the volume or discontinue use.

Make sure the volume level of the headphone

is set at a comfortable listening level [email protected]

placing it in position over your ears.

RADIO TRANSMlllER

Auto Power

ON/Signal

Strength

Indicator (Green)

Charge Indicator

(Red)

Frequency

Adjustment

Charge Output

Plug (connects

to headphones

for charging)

Audio Cord

HEADPHONE RECEIVER

Power Indicator

Stereo Indicator Volume Control

T&e

1) Connect the supplied AC power adapter to an electrical

wall outlet.

2) Plug the AC power Adapter into the DC jack located on the

rear of the transmitter.

Charge

output

AC/DC

Adapter Green

-LED

Jack Audio

Cord

3) Locate the audio cord connected at the back of the transmit-

ter. The 3.5 mm plug provided can be used to connect the

transmitter to the headphone jack of any audio source.

If your equipment has a l/4” size jack, use the adapter plug

included with the headphone.

For connection to RCA type radio jacks located on the back of

a TV, VCR or A/V receiver, use the “Y” adapter that is

included. Just insert the mini plug on the audio cord into the

jack on the adapter to convert the connector for this applica-

tion. Then insert the red and white RCA plug ends into the

equipment jacks marked “Audio Out” to make the audio

source connection (see diagram).

Audio - WV

Cord l/4” adapter

“Y” adapter

1) Open the battery compartment cover on the right side of the

headphone.

2) Insert two AA size Ni-Cd rechargeable batteries with the

correct polarity.

3) Replace the cover and you are ready to charge the batteries.

Switch the ON/OFF switch on the headphone receiver to OFF.

Plug the charge output plug, located on the back of the

transmitter, into the charge input jack of the headphone

receiver to charge the batteries.

The charging process starts automatically and the RED LED

lights up indicating the unit is charging.

After the quick charge is completed, the quick charge indicator

will be OFF; however, the trickle charge will continue.

Caution: Do not use other kinds of batteries to replace the Ni-Cd quick

charge (AA) battery When you are not using the head-

phone, please switch it off as the batteries can be damaged.

Headphone

Red LED

The Ni-Cd (nickel cadmium) batteries must be fully charged prior

to operation. An initial charge of 24 hours is required to ensure

the extended life of the Ni-Cd batteries. Be sure the headset is in

the OFF position during charging status.

’ *A

1) Turn on the audio source (TV or audio component) to which

the transmitter is connected:

2) Switch the ON/OFF switch on the headphone to ON.

3) Place the headphones- on your head and adjust the volume

control to the desired listening level. The adjustable head-

band lets you adjust the length of the headphones for a

comfortable fit.

4) Tune the frequency adjustment control, located on the back of

the transmitter, to a mid-level setting. Just rotate the thumb-

wheel knob up or down and leave it set approximately in the

middle of the range.

5) Adjust the tuning dial of the headphone to the frequency of

the transmitter for best reception.

You should now be able to walk freely from mom to room without disruption. If

disruption should occur (signal breaks up), adjust the headphones tuning control

to maximize stereo reception.

If you hear interference horn other components, readjust the tuning control.

Move

the control on the transmitter to a different setting then adjust the control

on the headphones to match the new setting.

You

may have to try a few loca-

tions to find one with no interference.

When transmitting/receiving over long distances, the signal from the system will

become weaker and the stereo indicator light will go dim.

For protection of the transmitter and to save power, the transmitter will cut off

automatically in about one minute when the input signal from the audio source

is too weak for operation. If the signal is restored, the transmitter will work

again autoinatically. 7

Sound Ensure the AC adapter is fully inserted into the

AC outlet and into the power connection input on

the tr;lnsmitter.

Ensure the hertdphones ON/OFF switch is in

the ON position.

Headphone batteries may be too low. Charge batteries

Ensure the TV or audio component is on and tuned to a

channel with audio.

Adjust the volume control on the hexiphone to

turn up the volume.

The connected audio/\%leo equipment is not playing

(CD, Tape, etc...). Check the audio source.

The volume of headphone is turned down, adjust the

volunw to an appropriate level.

Distortion Ensure the stereo indicator light is on. If not,

adjust the tuning control on the headphones

until the indicator light is on.

Change the position of the FREQ. ADJUST control

to change operating frequency. You must then

adjust the tuning control on the headphone until

the stereo indicator light is on.

Headphone batteries may be too low. Charge the batteries

or replace with new ones if they do not charge.

Ensure the level control wheel is adjusted properly

The headphone is too far from transmitter,

move closer.

The input level of the audio signal is too low. Turn

up the volume of the audio source equipment.

p’ j

.:.i

Transmission Mode: UHF Stereo

Carrier Frequency

Operating Voltage

Frequency Response

911.5 - 913.5 MHz

Transmitter, lYV200mA

Receiver, 2.4V (2xAA Ni-Cd Quick Charge Battery)

2OHz - 20 Khz

Signal Noise Ratio

Distortion

Separation

55 dB

1.5%

30dB

Operation Distance 50M

NOTE: Changes or modifications not expressly approved by the party

responsible for compliance to the FCC Rules could void the users authority to

operate this equipment

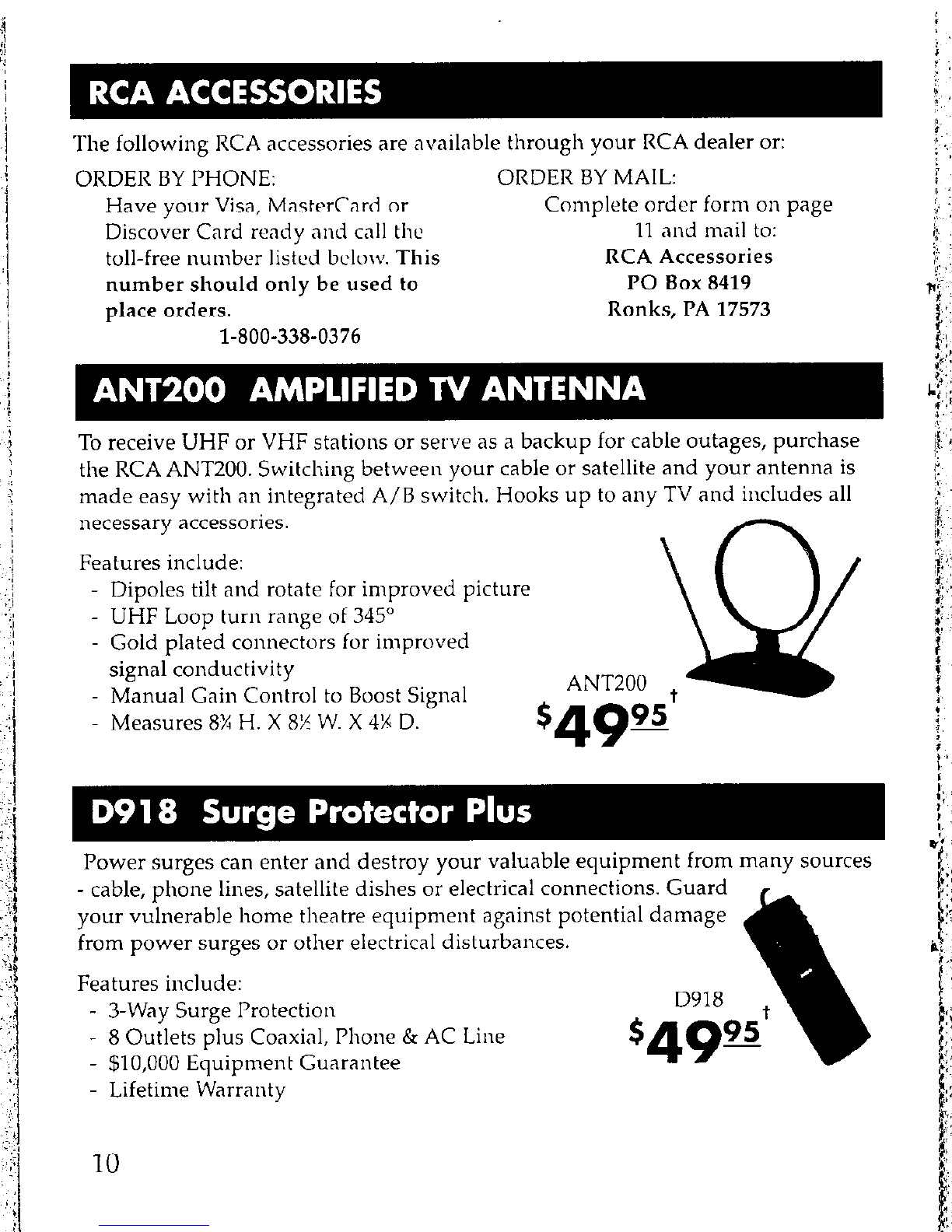

The following RCA accessories are available through your RCA dealer or:

ORDER BY PHONE: ORDER BY MAIL:

Have your Visa, MasterCard or Complete order form on page

Discover Card ready and call the 11 and mail to:

toll-free number listed b&w. This RCA Accessories

number should only be used to PO Box 8419

place orders. Ronks, PA 17573

l-800-338-0376

To receive UHF or VHF stations or serve as a backup for cable outages, purchase

the RCA ANTZOO. Switching between your cable or satellite and your antenna is

made easy with an integrated A/B switch. Hooks up to any TV and includes all

necessary accessories.

Features include:

- Dipoles tilt and rotate for improved picture

- UHF Loop turn range of 345”

Gold plated connectors for improved

- Manual Gain Control to Boost Signal s&

ANT200 +

Measures 8%H. X 8i/:W. X 4x D.

$4995

signal conductivity

Power surges can enter and destroy your valuable equipment from many sources

- cable, phone lines, satellite dishes or electrical connections. Guard

your vulnerable home theatre equipment against potential damage

from power surges or other electrical disturbances.

Features include:

- 3-Way Surge Protection

- 8 Outlets plus Coaxial, Phone &AC Line

$10,000 Equipment Guarantee

- Lifetime Warranty
