USER’S

GUIDE

CC6372/CC6392

Cautions CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom-

mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user’s authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here. Record the serial number and model

numbers located on the bottom of the camcorder.

WARNING: To reduce the risk of fire or shock hazard, do not expose

camcorder or AC adapter/charger to rain or moisture.

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAU-

TION

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

This symbol indicates “dangerous voltage”

inside the product that presents a risk of electric

shock or personal injury.

This symbol indicates important instructions

accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Model No: _______________________________

Serial No: _______________________________

Purchase Date: _______________________________

Purchased From: _______________________________

CAUTION

ATTENTION

CC6372/CC6392

We want to make sure you enjoy your new camcorder. If you have any

questions, call:

Camcorder Exchange Warranty...........800-283-6503 (pages 81-82 )

Customer Service...................................800-336-1900 (page 80 )

Accessories............................................. 800-338-0376 (pages 67-72)

Assistance

Table of Contents

Assistance ..................................... 3

First-Time Operation .................. 3

PowerYour Camcorder............. 12

Adapter/Charger .............................. 12

Rechargeable Battery ...................... 13

Charge the Battery ........................ 14

Battery Level Indicator ................. 15

Battery Care and Storage .............. 15

Optional Car Cord Adapter ............. 16

Date and Time Display ............. 17

Install the Clock Lithium Cell......... 17

Set the Date and Time ..................... 18

Record AUTO DATE, Date,

Time, and Title Displays............. 20

Videocassettes............................. 22

Erase Protection – Safety Tab ....... 22

Recording and Playback

Speeds and Times ....................... 22

Insert and Remove Cassettes ........ 23

Cassette Care and Storage............. 23

Recording ................................... 24

Time-Remaining Display ................ 24

Select a Tape Length .................... 24

Use the LCD Monitor or Viewfinder

to See What You Record............... 26

Use the LCD Monitor ................... 26

Use the Viewfinder ....................... 27

LCD Monitor and Viewfinder

Displays ....................................... 28

AutoShot™ Mode ........................... 32

Five-Second Record Feature ........... 33

Tally Light ....................................... 33

Quick Review Feature ..................... 33

Camera Edit Feature........................ 33

Flying Erase Head ........................... 33

MENU/DISPLAY Button ................. 33

Zooming .......................................... 34

Use the Zoom Lever (Wand T)..... 34

Digital Zooming............................ 34

Tele Macro Zooming.................... 35

Focusing .......................................... 36

Auto Focus .................................... 36

Manual Focus................................ 37

Table of Contents

White Balance ................................. 38

Auto White Balance ...................... 38

Manual White Balance.................. 38

Exposure Control ............................ 40

Manual Exposure .......................... 40

Auto Exposure .............................. 40

Steady Pix™ Feature....................... 41

Fade or Wipe In or Out.................... 42

P. (Program) AE Button................... 44

16X9 Mode...................................... 45

Preset Titles ..................................... 46

Select a Language for the Title ..... 46

Record a Preset Title ..................... 47

Self-Timer Recording...................... 48

Animation Recording ...................... 50

Time-Lapse Recording .................... 52

Tally Light (Turn On or Off) ........... 54

Demo Mode..................................... 55

Attach the Shoulder Strap ............... 56

Recording Tips ................................ 57

Use the LCD Monitor or

Viewfinder for Playback.............. 58

To Play Back a Tape...................... 59

Playback Features........................... 60

Position the Tape ........................... 60

Visual Search ................................ 60

Stop-Action Pause......................... 60

Time Counter ................................ 61

Tracking ........................................ 61

Use the Cassette Adapter................. 62

Playback on TV (or VCR)

with Audio/Video Inputs ............. 64

Traveling Tips ............................ 66

Optional Accessories.................. 67

Using the Optional AC088

Tripod .......................................... 69

Order Form for Camcorder

Models CC6372 and CC6392 ..... 71

Trouble Checks .......................... 73

Specifications.............................. 77

Clean the Camcorder....................... 78

Clean the Camcorder’s Lens ........... 78

Clean the Camcorder’s LCD

Monitor........................................ 78

Clean the Camcorder’s

Viewfinder ................................... 78

Proper Care and Storage.................. 79

Things to Avoid ............................... 79

CustomerAssistance and

Service.................................... 80

Limited Warranty...................... 81

Index ........................................... 83

Information to User ................... 89

First-Time Operation

Assistance

1. Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship

or store your camcorder.

• The items shown below are packed with your camcorder. If any

are missing or appear damaged, contact your dealer immediately.

This section describes the steps necessary to set up your camcorder to record. Refer to

the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty...............800-283-6503

Customer Service................................... 800-336-1900

Accessories............................................. 800-338-0376

Caution: Do not use

this adapter/charger

for any purpose other

than charging the

FB1260, or 244265

battery pack or

supplying power to

the camcorder.

Model CC6372* or Model 6392*

(*Your camcorder may appear slightly

different than the one shown.)

Model CC6372

Rechargeable Nickel

Cadmium Battery

Part No FB1260

Cassette Adapter

Part No. 244270

Cassette Adapter Battery

(Size "AA" 1.5 Volt)

ACAdapter/Charger Part No. 244269

and DC Cable Part No. 244268

CAUTIONS: Lithium cell must be disposed of properly. Never handle

punctured or leaking cell. May cause burns or personal injury.

Keep out of the hands of children. Can cause death or injury if swallowed.

If swallowed, consult a physician immediately for emergency treatment.

The lithium cell used in this device may explode resulting in a fire or

chemical burn if mistreated. Do not recharge, disassemble, heat above

212°F (100°C), or incinerate.

Never use metallic tweezers to hold the cell, and never short circuit the +

and – sides of the cell.

Clock Cell

3-Volt Micro Lithium

Cell – such as CR2025 –

available from most local

drug stores and camera

shops. Use of other cells

present a risk of fire or

explosion.

WARNING: NICKEL

CADMIUM BATTERY

MUST BE RECYCLED

OR DISPOSED OF

PROPERLY.

Shoulder Strap

Part No. ACS091

+ -

(continued on next page)

First-Time Operation

Model CC6392

Rechargeable Nickel

Metal Hydride Battery

Part No 244265

First-Time Operation

3. Adjust the handstrap to fit your hand.

LENS

COVER

Control

Handstrap

Handstrap Velcro

Strip (Under Flap)

2. Attach the adapter/charger.

DC In Jack

DC Cable

Adapter/

Charger

To AC 100-240,

50/60 Hz

• Connect the other end of the DC

cable to the DC in jack on the

camcorder as shown above.

• Plug the adapter/charger’s plug

into an operating outlet.

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

• Connect one end of the DC cable

to the DC OUT jack on the

adapter/charger.

• Lift the flap on the

handstrap and separate

the velcro strip.

• Insert your hand, adjust

the strap to fit snugly,

refasten the strap, and

close the flap.

4. Rotate LENS COVER control to open lens cover.

DC OUT

Jack

First-Time Operation

6. Select a recording speed.

PUSH Here to Close

Cassette Compartment

Tape Wheel

Tape Window

(continued on next page)

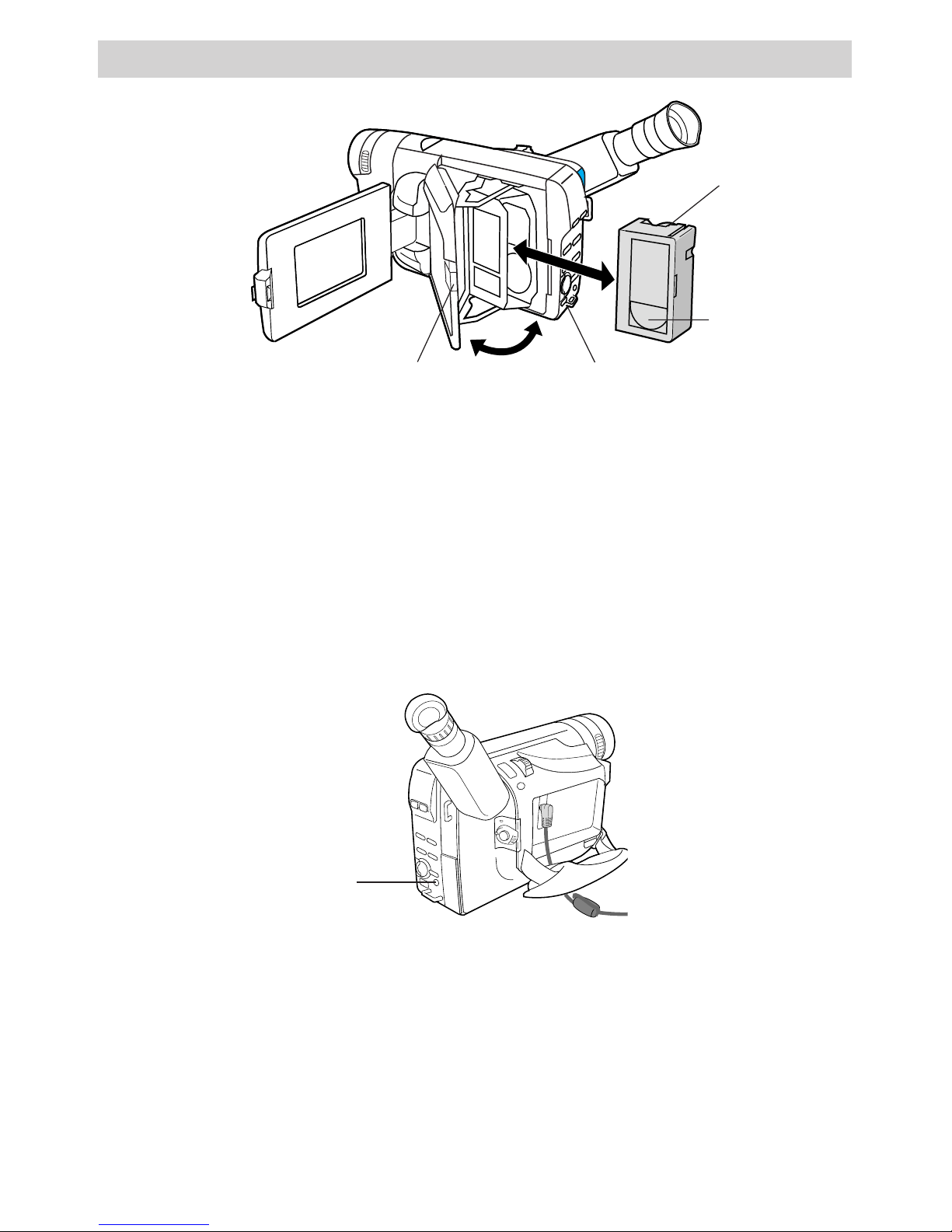

5. Insert a tape.

EJECT Switch

• Open the LCD monitor at least 60˚

before opening the cassette holder.

• Slide the EJECT switch.

The cassette holder opens

automatically.

• Turn the tape wheel on the cassette

to remove any slack from the tape.

Select SP or SLP recording speed.

Press and hold the SP/SLP button to

select a recording speed. The tape

speed you select (SP or SLP)

appears in the viewfinder or on the

LCD monitor.

• SP – Standard play provides the

best picture, but the shortest

recording time (20 minutes with a

TC-20 tape).

• SLP – Extended play provides

three times the recording time as

SP (60 minutes with a TC-20

tape). SLP has slightly more

picture noise in normal playback.

SP/SLP

Button

• Insert the cassette with the tape

wheel facing up and the tape

window facing out.

• Press on the area labeled PUSH

until the cassette holder locks

into place.

First-Time Operation

7. Set POWER (CAMERA MAN/CAMERAAUTO/OFF/VCR)

switch to CAMERA AUTO.

POWER Switch and

Indicator

• The power indicator lights and the

camcorder enters record-pause.

appears in the

viewfinder or on the LCD monitor

when the camcorder is in record-

pause.

• The position of this switch tells

the camcorder whether you want

to record (CAMERA MAN or

CAMERA AUTO), turn the power

off (OFF), or play back tapes

(VCR).

•CAMERA AUTO places the

camcorder in the AutoShot™

mode. In the AutoShot™ mode,

the focus, exposure, and white

balance are automatically

controlled by the camcorder.

Many of the special effects do not

operate in this mode. Details on

page 32.

• CAMERA MAN allows you to

control many of the special

features of the camcorder.

• The camcorder automatically

turns off if it remains in record-

pause for five minutes. Set the

POWER switch to OFF and then

back to CAMERA.

First-Time Operation

Eyepiece

Focus

Control

180

Use the LCD Monitor

• Make sure the monitor is open

at least 60˚. The viewfinder

turns off.

• You can tilt the monitor 180˚ up or

90˚ down for convenient viewing.

• Rotate the menu PUSH dial to

adjust the brightness of the image

in the monitor.

Use the Viewfinder

• Close the monitor. If the monitor

is open more than 60˚, the

viewfinder turns off.

• Adjust the viewfinder for a

comfortable viewing position.

8. Use the Monitor or Viewfinder to See What You Record

You can see what you record on the color LCD monitor or in the viewfinder. When

the LCD monitor is open more than 60˚, the viewfinder is automatically turned off.

When you close the LCD monitor, the viewfinder is automatically turned on.

To enable both you and the person you’re recording to see what’s being recorded,

you can rotate the LCD monitor completely around 105˚ so the front of the monitor

faces the person you’re recording. The viewfinder turns on automatically when

you turn the LCD monitor all the way around so it faced forward.

Electronic

Viewfinder

Menu PUSH Dial

(Also Bright Control)

LCD Monitor

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

Electronic

Viewfinder

Eyepiece

Focus

Control

(continued on next page)

First-Time Operation

PUSH

–

9. Select a tape length.

4.Press the menu PUSH dial in to

display the TAPE LENGTH menu.

T20

T30

T40

EXIT

TAPE LENGTH

5.Rotate the menu PUSH dial to

highlight the type of tape you are

using.

• Select T20 for a tape with 20

minutes or less recording time

in SP.

• Select T30 for a tape with 30

minutes recording time in SP.

• Select T40 for a tape with 40

minutes recording time in SP.

6.Press the menu PUSH dial twice

to select the tape length and

remove the menus.

• Details are on pages 24-25.

POWER Switch and

Indicator

MENU/DISPLAY

Button

Menu PUSH Dial

(Rotate or Push In)

1. Set the POWER switch

to CAMERA MAN.

2.Press the MENU/DISPLAY button

to display the menu in the

viewfinder or on the LCD monitor.

D. ZOOM

TELE MACRO

TAPE LENGTH

REC TIME

INT. TIME

TALLY LAMP

DATE/TIME

TITLE LANG.

DEMO MODE

RETURN

OFF

T30

OFF

ENGLISH

OFF

3. Rotate the menu PUSH dial to

highlight TAPE LENGTH.

D. ZOOM

TELE MACRO

TAPE LENGTH

REC TIME

INT. TIME

TALLY LAMP

DATE/TIME

TITLE LANG.

DEMO MODE

RETURN

OFF

T30

OFF

ENGLISH

OFF

Otros manuales para CC6392

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de RCA

RCA

RCA Small Wonder EZ4000 series Manual de usuario

RCA

RCA EZ300HD - Small Wonder Camcorder Manual de usuario

RCA

RCA Small Wonder EZ4000 series Manual de usuario

RCA

RCA Small Wonder EZ1100 Series Manual de usuario

RCA

RCA Small Wonder EZ3000 Series Guía de inicio rápido

RCA

RCA CC9381 Manual de usuario

RCA

RCA Small Wonder EZ2050 series Manual de usuario

RCA

RCA EZ207MD Manual de usuario

RCA

RCA CC6262 Manual de usuario

RCA

RCA Small Wonder EZ2050 series Manual de lista de piezas

RCA

RCA CC6374 Manual de usuario

RCA

RCA EZ409HD - Small Wonder Camcorder Manual de usuario

RCA

RCA Small Wonder EZ105 Manual de usuario

RCA

RCA EZ2000 Small Wonder Guía de inicio rápido

RCA

RCA Small Wonder EZ2050 series Manual de usuario

RCA

RCA Pro884HB Manual de usuario

RCA

RCA CC9360 Manual de usuario

RCA

RCA CC543 Manual de usuario

RCA

RCA EZ200 Small Wonder Manual de usuario

RCA

RCA EZ207 Small Wonder Manual de usuario

RCA

RCA CC6364 Manual de usuario

RCA

RCA EZ409HD - Small Wonder Camcorder Manual de usuario

RCA

RCA CC6263 Manual de usuario

RCA

RCA CC6364/CC6374 Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario
