camcorder

us er' s guide

CC6351/CC6371

Important Safety Information

Be sure to read all the safety information before you begin to use this product.

I ARNING: To reduce the risk of fire or shock hazard, do not expose

camcorder or AC adapter/charger to rain or moisture.

RISK__SI.IOCK

_NOTOPEN

This symbol indicates "dangerous voltage"

inside the product that presents a risk of electric

shock or personal injury.

AThis symbol indicates important instructions

accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION: Pour _viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom-

mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here. Record the serial number and model

numbers located on the bottom of the camcorder.

Model No: CC6351 or CC6371

Serial Noi_ .... _. ." :::

Purchase D_ate_' -..;:"_'_'.: .' '_

Purchased From: " '; _'_ -' ='i

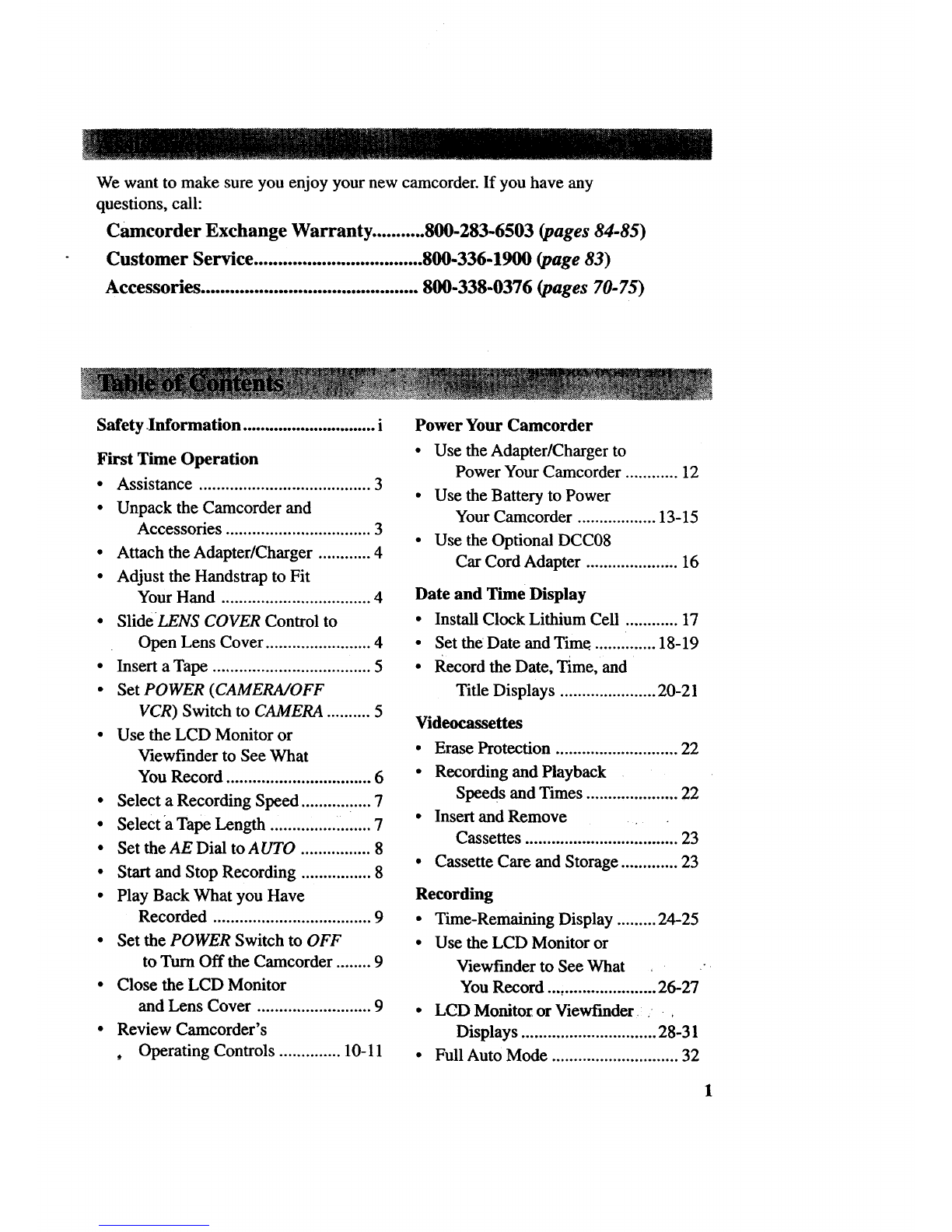

We want to make sure you enjoy your new camcorder. If you have any

questions, call:

Camcorder Exchange Warranty ........... 800-283-6503 (pages 84-85)

Customer Service ................................... 800-336-1900 (page 83)

Accessories ............................................. 800-338-0376 (pages 70-75)

Safety Information .............................. i

First Time Operation

• Assistance ....................................... 3

•Unpack the Camcorder and

Accessories ................................. 3

• Attach the Adapter/Charger ............ 4

•Adjust the Handstrap to Fit

Your Hand .................................. 4

• SlideLENS COVER Control to

Open Lens Cover ........................ 4

• Insert a Tape .................................... 5

•Set POWER (CAMERA/OFF

VCR) Switch to CAMERA .......... 5

•Use the LCD Monitor or

Viewfinder to See What

You Record ................................. 6

•Select a Recording Speed ........... _.... 7

• Select a Tape Length ....................... 7

• Set the AE Dial to A UTO ................ 8

• Start and Stop Recording ................ 8

• Play Back What you Have

Recorded .................................... 9

• Set the POWER Switch to OFF

to Turn Off the Camcorder ........ 9

• Close the LCD Monitor

and Lens Cover .......................... 9

• Review Camcorder's

,Operating Controls .............. 10-11

Power Your Camcorder

•Use the Adapter/Charger to

Power Your Camcorder ............ 12

•Use the Battery to Power

Your Camcorder .................. 13-15

•Use the Optional DCC08

Car Cord Adapter ..................... 16

Date and Time Display

•Install Clock Lithium Cell ............ 17

•Set theDate andTime ....... ....... 18-19

•Record the Date, Time, and

Title Displays ...................... 20-21

Videocassettes

• Erase Protection ............................ 22

•Recordingand Playback

Speedsand Times..................... 22

•Insert and Remove

Cassettes ................................... 23

• Cassette Care and Storage ............. 23

Recording

•Time-Remaining Display ......... 24-25

• Use the LCD Monitor or

Viewfinder to See What , "

You Record .... ..................... 26-27

• LCD Monitor or Viewfmder,

Displays ............................... 28-31

• Full Auto Mode ............................. 32

• QuickRecordFeature...................33

• QuickReviewFeature...................33

• Tally Light .....................................33

• CameraEditFeature.....................33

• Flying EraseHead.........................33

• Auto HeadCleaner........................33

• Zooming

•Use the Zoom Buttons ......... 34-35

• Tele Macro Zooming ................ 35

• Focusing

• Auto Focus ................................ 36

•Manual Focus ...................... 36-37

•White Balance .......................... 38-39

• Exposure Control ..................... 40-41

• Fade In and Out ............................. 42

•AE Dial .......................................... 43

• Front Light and Back Light ........... 44

• Recording and Travel Tips ............ 45

• Titles

• Record Preset Title or

Title you Create .................... 46

• Create Your Own Title .............. 47

• Self-Timer Recording ............... 48-49

• Animation Recording ............... 50-51

• Time-Lapse Recording. ............ 52-53

•Tally Light (Turn On or Off) .... ..... 54

• Demo Mode .................................. 55

• JLIP (Joint Level Interface:

Protocol) Identification

Number ..................................... 56

• Attach the Shoulder Strap ............. 57

• Built-In Color Enhancement

Light ..................... .............. 58-59

Playback

• Use the LCD Monitor

or Viewfinder for Playback:'. 60-61

• Tracking ........................................ 61

• Playback Features

• Position the Tape ...................... 62

• Visual Search ............................ 62

• Stop-Action Pause .................... 62

• Time Counter ............................ 63

• Memory-Stop Feature ........... 63

• Use the Cassette Adapter ......... 64-65

• Playback on TV (or VCR)

with Audio/Video Inputs ..... 66-67

• Playback on a TV Without

Audio/Video Inputs ............. 68-69

Optional Accessories ................... 70-75

• Accessory Order Form ............. 73-75

Trouble Checks ........................... 76-79

Care and Maintenance

• Clean the Camcorder .................. ... 80

•Clean the Camcorder's Lens ......... 80

• Clean the Camcorder's LCD

Monitor ............ ......................... 80

•Clean the Camcorder's

Viewfinder ....... .......................... 80

•Proper Care and Storage ............... 81

• Things to Avoid ............................. 81

Specifications ................................... 82

Information toUser '..".... ,... ............. 82

Customer Assistance ....................... 83

Limited Warranty ....................... 84-85

Index ............................................ 86-89

Thissectiondescribesthestepsnecessaryto setupyourcamcordertorecord.

Referto theothersectionsfor detailedoperationandfeatureoptions.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

le Unpack the camcorder and accessories.

•Save the packing materials and box in case you ever need to ship

•or store your camcorder.

• The items shown below are packed with your camcorder. If any

are missing or appear damaged, contact your dealer immediately.

Model CC6351 or CC6371

Camcorder*

(*Your camcorder may appear slightly

_titantheoueshown.)

Rechargeable Battery

Part No FB1260

or BB700

Shoulder Strap

Part No. ACS091

AC Adapter/Charger Part No. 241017

and DC Cable Part No. 233087

Clock Cell

3-Volt Micro Lithium

Cell - such as CR2025 -

available from most local

drug stores and camera

shops. Use of other cells

present a risk of fire or

explosion.

Cassette Adapter

Part No. VCAll5A

4+ "0

Cassette Adapter Battery

(Size "AA" 1.5 Volt)

(continued on next page)3

oAttach the adapter/charger.

ToAC 100-240,

50160 Hz

Adapter/

Charger Cable

OUT

Jack DC In Jack

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

• Connect one end of the DC cable

to the DC OUT jack on the

adapter/charger.

Connect the other end of the DC

cable to the DC in jack on the

camcorder as shown above.

Plug the adapter/charger's plug

into an operating outlet.

3. Adjust the handstrap to fit your hand. _ _-------_: ..... M

_LENS

I I IIII'f Cover

'Z_----_ Control

_---Handstrap

_Handstrap Velcro

Strip (Under Flap)

•Lift the flap on the

handstrap and separate

the velcro strip.

•Insert your hand, adjust

the strap to fit snugly,

refasten the strap, and

close the flap.

4. Slide LENS COVER control to open lens cover. ..................

5. Insert a tape. EJECT Button

Wheel

,Window

PUSH Here to

Close Cassette

Compartment

• Open the LCD monitor. Open the

monitor at least 90* before

opening the cassette holder.

• Press EJECT. The cassette holder

opens automatically.

• Turn the tape wheel on the

cassette to remove any slack from

the tape.

• Insert the cassette with the tape

wheel facing up and the tape

window facing out.

• Press on the area labeled PUSH

until the cassette holder locks

into place.

6. Set POWER (CAMERA/OFF/VCR) switch to CAMERA.

• The power indicator lights and the

camcorder enters record-pause.

PAUSE _appears in the

viewfinder or on the LCD monitor

when the camcorder is in record-

pause.

The position of this switch tells

the camcorder whether you want

to record (CAMERA), turn the

_WER

Switch and

Indicator

power off (OFF), or play back

tapes (VCR).

The camcorder automatically turns

off if it remains in record-pause

for five minutes. Set POWER to

OFF and back to CAMERA.

(continued on next page)

7. Use the LCD monitor or viewfinder to see what you record.

You can see what you record on the color LCD monitor or in the black-and-

white viewfinder. When the LCD monitor is open more than 45", the

viewfinder is automatically tumed off. When you close the LCD monitor, the

viewf'mder is automatically turned on.

Electronic

Viewfinder

Focus

Control

Use the LCD Monitor

•Make sure monitor is open at least

45*. The viewfinder turns off.

•Tilt the LCD monitor 180 *_up or

90* down.

• Adjust the brightness of the image

in the monitor by turning the

BRIGHT control.

•Details are on page 26,

Use the Viewfinder

• Make sure the monitor is closed.

If the monitor is open more than

45", the viewfinder turns off.

•Adjust the viewfinder for a

comfortable viewing position.

• Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

•Details are on page 2Z

SP/SLP

Button

Dial

8. Select a recording speed._-......................_.........................._....._..........'.................._................_.........................................

Select SP or SLP recording speed.

Press and hold the SP/SLP button to

select a recording speed. The tape

speed you select (SP or SLP) appears

in the viewfinder or LCD monitor.

•SP -Standard play provides the

best picture, but the shortest

recording time (20 minutes with a

TC-20 tape).

SLP -Extended play provides

three times the recording time as

SP (60 minutes with a TC-20

tape). SLP has slightly more

picture noise in normal playback.

9. Select a tape length ...............................................................................................................................................................................!...!...........................................

Set the length of the tape you are

using so the camcorder can correctly

calculate the recording time

remaining on the tape.

• Place the AE dial in MAN, and

press the MENU dial to display the

main MENU in the viewfinder or

on the LCD monitor. Rotate the

dial to select TAPE LENGTH.

*_Press the MENU dial in to display

the TAPE LENGTH menu. Rotate

the dial to select the length of tape

you are using (/'20, T30, or T40).

• Select T20 for a tape with 20

minutes or less recording time

in SP.

• Select T30 for a tape with 30

minutes recording time in SP.

• Select T40 for a tape with 40

minutes recording time in SP.

• Press the MENU dial twice to

remove the menus from the

viewfinder or LCD monitor.

•Details are on pages 24-25.

'Power

Indicator

AE Dial

Thumb POWER (VCR/

Trigger OFF/CAMERA)

Switch

Tally

Light

10. Set the AE dial to AUTO.

•This places the camcorder in the

AUTO mode.

•In the AUTO mode, the focus,

exposure, and white balance are

automatically controlled by the

camcorder.

Ill

• Many of the special effects do not

operate in the AUTO mode.

•Details on page 32.

11. Start and stop recording.

•Press and release the thumb trigger

to start recording. _,_ appears in

the viewfinder or on the LCD

monitor, and the tally light lights

when the camcorder is recording.

II II IIIIIIIII1[I

Press and release the thumb trigger

again to stop recording. The

camcorder is now in the record-

pause mode. _=PAUSE= appears in

the viewfinder or on the LCD

monitor.

(continued on next page)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de RCA

RCA

RCA CC6151 - VHS-C Camcorder Manual de usuario

RCA

RCA CC6364/CC6374 Manual de usuario

RCA

RCA Small Wonder EZ3100 Series Manual de lista de piezas

RCA

RCA EZ5000 Series Manual de usuario

RCA

RCA CC436 Manual de usuario

RCA

RCA CC6393 Manual de usuario

RCA

RCA Small Wonder EZ2050 series Manual de instrucciones

RCA

RCA EZ210 Small Wonder Manual de usuario

RCA

RCA Small Wonder EZ3100 Series Manual de instrucciones

RCA

RCA CC6262 Manual de usuario

RCA

RCA Small Wonder EZ1000 series Manual de instrucciones

RCA

RCA Small Wonder EZ3100 Series Manual de usuario

RCA

RCA CC4251 Manual de usuario

RCA

RCA CC4271 Manual de usuario

RCA

RCA Small Wonder EZ2110 series Manual de instrucciones

RCA

RCA EZ5000R Series Manual de usuario

RCA

RCA EZ209HD - Small Wonder Camcorder Manual de lista de piezas

RCA

RCA Small Wonder EZ208 Manual de usuario

RCA

RCA EZ209HD - Small Wonder Camcorder Manual de usuario

RCA

RCA ProV950HB Manual de usuario

RCA

RCA Small Wonder EZ217 Manual de usuario

RCA

RCA Small Wonder EZ201 Manual de usuario

RCA

RCA Small Wonder EZ3000 Series Guía de inicio rápido

RCA

RCA EZ5000R Series Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario
