Important Safety Information

Be sure to read all the safety information before you begin to use this product.

I WARNING: To reduce the risk of fire or shock hazard, do not expose I

camcorder or AC adapter/charger to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates "dangerous voltage"

inside the product that presents a risk of electric

shock or personal injury.

NE PAS OUVRIR This indicates instructions

symbol important

accompanying the product.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER

(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Cautions

CAUTION: To reduce the risk of electric shock, match the wide

blade of plug to wide slot, and fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu au fond.

To reduce risk of injury, charge only rechargeable batteries recom-

mended by the manufacturer for this camcorder. Other types of

batteries may burst causing damage and personal injury.

FCC Regulations state that unauthorized changes or modifications to

this equipment may void the user's authority to operate it.

Product Registration

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts

and service and attach it here. Record the serial number and model

numbers located on the bottom of the camcorder.

Model No:

Serial No:

Purchase Date:

Purchased From:

CC4392

We want to make sure you enjoy your new camcorder. If you have any

questions, call:

Cameorder Exchange Warranty ........... 800-283-6503 (pages 74-75)

Customer Service ................................... 800-336-1900 (page 73)

Accessories ............................................. 800-338-0376 (pages 58-62)

First-Time Operation .................. 3

Included Accessories .................. 11

Attaching the Shoulder Strap .......... 11

Built-In Color

Enhancement Light ...................... 12

Power Your Camcorder ............. 14

Use the Adapter/Charger to

Power Your Camcorder ................ 14

Use the Battery to Power

Your Camcorder ........................... 15

Charge the Battery ........................ 15

Attach the Charged Battery ........... 16

Remove the Battery ....................... 16

Battery Level Indicator ................. 17

Battery Care .................................. 18

Battery Storage .............................. 18

Battery Safety Precautions ............ 18

Use the RCA Optional

Car Cord Adapter ......................... 19

Videocassettes ............................. 20

Erase Protection - Safety Tab ....... 20

Recording and Playback

Speed and Times ......................... 20

Insert and Remove Cassettes ........ 21

Cassette Care and Storage ............. 21

Date and Time Display .............. 22

Set the Time and Date ..................... 22

To Correct the Date or Time ......... 22

Charge the Built-in

Clock Battery .............................. 23

Record the Time and Date,

Auto Date, Auto Title, or Date ... 23

Recording ................................... 24

Use the LCD Monitor or Viewfinder

to See What You Record .............. 24

Use the LCD Monitor ................... 24

Use the Viewfinder ........................ 25

LCD Monitor or

Viewfinder Displays ..................... 26

DISPLAY Button ............................ 28

Microphone ..................................... 28

Demonstration Mode ...................... 28

Quick Review Feature .................... 28

AutoShot TM Feature ........................ 28

Auto Focus ...................................... 29

Macro Focus ................................... 29

Steady Pix TM Feature ...................... 29

Tape-Remaining Display ................ 30

Electronic Indexing ......................... 30

Recording (Cont.)

Zooming .......................................... 31

Use the Zoom Buttons (T and W). 31

Use the Instant Zoom Button (INST.

ZOOM) ....................................... 31

Digital Effects ................................. 32

To Select a Digital Effect .............. 32

16X9 Mode ................................... 33

Negative Mode .............................. 34

Digital Zooming ............................ 34

Mosaic Mode ................................ 35

Mirror Mode .................................. 35

Fade In and Out of Scenes .............. 36

Tape Counter ................................... 38

Editing Features .............................. 39

Camera Edit Feature ..................... 39

Flying Erase Head ......................... 39

Audio Dub ..................................... 40

Audio and Video Dub ................... 42

Titler .............................................. 44

Recording Tips ................................ 47

Traveling Tips ................................. 47

Record from a VCR or TV Monitor 48

Playback ..................................... 50

Use the LCD Monitor or Viewfinder for

Playback ....................................... 50

Playback Features .......................... 52

Tape Positioning ............................ 52

Visual Searching ........................... 52

Stop-Action Pause ......................... 52

Tracking ........................................ 53

Playback on TV (or VCR) with Audio/

Video Input Jacks ......................... 54

Playback on TV Without Audio/Video

Inputs ............................................ 56

Optional Accessories .................. 58

Using the Optional AC093 Tripod 61

Remove the Lens Hood ................. 62

Attach an Accessory Lens ............. 62

Accessory Order Form .................. 63

Trouble Checks .......................... 66

Care and Maintenance .............. 70

Clean the Camcorder ...................... 70

Clean the Camcorder's Lens ......... 70

Clean the Camcorder's LCD Monitor

Clean the Camcorder's Viewfinder 70

Proper Care and Storage ................. 71

Things to Avoid ............................... 71

Information to User ................... 72

Specifications .............................. 72

Customer Assistance

and Service ............................... 73

Limited Warranty ...................... 74

Index ........................................... 76

Information to User ......................... 81

This section describes the basic steps necessary to set up your camcorder to record.

Refer to the other sections for detailed operation and feature options.

Assistance

The toll-free numbers are available to help you with any problem you may encounter.

Camcorder Exchange Warranty ............... 800-283-6503

Customer Service ................................... 800-336-1900

Accessories ............................................. 800-338-0376

.Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship

or store your camcorder.

• The items shown below are packed with your camcorder. If any

are missing orappear damaged, contact your dealer immediately.

Model CC4392 .....

Bi:g 6g B:61

Reehargeable 10-Volt Battery

Stoek No. EP096FS

AC Adapter/Charger: Stock No. 241044

DC Cable: Stock No. 233328 Shoulder Strap

Stock No. 227327 or

Stock No. 241305

(continued on next page)3

2. Attach the adapter/charger.

To AC 120V,

50/60 Hz

Adapter/

Charger

Since the battery must be charged

before it can be used the first time,

attach the adapter/charger to the

camcorder.

1. Attach one end of the adapter/

charger's DC cable to the DC

OUTPUT jack on the side of the

adapter/charger.

DC IN 9.6V

Jack

2. Attach the other end of the cable

to the DC IN 9.6V jack on the

camcorder.

3. Plug the adapter/charger's plug

into an operating outlet.

4. Details are on page 14.

3. Adjust the handstrap, remove lens cap, and attach

it to the handstrap.

Cap on

Handstrap

1. Open the handstrap, insert your

hand, and adjust the handstrap to

fit your hand.

2. Remove the lens cap and attach it

to the handstrap as shown.

4. Insert a tape.

STOP/EJECT Safety Tab

Tape Windows

Cassette

1. Press STOP/EJECTto open the

cassette compartment.

2. Insert the cassette with the safety

tab facing up and the tape windows

facing out.

'Cassette Door

Press Here to Close

3.Press the cassette down gently

until it locks into place, and close

the cassette compartment door.

4.Details are on page 21.

5. Turn on the camcorder.

Switch

Note: If you want the date and

time displayed on your

recordings, you must set it.

See Date and Time Display on

pages 22-23.

• Press and hold the small button on

the CAMERA/OFF/VCR switch

while you slide it to CAMERA.

The camcorder enters record-

pause.

• The position of this switch tells

the camcorder whether you want

to record (CAMERA), turn the

power off (OFF), or play back

tapes (VCR).

• The camcorder automatically

turns off if it remains in record-

pause for five minutes. Place

the switch to OFF and then back

to CAMERA.

(continued on next page)

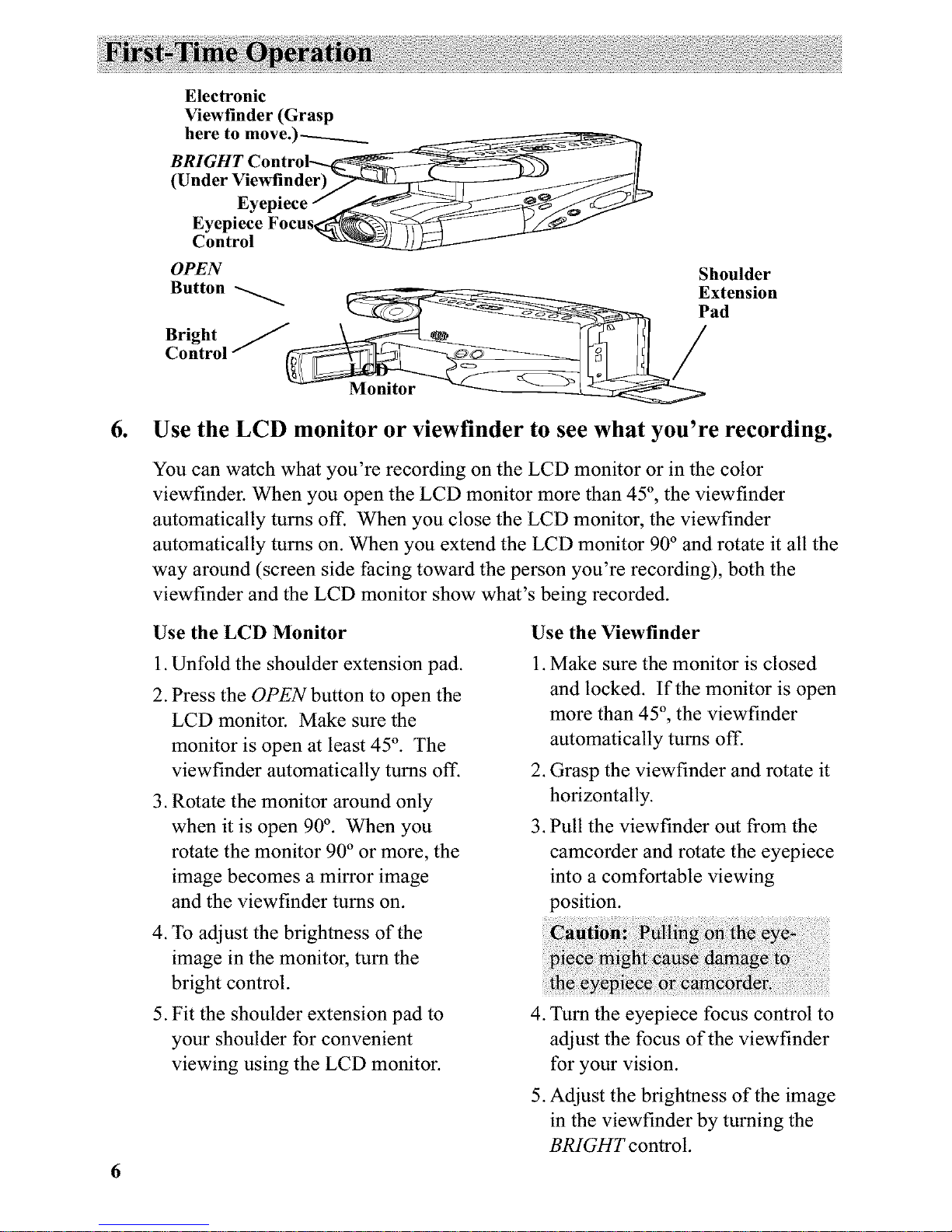

Electronic

Viewfinder (Grasp

here to move.)_ .... _ .....

BRIGHT Control _1

(Under Viewfinder)___

Eyepiece /___/__

Eyepiece Focus_'__

Control _ _ })

OPEN Shoulder

Button __xtensiOnpad

Bright J

Control

6. Use the LCD monitor or viewfinder to see what you're recording.

You can watch what you're recording on the LCD monitor or in the color

viewfinder. When you open the LCD monitor more than 45 °, the viewfinder

automatically turns off. When you close the LCD monitor, the viewfinder

automatically turns on. When you extend the LCD monitor 90 ° and rotate it all the

way around (screen side facing toward the person you're recording), both the

viewfinder and the LCD monitor show what's being recorded.

Use the LCD Monitor

1. Unfold the shoulder extension pad.

2. Press the OPEN button to open the

LCD monitor. Make sure the

monitor is open at least 45 °. The

viewfinder automatically turns off.

3. Rotate the monitor around only

when it is open 90°. When you

rotate the monitor 90° or more, the

image becomes a mirror image

and the viewfinder turns on.

4. To adjust the brighmess of the

image in the monitor, turn the

bright control.

5. Fit the shoulder extension pad to

your shoulder for convenient

viewing using the LCD monitor.

Use the Viewfinder

1. Make sure the monitor is closed

and locked. If the monitor is open

more than 45 °, the viewfinder

automatically turns off.

2. Grasp the viewfinder and rotate it

horizontally.

3. Pull the viewfinder out from the

camcorder and rotate the eyepiece

into a comfortable viewing

position.

4. Turn the eyepiece focus control to

adjust the focus of the viewfinder

for your vision.

5. Adjust the brighmess of the image

in the viewfinder by turning the

BRIGHT control.

REC/PA USE

Button

LIGHT

AUTO/OFF/

ON Switch

.Set the LIGHT A UTO/OFF/

ON switch to A UTO.

•The color enhancement light helps

you create brighter and sharper

images.

• Set the LIGHTAUTO/OFF/ON

switch to A UTO if you want the

color enhancement light to turn on

automatically when you aim the

camcorder at a dark object and

turn off when you aim it at a

bright object.

•Details are onpages 12-13.

.Start and stop recording.

•Press and release the REC/PAUSE

button to start recording. REC

appears in the viewfinder or on

the LCD monitor, when the

camcorder is recording.

•Press and release the REC/PAUSE

button again to stop recording.

The camcorder is now in the

record-pause mode ( II appears in

the viewfinder or on the LCD

monitor when the camcorder is in

record-pause).

(continued on next page)

CAMERA/

OFF/VCR

RE W/ PLAY

RE VIE WButton

Button

RE C/PA USE

9. Play back what you have

recorded.

1. Press the REC/PAUSE button to

pause recording.

2. Press and hold the small button

on the CAMERA/OFF/VCR

switch while you slide it to VCR.

3. Press REW/REVIEWto rewind

the tape.

4. Press PLAYto play back the tape.

5. Press STOP/EJECTwhen you are

finished playing back the tape.

Details on LCD monitor and

viewfinder playback are on

pages 50-51.

10.

11.

Set the CAMERA/OFF/VCR

switch to OFF to turn off the

camcorder.

Close the LCD monitor and

replace the lens cap.

Tabla de contenidos

Otros manuales de Videocámara de RCA

RCA

RCA Small Wonder EZ2120 series Manual de usuario

RCA

RCA CPR 250 Manual de usuario

RCA

RCA Pro852 Manual de usuario

RCA

RCA Small Wonder EZ2100 series Manual de usuario

RCA

RCA Small Wonder EZ1000 series Manual de usuario

RCA

RCA EZ200 Manual de usuario

RCA

RCA Small Wonder EZ2110 series Manual de usuario

RCA

RCA CC635 Manual de usuario

RCA

RCA EZ2120BK Manual de usuario

RCA

RCA Small Wonder EZ1000BL Guía de inicio rápido

RCA

RCA AutoShot CC6291 Manual de usuario

RCA

RCA Small Wonder EZ201 Manual de usuario

RCA

RCA Small Wonder EZ1100 Series Guía de inicio rápido

RCA

RCA EZ5000R Series Manual de usuario

RCA

RCA CC4291 Manual de usuario

RCA

RCA CC6393 Manual de usuario

RCA

RCA EZ209HD - Small Wonder Camcorder Manual de usuario

RCA

RCA CC6393 Manual de usuario

RCA

RCA EZ5000 Series Manual de usuario

RCA

RCA EZ207 - Small Wonder Camcorder Manual de lista de piezas

RCA

RCA EZ219BL Manual de lista de piezas

RCA

RCA Small Wonder EZ2100 series Manual de instrucciones

RCA

RCA Small Wonder EZ3000 Series Manual de usuario

RCA

RCA CC-285 Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario
