RC4WD VV-JD00020 Manual de usuario

1/14 Scale Earth Hauler 797F Hydraulic Mining

Truck

(VV-JD00020)

1. Truck size: Length 1015MM, Width 685MM and Height 560MM.

2. Truck weight: 100KG, Remote control 0.5KG

3. Main materials include Alloy aluminum，metal board，yellow copper，chrome steel and PC

board

4. Minimum ground clearance: 95MM

5. Capacity: 100KG for scattered materials (such as sands and crushed stones) and the

maximum capacity is 200KG.

6. Power voltage：12V，XT90 connector. We commend an a lipo battery with over 25C 3S

lipo whose size range is 240*130*45MM (length/width/height).

According to test results, a 22000MHA lipo battery can continually work for up to 65

minutes with full load and a 38A lead-acid battery can continually work for up to 35 minutes

with full load.

There are three positions to place the battery. The best option for lipo battery is the left side

of the cab, for the purpose of a more convenient charge. The second position is between

the two chassis. Its space dimension is 175*140*160MM (length/width/height). For a

lead-acid battery, it’s best to choose one with a bigger capacity as long as the size is

eligible. A 38A lead-acid battery was used to run test this truck. The last position is between

the two front wheels. The space dimensions are 270*140*250MM (length/width/height).

7. Maximum speed: 10KM/H

8. Remote control: FS-I6S

9. Hydraulic oil: #32 Hydraulic Oil, 280ML. Mobile 32 Hydraulic Oil 14oz (Z-X0042).

10. Light system: Needs to purchased separately. 1/14 Scale Earth Hauler 797F

Hydraulic Mining Truck Light System (VVV-S0200).

Form 1: Parameter List of QuicRun-WP16BL30

(Parameters in the form below indicate factory defaults)

Programmable Items

Option

Option3

Option4

Option

Option8

Option9

1.Running Mode

Fwd/Re

2.Drag Brk Force

100%

3.Low Voltage Cutoff

3.0VlCe

4.Start Mode

(Punch)

Level5

5.Max. Brk Force

75%

6.Max. Rev Force

100%

7.Initial Brk Force

8.Throttle Range

9.Timing

11.25de

Note 1: Fwd=Forward, Rev=Reverse, Brk=Brake

Note 2: When setting the “automatic identification” mode, the battery pack can only be

recognized as 2S, 4S and 6S Lipo. Because each adipose cell’s normal voltage is from 2.6V to

4.2V, it is not easy to have a correct calculation on the voltage of all adipose cells.

Programmable Items List

Programmable Items

Programmable Value

Option

Option3

Option4

Option

Option9

1.Running Mode

Fwd &

Rev

2.Drag Brk Force

100%

3.Low-Voltage Cutoff

3.0V/ce

4.Start Mode

(Punch)

Level5

5 Max. Brk Force

100%

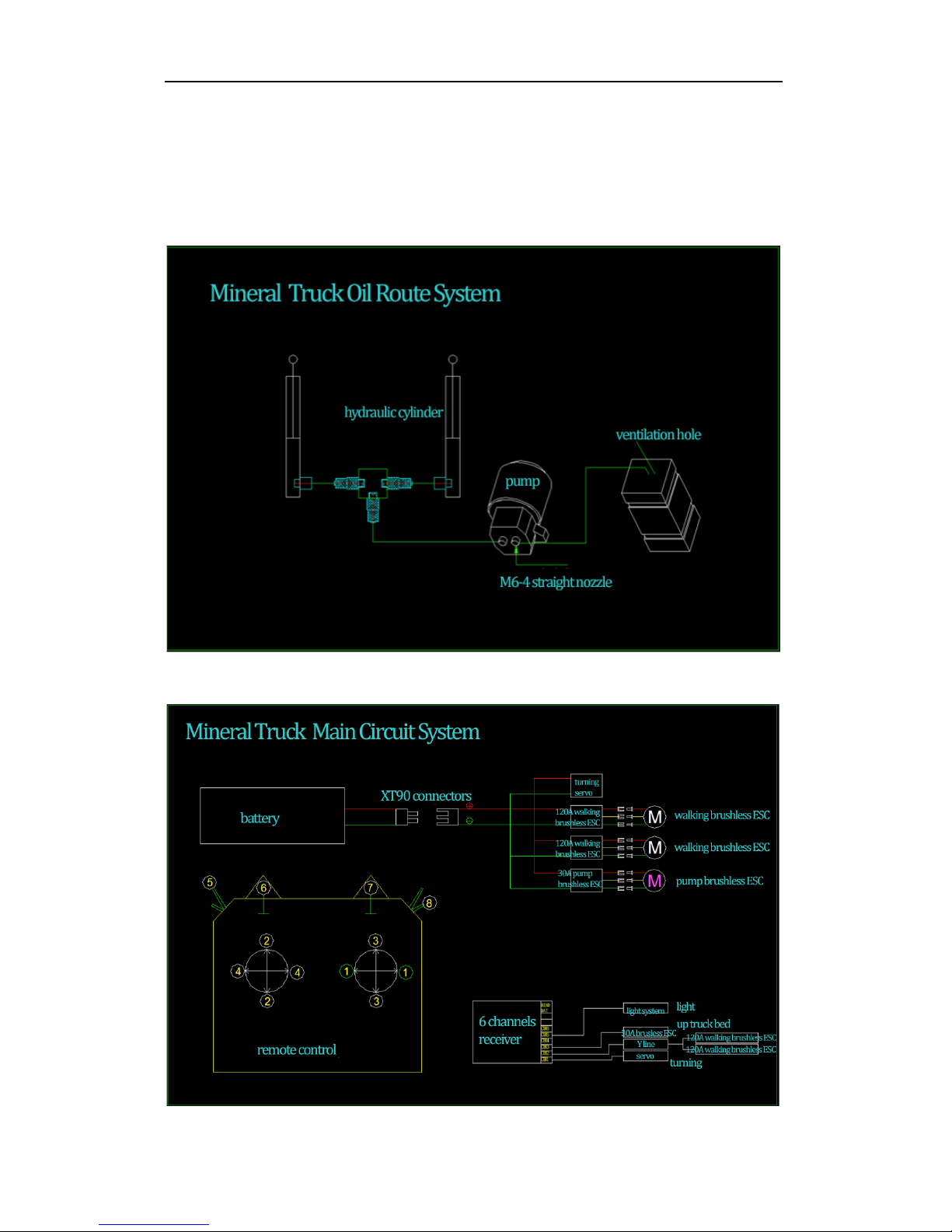

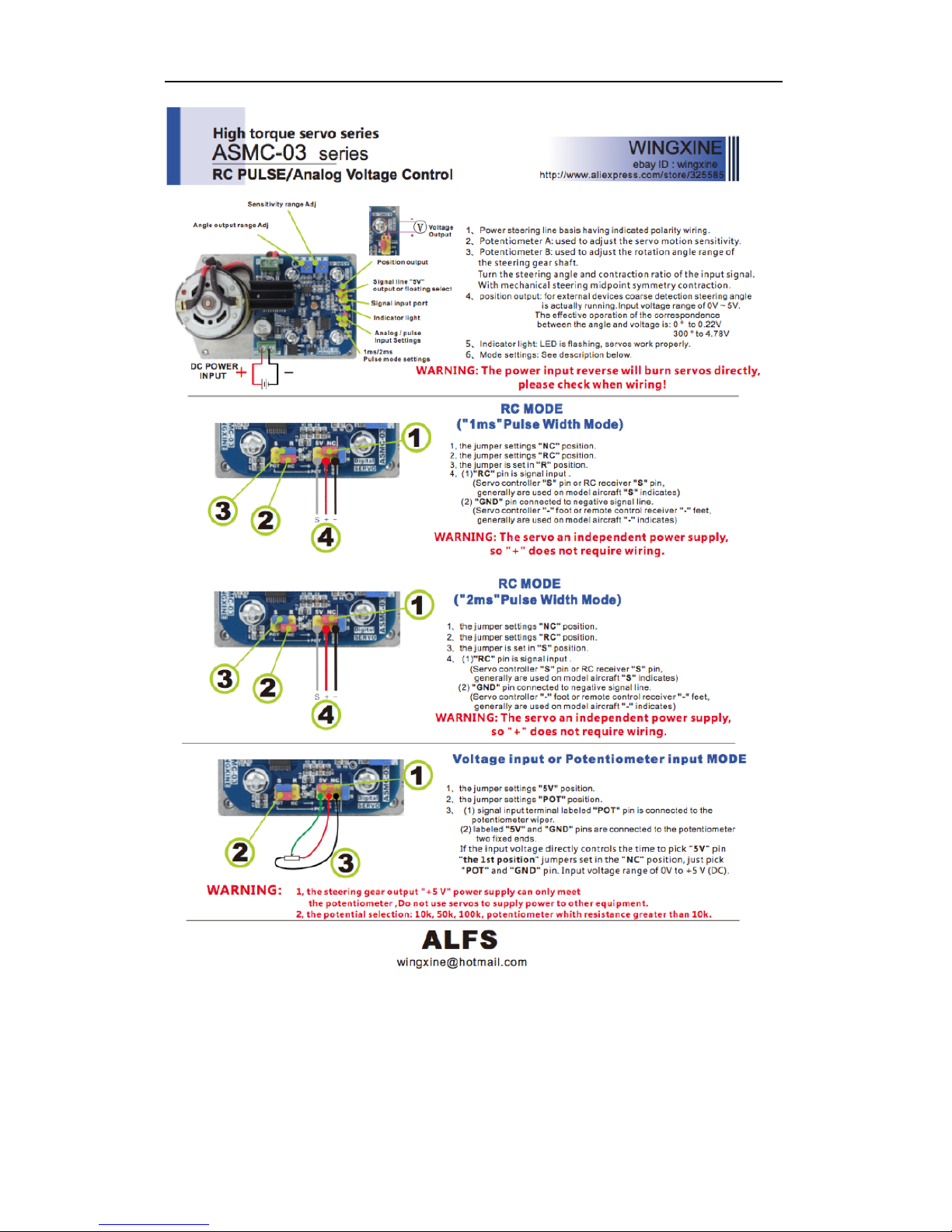

Mineral Truck Servo Specifications:

Working voltage: 12V~24V(DC) (Any voltage between this range is okay)

No-load rotating current: <500mA

Maximum torque: 180kg.cm(24V) (experimental result, instead of theoretical value)

1764N.cm(24V) (experimental result, instead of theoretical value)

90kg.cm(12V) (experimental result, instead of theoretical value)

882N.cm(12V) (experimental result, instead of theoretical value)

Angel speed: 0.5s/60°(it takes 0.5s to turn 60°), when using 24V.

1.0s/60°(it takes 1.0s to turn 60°), when using 12V.

Rotating angel: The Maximum angel is 300° (any angle among this range can be set up).

Input mode: Pulse signal (remote controller, multi-channel controller, single chip computer)

or analog voltage signal (potentiometer)

Range of pulse signal input: 0.5ms-2.5ms, can fit all multi-channel controllers, 1ms-2ms

model aircraft remote controls, "single-chip programming" and "Arduino" and so on.

Range of voltage signal input: 0V~+5V

Accuracy：0.32°

Weight：530G

Gears’ material：steel

Total s i z e ：95.5mm X 60.5mm X 102.6mm

How to pour out oil:
